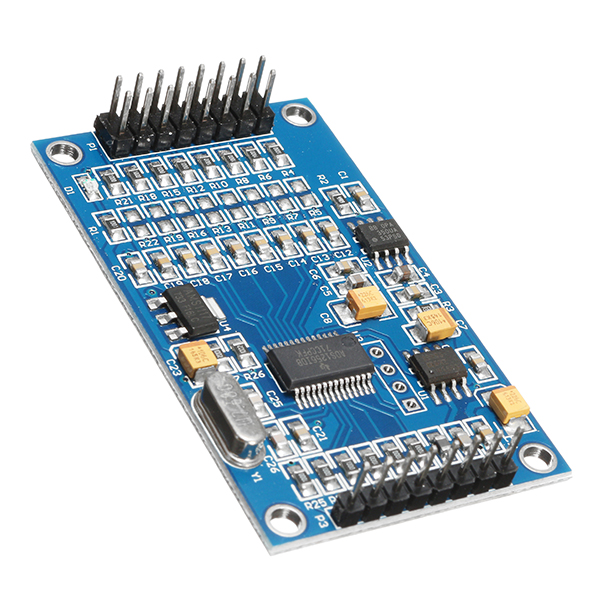

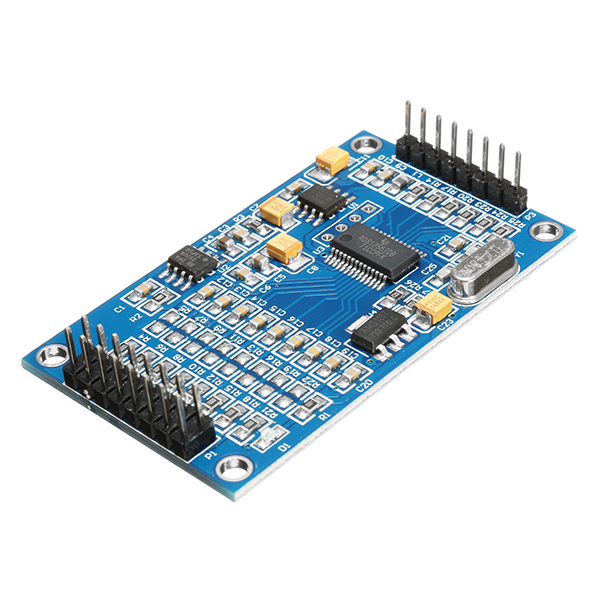

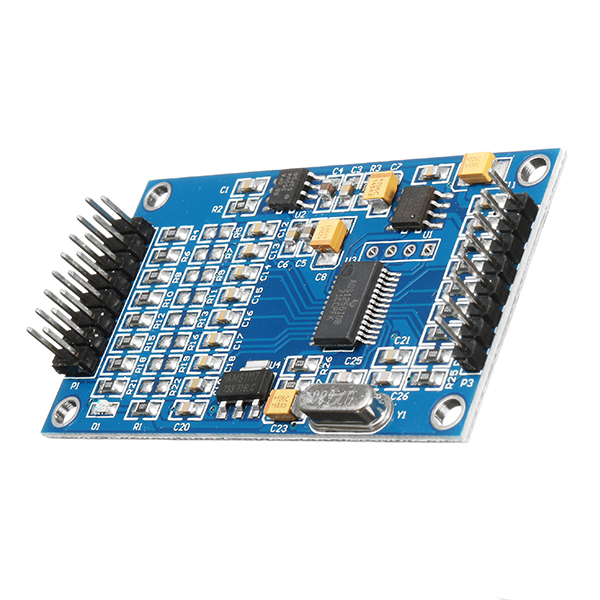

Elecbee ADS1256 5V 8 Channel 24 Bit ADC Data Acquisition Board Module High Precision AD Collecting Data Acquisition Card

SKU: EB0050739

Favorites

Key Features

On-board high precision TI xa0ADS1256IDB xa0ADC chips
On-board ADR03 2.5V datum voltage source chips
Data output rates up to 30ksps, nonlinearity is low to ±0.0010%
The module can be configured as either 8 single-ended inputs or 4 differential inputs
ADS1256 module is suitable for measuring analog voltage within 3V
Module operating voltage is 5V
The board sizexa0is 35*60mm

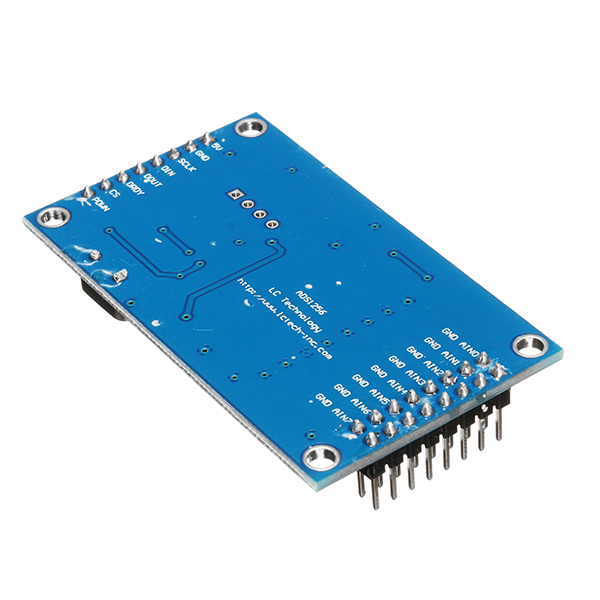

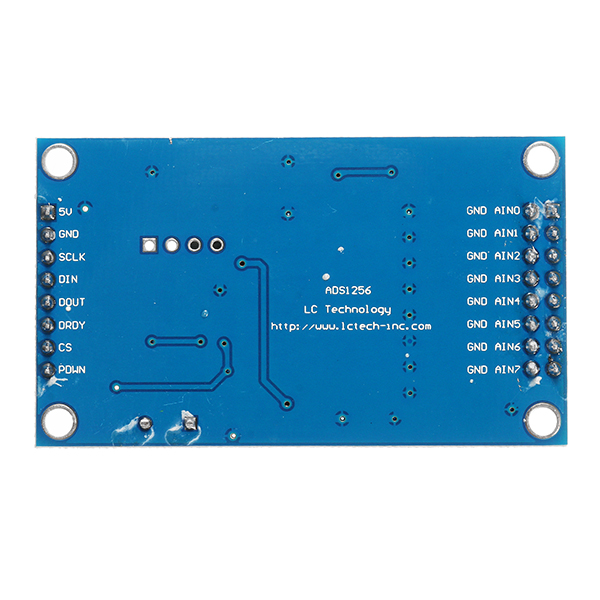

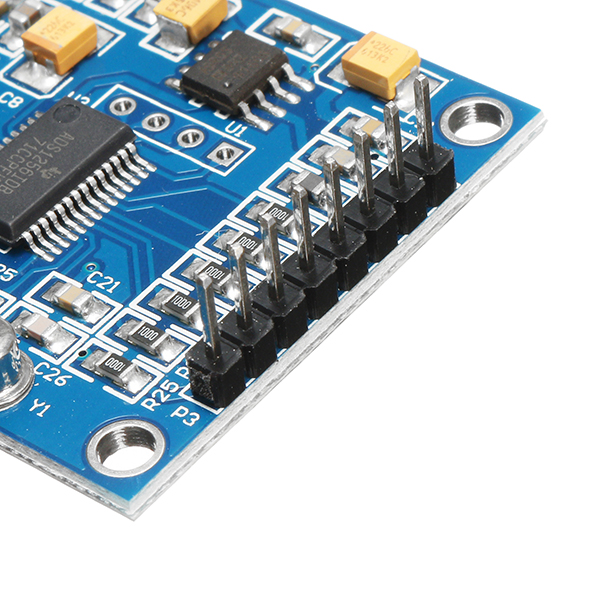

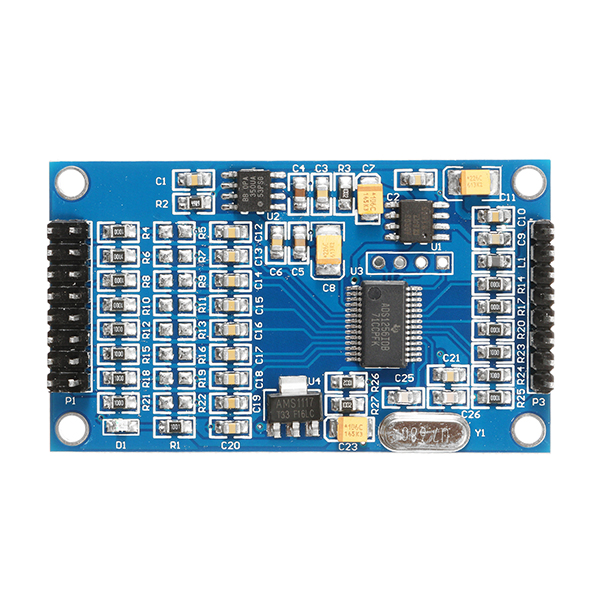

Interface description:

5V, GND: 5V power input
SCLK, DIN, DOUT, CS: SPI communication Interface
DRDY: ADS1256data be ready output (Active low level)
PDWN: ADS1256 Sync / Turn off the power input (Active low level)
AIN0-AIN7: Analog voltage input, it can be configured as either 8 single-ended inputs or 4 differential inputs,
(The measured voltage should be shared with the module)

Precautions:

Because the voltage of ADS1256 is 5V, and The measured voltage should be 2V below the supply voltage,
so The module is only suitable for measuring analog voltages within 3V.

Testing Methods:

Module provides STC15W and STM32 microcontroller 8-channel serial display reference program and STC89C52 single-chip
4-channel 1602LCD display reference program, the STC89C52 Microcontroller + 1602 LCD LCD test method is as follows:
5V, GND connect to DC 5V power supply, SCLK, DIN, DOUT, DRDY, CS connect to Microcontroller P1.2, P1.3, P1.4, P1.5, P1.6 respectively,
AIN0, AIN1, AIN2, AIN3 connect to 2.5V, 2.5V, 2.5V,2.5V respectively (The measured voltage should be in common with the ADS1256),
then 1602 LCD will shows these four sets of voltage values, in which, the 1st ,2nd ,4th sets are single-ended input voltage value of
AIN0, AIN1, AIN3, and the 3rd set is the difference of AIN2-AIN3, the voltage values of these four sets are 2.5V, 2.5V, 0V, 2.5V.
xa0

Shipping Guide

Shipping	Delivery Period	For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days
	Shipping Rates	Shipping rates for your order can be found in the shopping cart.
	Shipping Options	Shipping rates for your order can be found in the shopping cart.
	Shipping Tracking	We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/Warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
	Warranty	All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
		This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
Ordering	How to Buy	Elecbee accepts online orders.
		Add to cart > Check out > Submit order > Complete payment > Delivery
	Payment	PayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Description

Overview:

ADS1256 8 road 24-bit ADC module mounted TI ADS1256IDB, minimum Power consumption, high precision ADC chips
and 2.5V datum voltage source, using SPI interface communication protocol, data output rates up to 30ksps, support
single-ended input and differential input.

Package includes:

1 x ADS1256 24 Bit 8 Channel ADC AD Module
