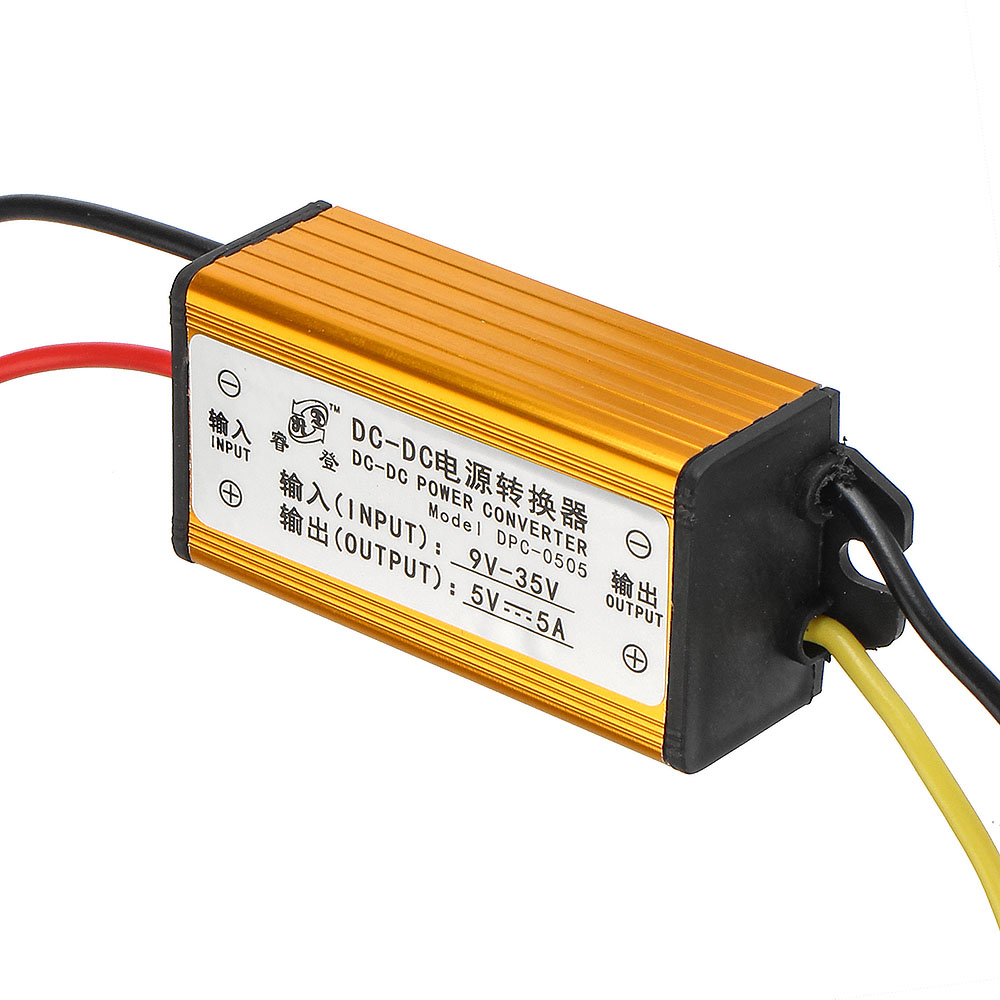

Elecbee DC-DC 12V 24V to 5V 5A Buck Converter 9-35V Input Step Down Power Supply Module Car LED Power Converter

SKU: EB0044153

Favorites

Key Features

1.This module adopts synchronous rectification. And the efficiency is up to 95% with low calorific value.

2.There are many functions, reverse polarity protection and short-circuit protection and etc. It can work normally after remove away the problems.

3.This module has: waterproof! Dustproof! Shockproof! Three functions integrate with one, USES the high quality transparent epoxy glue potting.

4.This module can be widely used in bus, large trucks, cars, solar power, bus display, taxi advertising screen, etc. it never influence car radio, the stereo, LCD TV, LED, car navigation, walkie-talkie and monitoring system, easy to deal with the bad environment.

Specifications:

Rectifying mode: synchronous rectification Input voltage: 9-35V

Output voltage: 5v Output current: 5A (Continuous working) 7A (MAX)

Load regulation: ±1% Voltage regulation: ±2%

Output ripples: 50mV (MAX) Output ripple50mV (MAX)

Conversion efficiency: 95% The low pressure differential: 4V

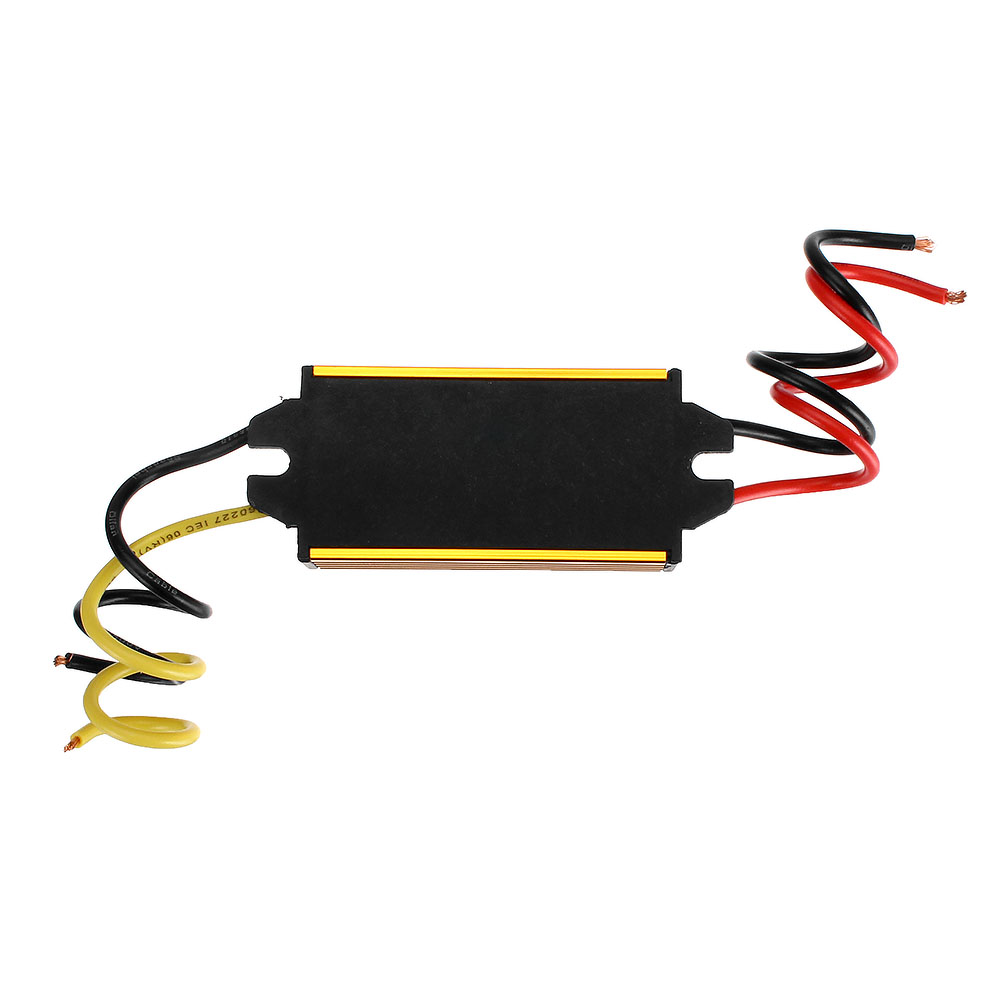

In+: Red wire In-: Black wire

Out+: Yellow wire Out-: Black wire

Weight: 53g Dimensions: 59.3*30.5*21.5mm (L*W *H)

Three wires: 14.5cm Module Type: Non-Isolated buck converter

Working temperature: -20degree - +85degree (industrial grade)(When the temperature is more than 40 degree, please use it in low power or strength heat dissipation)

Note:

1. Please connect the module strictly by the wiring instruction. Or else the module and the load will be damaged

2. In order to make sure that the module has enough power and power, please ensure the power supply has enough power and power.

3. If there are Multiplexed output lines, please distribute load, not combine load.

4. If the output current is up the max output current, please strength heat dissipation ( please leave a room to use, it can prolong life of this module)
