Elecbee 10pcs 6W 2.8V 3V 3.3V 3.7V 4.2V 4.5V to 5V DC-DC Step Up Boost Converter for 18650 403040 Li-Po Li-ion Lithium Battery Module
SKU: EB0044908
Favorites
Key Features
Show More
Specifications
Attribute
Value
Search
Wireless Capability
Wi-Fi + Bluetooth
Shipping Guide
Shipping | Delivery Period | For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Description
Description:

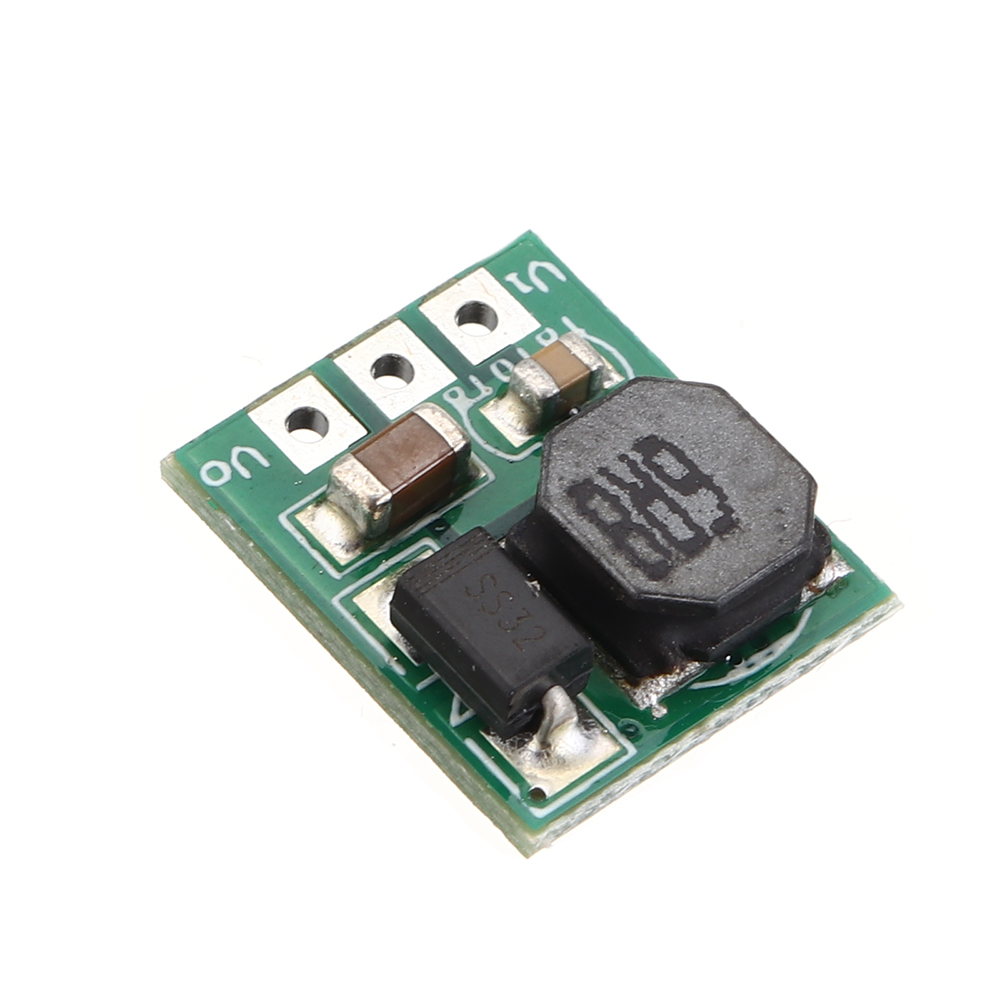

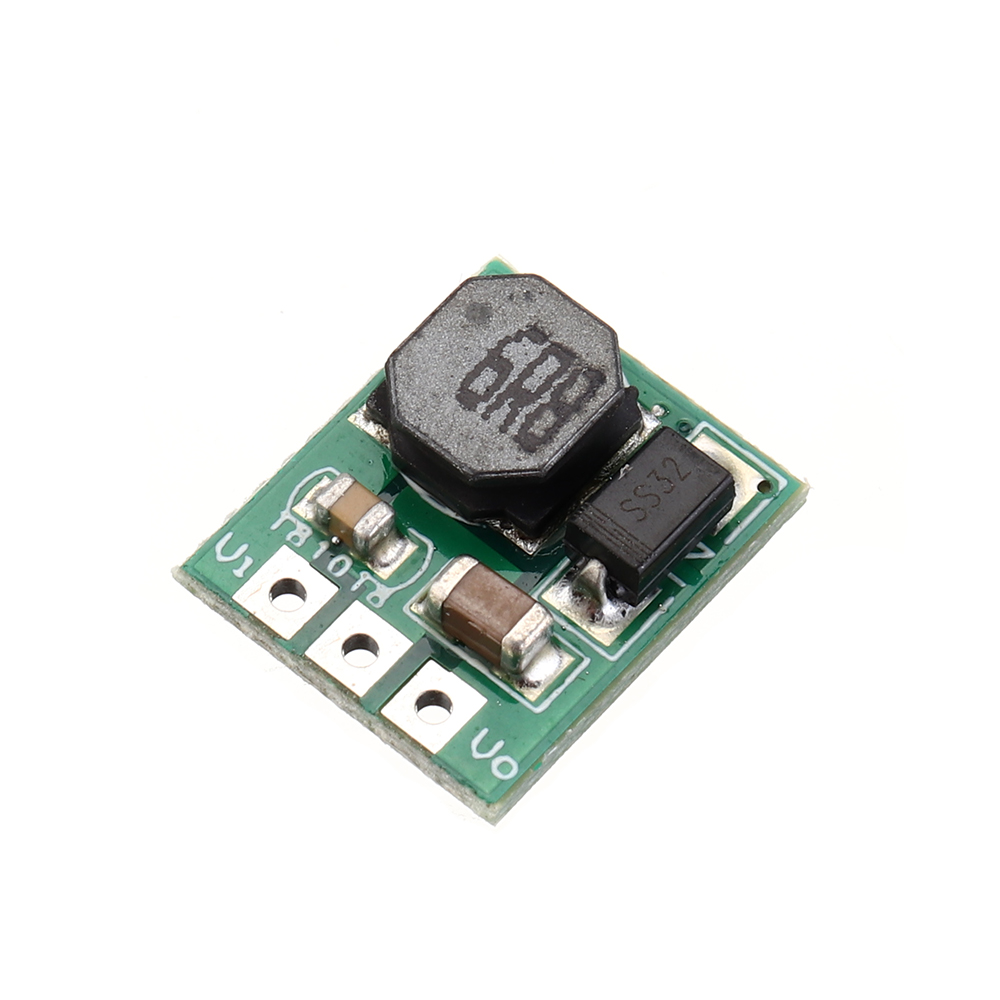

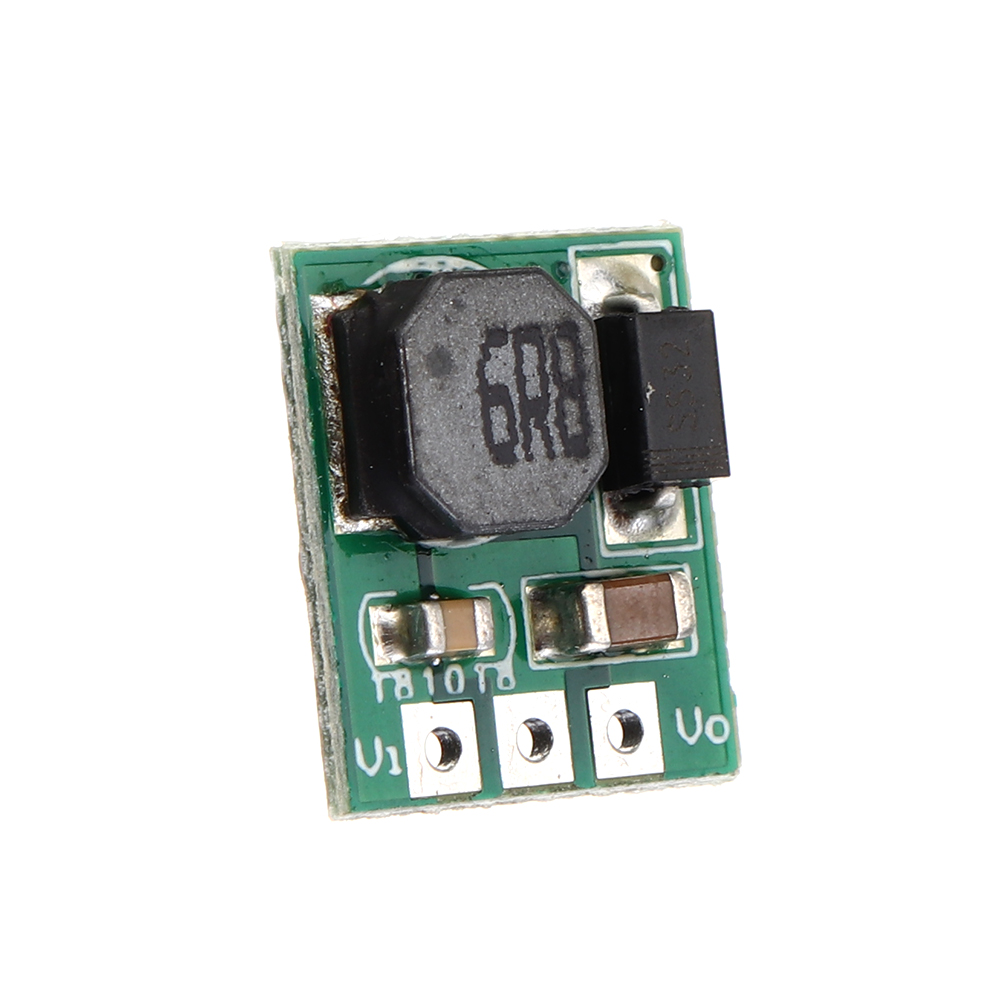

DC DC Boost Converter Module working frequency 1MHZ.
Up to 94% Efficiency (usually is 84%-91%)
Quiescent current: 0.19MA.
Operating temperature range: -40~+85 Degrees Celsius
Storage temperature range: -65~+150 Degrees Celsius

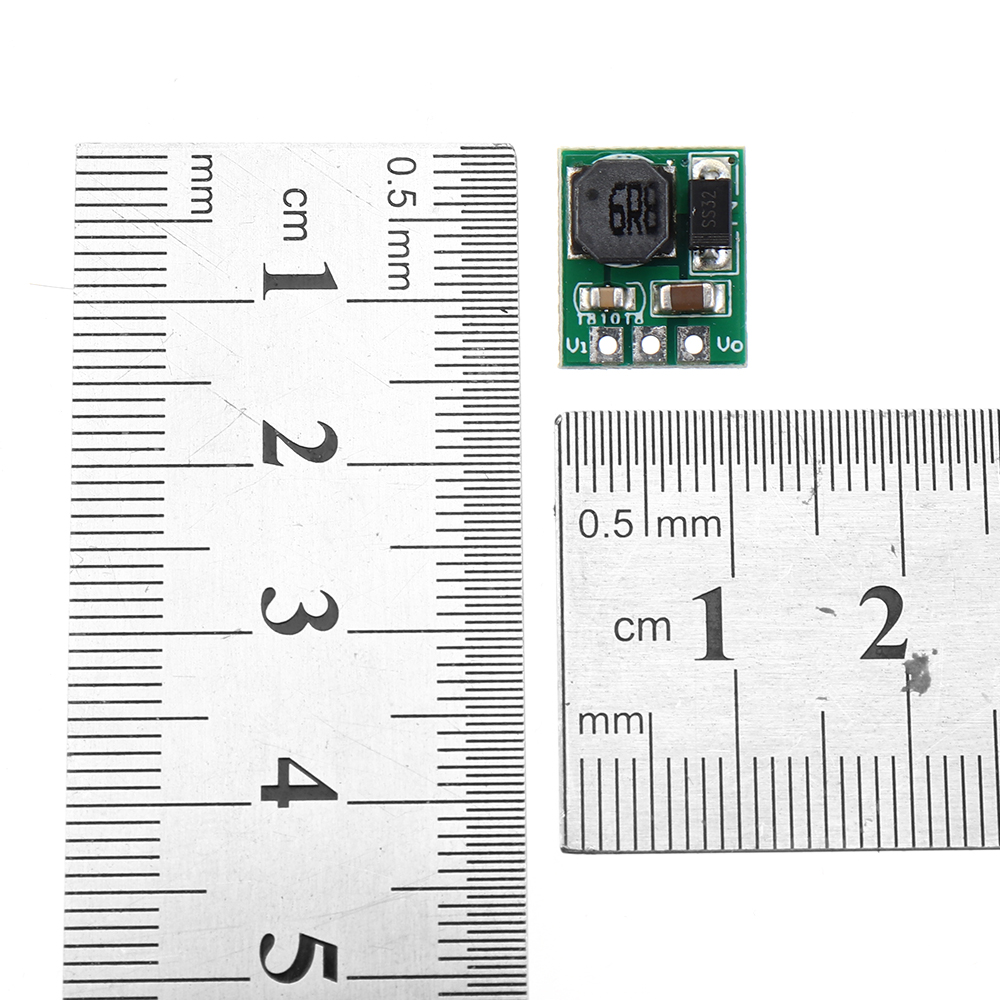

Size: 13 x 11 x 5.2mm(Ultra small & Ultra-thin)
Weight: 1g(Ultralight)
Protection:
Over current protection(OCP)
Over voltage protection(OVP)
Short circuit protection(SCP)
Over temperature protection(OTP)

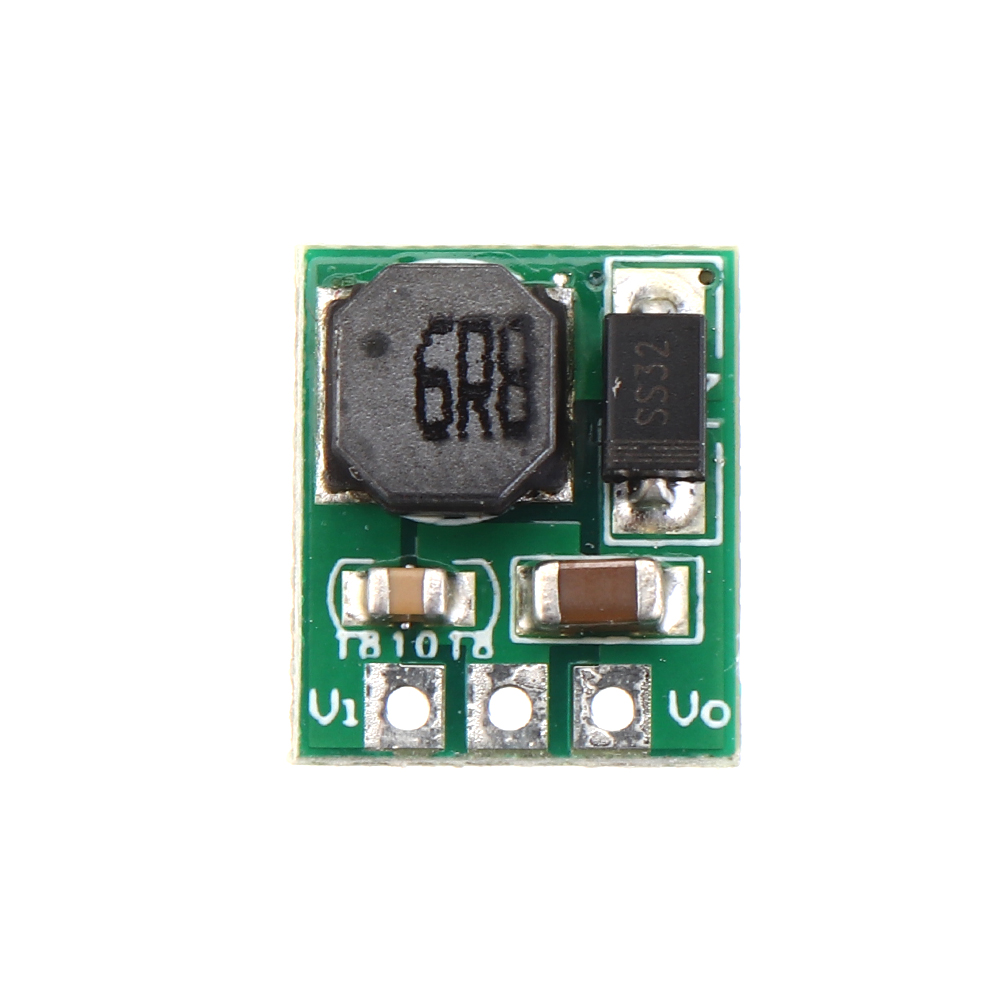

Pin description:
VI: Input positive(+)
GND: Input and Output negative(GND/-)
VO: Output positive(+)
Output 5V:
Input voltage: DC 2.6 ~ 4.5V, output: DC 5V±3%
Maximum output: 5V/1200MA (See the table below for details)
| Input Voltage | Input Current | Output Voltage | Output Current |
| 2.8V | 1.43A | 5V | 0.65A |
| 3V | 1.45A | 5V | 0.72A |
| 3.3V | 1.47A | 5V | 0.82A |
| 3.7V | 1.49A | 5V | 0.92A |
| 4.2V | 1.50A | 5V | 1.00A |
| 4.5V | 1.54A | 5V | 1.20A |
Applications:
Battery-powered equipment
Instrumentation, multimeter
Small power motors
PTZ Camera webcam
IP Camera
Toy car boat
Model aircraft
power bank
LED Lighting
WIFI Router
PLC RS485 devices
Lithium battery power supply equipment
Attention:
This is a DC-DC voltage converter module, Must be noted when using:
1. Input voltage can not be greater than the maximum input range
2. Output power can not be greater than the maximum load for a long time
3. Input power must be greater than the output power, because of the power consumption of the module itself
Q & A:
Q: Why output voltage is less than the nominal voltage
A: Input power supply power is too low. Test the input voltage with a multimeter, at this time of the input voltage is very low
10 x 6W mini 2.6-4.5V to 5V Boost Voltage Regulator Module
