Elecbee ZP01-MP503 Air-Quality Monitoring Module Formaldehyde Benzene Carbon Monoxide Hydrogen Alcohol Ammonia Smoke Essence for Air Cleaner Air Quality Monitor

SKU: EB0043465

Favorites

Key Features

Specifications

Show Similar Products (2768) >

Attribute

Value

Wireless Capability

Bluetooth

Show Similar Products (2768) >

Shipping Guide

Shipping	Delivery Period	For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days
	Shipping Rates	Shipping rates for your order can be found in the shopping cart.
	Shipping Options	Shipping rates for your order can be found in the shopping cart.
	Shipping Tracking	We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/Warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
	Warranty	All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
		This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
Ordering	How to Buy	Elecbee accepts online orders.
		Add to cart > Check out > Submit order > Complete payment > Delivery
	Payment	PayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Description

>>>Manual: Click here to open<<<

Principle Introduction:

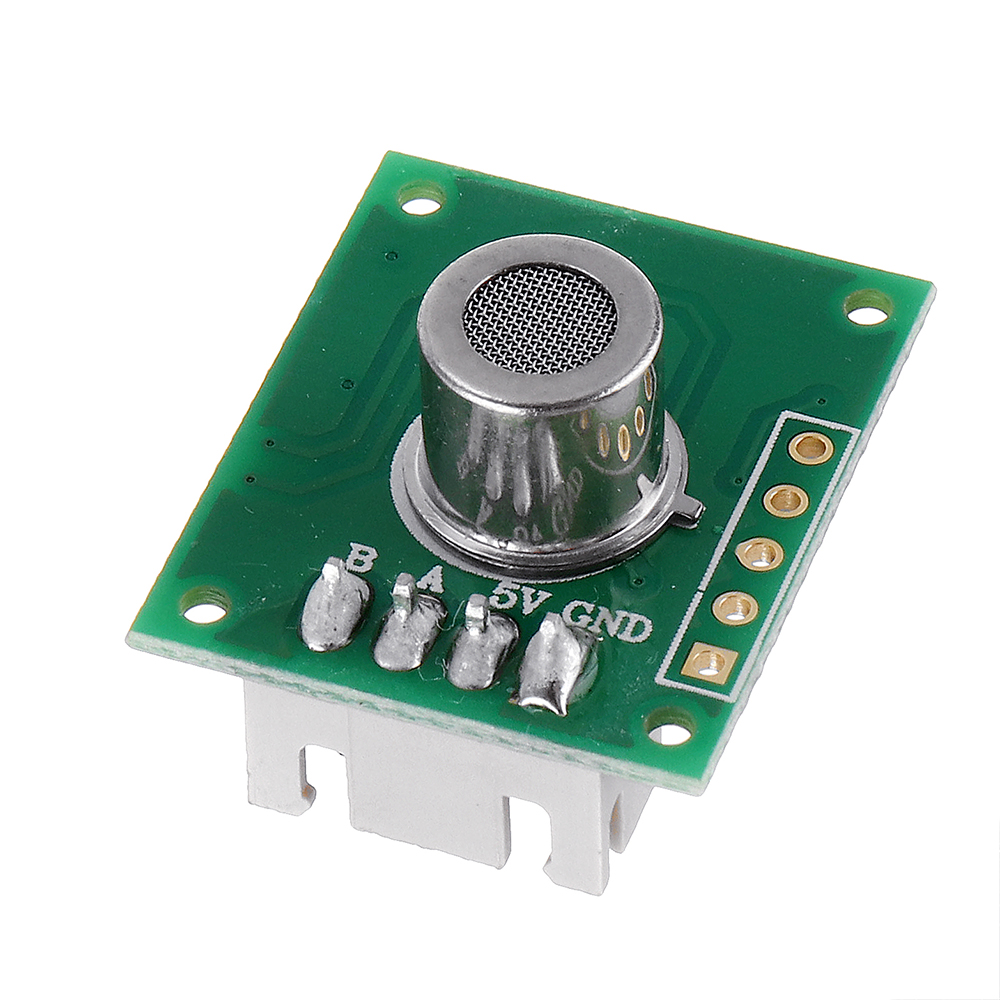

ZP01-MP503 air-quality module adopts flat surface semiconductor gas sensor. The module has very high sensitivity to volatile organic gases such as formaldehyde, benzene, carbon monoxide, ammonia, hydrogen, alcohol and smoke, essence &etc. The module has been aging, debugged, adjusted and calibrated. So it has good consistency and high sensitivity.

Applications :

Air cleaner, fresh-air system, intelligent integrated ceiling, air quality monitor, ventilator, air-condition.

Technical Parameters :

Sensor	Air quality sensor
Target Gas	formaldehyde, benzene, carbon monoxide, hydrogen,alcohol, ammonia, smoke , essence &etc.
Physical Interface	XH2.54-4P terminal sockets
Output Data	0－3 grade pollution signal
Working Voltage	5.0±0.2V DC (No voltage reverse connect protection)
Output Data	TTL level (200ohm protected resistance inside)
Working Current	≤60mA
Warm Up Time	≤3 min
Response Time	≤20s
RecoveryTime	≤60s
OperatingTemperature	0～50℃
OperatingHumidity	≤95％RH
StorageTemperature	－20～60℃
Storage Humidity	≤60％RH
Size	24×20×15mm（L×W×H）
Weight	≤ 20g
Sensitivity Attenuator	≤1%/year
