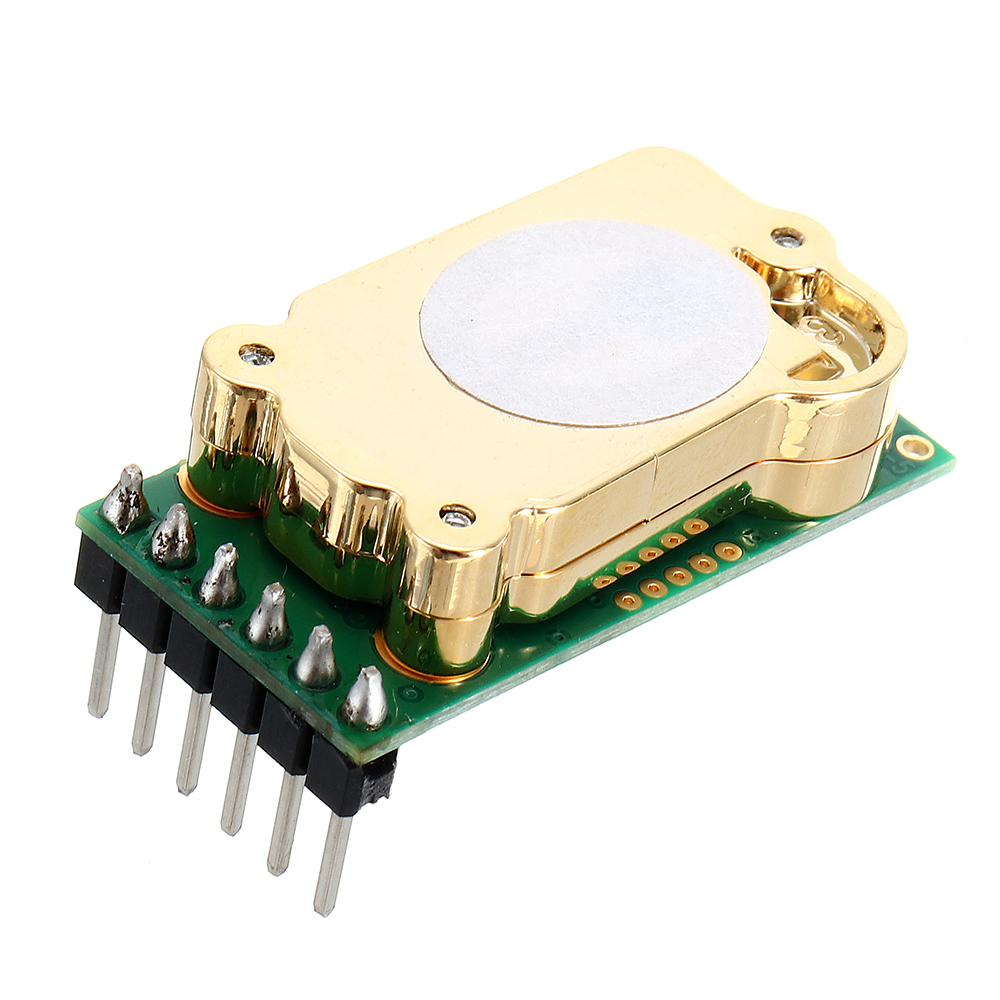

Elecbee T6703 CO2 Sensor Module Carbon Dioxide Sensor T6703-5K Small Size High Accuracy Infrared Gas Sensor Module

SKU: EB0043055

Favorites

Key Features

- An affordable gas sensing solution for OEMs.

- Eliminates the need for calibration in most applications with Telaire’s patented ABC LogicTM software.

- A reliable sensor design based on 20 years of engineering and manufacturing expertise.

- Flexible CO2 sensor platform designed to interact with other microprocessor devices.

- Compact design and versatile interface options for simple product integration.

Specifications:

Method	Nonxa0Dispersivexa0Infraredxa0(NDIR),xa0goldxa0platedxa0optics,diffusionxa0samplingxa0(withxa0Telaire’sxa0Patentedxa0ABCxa0Logicxa0Selfxa0Calibratedxa0Algorithm)
Measurementxa0Range	0xa0toxa05000xa0ppm
Dimensions	1.18xa0inxa0Xxa00.61xa0inxa0Xxa00.34xa0inxa0
Dimensions	(30xa0mmxa0Xxa015.6xa0mmxa0Xxa08.6xa0mm)
Accuracy*	400-5000xa0ppmxa0±xa075xa0ppmxa0orxa010%xa0ofxa0reading,whicheverxa0isxa0greater
Temperaturexa0Dependence	5xa0ppmxa0perxa0°Cxa0orxa00.5%xa0ofxa0thexa0readingxa0perxa0°C,whicheverxa0isxa0greater
Stability
Pressurexa0Dependence	0.13%xa0ofxa0readingxa0perxa0mmxa0Hg
Calibrationxa0Interval	Notxa0required
Responsexa0Time
Signalxa0Update	Everyxa05xa0seconds
Warmxa0Upxa0Time
Warmxa0Upxa0Time	10xa0minutesxa0(maximumxa0accuracy)
Operatingxa0Conditions	50°Fxa0toxa0122°Fxa0(10°Cxa0toxa050°C)
Operatingxa0Conditions	0xa0toxa095%xa0RH,xa0non-condensing
Storagexa0Conditions	-22°Fxa0toxa0158°Fxa0(-30°Cxa0toxa070°C)

Output
Digital	I2Cxa0slavexa0upxa0toxa0100xa0kHzxa0
Digital	UARTxa0@xa019200xa0Baudxa0w/Modbusxa0support
PWMxa0Outputxa0Mode	Twoxa0options,xa0cyclexa0periodxa01002xa0msxa0(~1Hz)xa0orxa040xa0usxa0(25kHz)
Powerxa0Supplyxa0Requirements	4.5-5.5xa0VDC
	Peakxa0200mAxa0(155mAxa0typical)
	Averagexa025mAxa0(20mAxa0typical)

Applications:

Air Purifiers

Air Conditioning

Home monitoring

Desktop IAQ

Consumer product

Interface Connections:

Designed for male header with 0.1 in (2.54mm) spacing Header not included.

Notes:

1. Tolerance based on span gas of ±2%, which adds to the uncertainty, tested at Standard Ambient Temperature and Pressure (SATP).

2. Subjecting sensors to environments less than 400 ppm may affect accuracy due to ABC Logic algorithm.

3. Based on nominal 5VDC input voltage.For best performance, DC supply should be a regulated, low noise power source.

4. Full accuracy to be achieved utilizing ABC Logic. With ABC Logic enabled, the sensor will typically reach its operational accuracy after 24 hours of continuous operation. Sensor will maintain accuracy specifications with ABC Logic enabled, given that it is at least four times in 21 days exposed to a reference level of 400ppm.

5. Applies when used in typical residential ambient air.

Calibration:

Does not recommend the customer recalibrate the T6703 module after installation. The sensor ABC Logic algorithm will begin after 24 hours, adjusting the sensor measurement resulting in sensor-to-sensor consistency. If immediate consistency is desired, the sensors may be single point calibrated using pre-mixed reference gas or ambient air measured by a reference sensor.

- An affordable gas sensing solution for OEMs.

- Eliminates the need for calibration in most applications with Telaire’s patented ABC LogicTM software.

- A reliable sensor design based on 20 years of engineering and manufacturing expertise.

- Flexible CO2 sensor platform designed to interact with other microprocessor devices.

- Compact design and versatile interface options for simple product integration.

Specifications:

Method	Nonxa0Dispersivexa0Infraredxa0(NDIR),xa0goldxa0platedxa0optics,diffusionxa0samplingxa0(withxa0Telaire’sxa0Patentedxa0ABCxa0Logicxa0Selfxa0Calibratedxa0Algorithm)
Measurementxa0Range	0xa0toxa05000xa0ppm
Dimensions	1.18xa0inxa0Xxa00.61xa0inxa0Xxa00.34xa0inxa0
Dimensions	(30xa0mmxa0Xxa015.6xa0mmxa0Xxa08.6xa0mm)
Accuracy*	400-5000xa0ppmxa0±xa075xa0ppmxa0orxa010%xa0ofxa0reading,whicheverxa0isxa0greater
Temperaturexa0Dependence	5xa0ppmxa0perxa0°Cxa0orxa00.5%xa0ofxa0thexa0readingxa0perxa0°C,whicheverxa0isxa0greater
Stability
Pressurexa0Dependence	0.13%xa0ofxa0readingxa0perxa0mmxa0Hg
Calibrationxa0Interval	Notxa0required
Responsexa0Time
Signalxa0Update	Everyxa05xa0seconds
Warmxa0Upxa0Time
Warmxa0Upxa0Time	10xa0minutesxa0(maximumxa0accuracy)
Operatingxa0Conditions	50°Fxa0toxa0122°Fxa0(10°Cxa0toxa050°C)
Operatingxa0Conditions	0xa0toxa095%xa0RH,xa0non-condensing
Storagexa0Conditions	-22°Fxa0toxa0158°Fxa0(-30°Cxa0toxa070°C)

Output
Digital	I2Cxa0slavexa0upxa0toxa0100xa0kHzxa0
Digital	UARTxa0@xa019200xa0Baudxa0w/Modbusxa0support
PWMxa0Outputxa0Mode	Twoxa0options,xa0cyclexa0periodxa01002xa0msxa0(~1Hz)xa0orxa040xa0usxa0(25kHz)
Powerxa0Supplyxa0Requirements	4.5-5.5xa0VDC
	Peakxa0200mAxa0(155mAxa0typical)
	Averagexa025mAxa0(20mAxa0typical)

Applications:

Air Purifiers

Air Conditioning

Home monitoring

Desktop IAQ

Consumer product

Interface Connections:

Designed for male header with 0.1 in (2.54mm) spacing Header not included.

Notes:

1. Tolerance based on span gas of ±2%, which adds to the uncertainty, tested at Standard Ambient Temperature and Pressure (SATP).

2. Subjecting sensors to environments less than 400 ppm may affect accuracy due to ABC Logic algorithm.

3. Based on nominal 5VDC input voltage.For best performance, DC supply should be a regulated, low noise power source.

5. Applies when used in typical residential ambient air.

Calibration:

Show Less
