Elecbee STM32F407VET6 Development Board Cortex-M4 STM32 Small System Learning Core Module
SKU: EB0041609
Favorites

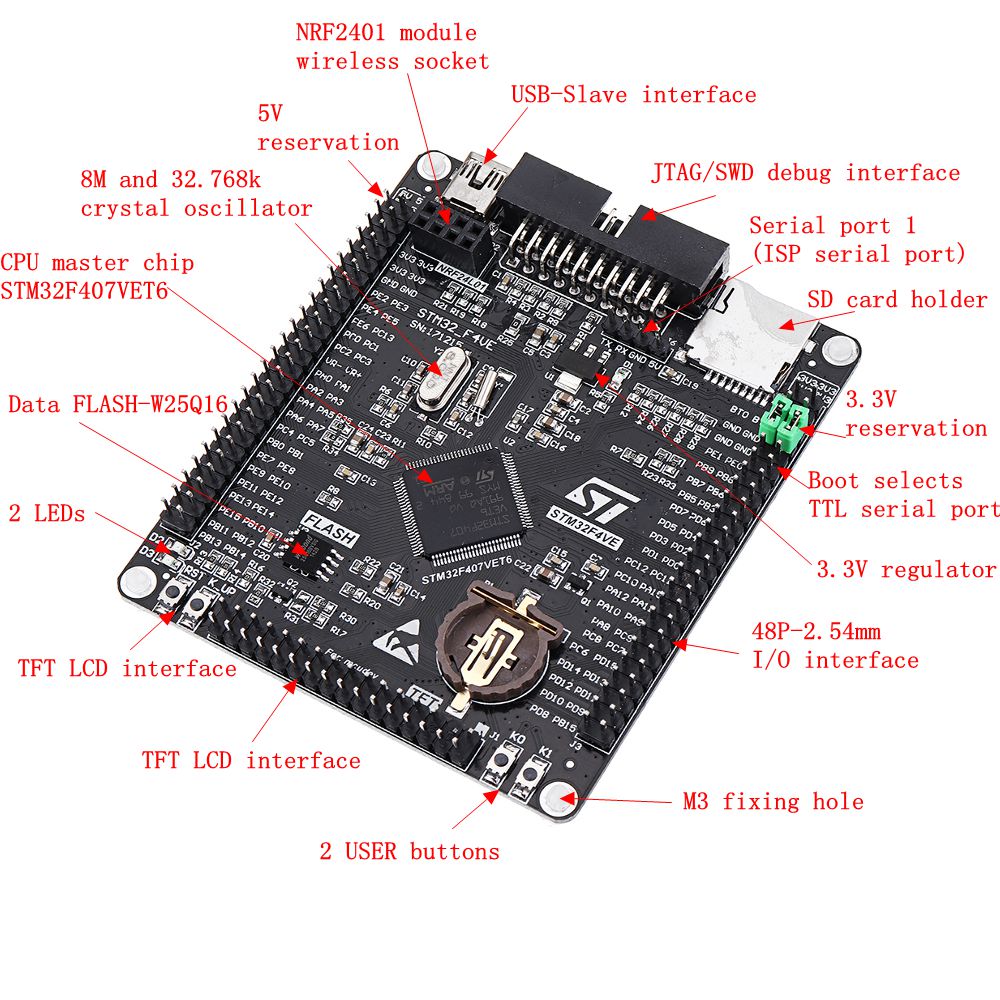

Key Features
Onboard: SD card holder
RTC battery: CR1220 (not includes)
Wireless communication: NRF2401 interface
Data storage: W25Q16
Support FMSC liquid interface
Multi-user press
All CPUs - IO lead
2.54mm integer double pitch pin
Show More
Specifications
Attribute
Value
Search
MCU/SoC Model
STM32F407VET6 Cortex-M4 STM32
CPU Architecture
STM32F407VET
Wireless Capability
ARM Cortex-M
Memory
STM32CubeIDE / Arduino
Debug Interface
USB, UART, SPI, CAN, ETHERNET
Power Protection
407V
Thermal Solution
UART
Shipping Guide
Shipping | Delivery Period | For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Description
Tips: The USB cable is powered separately to the development board, not USB to serial port.
Chip introduction:
STM32F407VET6
Core: Cortex-M4 32-bit RISC;
Features: Single-cycle DSP instructions:
Working frequency: 168MHz, 210 DMIPS/1.25 DMIPS/MHz
Working voltage: 1.8V-3.6V
Package: LQFP100
Storage resources: 512kB FIash, 192+4kB SRAM
Resources: 3 x SPI, 3 x USART, 2 x UART,
2 x l2S, 3xl2C;
1 x FSMC, 1xSDIO, 2xCAN;
1 x FSMC, 1xSDIO, 2xCAN;
1 x USB 2.0 FS/HS controller (with dedicated DMA);
1 x USB HS ULPI; (for external USB HS PHY)
1 x USB HS ULPI; (for external USB HS PHY)
1 x 10/100 Ethernet MAC;
1 x 8 to 12-bit parallel camera interface;
3 x AD (12-bit, 1us, time-sharing 24), 2xDA (12-bit)

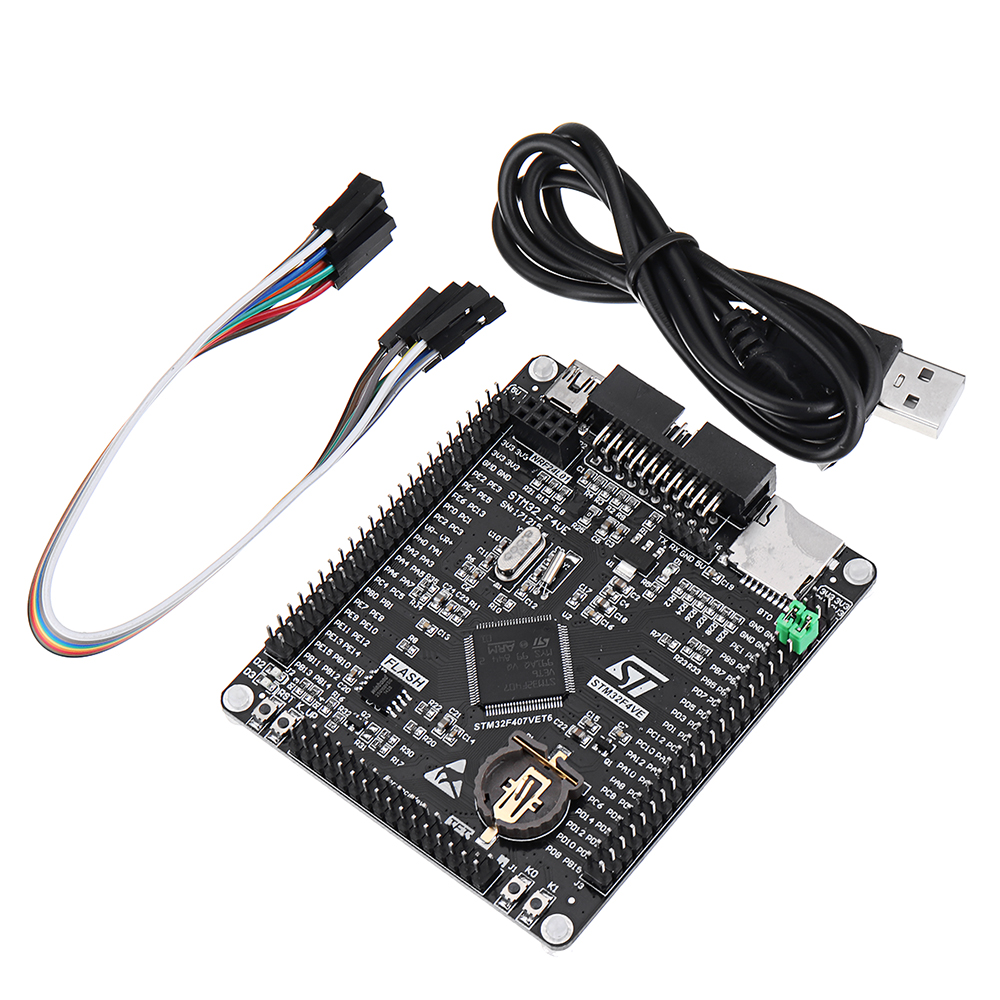

Package includes:
1 x Development board
1 x USB cable for development board
1 x Dupont cable
