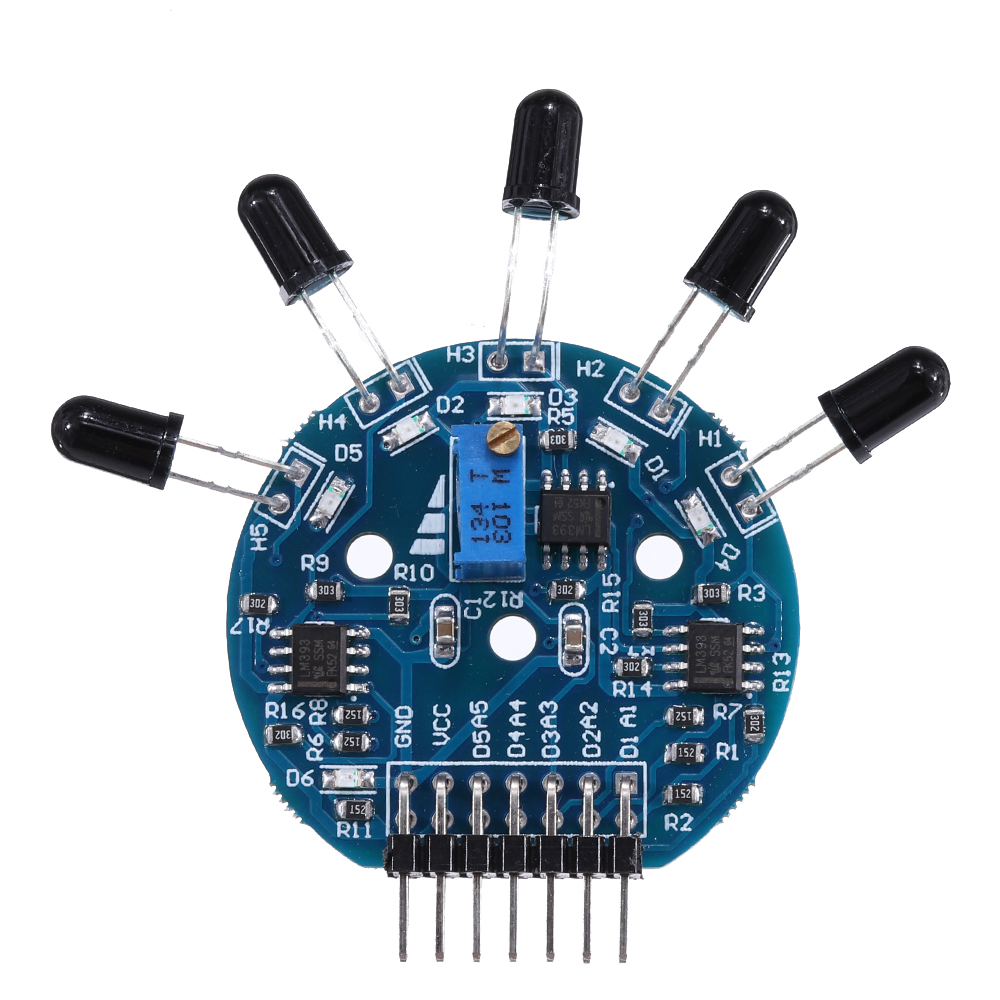

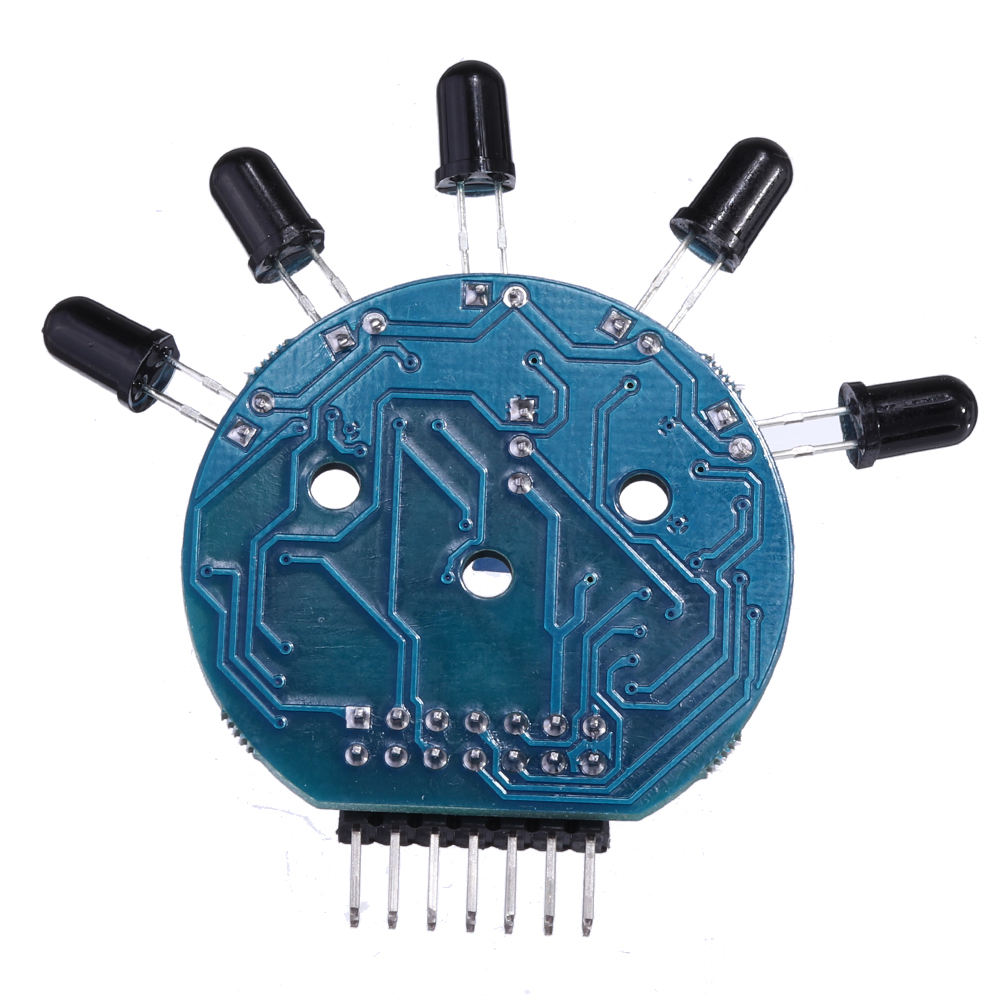

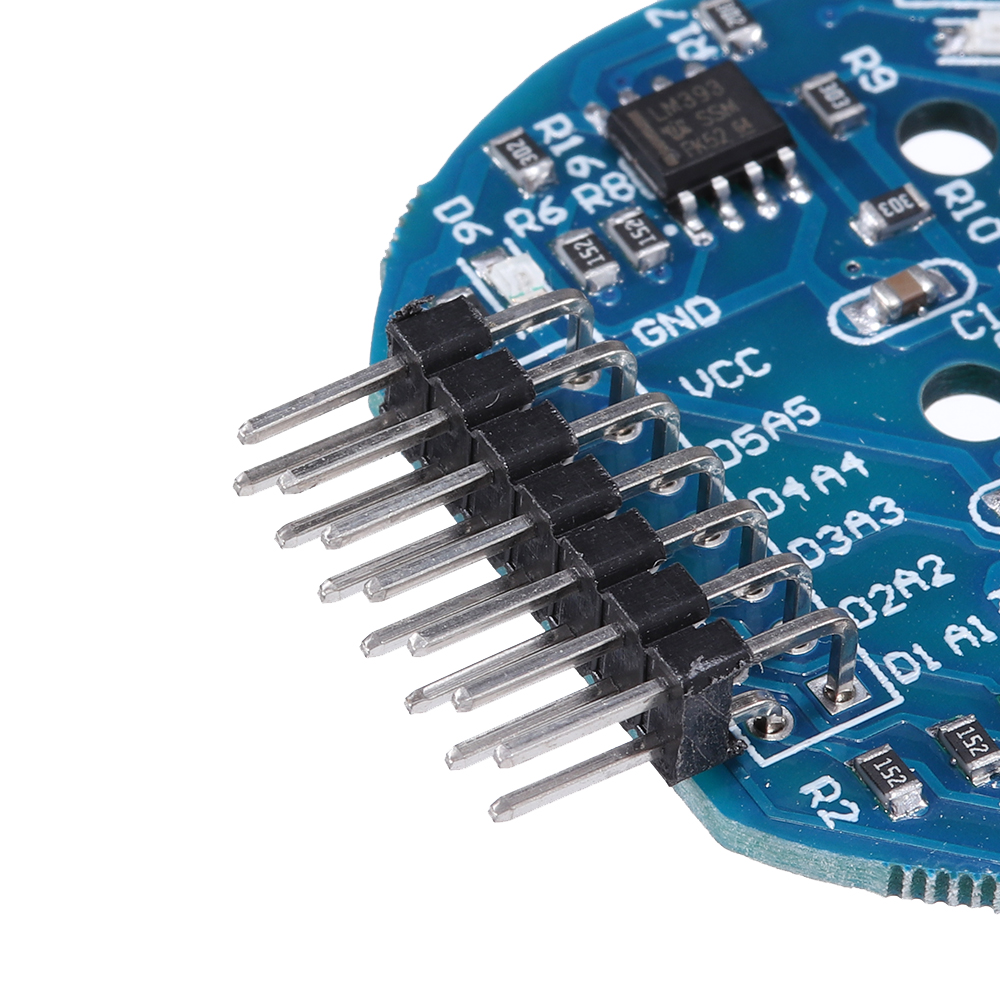

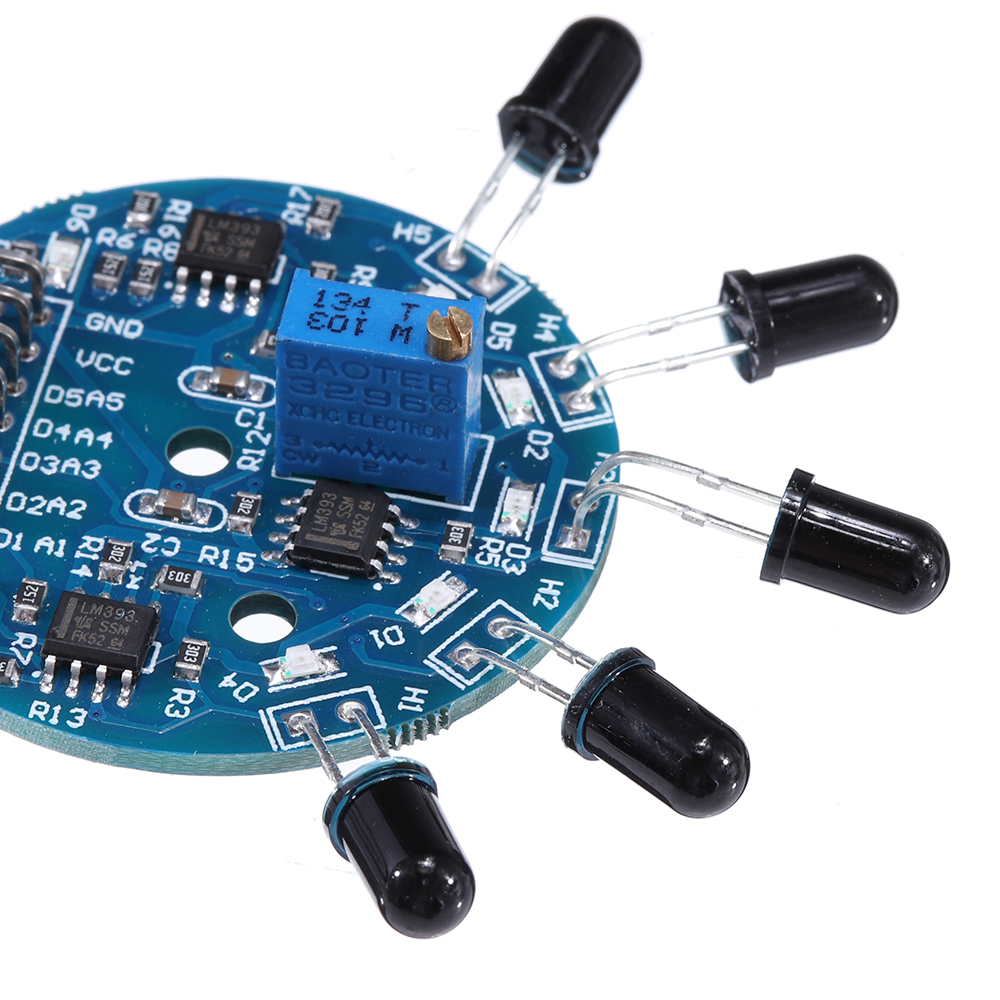

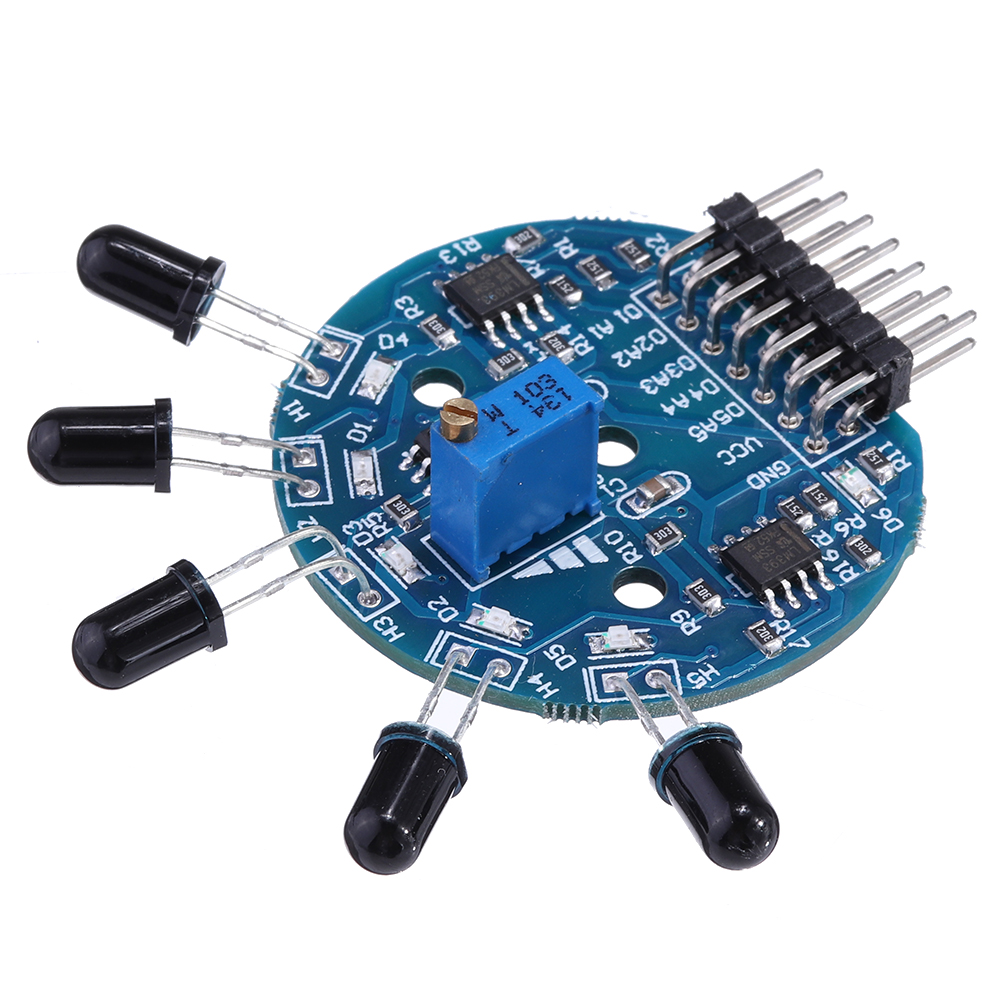

Elecbee 10pcs 5 Channel Flame Sensor Module Analog Dgital Dual Output Fire Extinguishing Robot Flame AlSystem Module

SKU: EB0047630

Favorites

Key Features

xa0

1.Using a five-way flame sensor design, the detection range is wide (the detection range of a common single flame sensor is about 30°, and the range is gradually reduced as the distance increases, the detection range of this product is greater than 120°)

2.Can output digital signals (high and low level), easy to use

3. can output analog signal (voltage signal), can measure signals more accurately, suitable for high precision occasions

4. Five-way output all have status indicators, which makes great convenience in debugging or in actual operation.

5. Digital output detection distance is adjustable, analog output sensitivity is adjustable, design is more flexible

6. Adopts 1% resistor design (the flame sensor on the market is designed with 5% resistor), the signal output is more accurate, suitable for occasions requiring high precision measurement.

7. Onboard 3 M3 mounting holes for easy installation

8.3.3V-9V power supply, compatible with most single-chip systems

9. SMD devices are all fully automatic welded by SMT process, and the quality of military products is trustworthy.

10. Applications: All occasions required for flame detection.

11. Use Cases: Fire extinguishing robot/Flame alarm

xa0

Working Principle:

xa0

xa0 xa0 This product is capable of detecting short-wave near-infrared (SW-NIR) waves with a range of 700-1100 nm from the flame and outputting them via electrical signals (voltage signals).

xa0

Specifications

Show Similar Products (2768) >

Attribute

Value

MCU/SoC Model

10pcs Channel Flame

CPU Architecture

TIONIMAGE0

Memory

STM32CubeIDE / Arduino
