Elecbee MQ131 MQ-131 Ozone Sensor Module O3 Gas Detector Low Concentration 10-1000ppb High Sensitivity Detector

SKU: EB0043100

Favorites

Key Features

It has good sensitivity to ozone in wide range, and has advantages, low cost and simple drive circuit &etc.

Applications:

It is widely used in domestic ozone concentration alarm, industrial ozone concentration alarm and

portable ozone concentration detector.

Specifications:

Specifications

Show Similar Products (2768) >

Attribute

Value

Wireless Capability

Bluetooth

Show Similar Products (2768) >

Shipping Guide

Shipping	Delivery Period	For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days
	Shipping Rates	Shipping rates for your order can be found in the shopping cart.
	Shipping Options	Shipping rates for your order can be found in the shopping cart.
	Shipping Tracking	We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/Warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
	Warranty	All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
		This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
Ordering	How to Buy	Elecbee accepts online orders.
		Add to cart > Check out > Submit order > Complete payment > Delivery
	Payment	PayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Description

>>>Manual: Click here to open<<<

Overview:

Sensitive material of MQ131 gas sensor is WO3, whichwith lower conductivity in clean air. When the ozone gas exists, the sensor’s conductivity gets lower along with the gas concentration rising. Users can convert the change of conductivity to correspond output signal of gas concentration through a simple circuit.

MQ131 ozone gas sensor has high sensitivity to ozone, and also has sensitivity to strong oxide such as Cl2, NO2 &etc. It responses oppositely to organic interference gases.

Package includes:

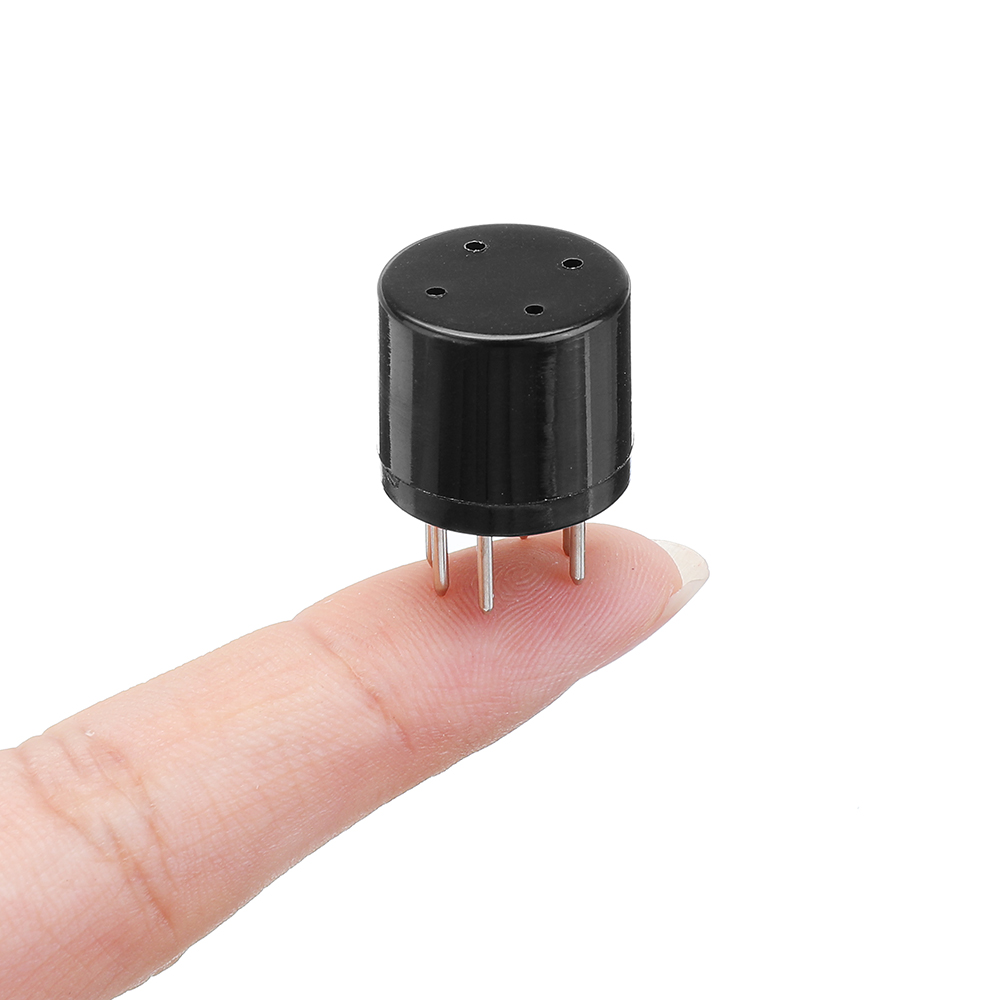

1 x MQ131 Ozone Sensor O3 Gas Detector Module

Model				MQ131
product type				Semiconductor gas sensor
Standard package				Plastic
Detection of gas				Ozone
Detectable concentration				10-1000ppb Ozon
Standard circuit conditions		Circuit voltage		Vc		≤24V DC
Heating voltage			VH		5.0V±0.1VACorDC
Load Resistance			RL		Adjustable
Under standard test conditions sensing Characteristics	Heating resistors			RH		34Ω±3Ω(Room temperature)
Heating consumption			PH		≤900mW
Sensitivity			S		Rs(in air)/Rs(in 200ppb O3)≥2
The output voltage			Vs		≥1.0V(in 200ppb O3)
Concentration slope			α		≤0.6(R500ppb/R100ppbO3)
Standard Test Conditions			Temperature, humidity		20°C±2°C 55%±5%RH
Standard test circuit				Vc:5.0V±0.1V
				VH: 5.0V±0.1V
Warm-up time				Less than 48 hours
