Elecbee DIY MP3 Decoder Board Player Bluetooth Lossless APE Decoder EQ Adjustment/FM Spectrum Display Audio Equalizer

1. Support stereo Bluetooth speaker function, mobile phones and other devices can send music to speakers (A2DP) via Bluetooth;

2. Support the speaker terminal to control the up and down music through the Bluetooth control mobile phone and other devices, adjust the volume;

3. Bluetooth is based on CLASS 2 power level, adopts Bluetooth 4.2, compatible with Bluetooth 3.0 and below, and the transmission speed can reach 3Mbit/s.

4. Supports playing music on SD/MMC Card and U disk. The music formats are: MP3, WMA, APE, FLAC, WAV (excluding license);

5. Support FM, the frequency band is: 87MHZ~108MHZ;

6. Support AUX input, external audio source can access the speaker through AUX and adjust the volume on the speaker;

7. Support speaker status broadcast, can play various speaker status and modify the broadcast language according to user needs;

8. Support function switching hotkey (one button in Card, u disk, AUXIN, FM, Bluetooth playback) (MODE button on the remote control is the function switch button);

9. Support firmware encryption;

10. Support USB/SD upgrade

11.FAT16, FAT32, ExFAT/Fat64 file system support;

12. Support directory level: 8 level subdirectories;

13. Number of supported files: The number of files is not limited in the single directory, and the total number of music files is less than 9999;

14. Support SD/MMC/SDHC;

15. Support USB2.0, fully compatible with USB1.1;

16.32 level sound (the volume level can be matched)

17. Support background Bluetooth, play card/U disk music and FM in case of Bluetooth connection;

18. Support Spp remote control, mobile phone to install APK or APP can support the remote control function of the speaker.

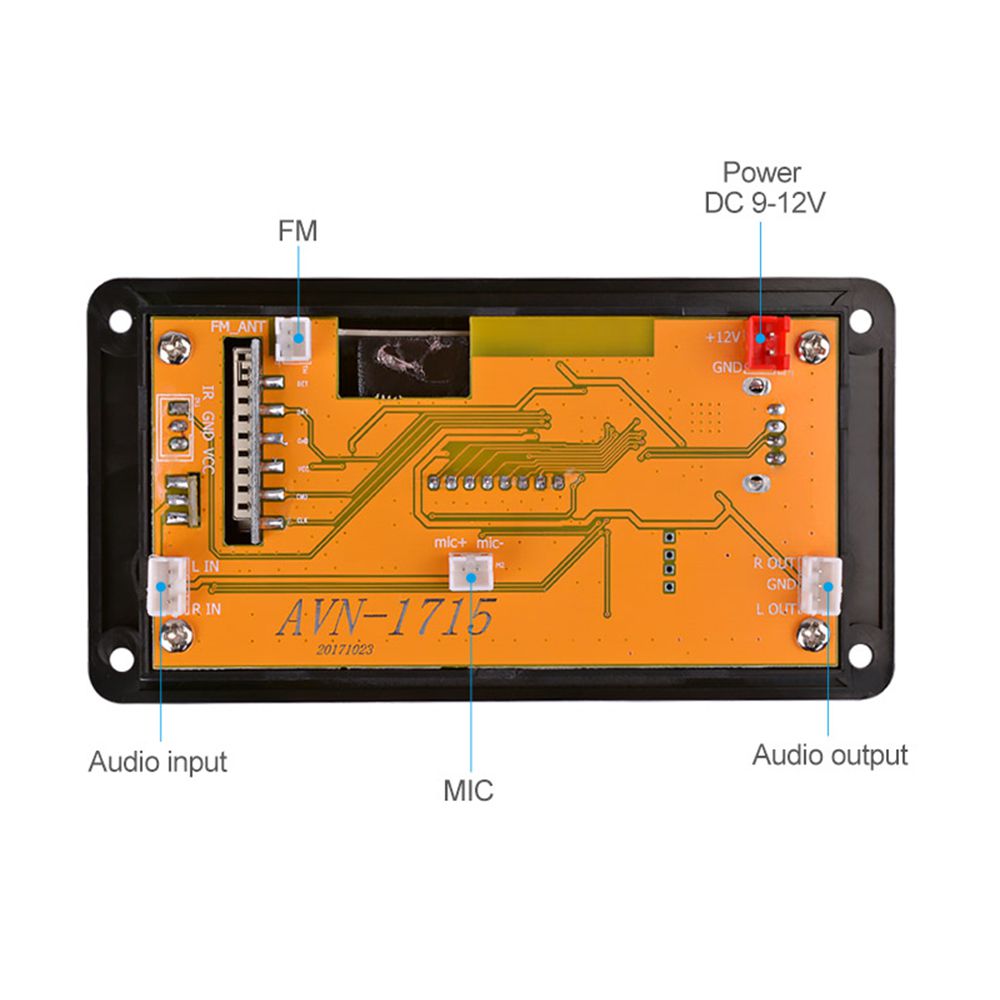

19. DC (DC) input for 9V to 12V power supplies

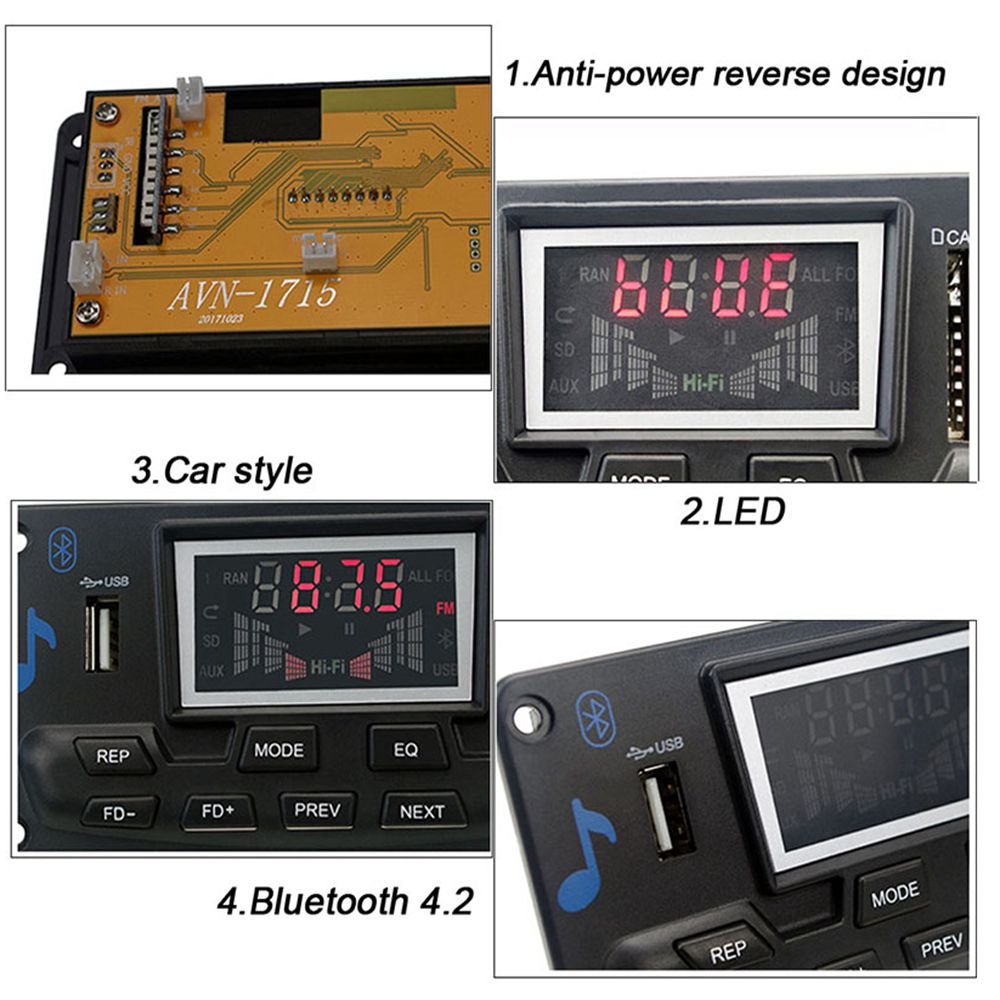

20. Higher security: anti-power reverse design, so that the power supply will not burn the product

21. Support Bluetooth call function

22. LED digital tube indicates working status and playing time

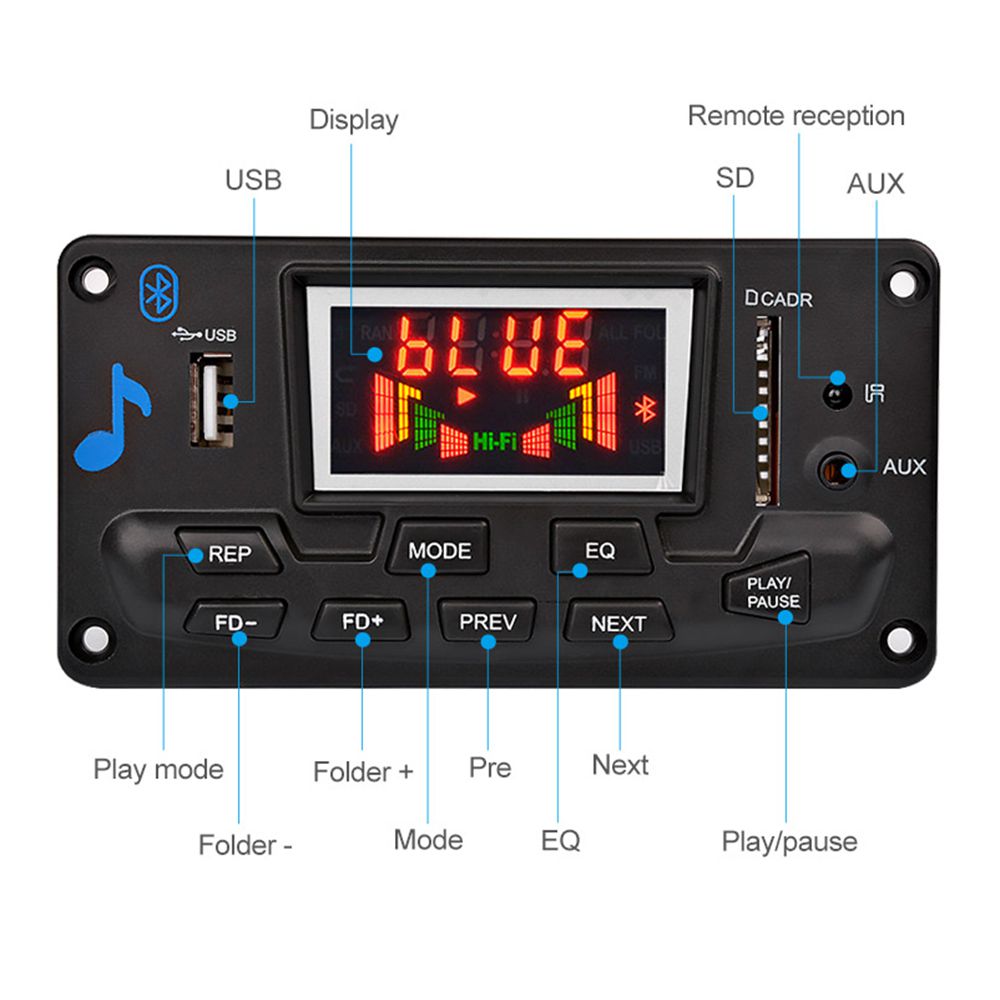

1. Host button

- MODE: Press this key and select USB→SD→LINE→FM→BLUE.

PREV key In USB/SD/BT playback state, short press to select the top song, long press to fast back (BT invalid). When the radio is in FM state, tap to select the previous one radio station. Press and hold to search backwards and play the current station. The AUX status is invalid.

- NEXT key in USB/SD/BT playback state, short press to select the next song, long press to fast forward (BT invalid), short press to select the next one when the radio FM state Radio. Press and hold to search forward and play the current station. The AUX status is invalid.

PLAY/PAUSE · PLAY/PAUSE: pause on USB/SD/BT. Long press this key in the radio state to enter the automatic search station,FM/AUX format State short press to mute.

The fd + key selects the forward folder in the USB/SD state. FD- key Select the next folder in USB/SD state.

REP: Enter the playback mode during USB/SD playback. Is RANDOM /1(single repeat)/ALL(all repeat)/FOLDER(when the status of USB/SD playback is ALL by default. After a short period of time, enter ONE and press as RANDOM,BT/FM/AUX is invalid.

EQ:USB/SD is in sound field mode. Enter the sound field mode and select :"NORMAL →ROCK →POP →CLASSIC →JAZZ →COUNTRY

The master volume is the volume of memory before shutdown by default (a total of 30 levels), the default BT state,USB/SD support after plug priority, power off memory tracks/stations and Status/volume, all states are true spectrum.



2. Remote control function

·POWER：STANDBY ON/OFF

·MODE： Press this key to select USB→BLUE→FM→LINE. Long press this key in the FM and AUX states to enter the recording, in Recording Status Press this key to play the recording.

PREV： In the USB/SD/BT playback state， short press to select the upper song， long press to fast rewind (BT invalid)， short press to select the previous one when the radio FM state Radio， press and hold to search backwards， find the station to play the current station. The AUXstatus is invalid.

NEXT： In the USB/SD/BT playback state， short press to select the next song， long press to fast forward (BT invalid). In the FM state, short press to select the next power Station， long press to search forward station， find the station to play the current station. The AUX status is invalid.

·VOL+： The volume is increased.

·VOL-：The volume decreases

REP： Enter the playback mode during USB/SD playback. Yes ONE/ALL/RAN(The default status for USPB/SD playback is ALL Press again to enter RAN)， long press to switch between Chinese and English prompt tone

·STOP： Stop playback in the USB/SD card state， other states are invalid.

·MUTE： Press the mute button for all status and press the button again to unmute the button.

EQ：USB/SD is in sound field mode. Enter the sound field mode and select ："NORMAL "→" ROCK"→"POP"→CLASSIC→JAZZ→COUNTRY →Country

PLAY/PAUSE： When USB/SD/BT is playing， press once to pause， and press again to play. Press this key to enter automatic search

Radio Soo.

·0 to 9： Use the direct selection button on USB/SD. Enter more than 10 consecutive digits to be selected. Select an existing station

in the FM state. You can also count The key directly enters the radio frequency to play the radio station.
