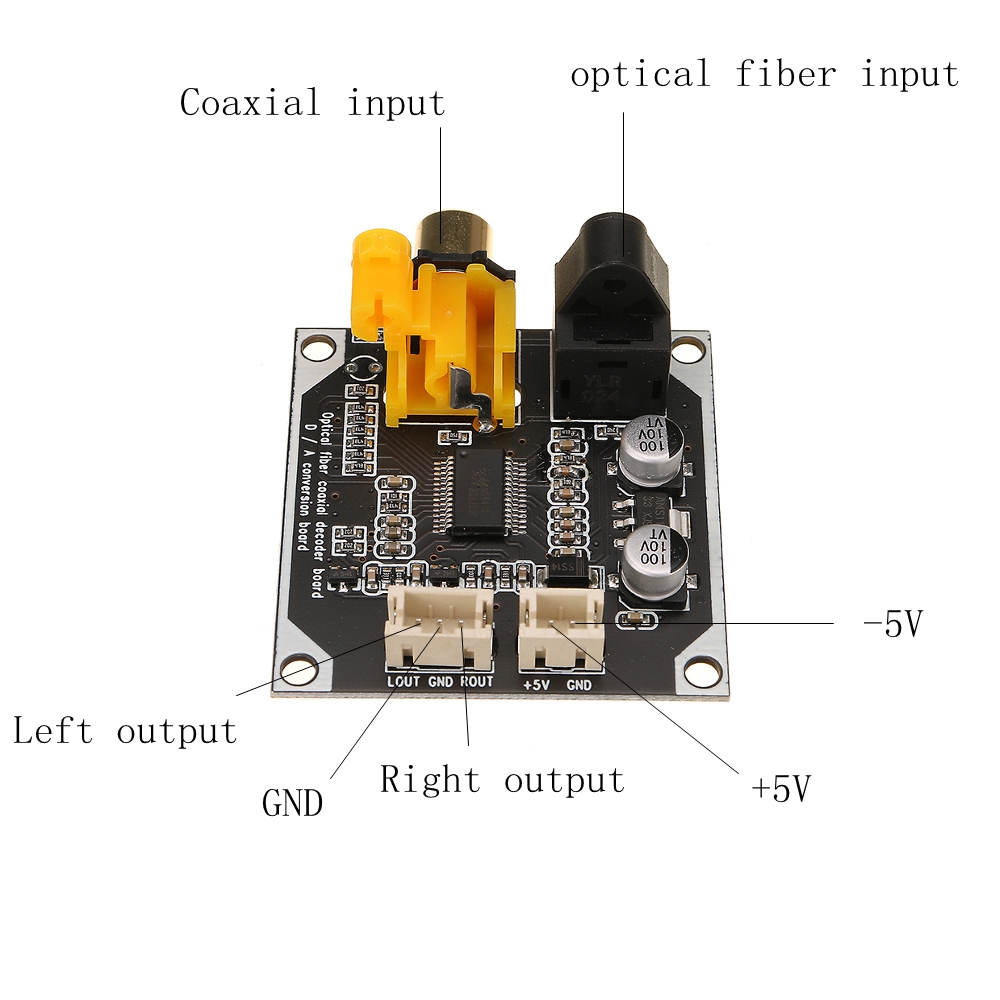

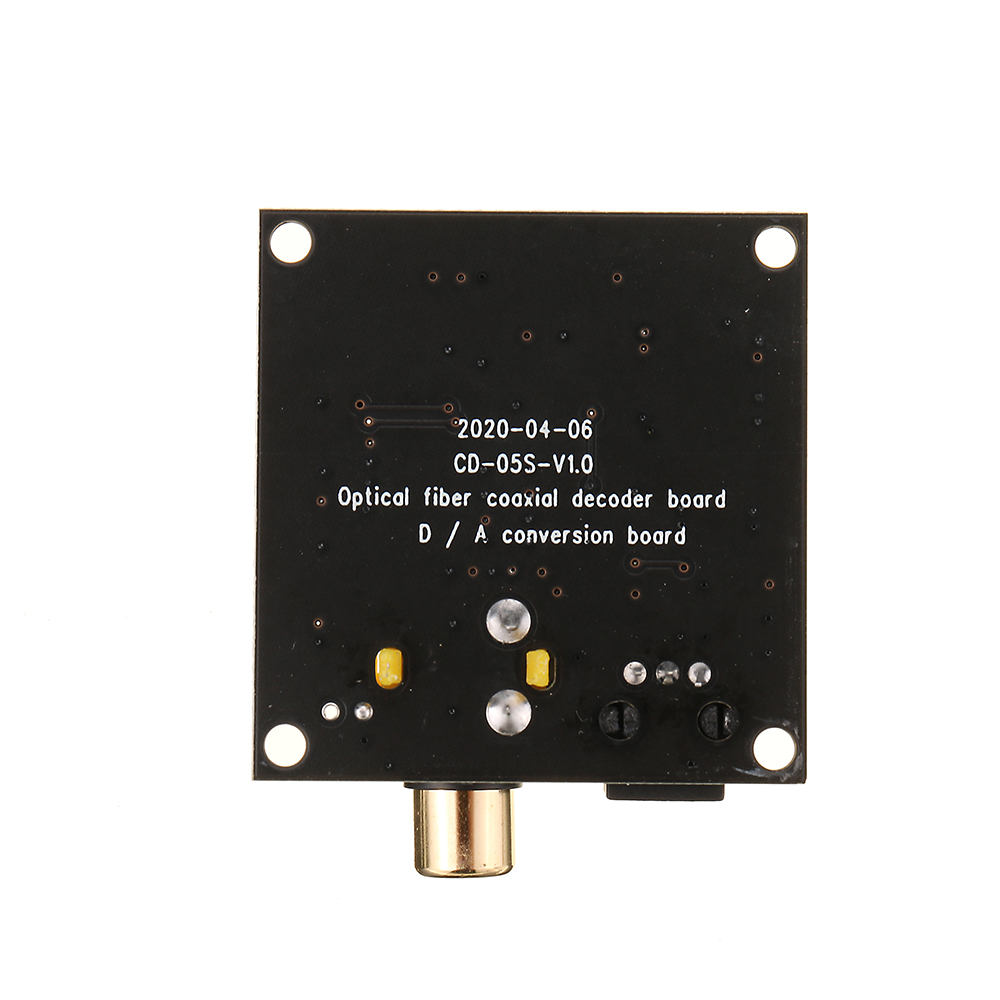

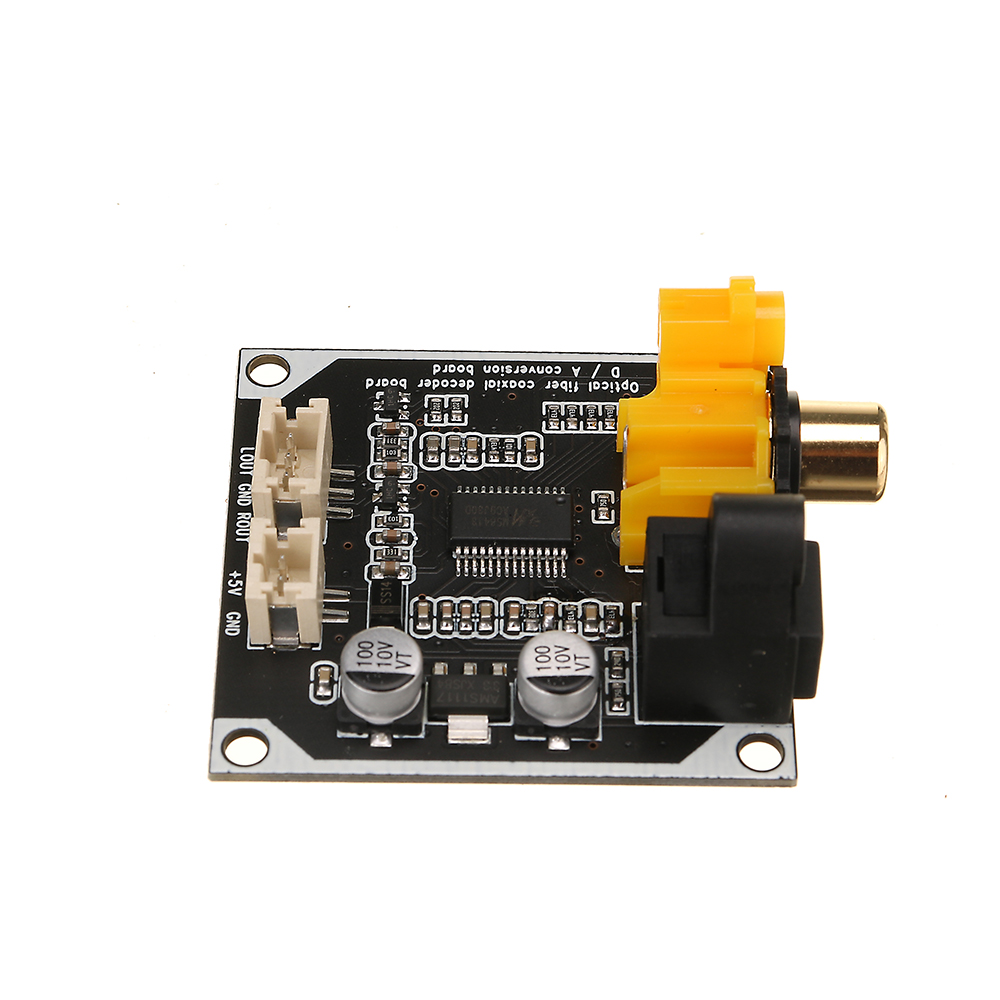

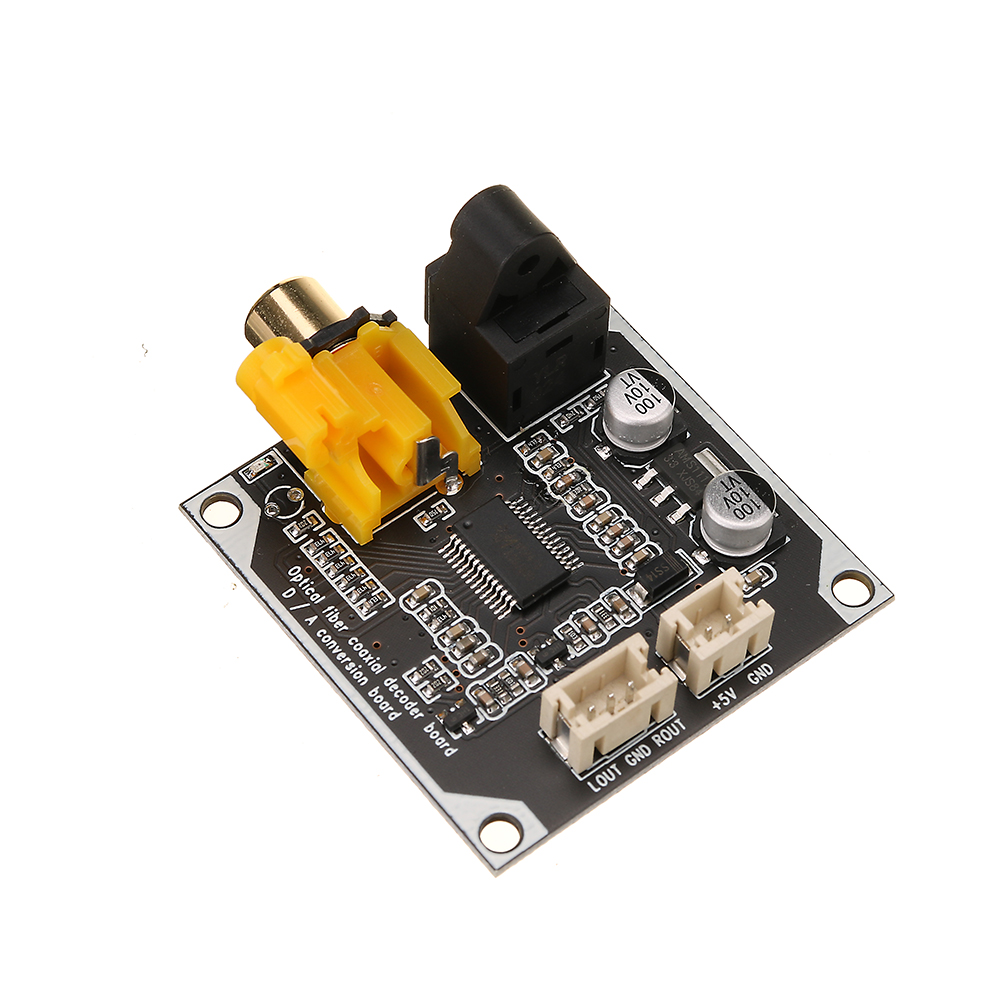

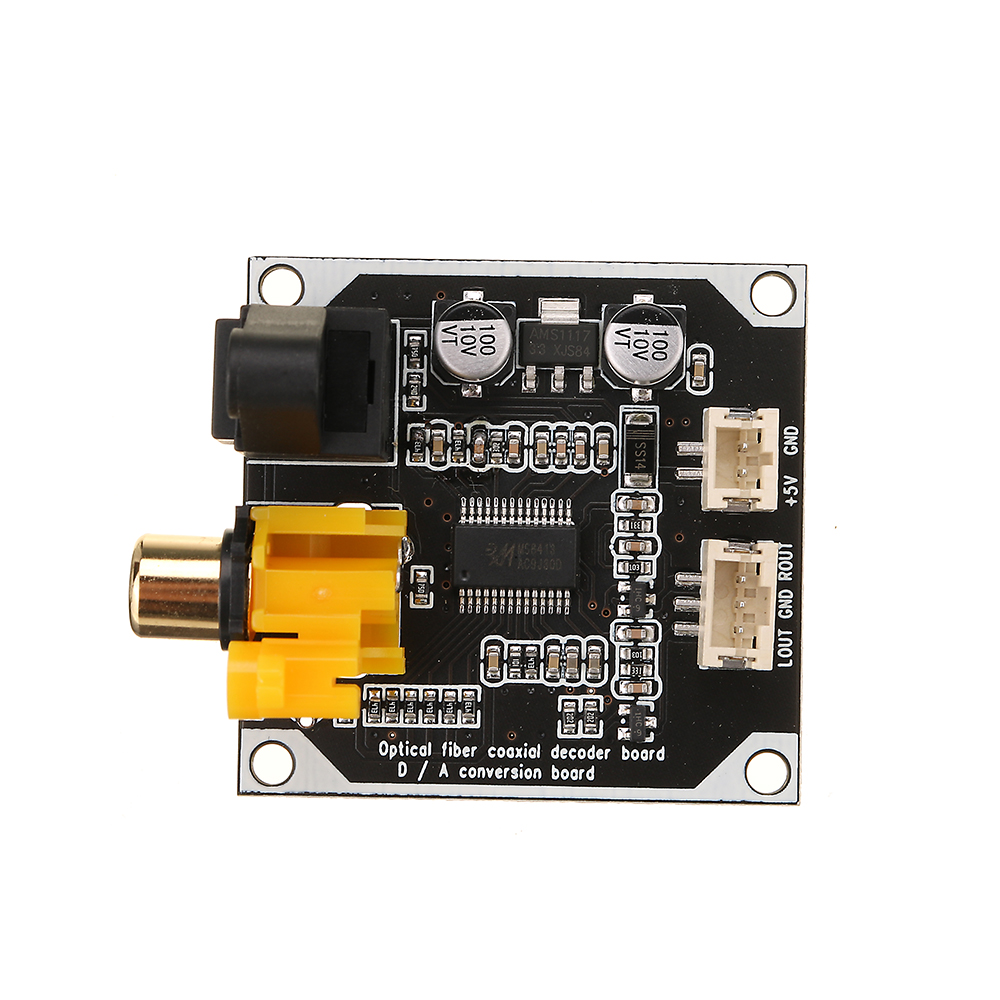

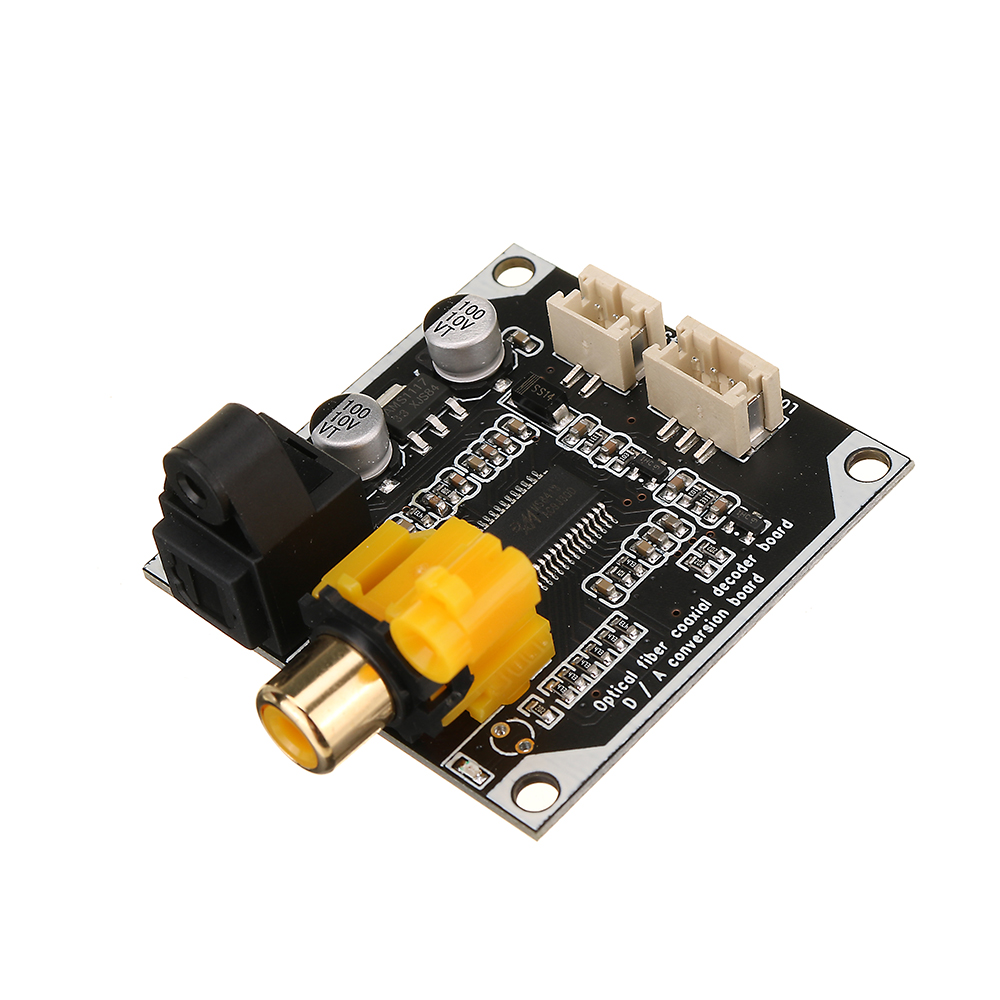

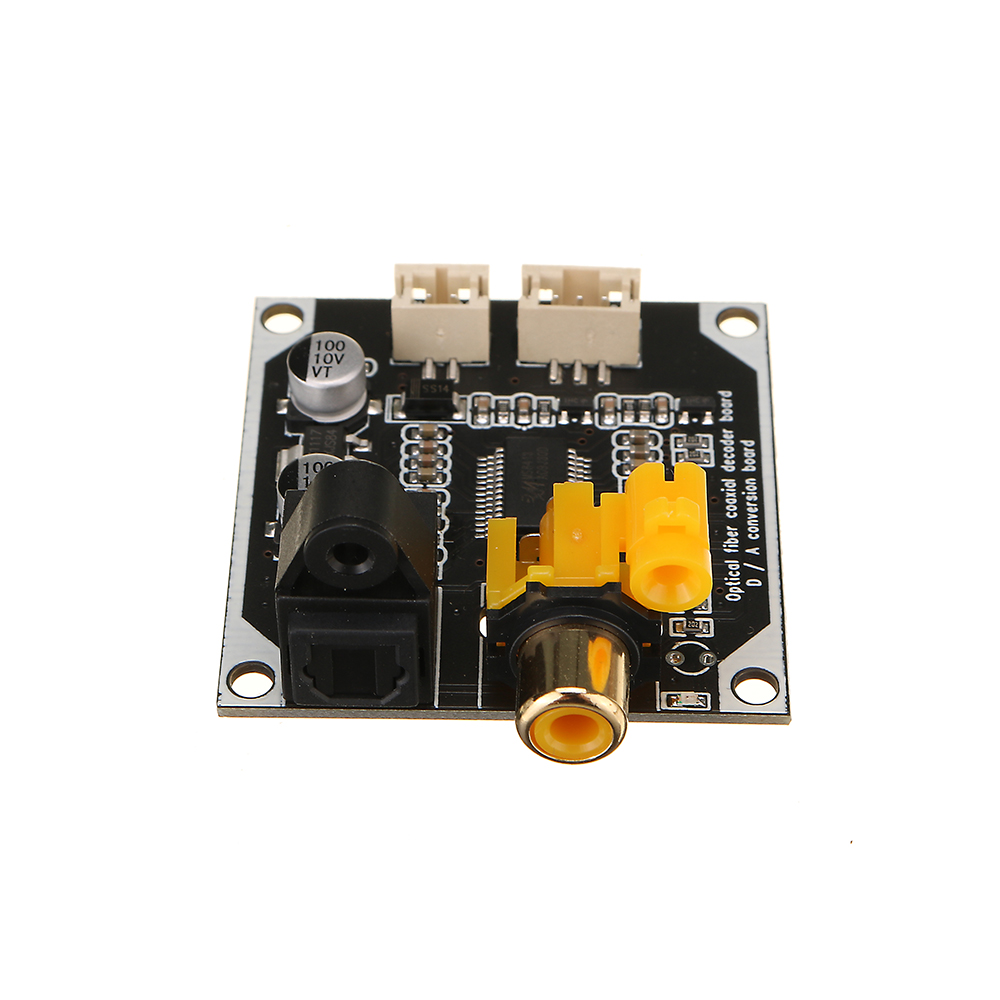

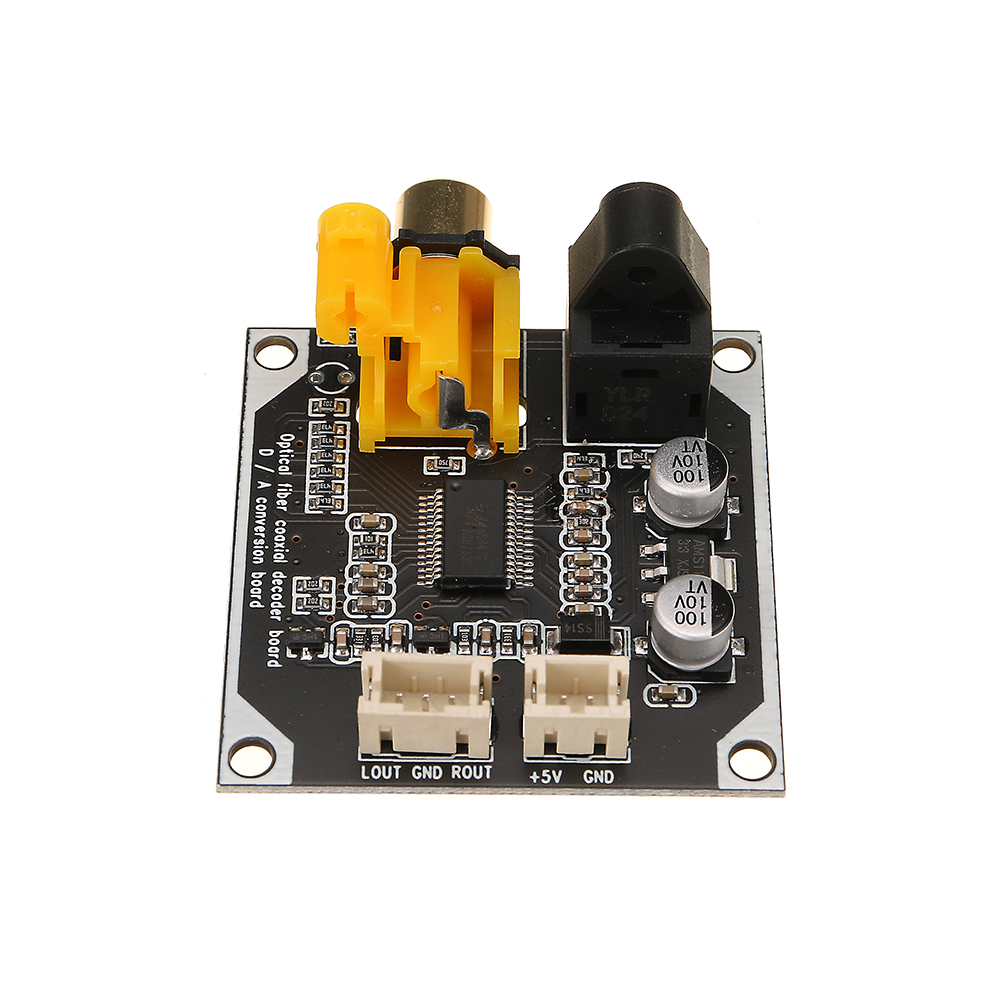

Elecbee 24bit 192khz DAC Digital Audio Decoder Optical Fiber Coaxial Digital Signal Input Stereo Output Decod Board

SKU: 1705591

Favorites

Key Features

Feature:

Sampling frequency range from 32KHZ to 192KHZ

24bit D/A converter

Output 105DB dynamic range

-90DB total harmonic distortion + signal to noise ratio

Compatible with IEC60958, S/PDIF, EIAJ CP1201, AES3 protocol

Linear filter output

5V working voltage

Specifications

Show Similar Products (2768) >

Attribute

Value

Wireless Capability

Bluetooth

Show Similar Products (2768) >

Shipping Guide

Shipping	Delivery Period	For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days
	Shipping Rates	Shipping rates for your order can be found in the shopping cart.
	Shipping Options	Shipping rates for your order can be found in the shopping cart.
	Shipping Tracking	We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/Warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
	Warranty	All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
		This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
Ordering	How to Buy	Elecbee accepts online orders.
		Add to cart > Check out > Submit order > Complete payment > Delivery
	Payment	PayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Description

			5V			3.3V
			Minimum	Typical	Maximum	Minimum	Typical	Maximum
Dynamic Range	18 to 24 bit	A-weighted	99	105		97	103		dB
	18 to 24 bit	unweighted	96	102		91	100		dB
	16bit	A-weighted	90	96		90	96		dB
	16bit	unweighted	87	93		87	93		dB
Total harmonic distortion +noise	18 to 24 bit	0dB		-90	-85		-90	-85	dB
		-20dB		-82	-76		-80	-74	dB
		-60dB		-42	-36		-40	-34	dB
	16bit	0dB		-90	-84		-90	-84	dB
		-20dB		-73	-67		-73	-67	dB
		-60dB		-33	-27		-33	-27	dB
Dynamic Range	18 to 24 bit	A-weighted	95	105		93	103		dB
	18 to 24 bit	unweighted	92	102		90	100		dB
	16bit	A-weighted	86	96		86	96		dB
	16bit	unweighted	83	93		83	93		dB
Total hannonic distortion +noise	18 to 24 bit	0dB		-90	-82		-90	-82	dB
		-20dB		-82	-72		-80	-70	dB
		-60dB		-42	-32		-40	-30	dB
	16bit	0dB		-90	-82		-90	-82	dB
		-20dB		-73	-63		-73	-63	dB
		-60dB		-33	-23		-33	-23	dB
