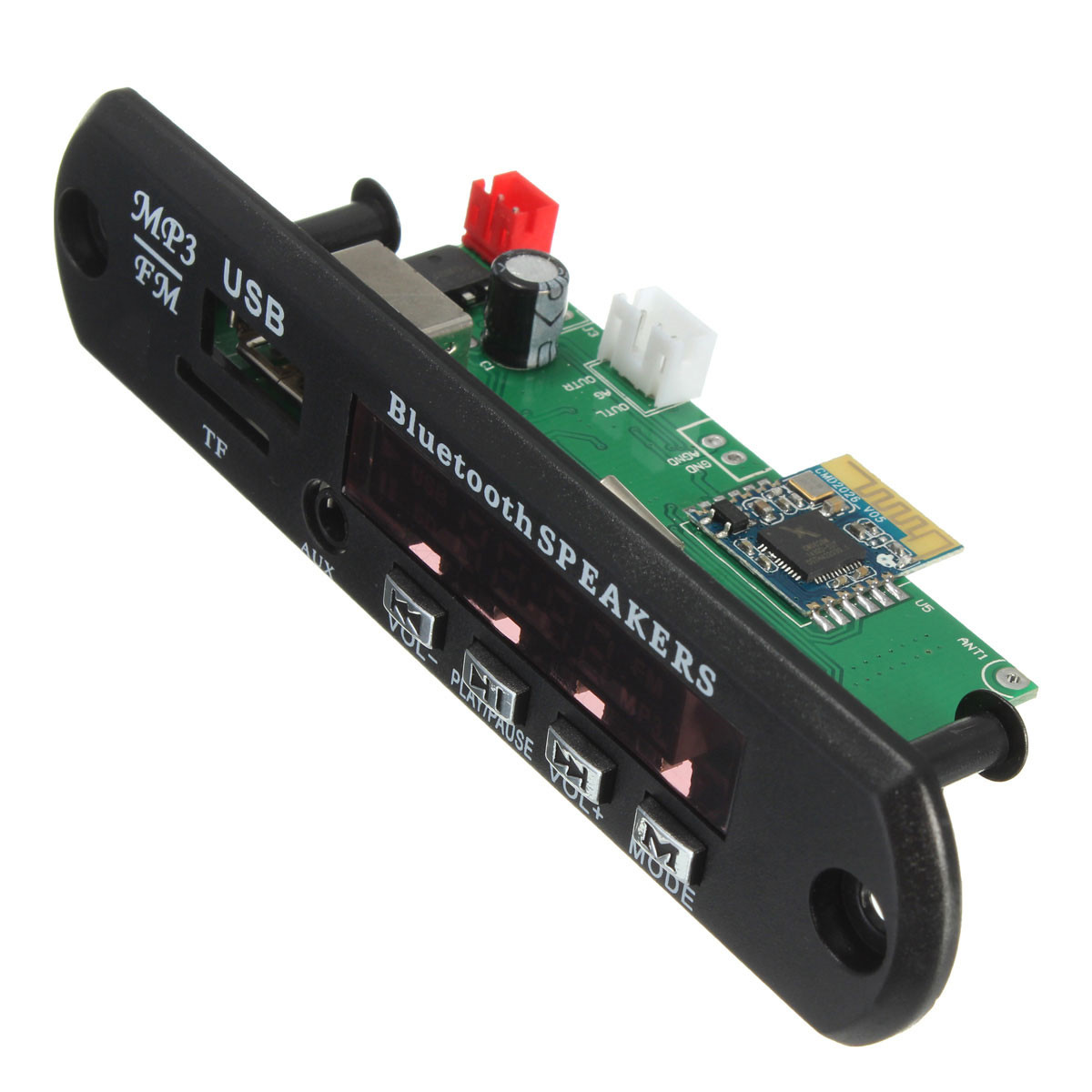

Elecbee bluetooth MP3 WMA Decoder Board 12V Wireless Audio Module USB TF Radio

SKU: EB0041424

Favorites

Key Features

* Support signal switch directly. Support USB, TF
* Support bluetooth (bluetooth3.0 EDR) (after been paired with mobile phones can realize wireless music play)

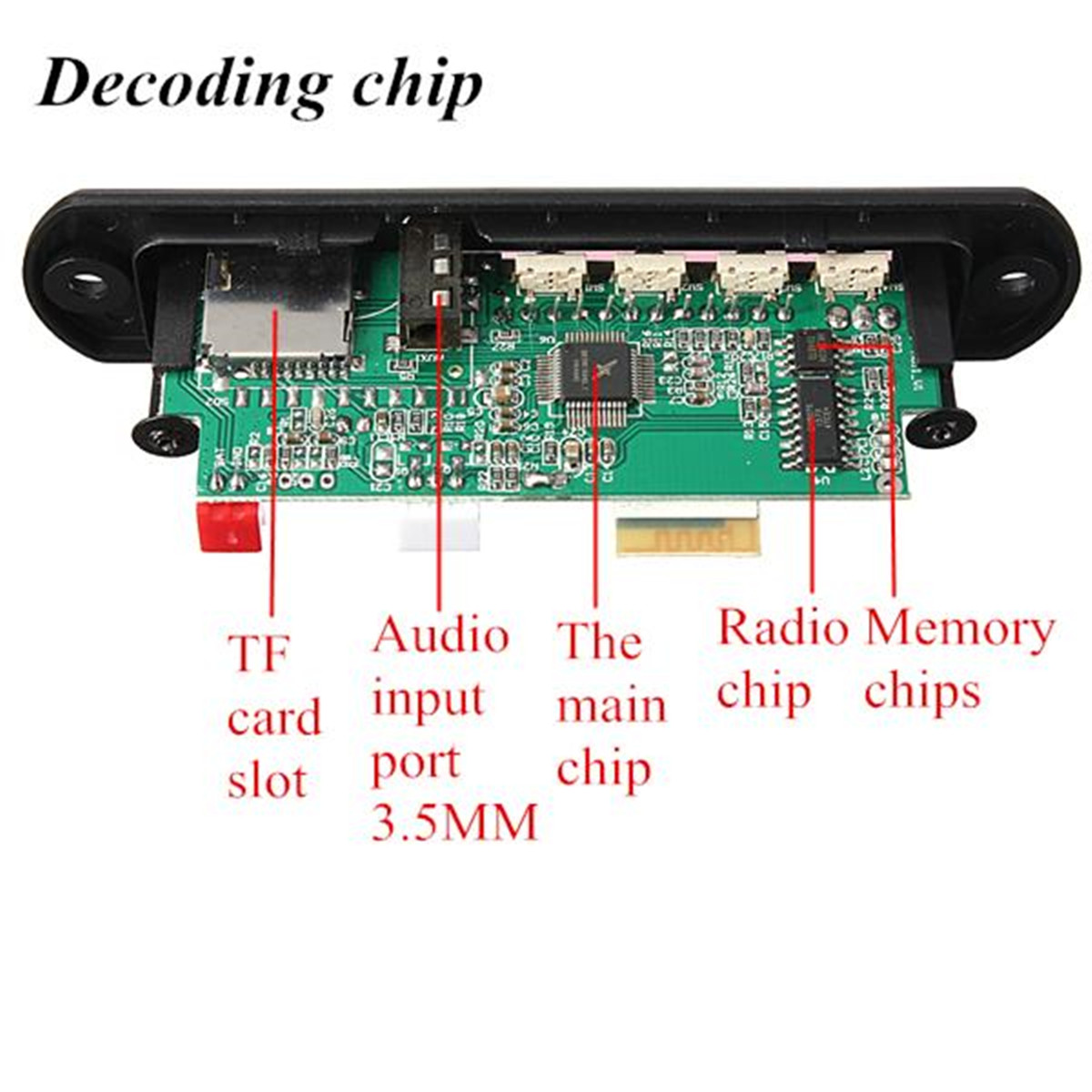

* Support USB / TF / bluetooth/FM / LINE switch. MP3 / WMA, WAV lossless music decoding chip.
* Support USB / TF card switch, PREV, NEXT, fast forward, fast rewind, volume, EQ, play / pause, stop, single repeat, mute, shutdown and direct election.
* Support Bluetoot PREV, NEXT, volume, EQ, play/pause, mute, turn it off.
* Support FAT16, FAT32 file system. Support for MP1 Layer3, MP2 Layer3, MP3 Layer3 version of the song.Support 32-320 KBPS MP3 songs.
* Support power off memory function: memory play songs and volume before power off.

Note:

Non-smart phones (android) have to enter the password - 0000

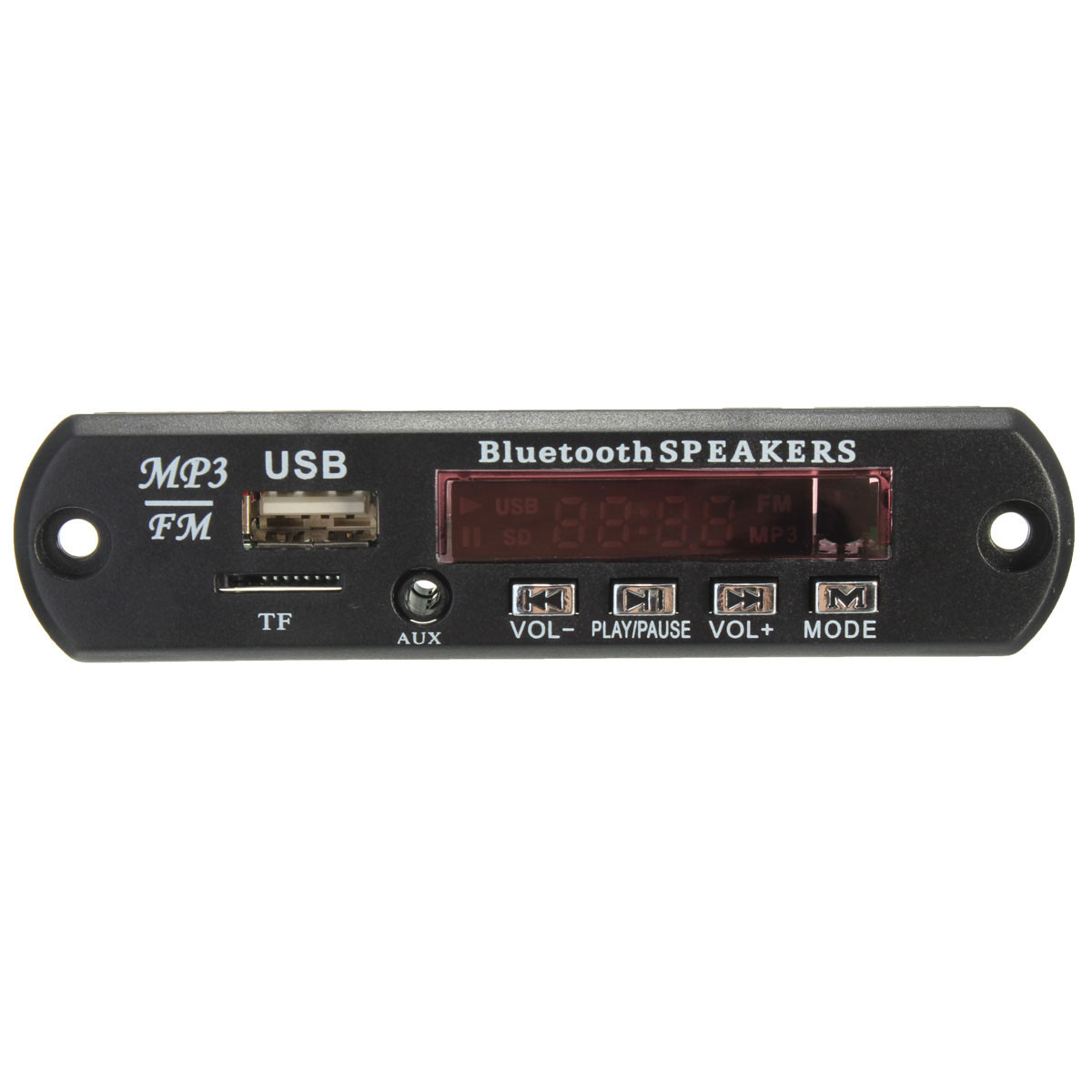

Decoding board play mode instruction:

Decoding board in the absence of memory card or U disk,boot default to "audio input" mode,the screen display LINE
Press "MODE" key on the panel or the remote control switch to bluetooth MODE,the screen shows "BLUE",can open bluetooth search connection at this time
Press "MODE" key on the panel or the remote control switch to radio MODE,the screen display FM radio frequency,long press "PLAY" button automatic searching channel
Press "MODE" key on the panel or the remote control switch to the U disk or memory card "play MODE",the screen displays the time schedule of the song

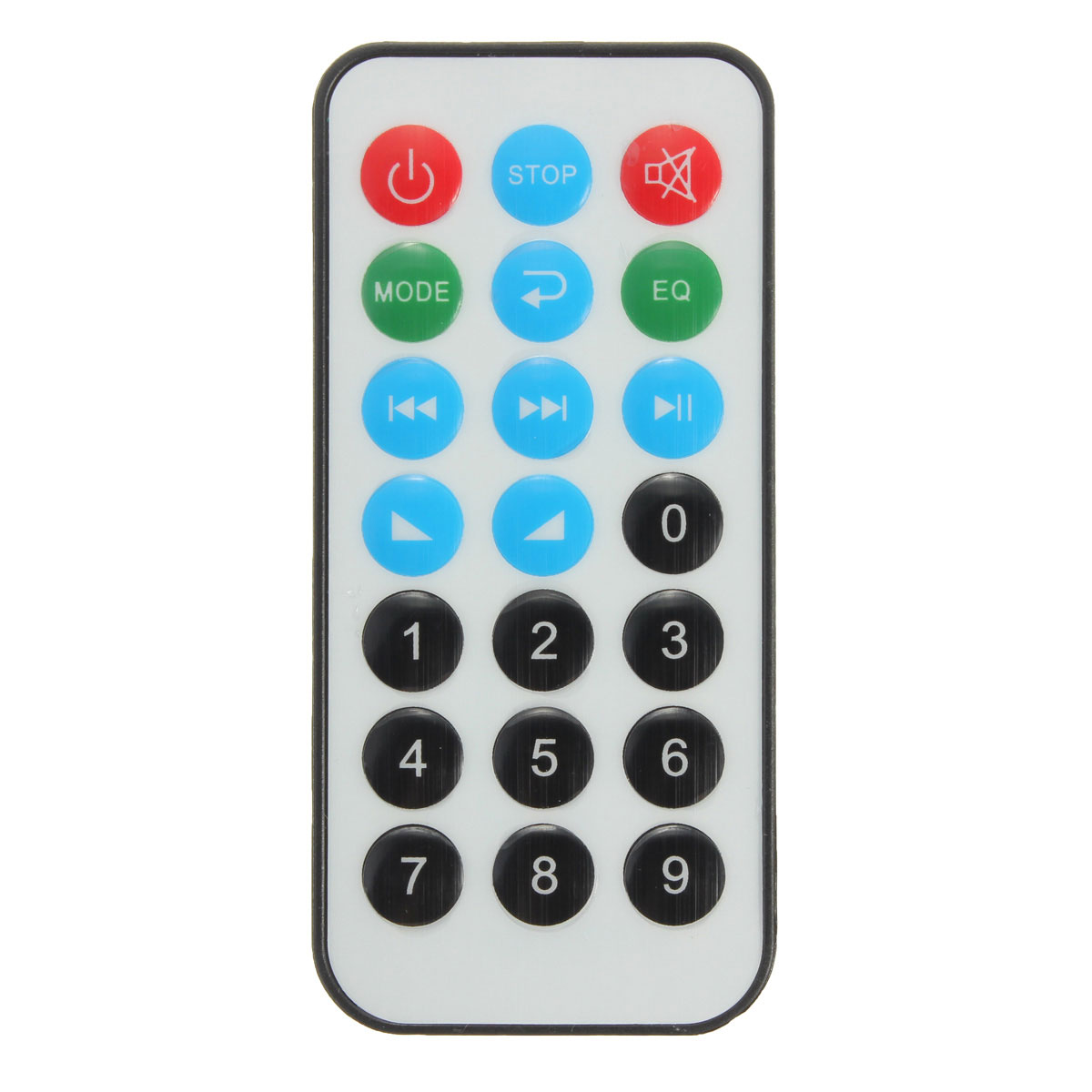

The remote control instruction:

1. POWER: STANDBY button cannot switch.

2. MODE: TF card and U disk: switching sort for USB→TF→bluetooth→FM→AUX;
Only U disk: switching sortxa0 for USB→bluetooth→FM→AUX;
Only the TF card: switching sortxa0 for TF→bluetooth→FM→AUX;
There is no USB and TF card: switching sortxa0for FM→AUX→bluetooth.

3. PREV: In USB/TF / bluetooth MODE,short press for PREV;
In the USB / SD MODE, long press for fast rewind;In FM MODE, short press for last channel, long press for scan search last channel.
NEXT: In USB / TF/bluetooth MODE,short press for NEXT;
In USB / TF MODE,long press for fast forward;
In FM MODE,short press for next channel,long press for scan search the next channel.

4. VOL + : short / long press for music.xa0 VOL - : short/long press for music.
5. REP:In USB / TF MODE,is the switch key between single repeat and whole cycle when play music,boot for all cycle.
6. STOP: In the USB / TF MODE,short press to STOP the music play.
7. MUTE: MUTE,press for MUTE,press again for relieve(also can relieve by VOL- /VOL+).
8. EQ: Acoustic field MODE.The NORMAL→BAS→POP→ROC→JAZZ→CLA→CUT→NORMAL
9. PLAY/PAUSE: In USB/SD/bluetooth MODE for PLAY / PAUSE;In the FM MODE,long press for searching all channels and save.

Specification:

Installation pitch: 92 mm wide
Installation hole:xa0 83 x 20 x 38 mm
Overall dimensions: 107 x 25 x 38 mm (W x H x D)
Inputxa0 voltage: 7-12 V 3.7-5 V

Show Less

Specifications

Show Similar Products (2768) >

Attribute

Value

Wireless Capability

Bluetooth

USB Support

USB

Show Similar Products (2768) >

Shipping Guide

Shipping	Delivery Period	For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days
	Shipping Rates	Shipping rates for your order can be found in the shopping cart.
	Shipping Options	Shipping rates for your order can be found in the shopping cart.
	Shipping Tracking	We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/Warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
	Warranty	All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
		This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
Ordering	How to Buy	Elecbee accepts online orders.
		Add to cart > Check out > Submit order > Complete payment > Delivery
	Payment	PayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Description

Description:

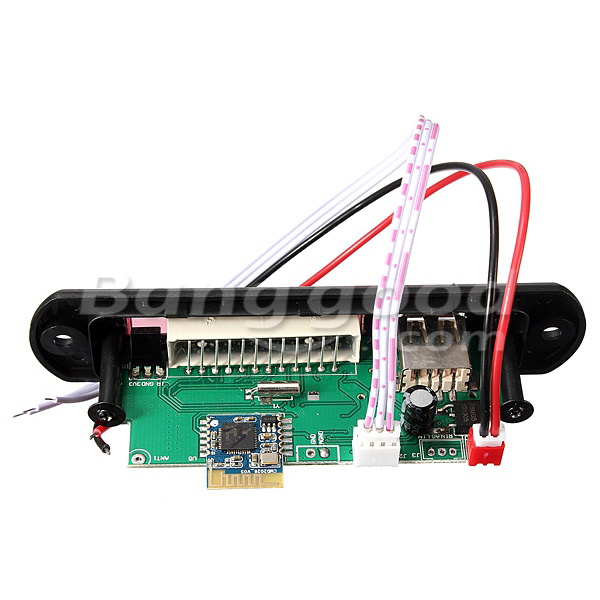

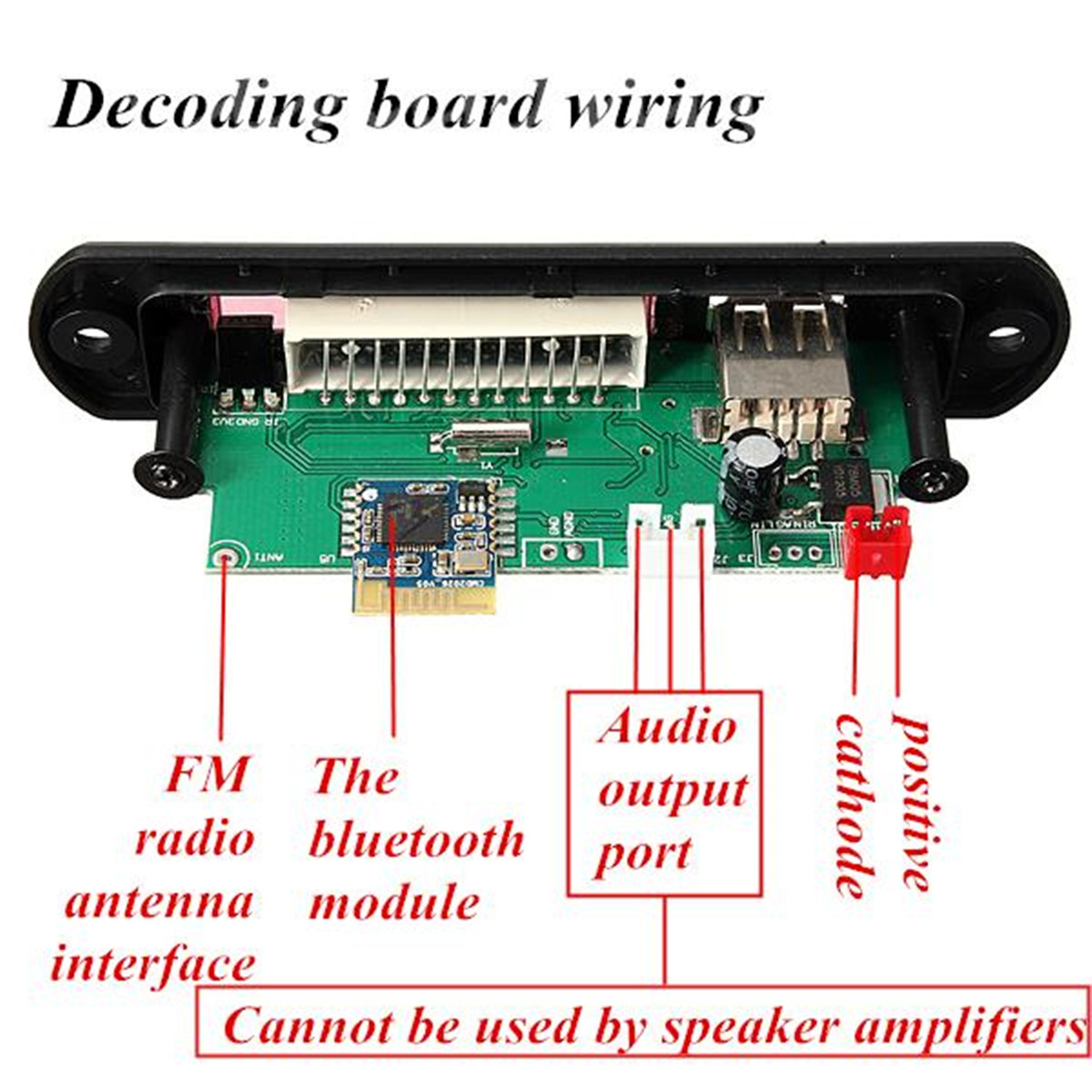

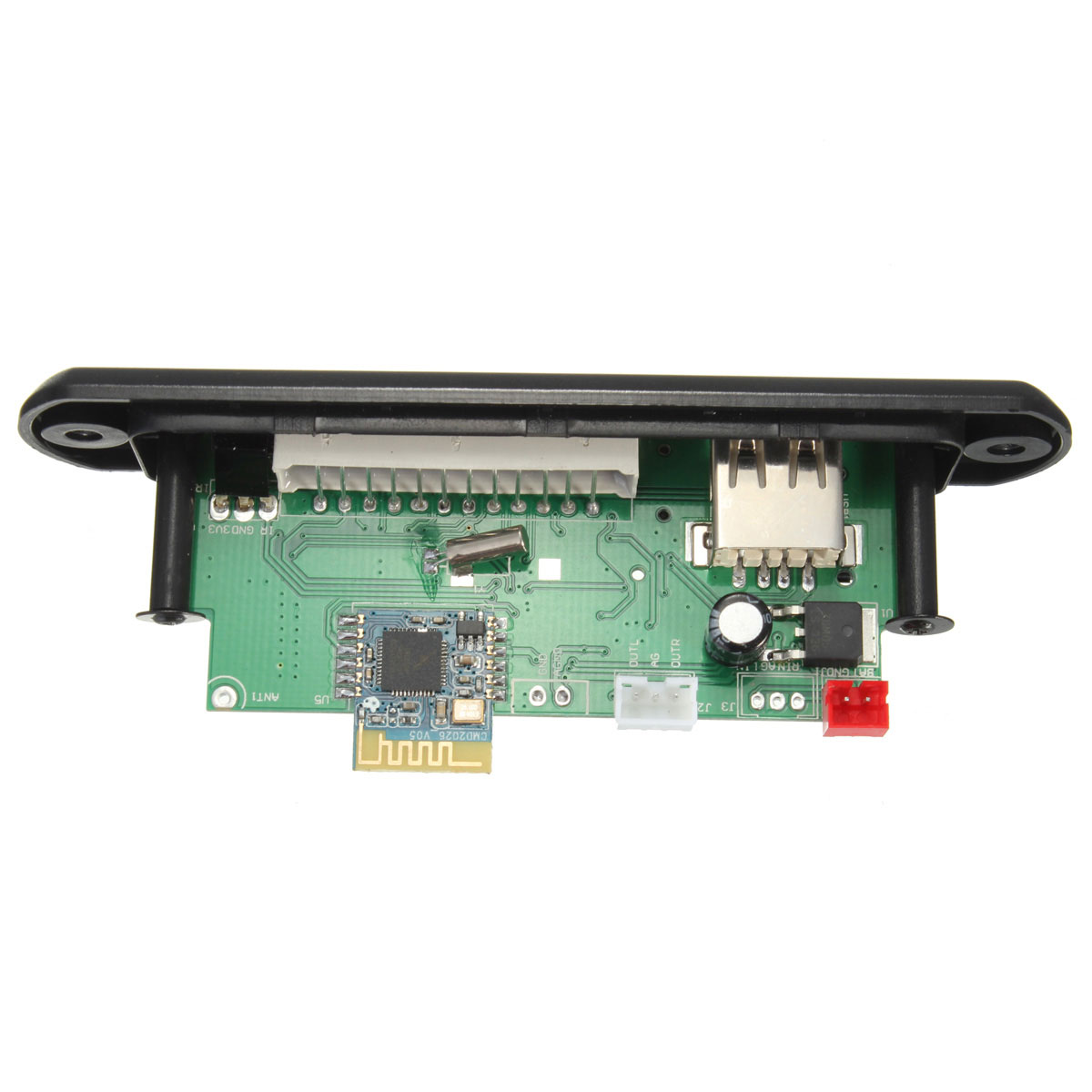

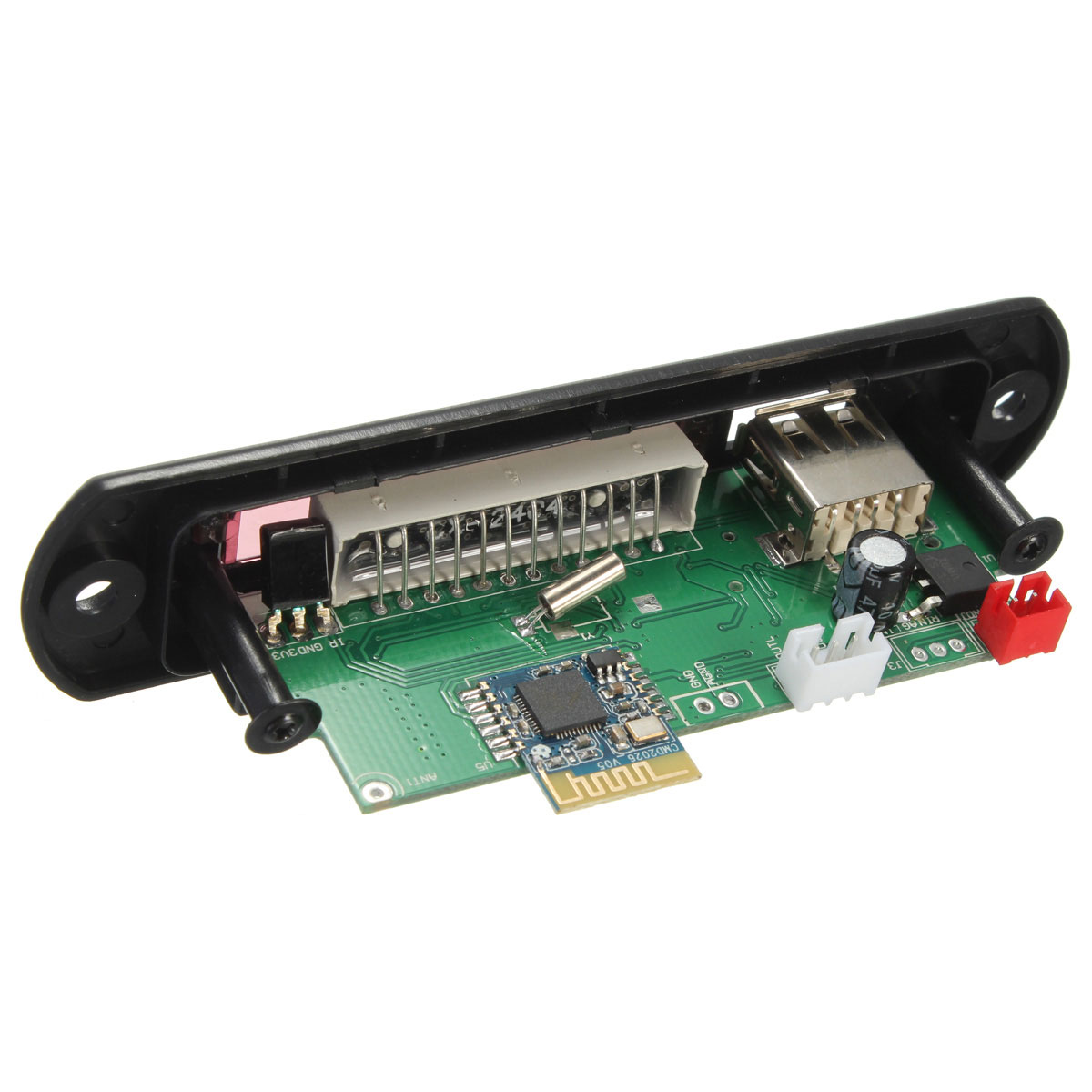

With bluetooth audio receiver module, when cell phone and bluetooth module matching connection, the MP3 or nondestructive APE files via bluetooth sent to the product of the bluetooth receiver module to play, which has greatly helped the function of the product and entertainment. This product also be like ordinary MP3 decoder board,play U disk or TF card MP3 files, as well as the radio broadcast. (This product without bluetooth calling function, with no power amplifier, only connect to an external amplifier can it use)

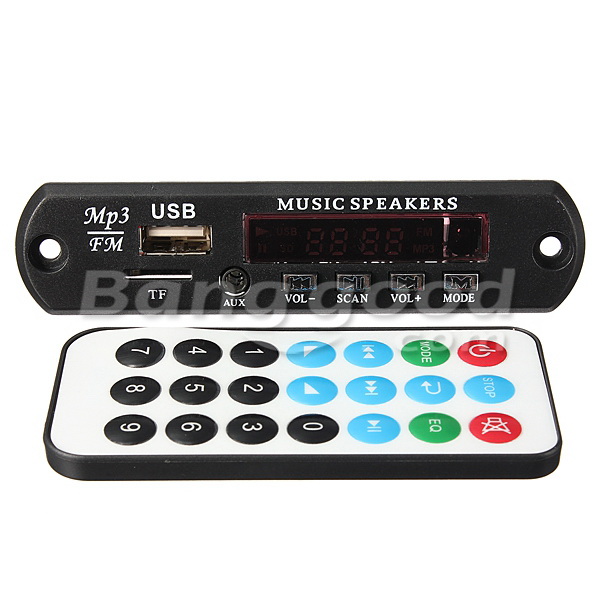

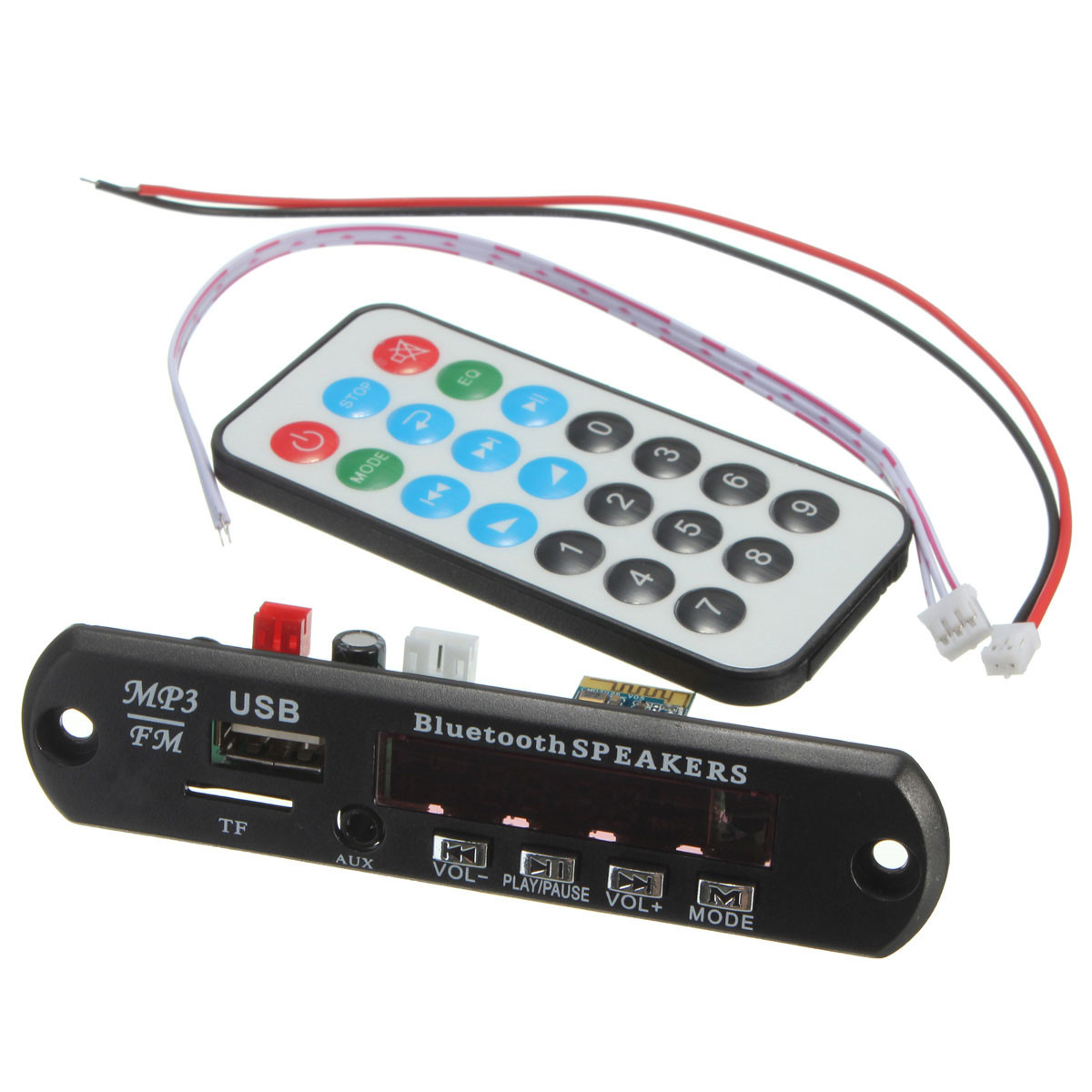

Package includes:

1 x Decoding board

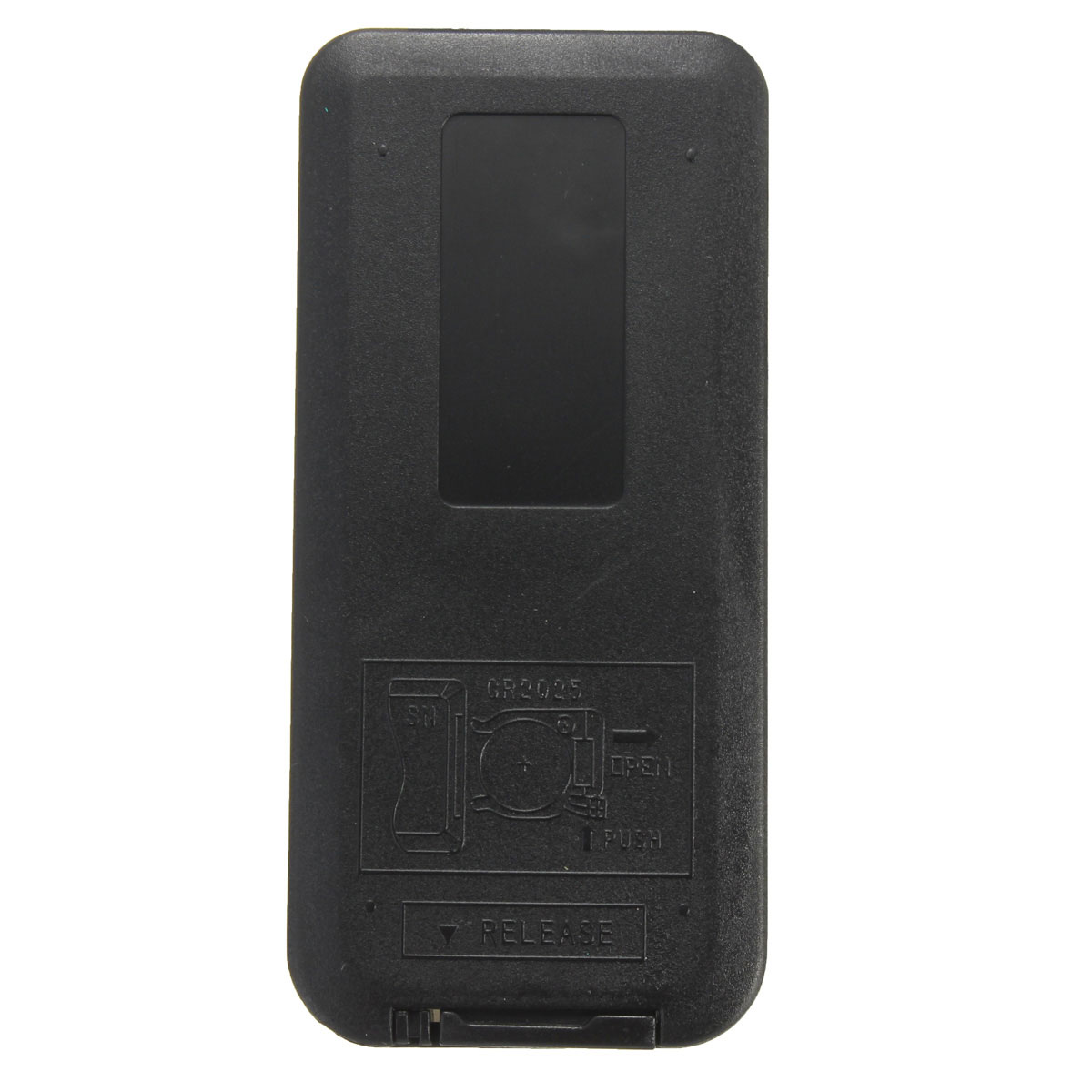

1 x The remote control
1 x 2P plug wire with power supply reverse connection protection
1 x 3P audio plug thread
