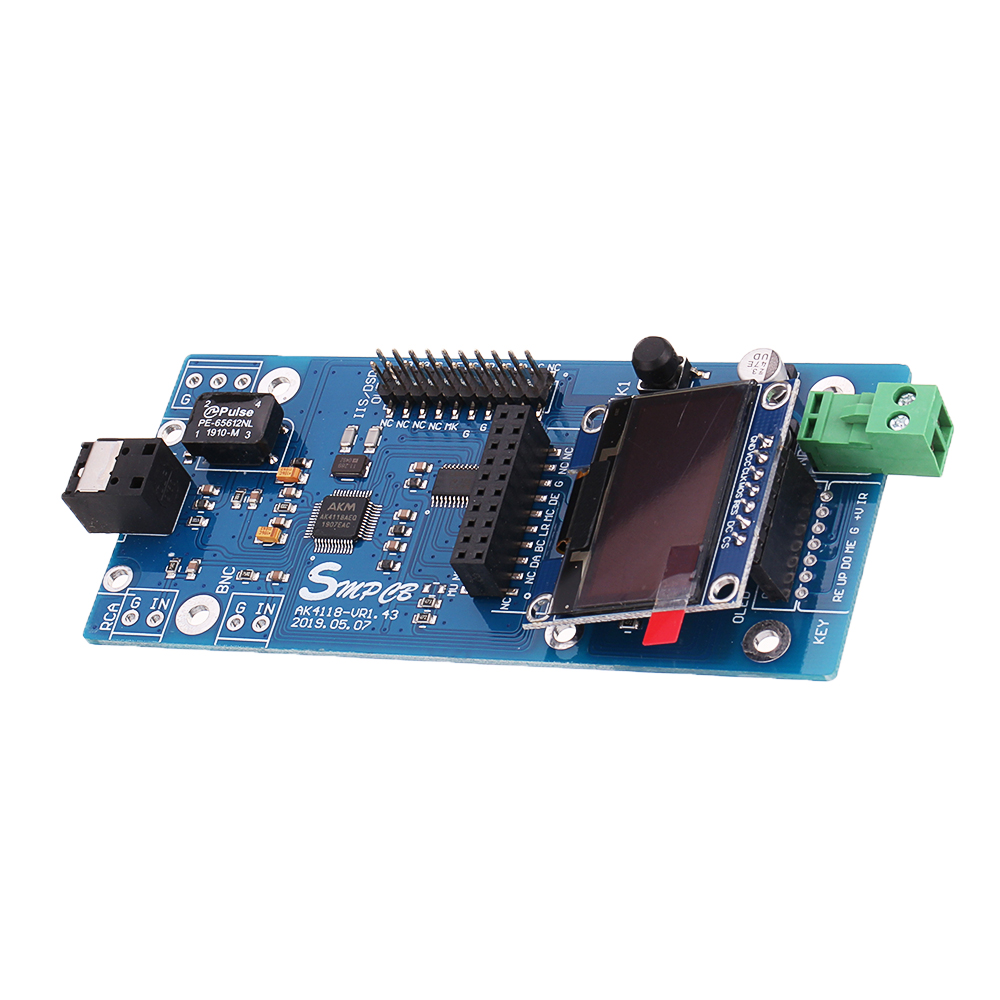

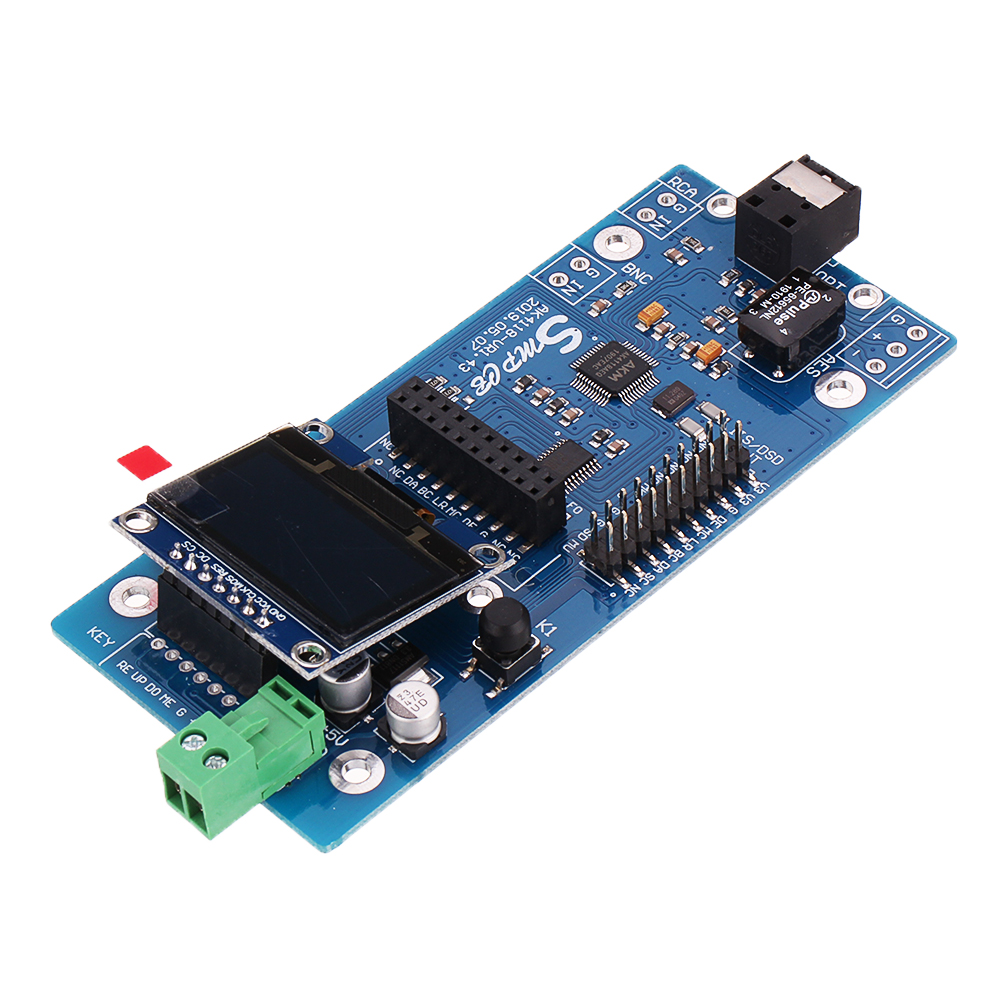

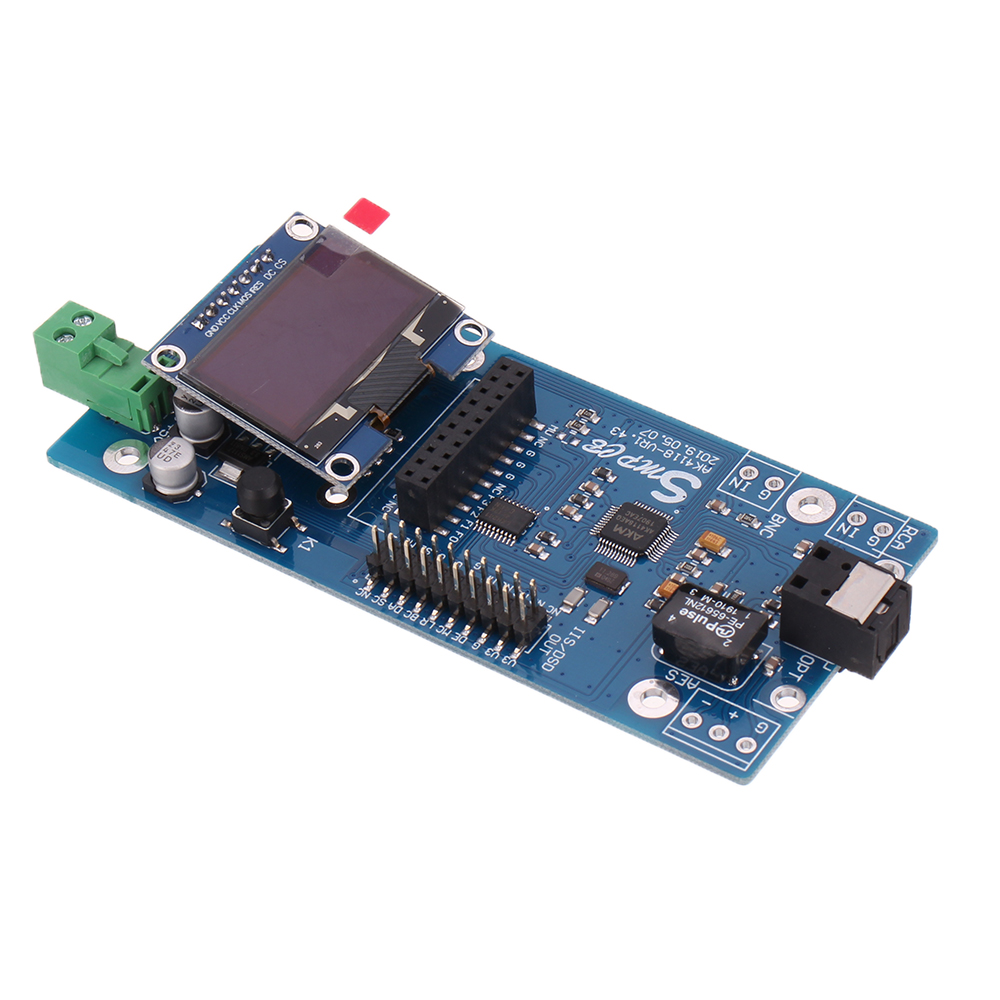

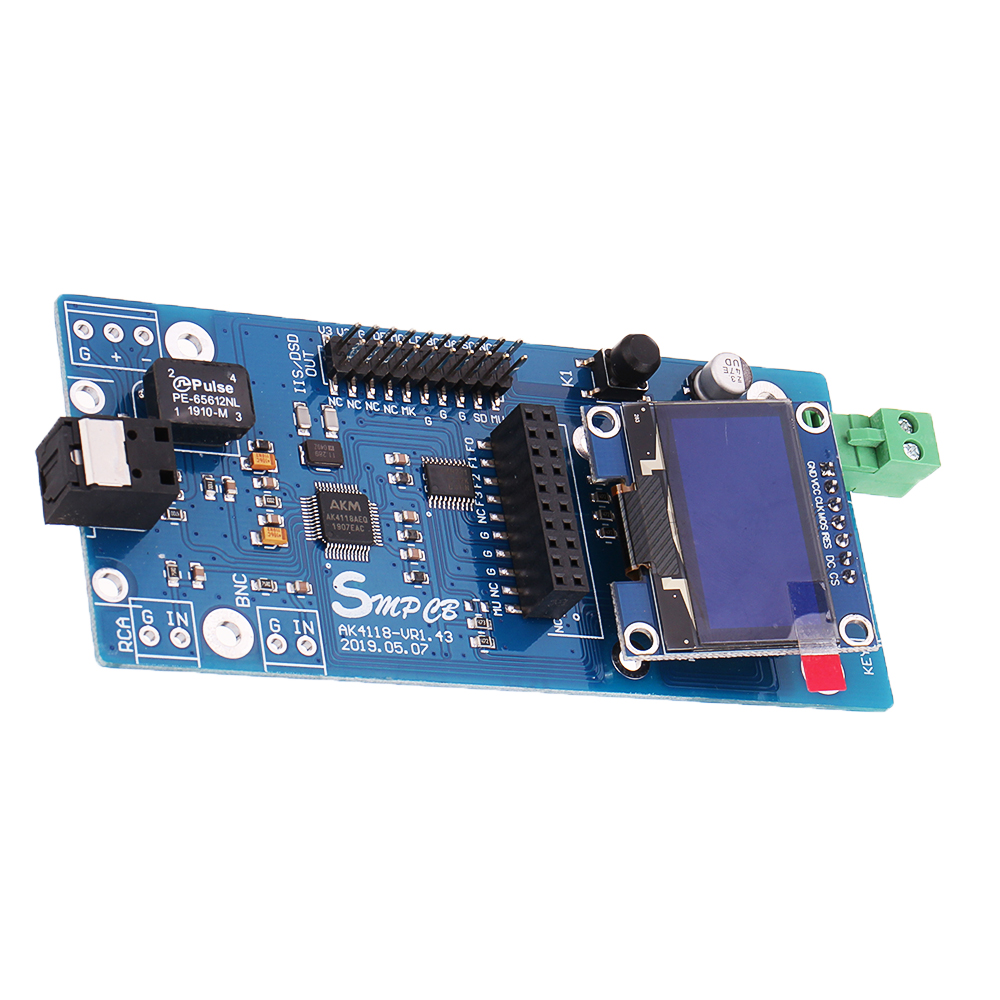

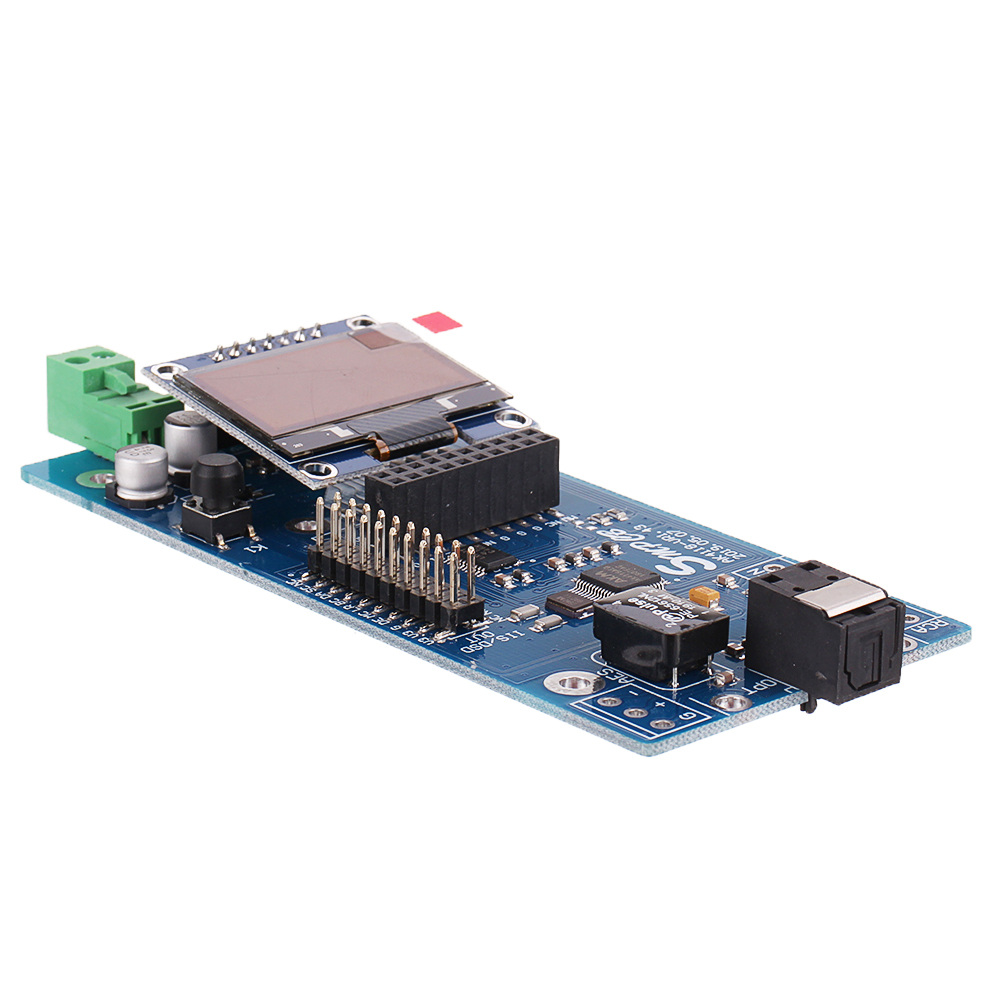

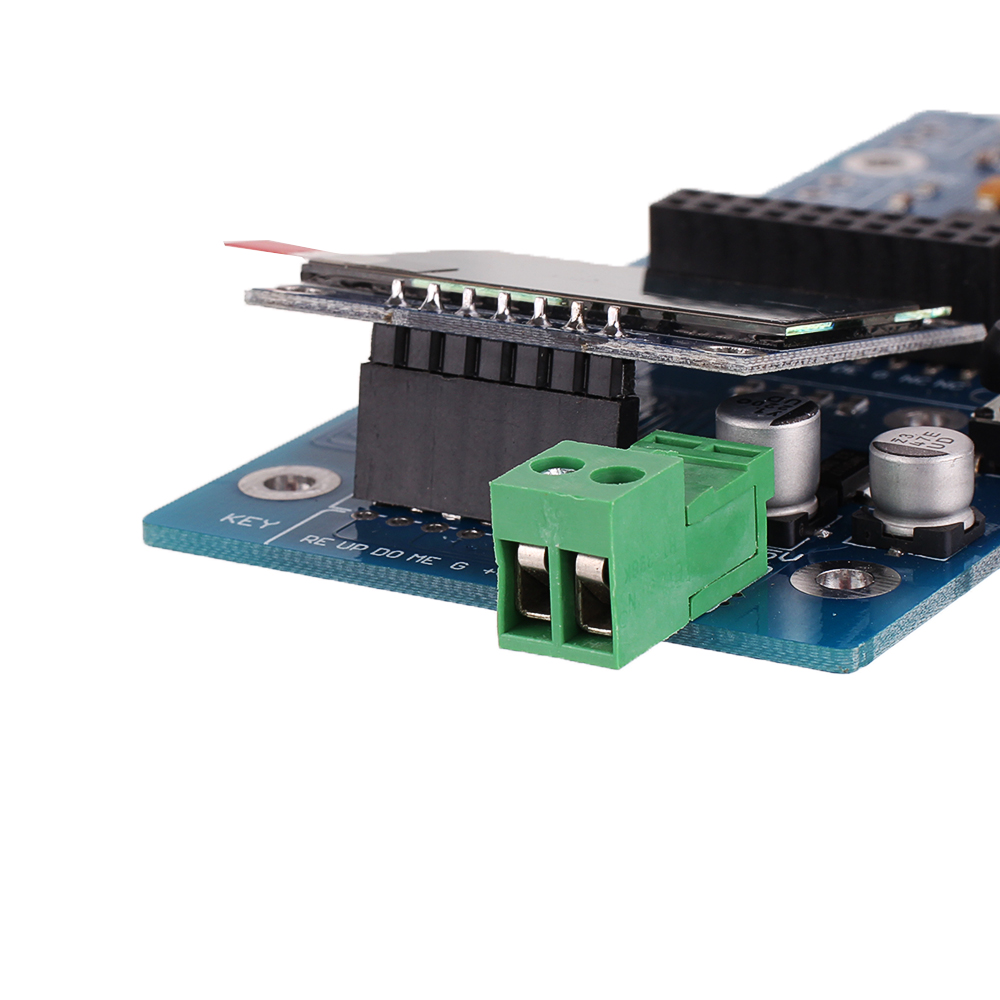

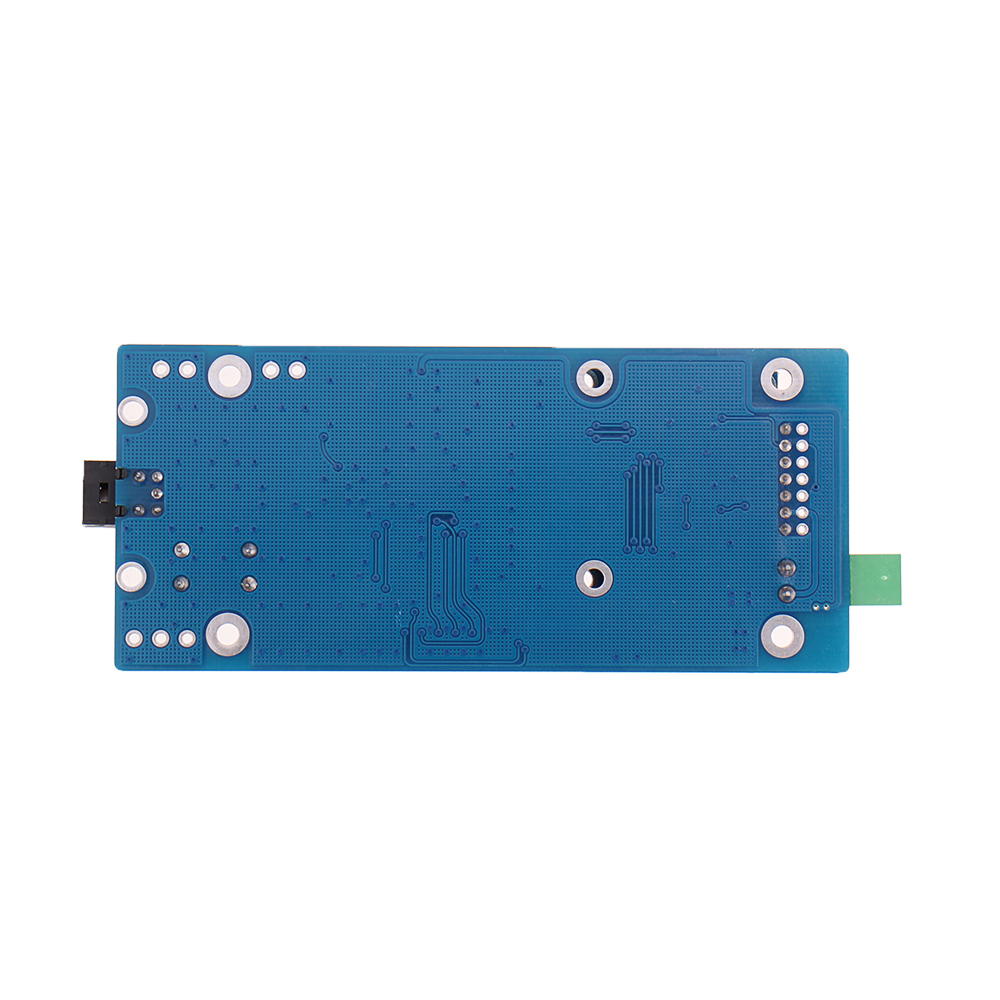

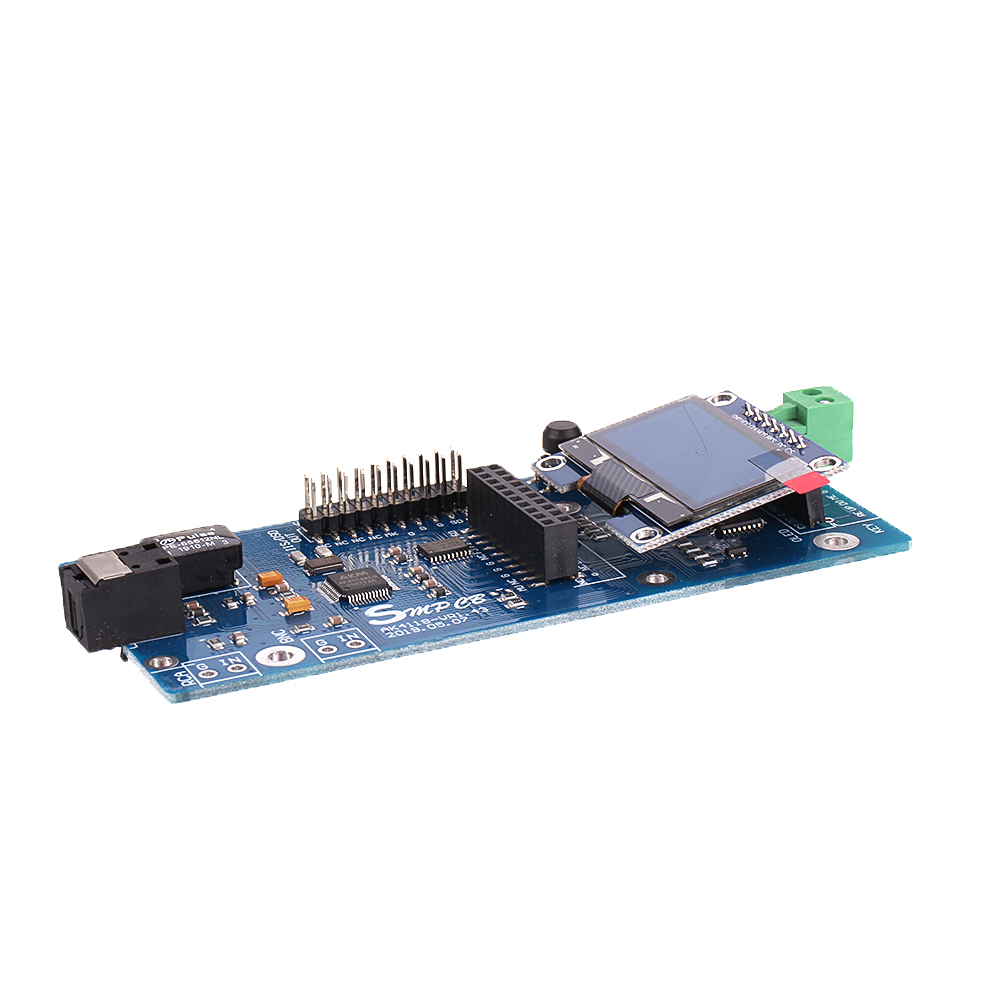

Elecbee AK4118 Digital Receiver Board Audio Decoder DAC SPDIF to IIS Coaxial Optical USB AES EBU Input Support XMOS Amanero with 1.3inch OLED

SKU: 1571345

Favorites

Key Features

1. Use the XMOS module / USB to support sampling display.

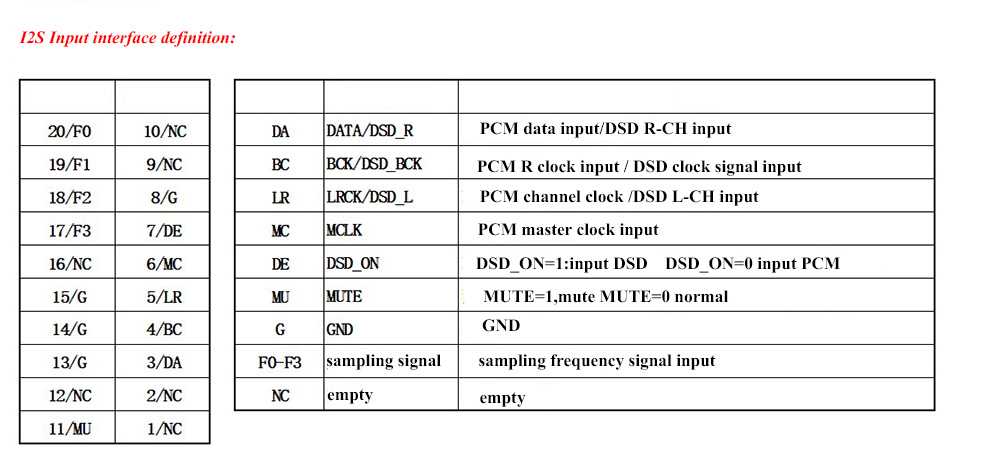

2. The double-row 20-pin output interface is compatible with the Italian USB output interface.

3. Using OLED to display working status

4. All settings are automatically saved

Input parameters:

COAX BNC, COAX RCA, OPTICAL, AES/EBU: 44.1K-192K 24BIT

USB (IIS/DSD/Using XMOS module): 44.1K-384K 32BIT / DSD64, DSD128, DSD256

Output parameters (using XMOS module): 44.1K-384K 32BIT/DSD64, DSD128, DSD256

Supply voltage: DC 5V

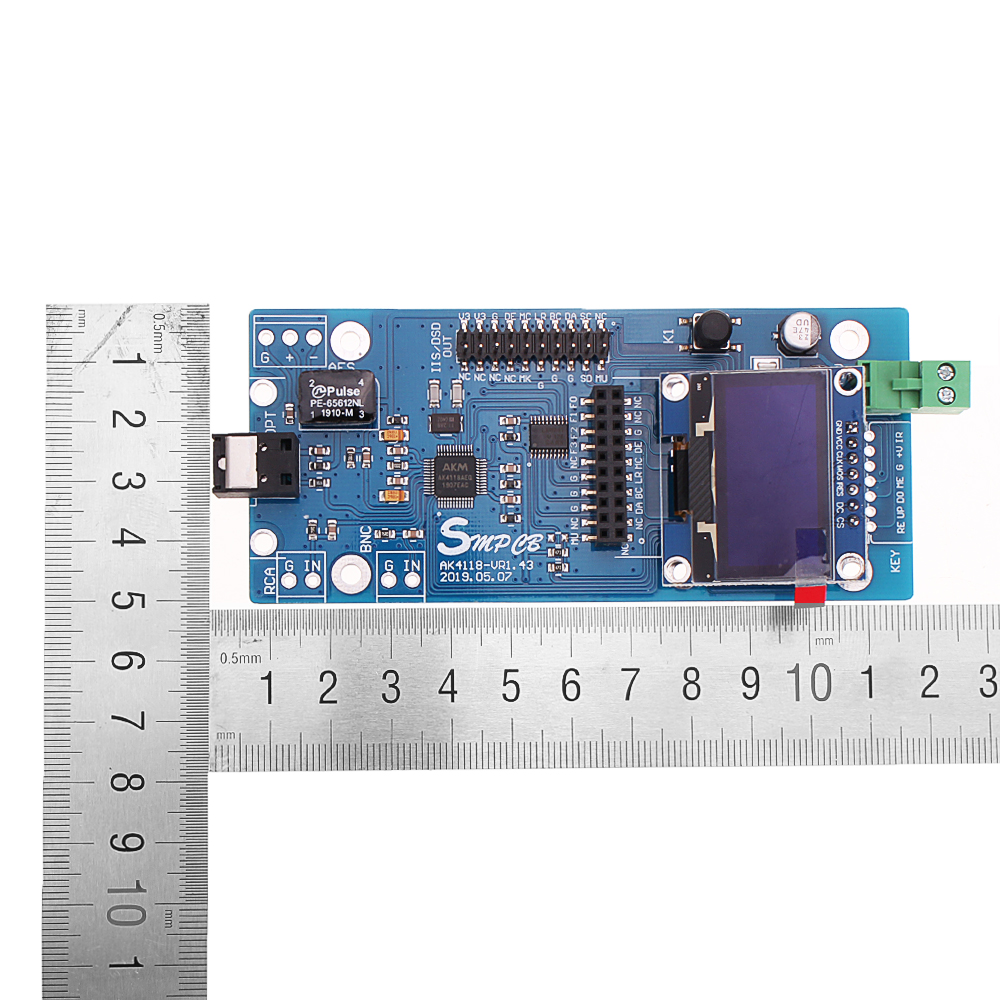

Board size: 111 x 49.5mm

Specifications

Show Similar Products (2768) >

Attribute

Value

Wireless Capability

Bluetooth

USB Support

USB

Show Similar Products (2768) >

Shipping Guide

Shipping	Delivery Period	For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days
	Shipping Rates	Shipping rates for your order can be found in the shopping cart.
	Shipping Options	Shipping rates for your order can be found in the shopping cart.
	Shipping Tracking	We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/Warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
	Warranty	All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
		This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
Ordering	How to Buy	Elecbee accepts online orders.
		Add to cart > Check out > Submit order > Complete payment > Delivery
	Payment	PayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Description

Overview:

This product uses the latest audio dedicated mediation chip AK4118 core design, supports 24bit 192K data reception, AK4118 as coaxial signal reception, has the industry's lowest Jitter,

Fully optimized by MCU software control, the performance is much higher than WM8805 DIR9001 CS8416

Case, input fiber-coaxial SPDIF signal, with one way IIS/DSD input (for XMOS module / Italian USB), output IIS/DSD format

Package includes:

1 x DAC board

AK4118-Digital-Receiver-Board-Audio-Decoder-DAC-SPDIF-to-IIS-Coaxial-Optical-USB-AES-EBU-Input-Suppo-1571345

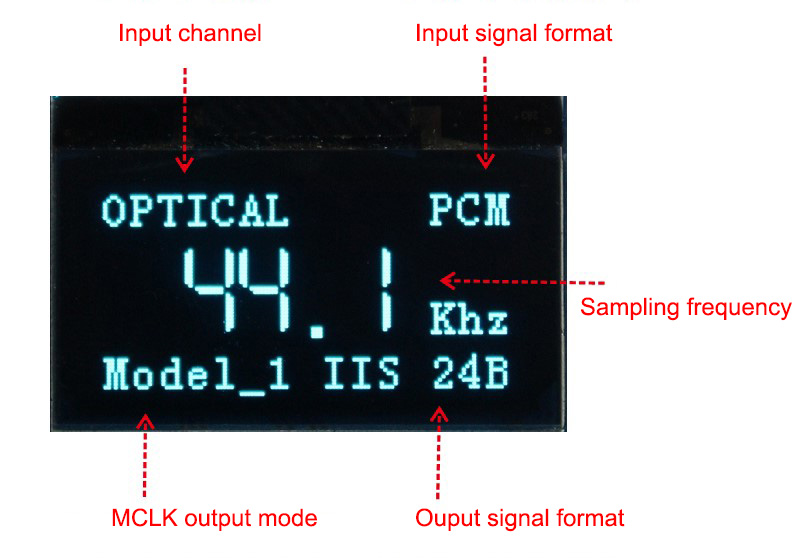

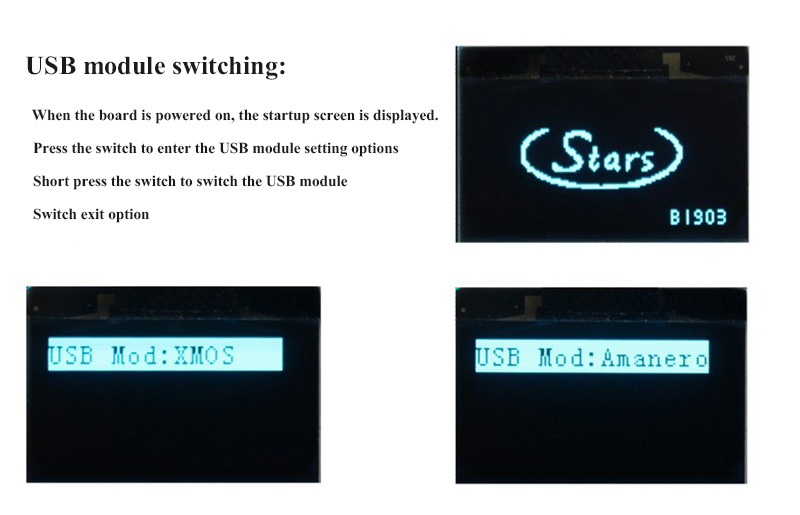

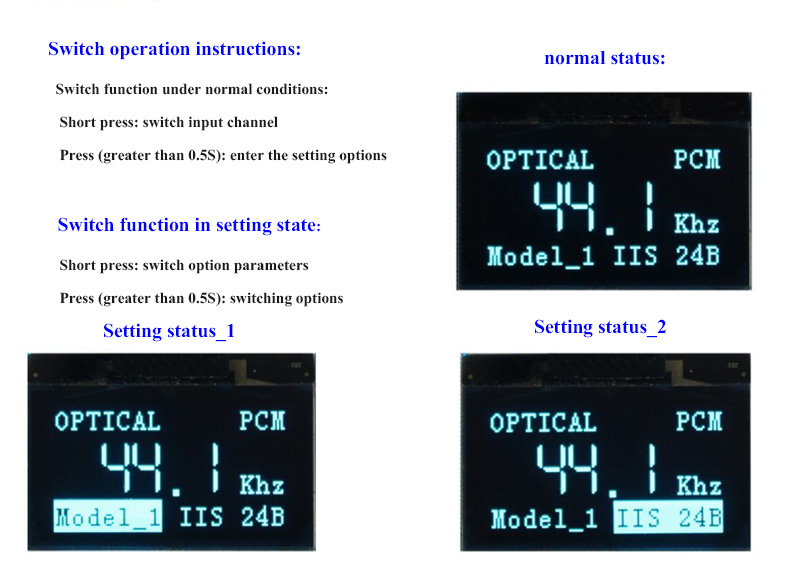

Display and Function Description:

1. Input channel: Coax Bnc,coax, RCA, USB, OPTICAL, Aes/ebu

2. Input signal format: PCM, DSD (Real-time display based on input signal)

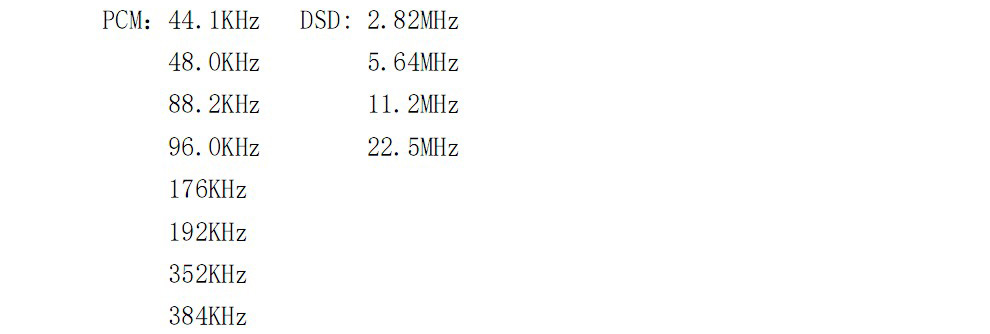

3. Sampling frequency of the input signal(Real-time display based on input signal)

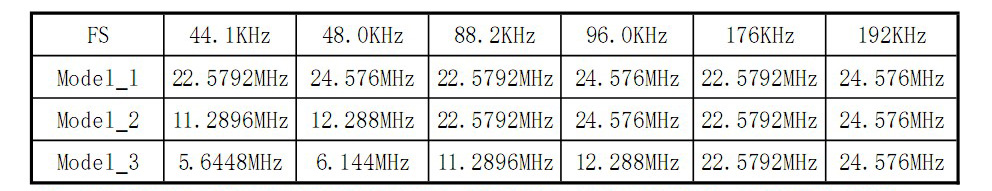

4. MCLK signal output mode (configurable):

NOTE:

This feature is limited COAX BNC, COAX RCA, OPTICAL, AES / EBU input, USB input invalid when the USB input, the board follows the USB module output signal MCLK.

AK4118-Digital-Receiver-Board-Audio-Decoder-DAC-SPDIF-to-IIS-Coaxial-Optical-USB-AES-EBU-Input-Suppo-1571345

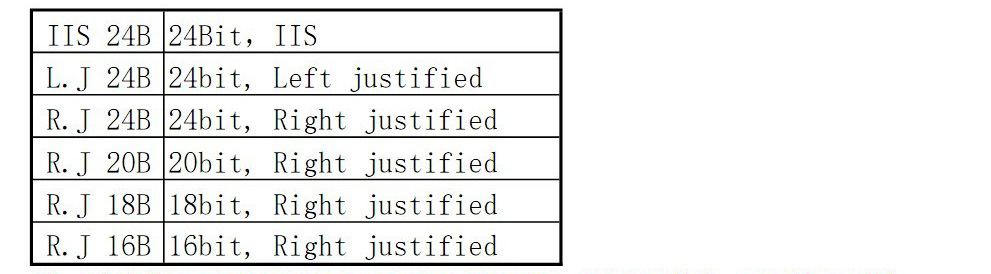

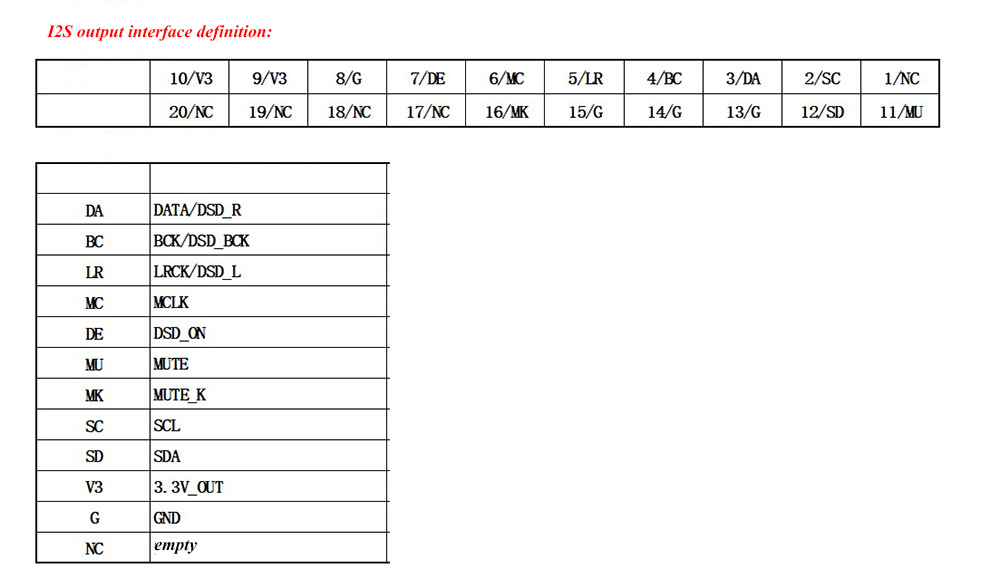

5. Output signal output mode (configurable):

NOTE:

This feature is limited COAX BNC, COAX RCA, OPTICAL, AES / EBU input, USB input invalid when the USB input, the board follows the USB module output signal MCLK.

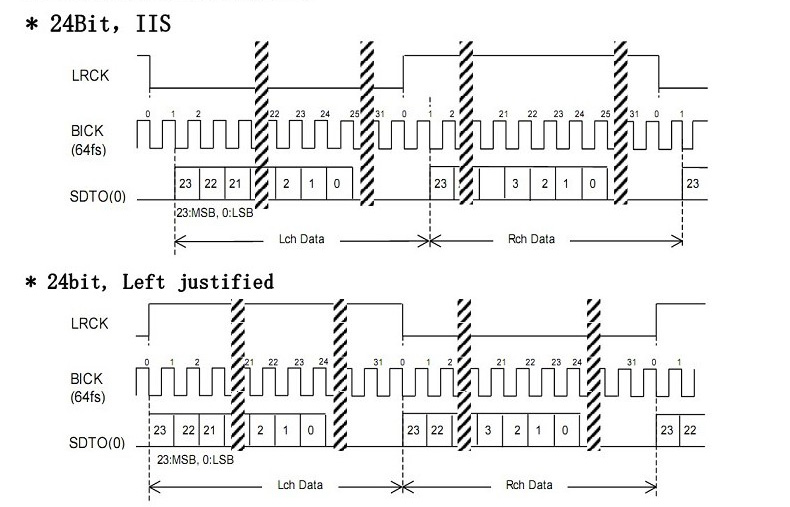

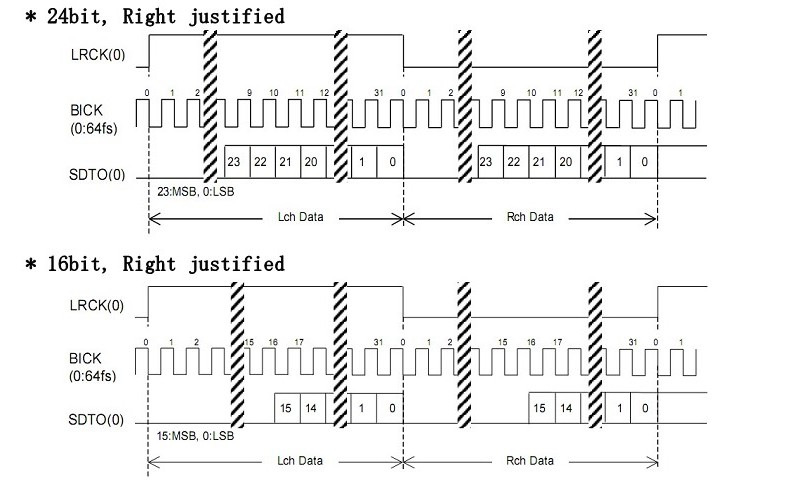

6. Timing diagram for different output signal formats
