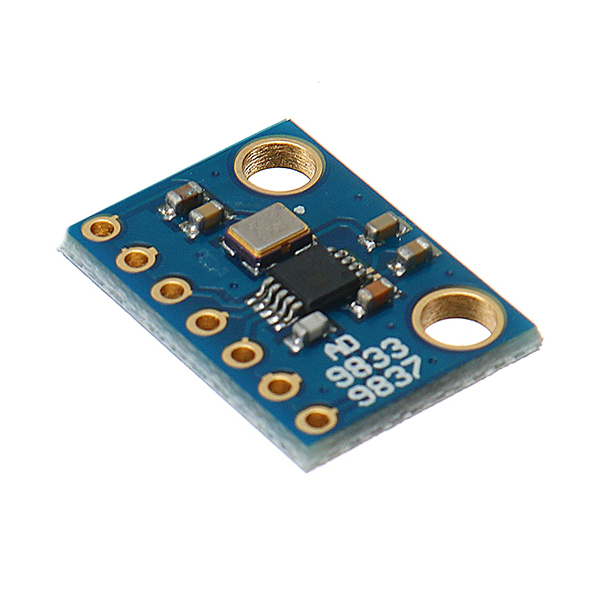

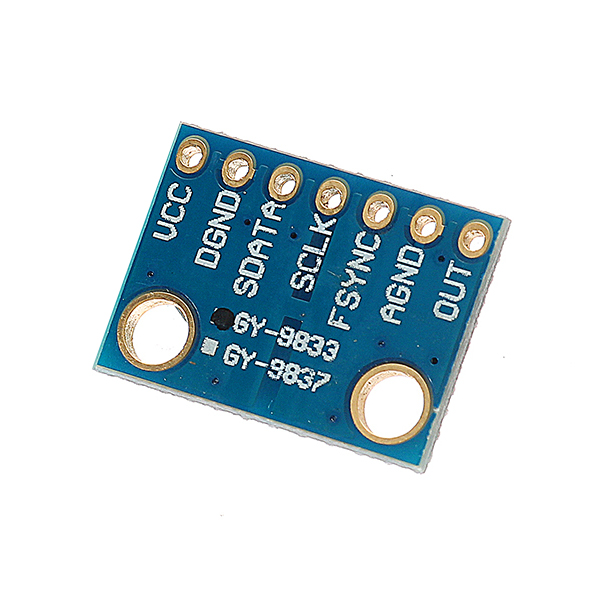

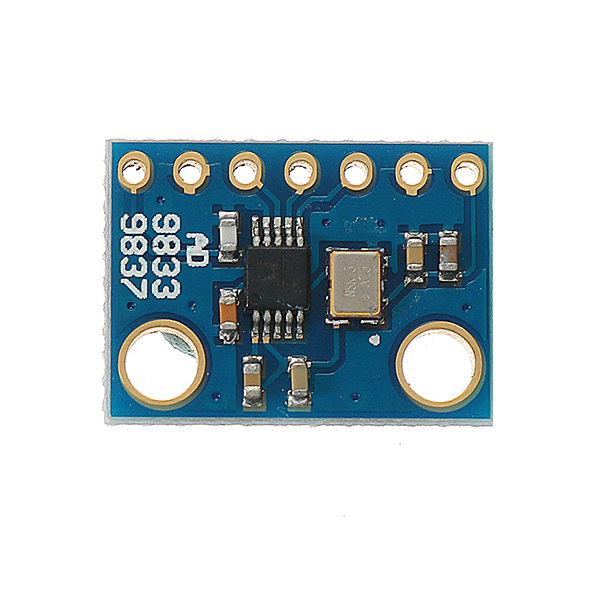

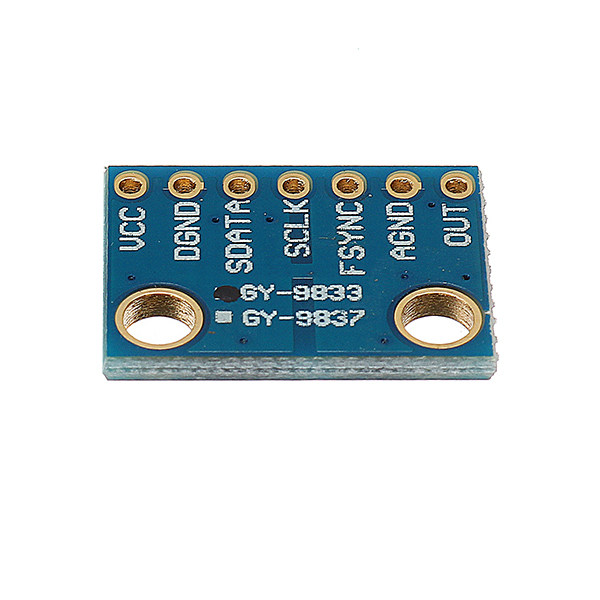

Elecbee AD9833 Programmable Microprocessor Serial Interface Module Sine Wave DDS Signal Generator

SKU: EB0043194

Favorites

Key Features

xa0

Digitally programmable frequency and phasexa0

12.65 mW power consumption at 3 Vxa0

0 MHz to 12.5 MHz output frequency rangexa0

28-bit resolution: 0.1 Hz at 25 MHz reference clockxa0

Sinusoidal, triangular, and square wave outputsxa0

2.3 V to 5.5 V power supplyxa0

No external components requiredxa0

3-wire SPI interfacexa0

Extended temperature range: −40°C to +105°Cxa0

Power-down option xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0xa0

Update rate: 25(max)xa0

VOUT maximum: 0.65Vxa0

VOUT minimum: 38mVxa0

VOUT temperature Coefficient: 200°xa0

Input high voltage: 1.7-2.8Vxa0

Input low voltage: 0.5-0.7Vxa0

Input current: 10µAxa0

Input capacitance: 3pFxa0

Operating temperature range: −40°C to +105°C, typical specification at 25°Cxa0

Size: 17*12mm / 0.66*0.47" xa0

xa0

xa0
