Elecbee 1Hz-500KHz DDS Functional Signal Generator Frequency Generator Sine + + Triangle + Sawtooth Waveform Meter

SKU: EB0046368

Favorites

Key Features

Product Features:

It is small but has many functions, easy to operate and carry.

It can be used with the oscilloscope to test and debug electronic circuits, the frequency response of audio amplifier and impulse response.

The square waveform is suitable for the oscilloscope attenuator and the adjustment of the probe impulse response.

It also can calibrate the sweep time factor of the oscilloscope.

Have a filter (can be opened and closed) to suit the output of the sine wave and pulse wave.

Specifications:

The Output Signal Types: sine, square, triangle, positive and negative sawtooth waveform.

Frequency Range: sine wave is 1Hz-500kHz, other kinds of waveforms is 1Hz-20kHz.

Resolution: 1Hz

Sine Wave Distortion: under 1kHz < 1%, over 1kHz <0.5%.

DC Offset Range: ±10V (Can be closed)

Output Range: ±10V(P-P)

Output Impedance: 50ohm

Power Supply Voltage: DC3.5-10V.

Display: LCD

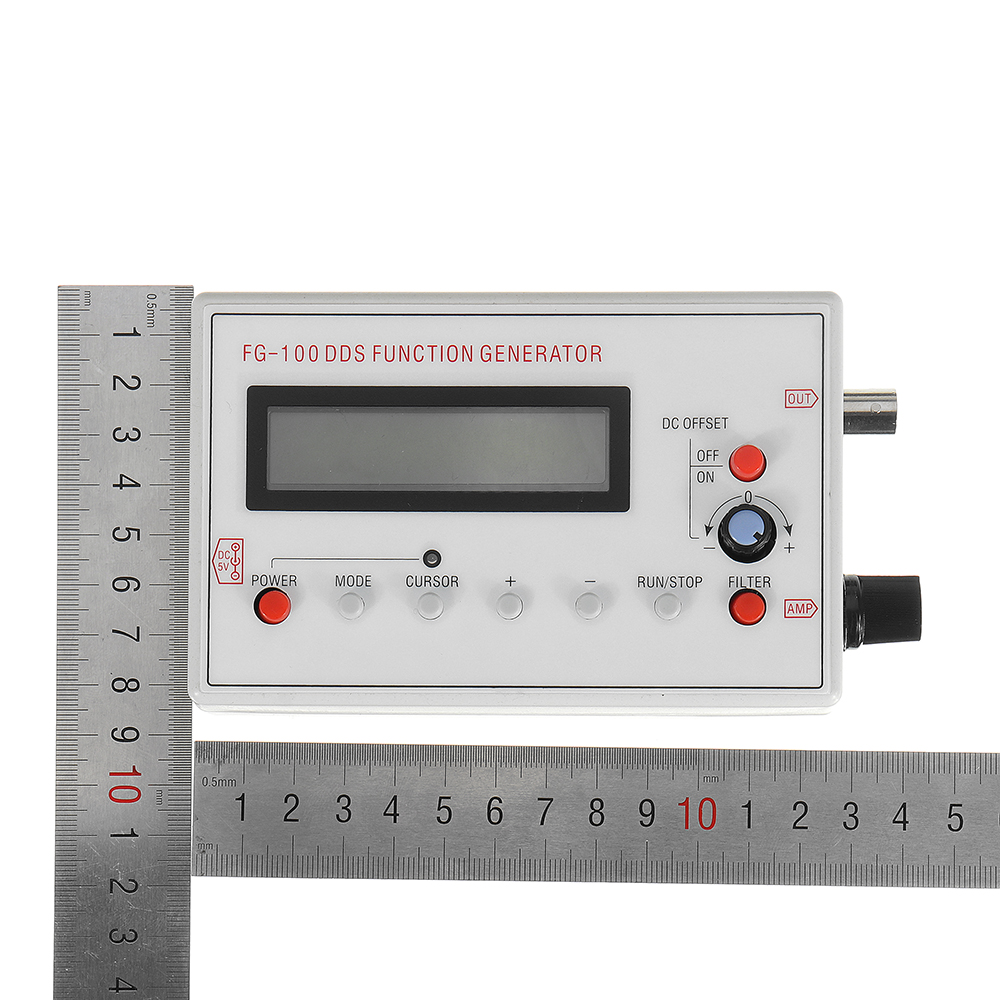

Item Size: 14 x 8 x 3.5cm / 5.51 x 3.15 x 1.38in

LCD Screen: 6.5 x 1.5cm / 2.56 x 0.59in

Item Weight: 197.5g / 6.96oz

Package Size: 23 x 16 x 3.5cm / 9.06 x 6.3 x 1.38in

Package Weight: 202.5g / 7.15oz

Specifications

Show Similar Products (2768) >

Attribute

Value

Wireless Capability

Bluetooth

USB Support

USB

Show Similar Products (2768) >

Shipping Guide

Shipping	Delivery Period	For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days
	Shipping Rates	Shipping rates for your order can be found in the shopping cart.
	Shipping Options	Shipping rates for your order can be found in the shopping cart.
	Shipping Tracking	We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/Warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
	Warranty	All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
		This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
Ordering	How to Buy	Elecbee accepts online orders.
		Add to cart > Check out > Submit order > Complete payment > Delivery
	Payment	PayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Description

Instruction:

This functional signal generator can test many kinds of waveforms such as sine, square, triangle, positive and negative sawtooth waveform. It is specially designed for those professional workers.

Package includes:

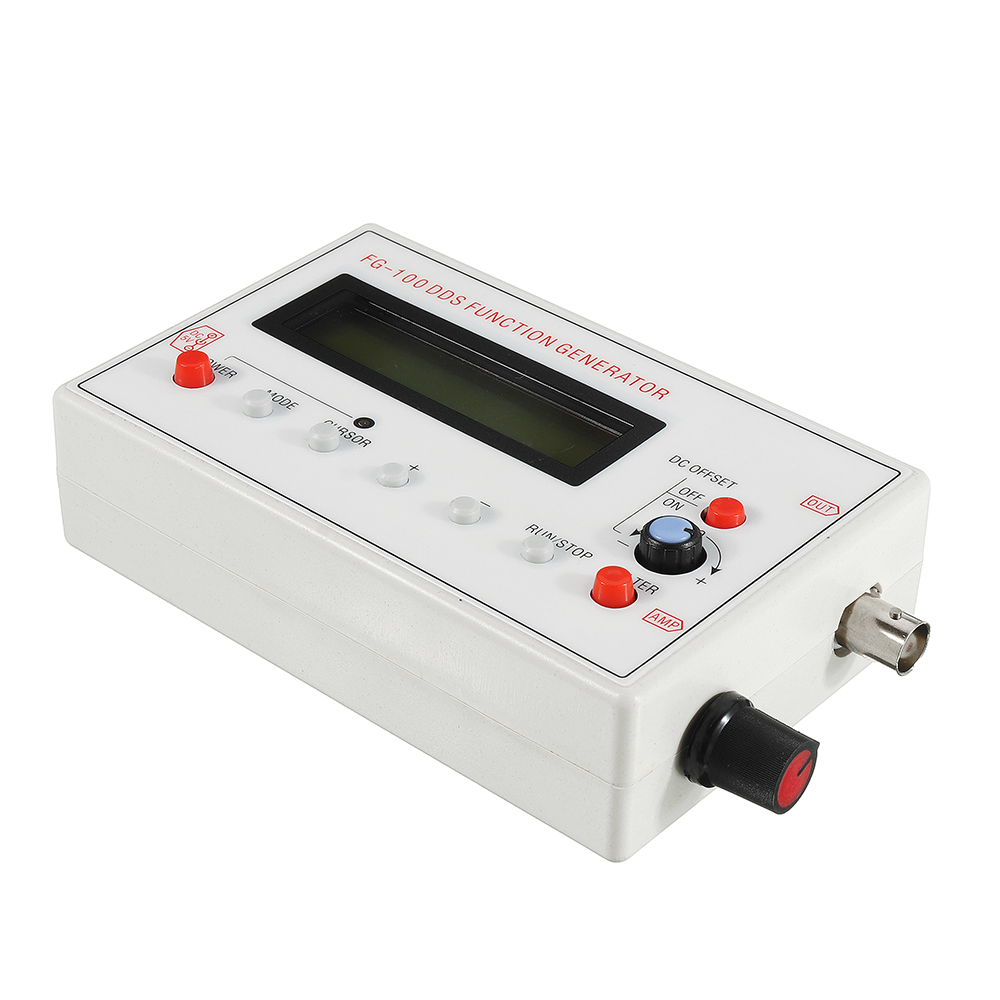

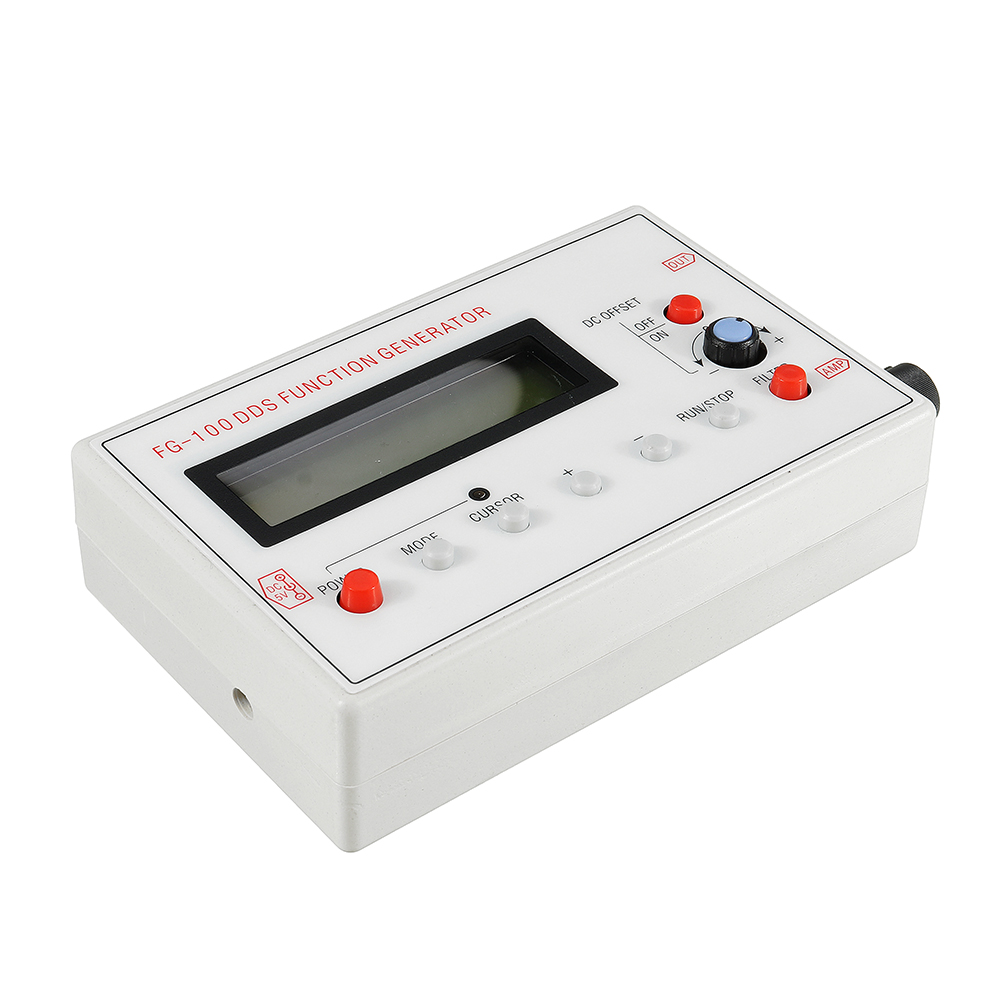

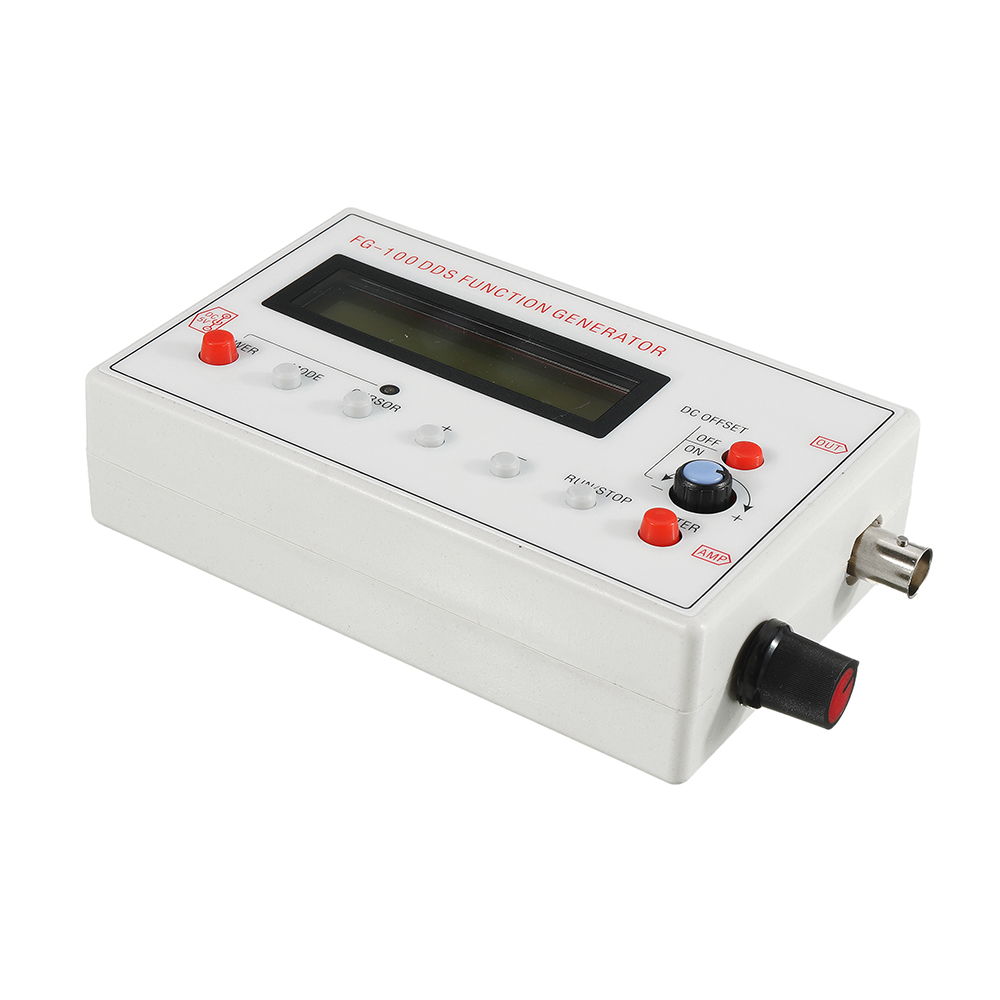

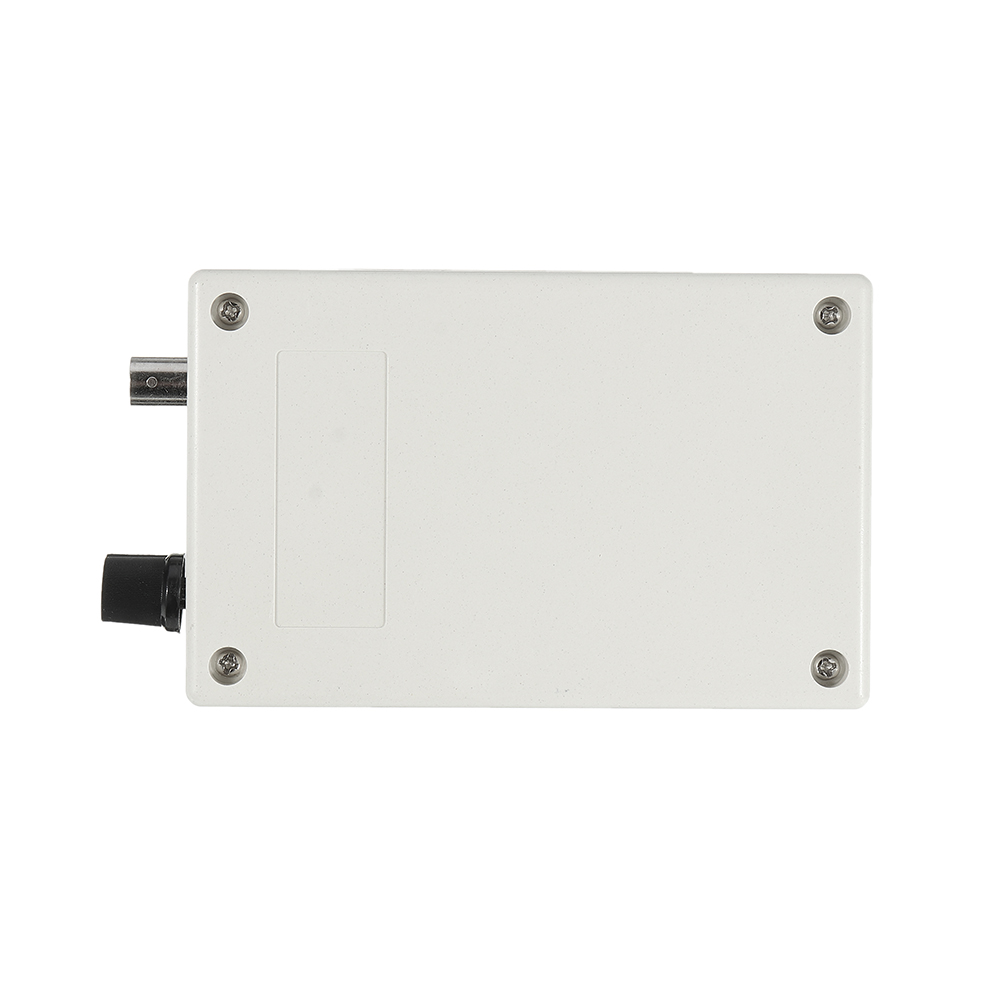

1 x Signal Generator

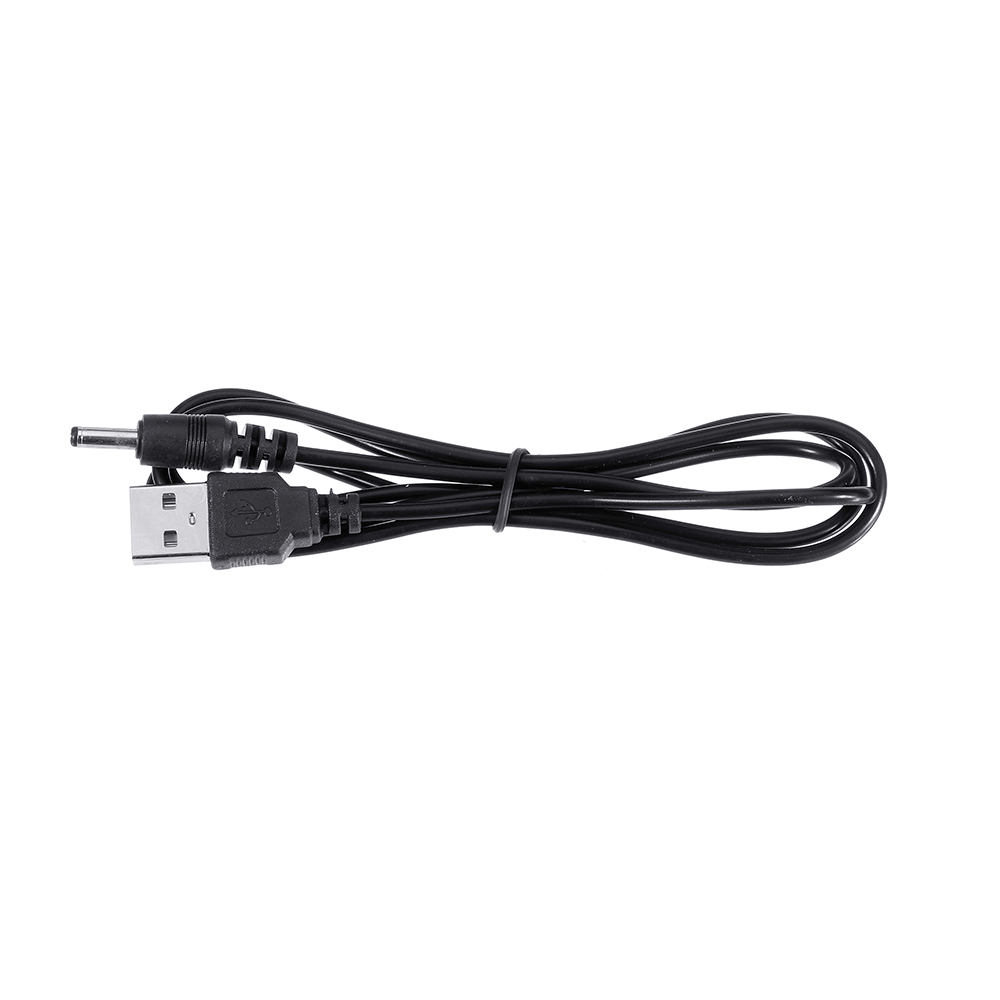

1 x USB to DC Power Cable
