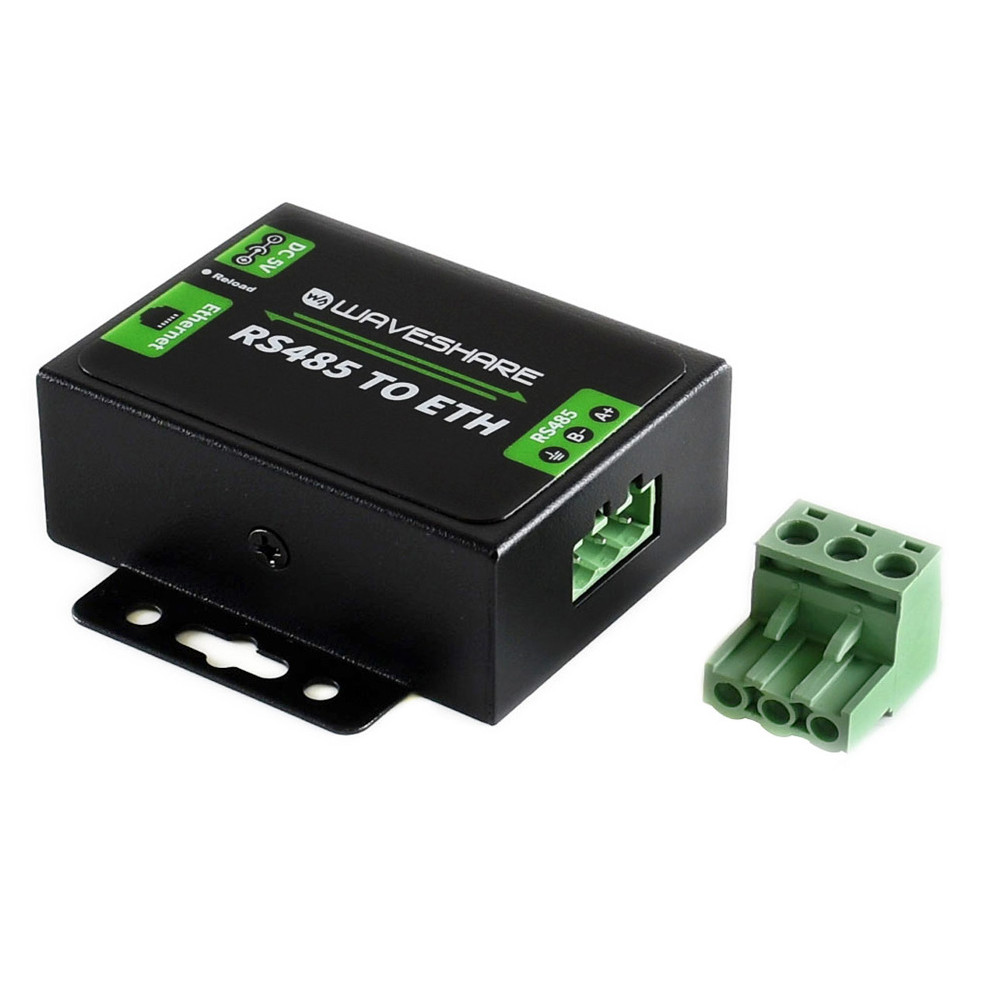

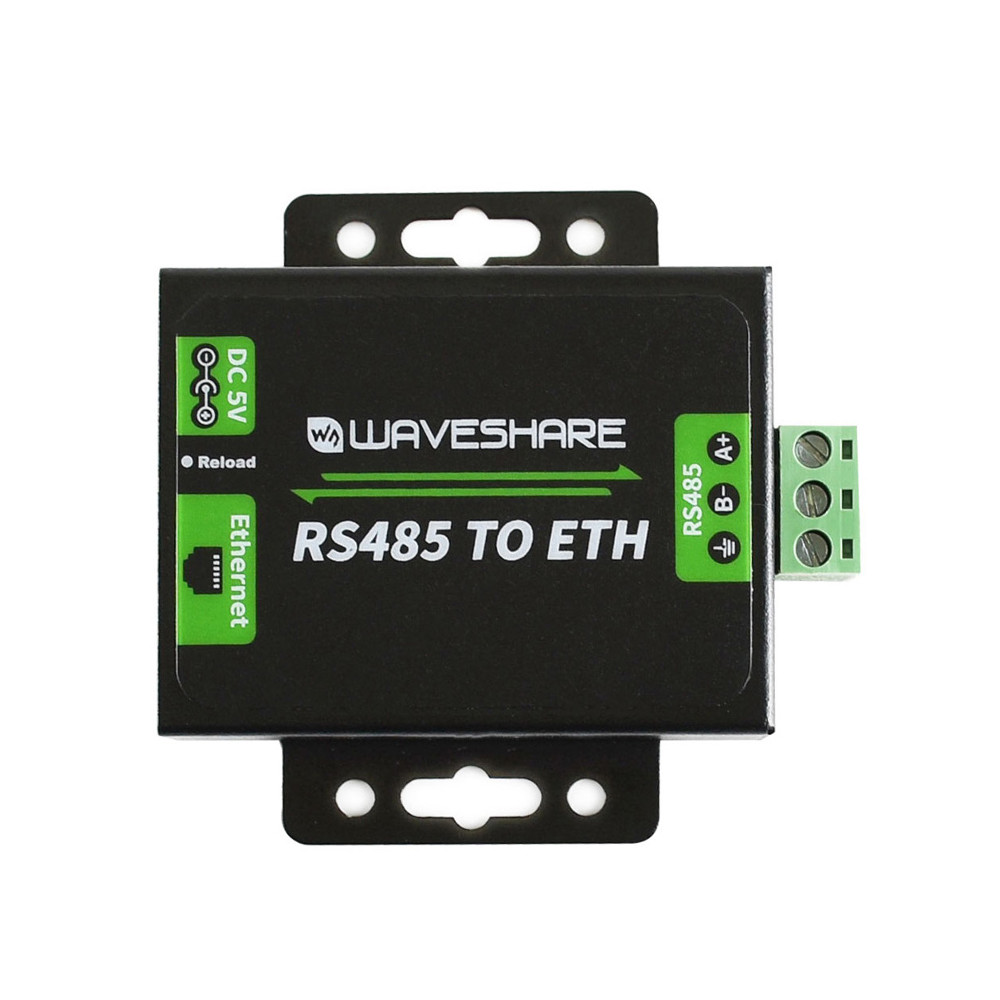

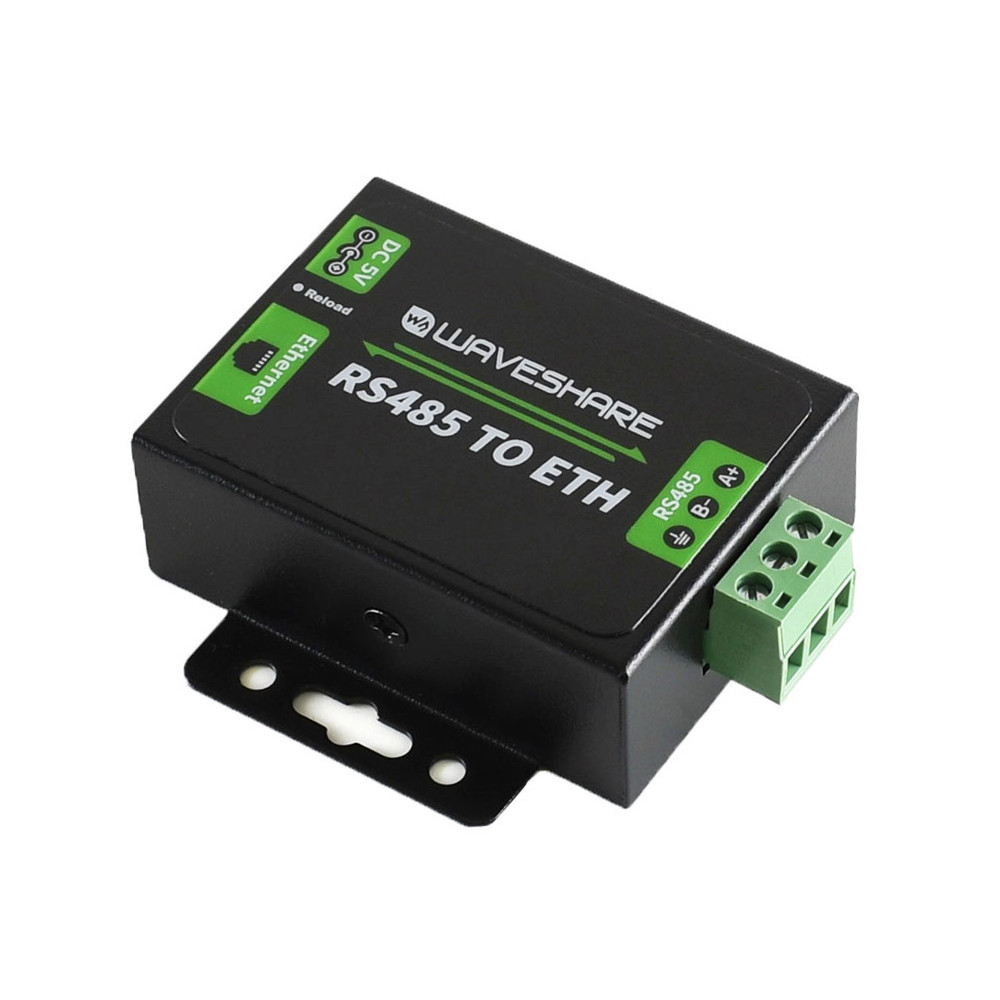

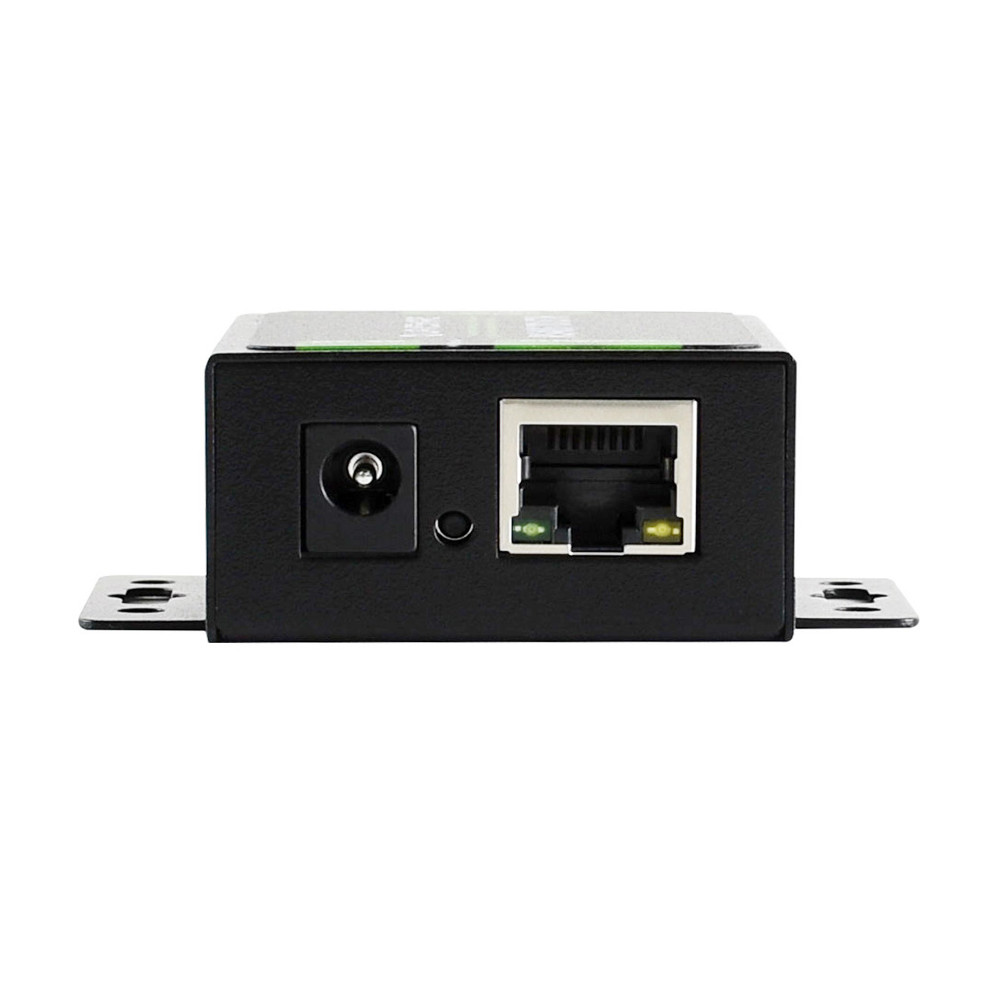

Elecbee Waveshare Two-way Transparent Transmission Serial Server RS485 to Ethernet Module RJ45 Network Port

SKU: EB0041428

Favorites

Key Features

Product Features:

Adopt M0 series 32-bit ARM processor, with fast running speed and high efficiency
Support 10/100M Ethernet interface, support Auto-MDI/MDIX (Cross-connect direct network cable arbitrary connection, automatic switching)
Support to set the RS485 communication baud rate (600bps~230.4Kbps), support None, Odd, Even, Mark and Space five kinds of verification
Working mode optional TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client (support GET and POST)
Support web page, AT command, serial port protocol and network protocol setting parameters, provide setting protocol, customers can integrate into their own software
Support custom heartbeat packet mechanism to ensure the connection is true and reliable, and can also be used to actively capture sensor data
Support custom registration package mechanism, automatically send a predetermined registration package as a logo after establishing a connection, which is convenient to distinguish different devices
Support custom web page function, convenient for users to customize module web page content
Supports RFC2217-like protocol, which can communicate with devices with variable serial port parameters (baud rate, data bits, etc.)
Support KeepAlive mechanism, can quickly detect abnormal network interruption, and disconnect and reconnect
Support timeout restart (no data restart) function to ensure long-term stable communication, and can customize restart time
Support DNS domain name resolution function, can customize DNS server address
Support DHCP function, can automatically obtain IP, can also customize static IP
Support the function of upgrading firmware through the network, making maintenance more convenient
Support to restore factory settings through software and hardware
Factory-programmed specificMAC, customizable MACaddress
Provide software: module configuration software, TCP/UDP test tool, virtual serial port software, etc.
Provide programming examples: host computer programming examples (socket), VB, C++, Android, iOS, etc.

Product Features:

Adopt M0 series 32-bit ARM processor, with fast running speed and high efficiency
Support 10/100M Ethernet interface, support Auto-MDI/MDIX (Cross-connect direct network cable arbitrary connection, automatic switching)
Support to set the RS485 communication baud rate (600bps~230.4Kbps), support None, Odd, Even, Mark and Space five kinds of verification
Working mode optional TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client (support GET and POST)
Support web page, AT command, serial port protocol and network protocol setting parameters, provide setting protocol, customers can integrate into their own software
Support custom heartbeat packet mechanism to ensure the connection is true and reliable, and can also be used to actively capture sensor data
Support custom registration package mechanism, automatically send a predetermined registration package as a logo after establishing a connection, which is convenient to distinguish different devices
Support custom web page function, convenient for users to customize module web page content
Supports RFC2217-like protocol, which can communicate with devices with variable serial port parameters (baud rate, data bits, etc.)
Support KeepAlive mechanism, can quickly detect abnormal network interruption, and disconnect and reconnect
Support timeout restart (no data restart) function to ensure long-term stable communication, and can customize restart time
Support DNS domain name resolution function, can customize DNS server address
Support DHCP function, can automatically obtain IP, can also customize static IP
Support the function of upgrading firmware through the network, making maintenance more convenient
Support to restore factory settings through software and hardware
Factory-programmed specificMAC, customizable MACaddress
Provide software: module configuration software, TCP/UDP test tool, virtual serial port software, etc.
Provide programming examples: host computer programming examples (socket), VB, C++, Android, iOS, etc.

Show Less

Specifications

Show Similar Products (2768) >

Attribute

Value

MCU/SoC Model

Waveshare Two-way Transparent

CPU Architecture

CORTEX-M0

Memory

Arduino IDE

Debug Interface

UART, CAN, ETHERNET

Power Protection

5V, 7.0V

Thermal Solution

UART

Show Similar Products (2768) >

Shipping Guide

Shipping	Delivery Period	For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days
	Shipping Rates	Shipping rates for your order can be found in the shopping cart.
	Shipping Options	Shipping rates for your order can be found in the shopping cart.
	Shipping Tracking	We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/Warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
	Warranty	All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
		This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
Ordering	How to Buy	Elecbee accepts online orders.
		Add to cart > Check out > Submit order > Complete payment > Delivery
	Payment	PayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Description

Parameter:

Ethernet:

Interface form: 4-pin RJ45

Communication rate: 10/100Mbps

Interface protection: with 1.5KV electromagnetic isolation

Network protocols: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD Client

Send cache: 6Kbyte

Receive buffer: 4Kbyte

RS485:

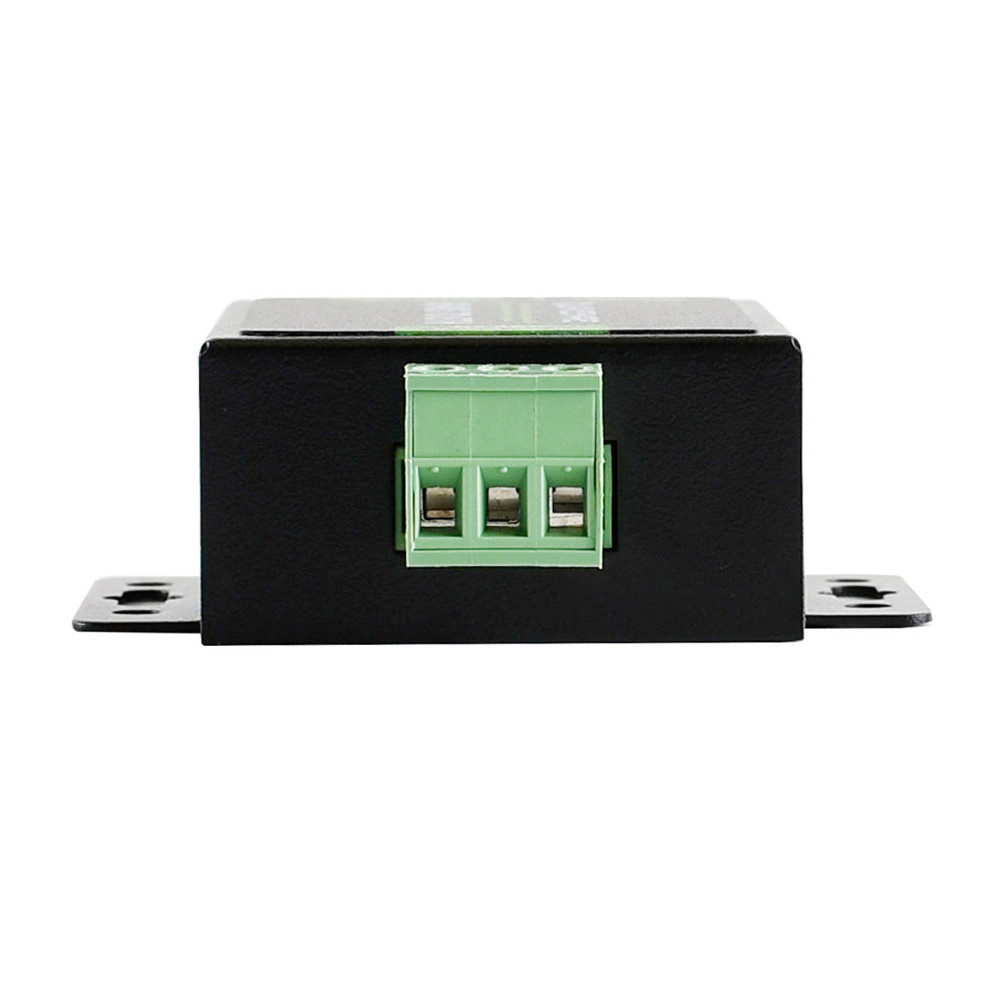

Interface form: terminal block (A+, B-, GND)

Data bits: 5bit, 6bit, 7bit, 8bit

Stop bit: 1, 2

Calibration position: None, Odd, Even, Mark, Space

Baud rate: 600bps~230.4Kbps

Receive buffer: 800byte

Hardware flow control: none

Interface protection:

Anti-static 2KV, ESD protection

RS485 pull-up and pull-down resistance: 2.2KΩ

power supply:

Power supply voltage: 5.0~7.0V (recommended 5V)

Working current: 150mA (@5V)

Total power consumption: <1W

Interface protection: anti-reverse connection, ESD protection, anti-surge

working environment:

Working temperature: -25~75°C

Storage temperature: -40~105°C

PK item	UART TO ETH	RS485 TO ETH (this item)	RS232/485 TO ETH (Product ID 1697581)
Microcontroller	Cortex-M0	Cortex-M0	Cortex-M4 (Main frequency up to 120MHz)
Ethernet port	RJ45 (10/100Mbps adaptive)
	Protocol: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD Client
	Cache: send 6Kbyte, receive 4Kbyte	Cache: send 16Kbyte, receive 16Kbyte
Serial interface	UART	RS485	RS232+RS485 (can work simultaneously)
	Baud rate: 600bps~460.8Kbps	Baud rate: 600bps~230.4Kbps
	Hardware streaming: not supported	Hardware streaming: supported
	Data bits: 5, 6, 7, 8
	Stop bits: 1, 2
	Check digit: None, Even, Odd, Space, Mark
	Cache: receive 800byte	Cache: send 2Kbyte, receive 2Kbyte
	Framing mechanism: 4 bytes packing time, byte length 400	Framing mechanism: 4 bytes packing time, byte length 1460, can be customized
Special function	Custom heartbeat package, custom registration package, custom web page, RFC2217-like protocol, KeepAlive mechanism, timeout restart, short connection, network upgrade firmware
Special function	/	/	Modbus gateway, Websocket (web page to serial port)
Operating mode	TCP Server, TCP Client,UDP Server,UDP Client,HTTPD Client
Support Client	Under TCP Server, the number of connected clients can be customized (1~16)	Under TCP Server, support two sockets, each socket can connect 8 clients
Configuration method	Built-in web page, host computer setting software, serial port commands
Interface protection	Power supply: anti-reverse connection, ESD protection, anti-surge
	Network port: 1.5KV electromagnetic isolation protection
	/	RS485: ESD protection, anti-static 2KV, 2.2KΩ pull-up resistor
	/	/	Light protection, overcurrent protection
Supply voltage	3.3V/5V	5~7V	5~36V
Working current	150mA@5V	110mA@5V	86.5mA@5V
Operating temperature	Working temperature: -25～75℃	Working temperature: -40～85℃
Operating temperature	Storage temperature: -40～105℃

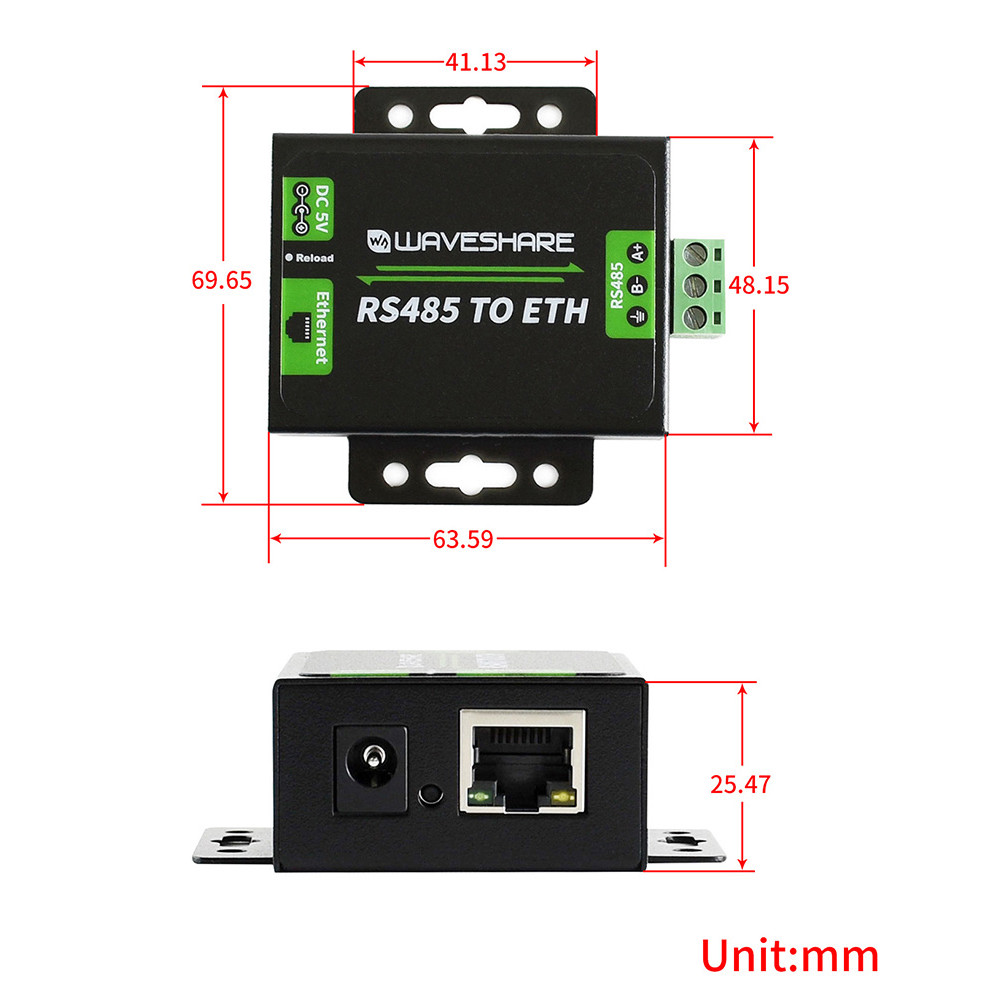

Product Size	50.5mm × 22.6mm × 15mm	70mm × 63.6mm × 25mm	82.8mm × 85.7mm × 25mm
