Elecbee V1.1-CN MicroPython Programming/STM32/MCU Embedded Experimental Development Board
SKU: EB0041654
Favorites
Key Features
Show More
Specifications
Attribute
Value
Search
MCU/SoC Model
V1.1-CN MicroPython Programming/STM32/MCU
CPU Architecture
TIONIMAGE0
Memory
Arduino IDE
Debug Interface
USB, CAN
Power Protection
6V, 3.6V
Shipping Guide
Shipping | Delivery Period | For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Description
More document click to sownload:
Overview:
Overview:
Micropyton refers to the micro controller using the Python programming language, learn a single-chip microcomputer and embedded development friend should know early microcontroller using assembly language to programming, with the development of the microprocessor, then gradually replaced by C now microprocessor integration is becoming more and more high, so we can use now- Python language to develop.That is, the embedded hardware functionality that used to take days to write can now be solved in just a few minutes or even a few lines of code based on MicroPython. "Life is short. I use Python and MicroPy thon."

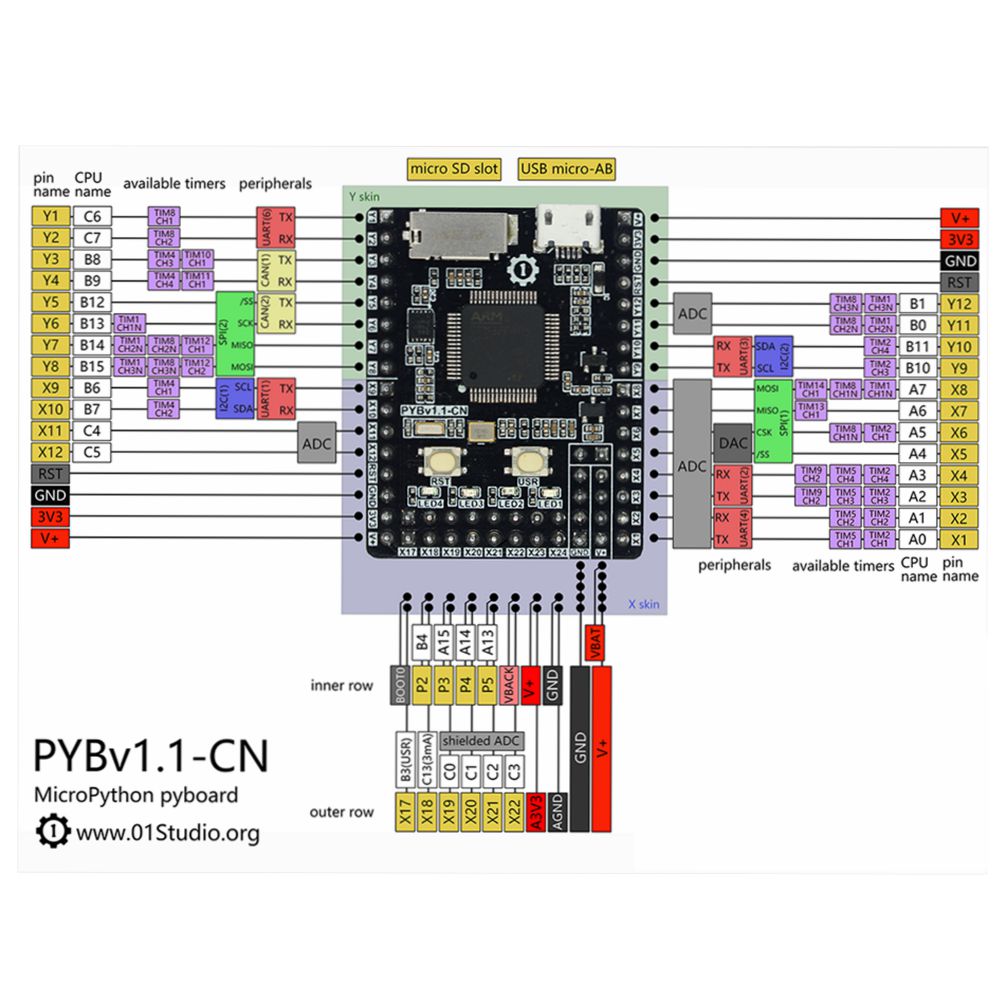

Pin Instructions:
V+: 3.6v-6v input (when plugged into USB, it is powered by USB, the voltage is 5V, it is recommended to use USB port for power supply)
3V3: 3.3v output, maximum current 250mV
VBAT: lithium battery input (onboard FET protection circuit, xh-2.54 2P interface on the back)
VBAT: backup battery
A3V3: analog reference voltage, connected to 3V3
X9/X10: when using onboard triaxial acceleration timing is in 12C mode
X17: when the USR key is pressed, the X17 will connect to GND through a 4.7k resistance
P2-p5: connect 4 LEDs and light up with high level output 10
SD sw :A8 to check if SD card is inserted to switch
Mma-int :B2 is used to receive interrupts generated by onboard accelerometers
Mma-avdd: the B5 is connected to the AVDD pin of the onboard accelerometer
BOOTO: connect to 3V3, reset to DFU mode
1 x Pyboard V1.1-CN MicroPython Programming Experimental Development Board
