Elecbee TPA3116D2 2.0 Channel Bluetooth 4.2 Digital Amplifier Board with 3-Band Tuning High Power DC12-24V for Home Audio & DIY Projects
SKU: EB0051891
Favorites
Key Features
Features:
- TI TPA3116D2 Chip & Dynamic Power Output: Built with TI’s TPA3116D2 high-performance digital amplifier chip, this 2.0-channel board delivers adjustable power (10W-60W per channel) based on voltage (DC12-24V) and speaker impedance (4-8Ω). Perfect for powering bookshelf speakers, desktop audio systems, or DIY setups.
- Bluetooth 4.2 & Dual-Mode Connectivity: Features stable Bluetooth 4.2 streaming (range >8m) from phones/tablets, plus a wired audio input for non-Bluetooth sources. Switch modes easily: default Bluetooth mode, press volume potentiometer to switch to wired input—versatile for any audio source.
- Wide Voltage Compatibility & Energy Efficiency: Operates on DC12-24V (recommended 20-24V/5-6A) with 90% efficiency. Works with switching power supplies, laptop adapters, power banks, or car batteries—ideal for indoor home use or portable setups.
- Precise 3-Band Sound Tuning: Equipped with independent bass, midrange, and treble potentiometers, plus a master volume control. Fine-tune audio to match music genres (rock, jazz, classical) or room acoustics for a personalized listening experience.
- Plug-and-Play Finished Board: Fully soldered and tested for reliability—simply connect speakers, power, and audio source to start enjoying high-quality sound. Compact 110x83x24mm design fits seamlessly into home stereo systems, background music setups, or DIY audio projects.
Show More
Specifications
Attribute
Value
Search
Wireless Capability
Bluetooth + Cellular
Shipping Guide
Shipping | Delivery Period | For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Description
Description:

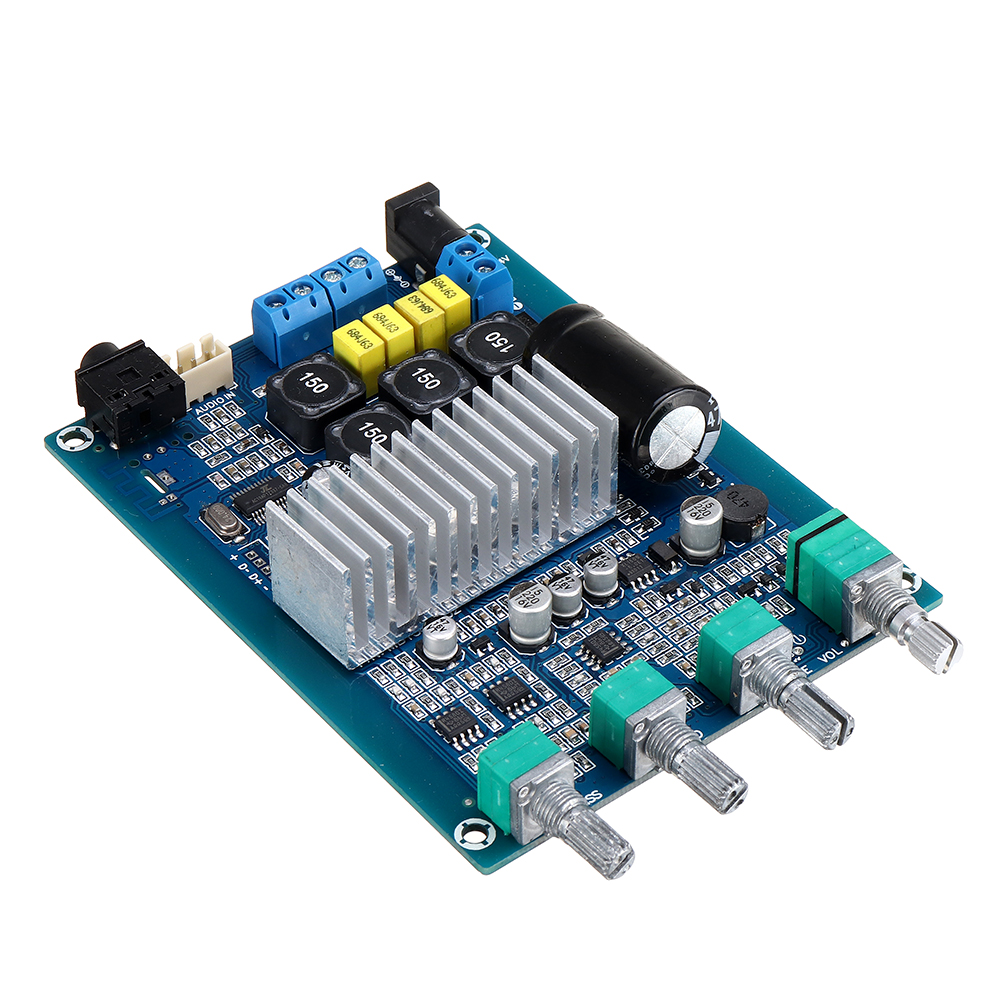

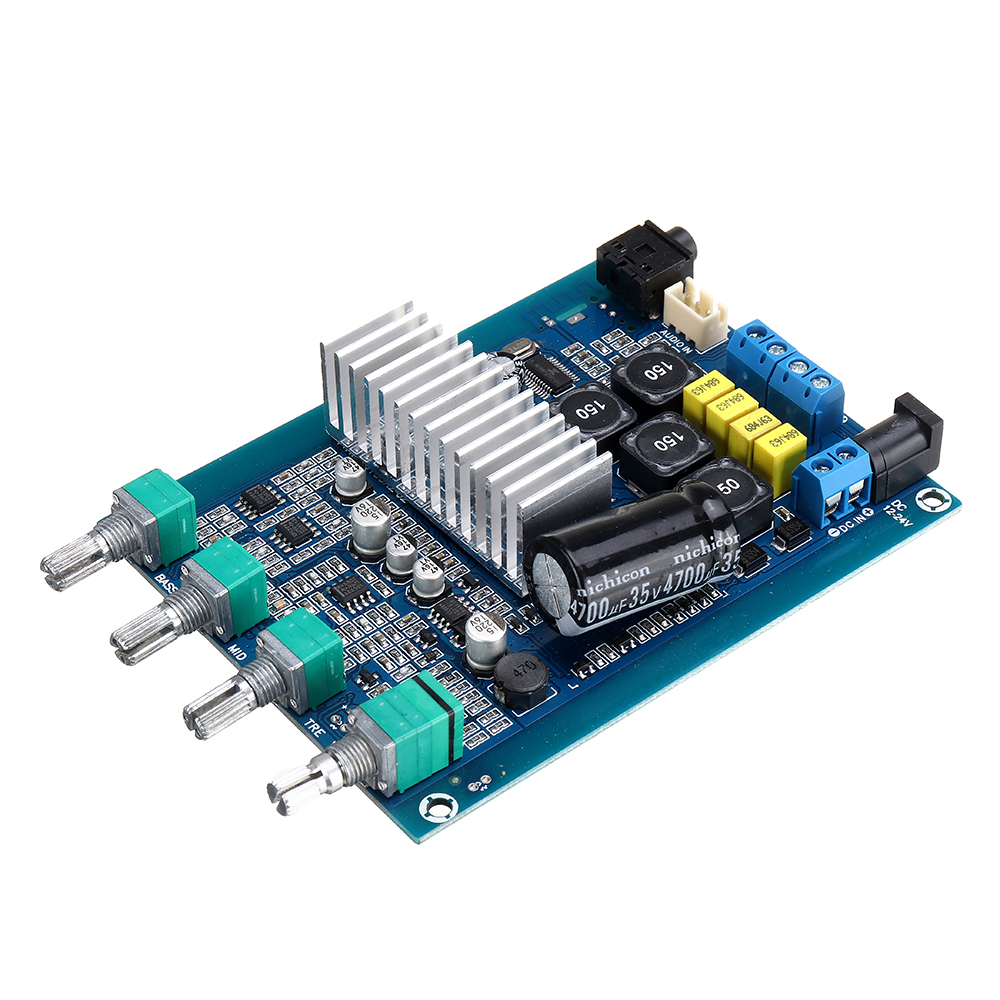

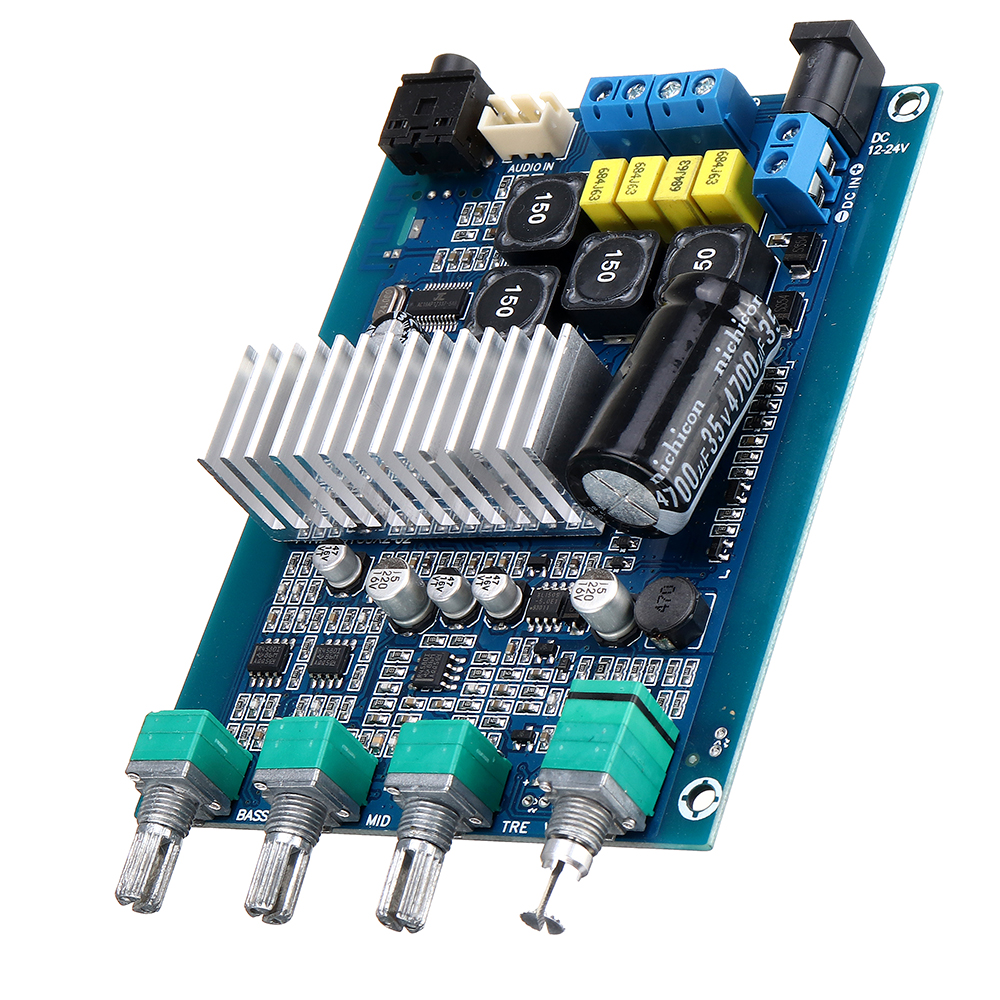

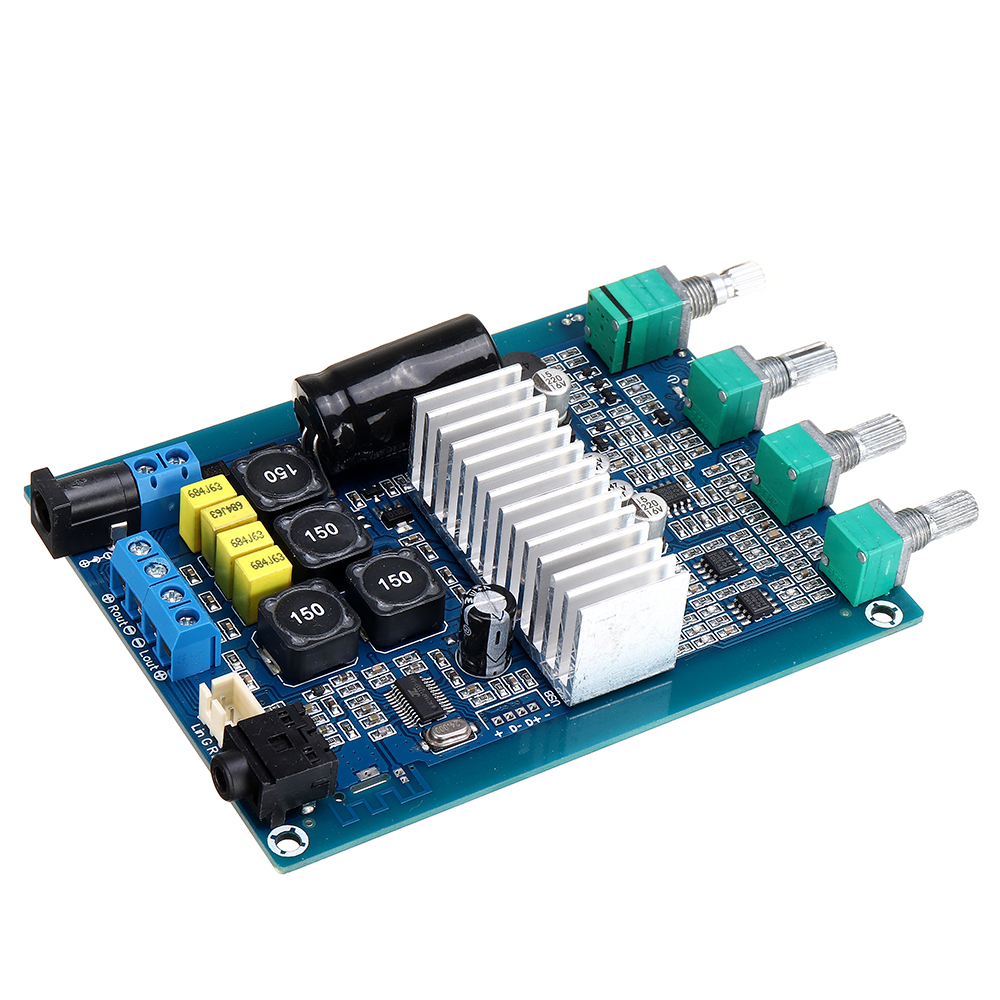

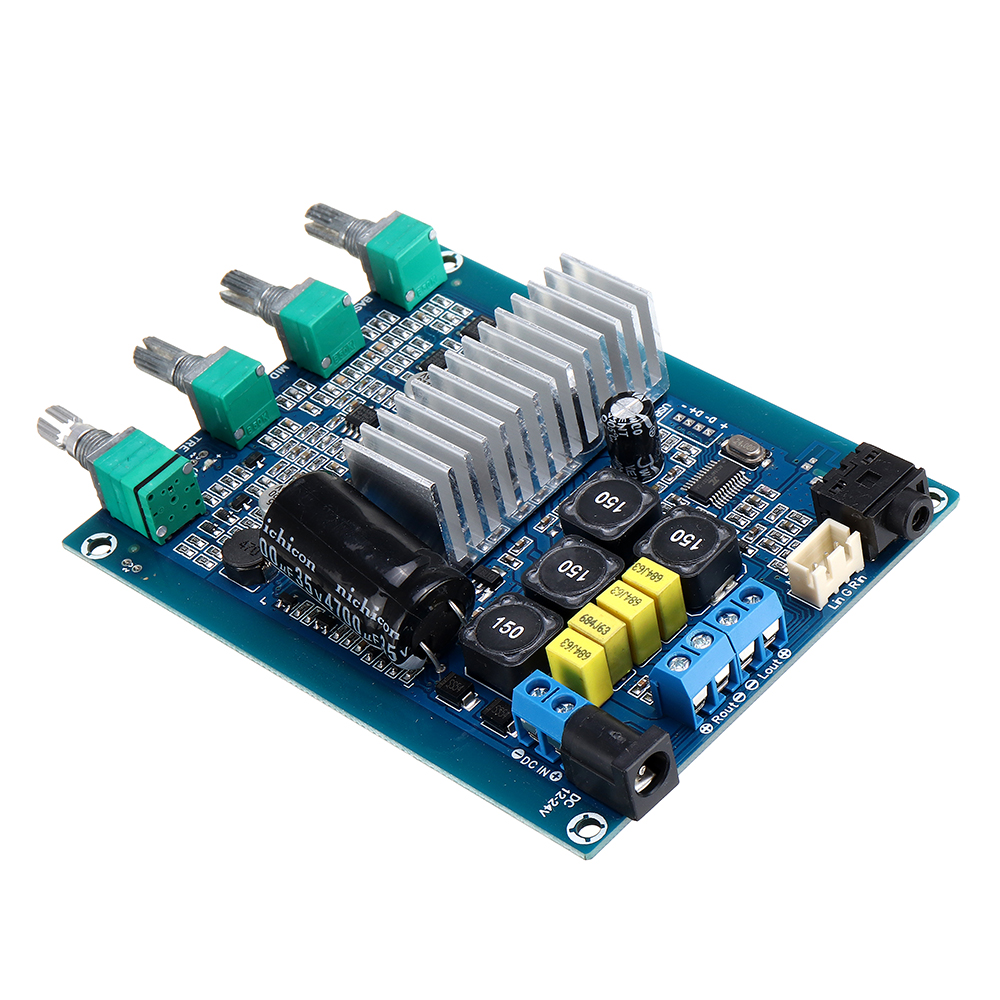

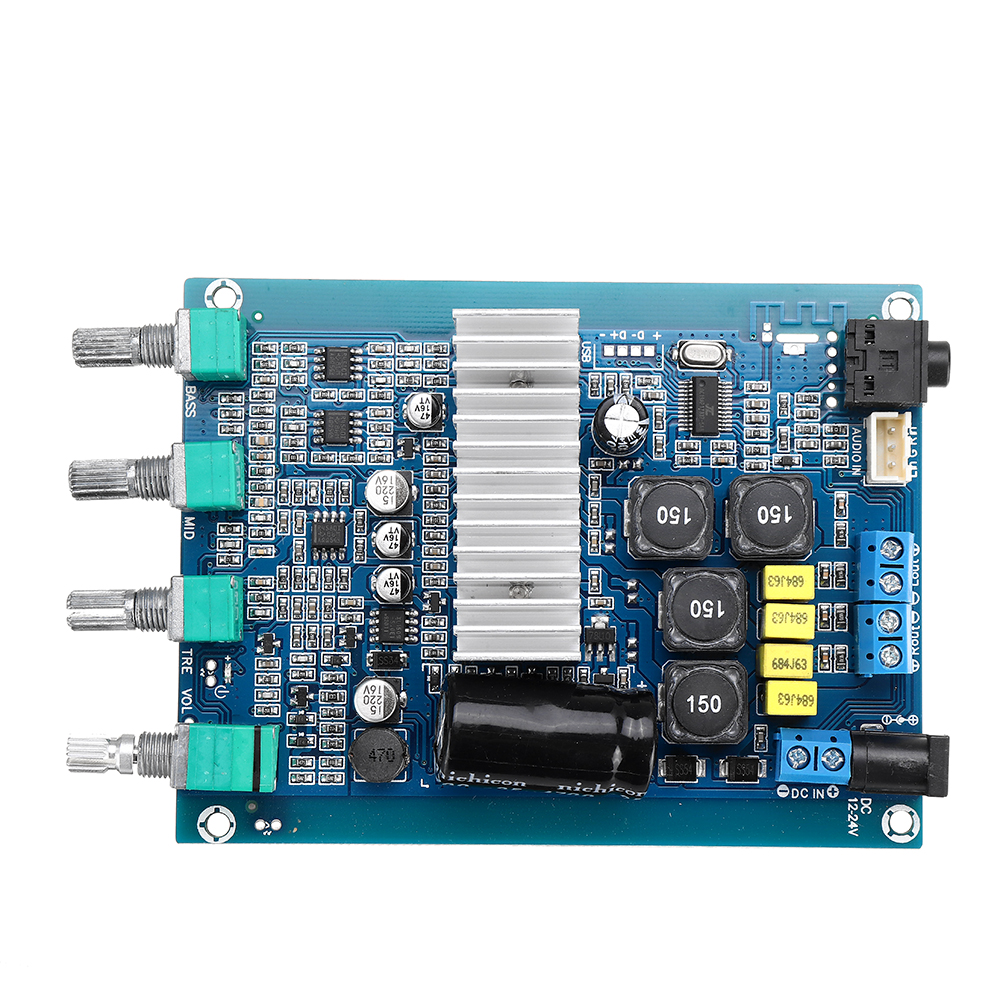

TPA3116 Bluetooth dual channel amplifier board with volume adjustment
1. This is a DC12-24V single power supply, using TI's TPA3116D2 high-performance digital power amplifier chip as the core, can support 50W (left channel) + 50W (right channel) dual channel output.
2. Support Bluetooth audio receiver, with an external audio input interface, bass, midrange, high pitch tri-tone tone potentiometer, function control switch / volume adjustment potentiometer.
3. Wide operating voltage, power saving design, efficiency up to 90%. Can use a good switching power supply, laptop switching power supply, you can also use the charge bottle, or car power supply and so on .. .

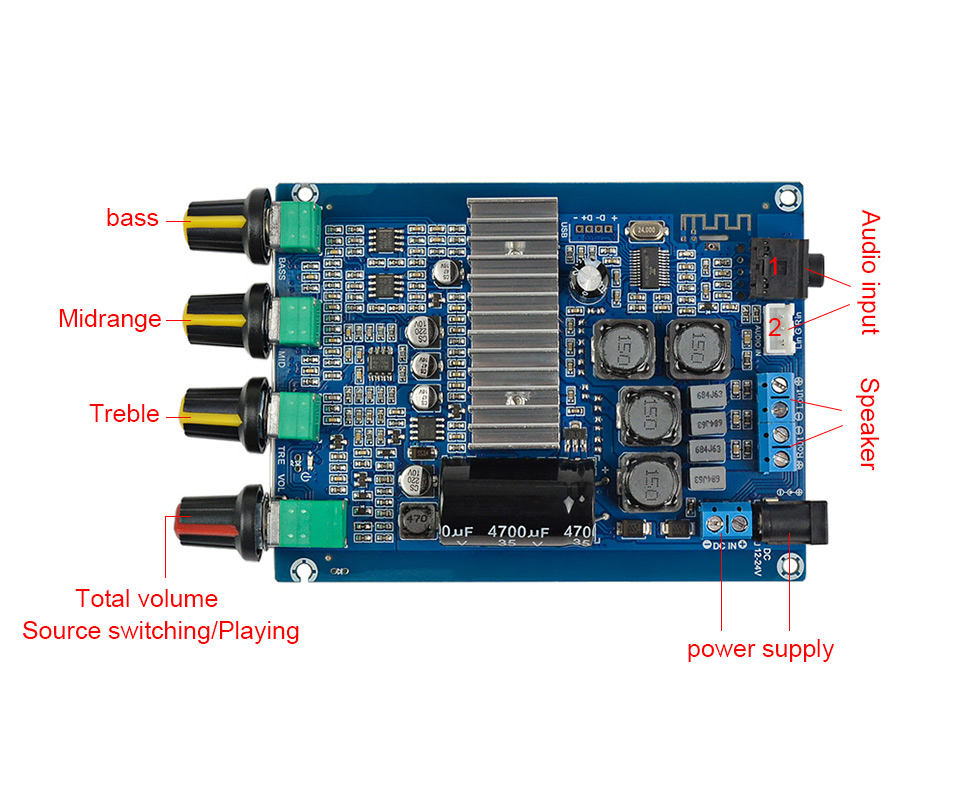

4. The board is a finished board that has been soldered and tested. Connect the speaker box according to the diagram, connect a suitable power supply, connect a Bluetooth audio device, or connect the correct audio input.
5. Power on: Default Bluetooth mode, waiting for Bluetooth audio device connection...
6. Source input player: Bluetooth disconnected state --> Press volume potentiometer switch --> Switch to source input mode
Parameters:

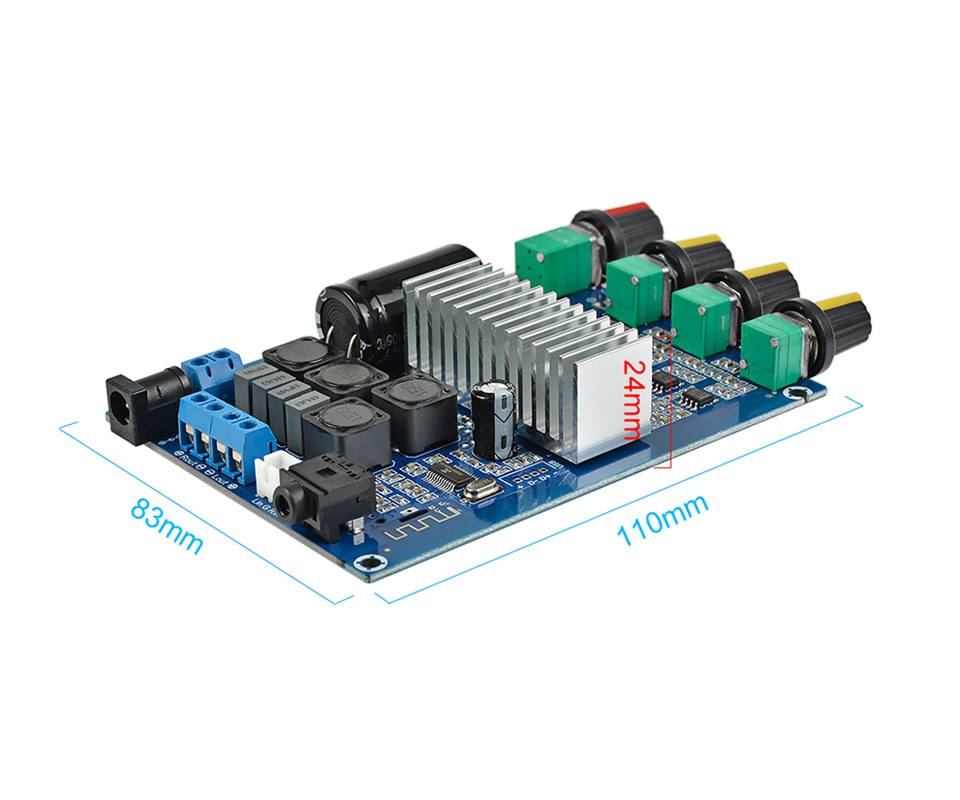

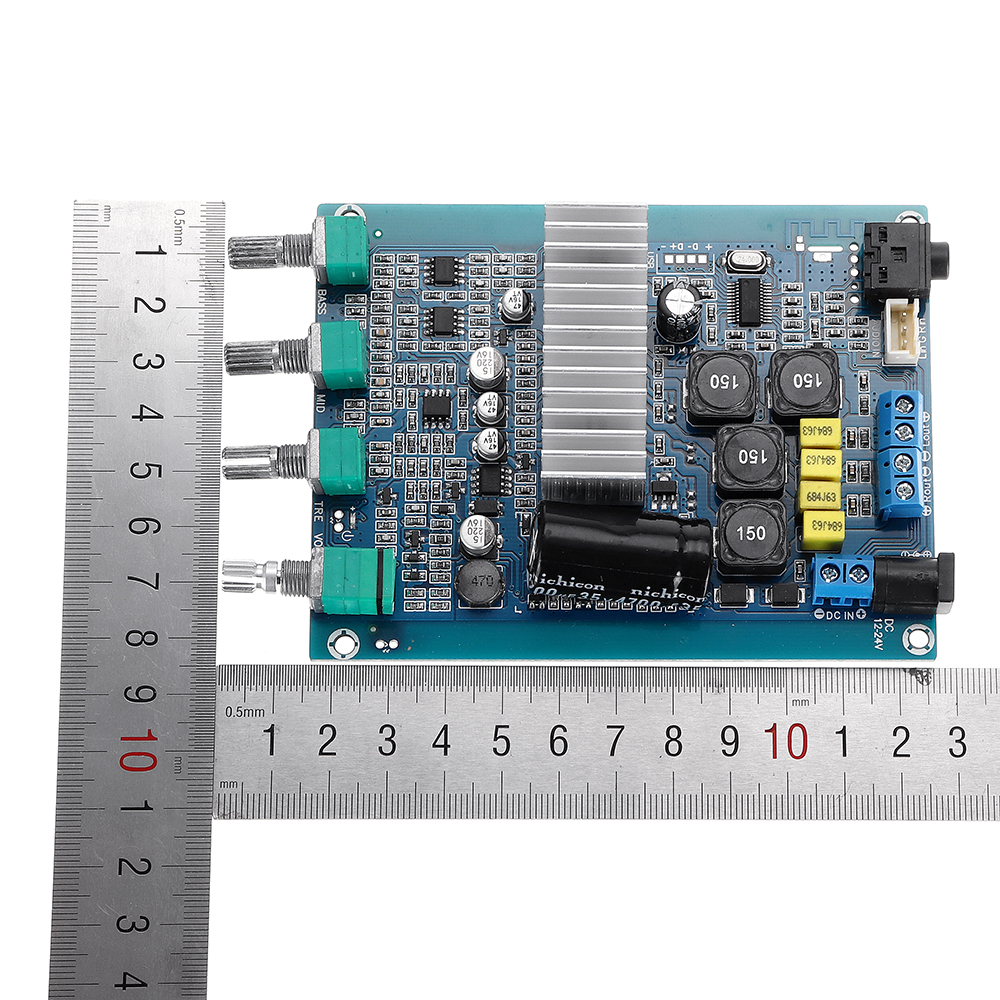

1. Size (L*W*H): 110*83*24mm, excluding the protruding part of the switch socket.
2. Operating voltage range: Direct current DC12-24V (current 3-4A, such as power requirements 20-24V/5-6A above) If you use AC (AC) transformer power supply, you must add rectifier filter to DC power supply. Note :the DC no-load voltage should not exceed 25.5V
3. Bluetooth receiving distance: >8 m (m), Bluetooth version 4.2, is barrier-free to block the receiving distance, and the Bluetooth performance of the mobile phone itself will also affect the receiving distance.
4. Sound source input sensitivity: 600 - 800mV; Frequency range: 20Hz - 20KHz
5. Speaker Impedance: 4-8 Ohm
6. Output power:
Power Supply 12V/8Ω Speaker >10W x 2;12V/4Ω >15W x 2;
21V/8Ω >30W x 2; 21V/4Ω = 50W x 2;
24V/8Ω >35W x 2; 24V/4Ω >60W x 2;
This is in accordance with the above test conditions, the actual test data on the instrument, the output power and power supply voltage / current, speaker impedance, the size of the audio input is related. When the power supply voltage/current is sufficient, the power supply voltage is usually higher and the relative output power can be made larger. Speakers with different impedances also have different output powers. Generally, the speakers have smaller impedance and more power
Package including:
1 x Power Amplifier Board
