Elecbee TOF Single Point Laser Radar Module Low Power Consumption Short-range Distance Sensor Module 0.2M~8M UART IIC 5V

SKU: EB0045864

Favorites

Key Features

⚫ Small size

⚫ Light weight

⚫ Low power consumption

Main Application Scenario:

⚫ Auxiliary focus

⚫ Elevator projection

⚫ Intrusion detection

⚫ Level measurement

Specifacations:

Description		Parameter value
Product performance	Measuring range	0.2m~8m@90%Reflectivity
	Accuracy	±6cm@（0.2m-3m）
	Accuracy	±2%@（3m-8m）
	Distance resolution	1cm
	Frame rate	100Hz
	Ability to resist ambient light	70Klux
	Operating temperature	-10℃~60℃
	Protection level	/
Optical parameters	light source	VCSEL
	Center wavelength	850nm
	Photobiological safety	Class1（IEC60825）
	FOV	2°
Electrical parameters	Supply voltage	5V±0.1V
	Average current	≤70mA
	Power consumption	≤0.35W
	Peak current	150mA
	Communication level	LVTTL（3.3V）
	Communication Interface	UART / I2C
Others	Size	35mm21.25mm13.5mm
	Shell material	ABS/PC
	Storage temperature	-20℃~75℃
	Weight	<5g

Specifications

Show Similar Products (2768) >

Attribute

Value

Wireless Capability

Bluetooth

Show Similar Products (2768) >

Shipping Guide

Shipping	Delivery Period	For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days
	Shipping Rates	Shipping rates for your order can be found in the shopping cart.
	Shipping Options	Shipping rates for your order can be found in the shopping cart.
	Shipping Tracking	We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/Warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
	Warranty	All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
		This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
Ordering	How to Buy	Elecbee accepts online orders.
		Add to cart > Check out > Submit order > Complete payment > Delivery
	Payment	PayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Description

Overview:

This is a single-point ranging LiDAR, based on TOF principle.

Mainly used for stable, accuracy and high-frame rate range detection.

The product is built with algorithms adapted to various application environments and adopts multiple adjustable configurations and parameters so as to offer excellent distance measurement performances in complex application fields and scenarios.

Package includes:

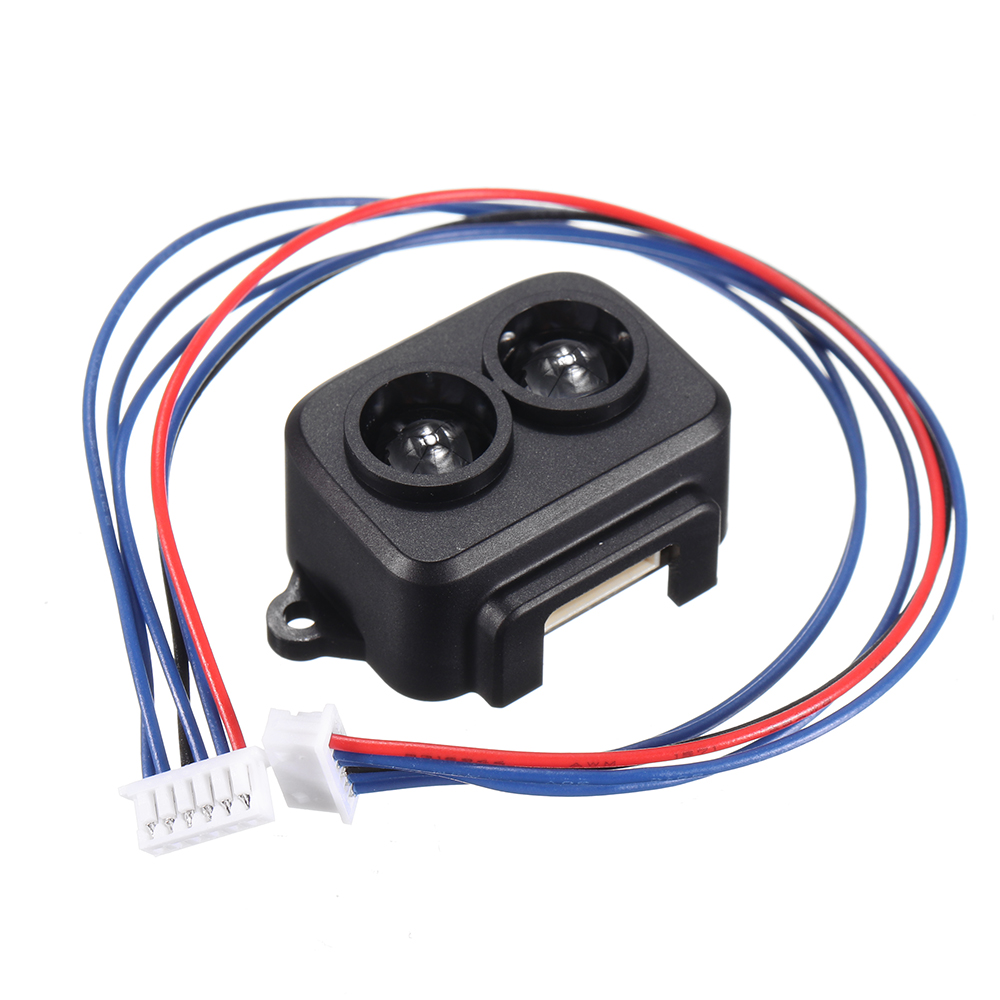

1 x TOF Single Point Laser Radar Module

1 x Cable
