Elecbee TF02 Pro 40m Time of Flight(TOF) LIDAR Sensor LED Rangefinder Single Point Ranging IP65 Pixhawk UART/I2C/IO

SKU: EB0043736

Favorites

Key Features

⚫ The range up to 40 meters

⚫ Ambient light resistance(Up to 100Klux)

⚫ High frame rate(up to 1000Hz)

⚫ Low power consumption

Main applications:

⚫ Intelligent traffic

⚫ Intelligent parking lots

⚫ Material level monitoring

⚫ UAV

Specifications:

Parameter Name		Value
Product performance	Operating Range	0.05~40m@90%reflectivity 0.05~13.5m@10%reflectivity 0.05~40m@90% reflectivity(100Klux) 0.05~13.5m@10% reflectivity(100Klux)
	Accuracy	±5cm(0.05~5m),±1%(5~40m)
	Distance Resolution	1cm
	frame rate	100Hz
	Repeatability	1σ: <2cm(0.05~35m@90% reflectivity)
	Ambient light resistance	100Klux
	Operation t temperature	-20~60℃
	Protection Level	IP65
Optical Parameters	Light source	VCSEL
	Central wavelength	850nm
	FOV	3°
	Photobiological safety	Class 1(EN60825)
Electrical Parameters	Supply voltage	DC 5V~12V
	Average Current	≤200mA
	Power consumption	≤1W
	Peak Current	300mA
	Communication level	LVTTL(3.3V)
	Communication interface	UART/I2C
Other Parameters	Dimensions	69mmx41.5mmx26mm(LWH)
	Weight	50g(with cables)
	Enclosure material	PC/ABS
	Storage temperature	-30~80℃
	Cable length	80cm

Specifications

Show Similar Products (2768) >

Attribute

Value

Wireless Capability

Bluetooth

Show Similar Products (2768) >

Shipping Guide

Shipping	Delivery Period	For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days
	Shipping Rates	Shipping rates for your order can be found in the shopping cart.
	Shipping Options	Shipping rates for your order can be found in the shopping cart.
	Shipping Tracking	We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/Warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
	Warranty	All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
		This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
Ordering	How to Buy	Elecbee accepts online orders.
		Add to cart > Check out > Submit order > Complete payment > Delivery
	Payment	PayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Description

Description:

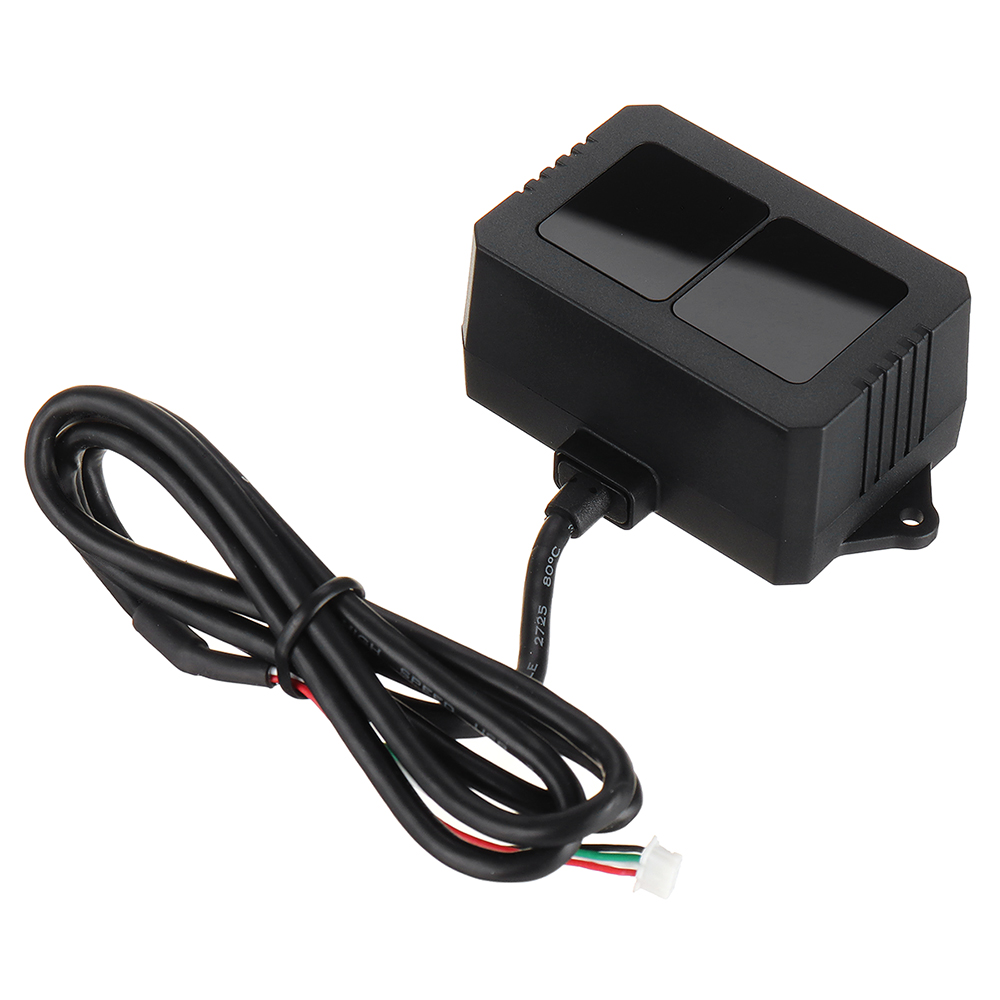

TF02-Pro is a single-point ranging LiDAR based on TF02 upgrade. The performance and accuracy of different reflectivity are improved, it can achieve stable, accuracy, sensitive and high frequency range detection.

Package including:

1 x TF02-Pro TOF 40 Meters Single Point Ranging Lidar Sensor
