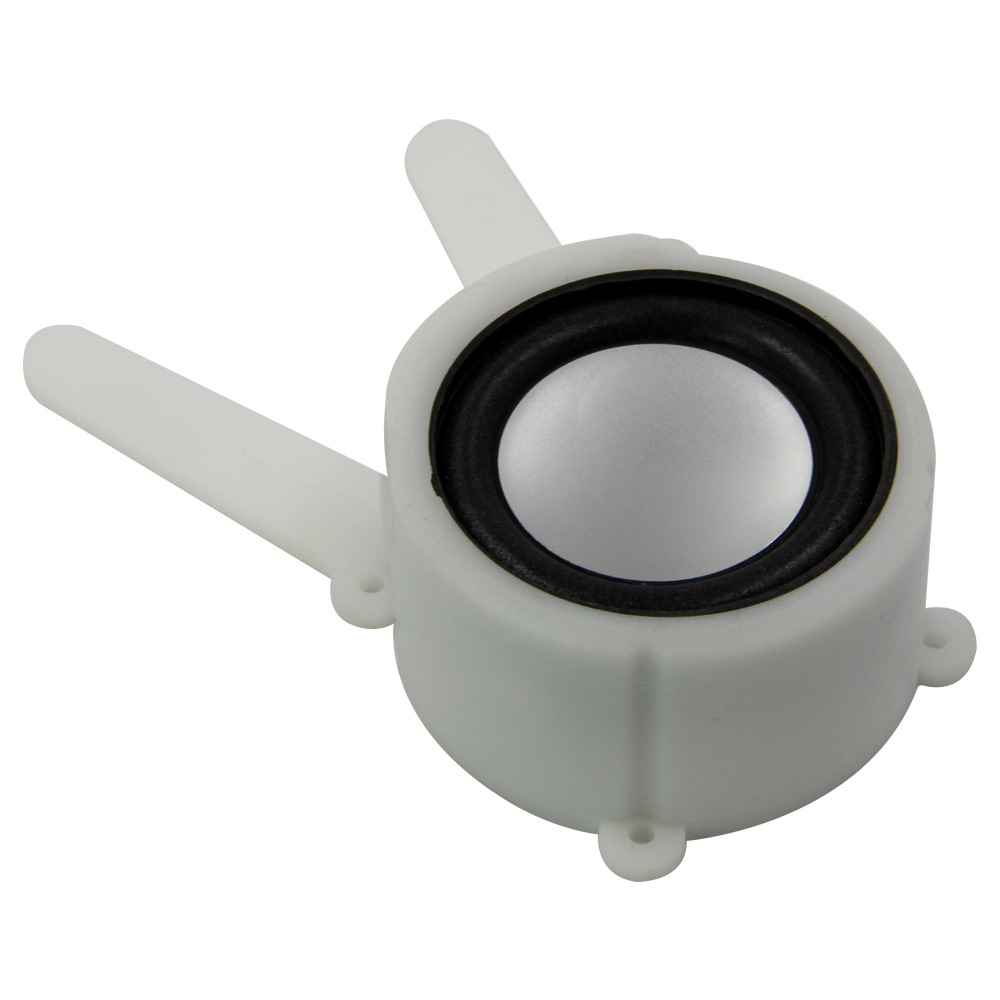

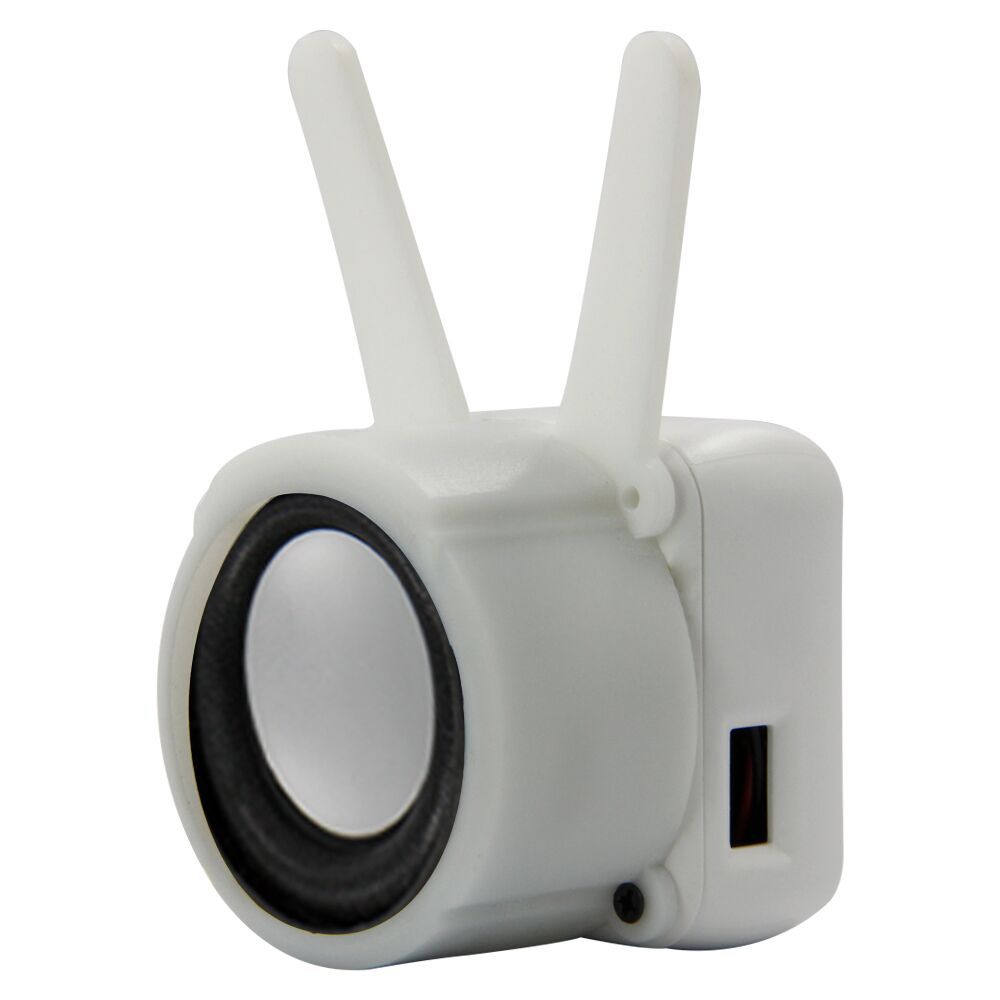

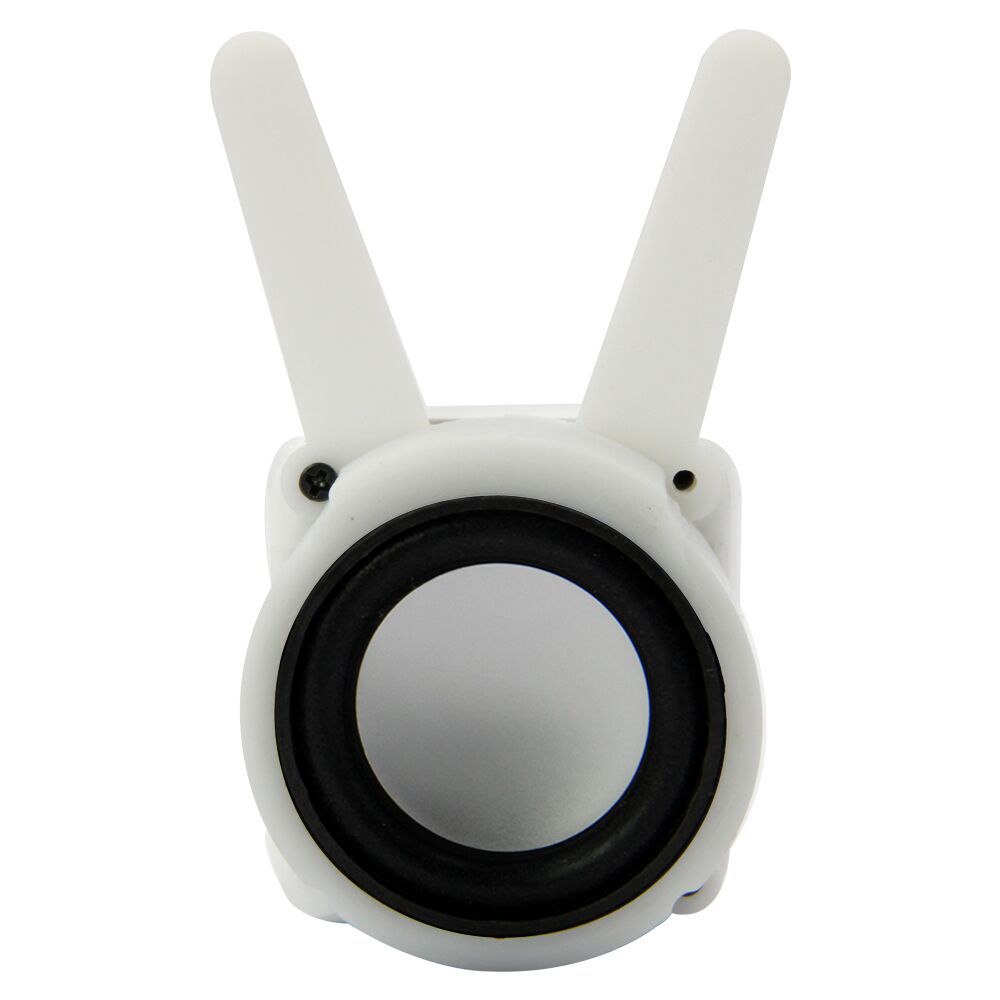

Elecbee Snail Speaker Cartoon Small Speaker Voice Recognition With Function Expansion Board Full Kit

SKU: EB0042522

Favorites

Key Features

Specifications

Shipping Guide

Shipping	Delivery Period	For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days
	Shipping Rates	Shipping rates for your order can be found in the shopping cart.
	Shipping Options	Shipping rates for your order can be found in the shopping cart.
	Shipping Tracking	We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/Warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
	Warranty	All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
		This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
Ordering	How to Buy	Elecbee accepts online orders.
		Add to cart > Check out > Submit order > Complete payment > Delivery
	Payment	PayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Description

Product information link:

https://github.com/Xinyuan-LilyGO/TTGO_TWatch_Library

https: /t-watch-document-en.readthedocs.io/en/latest/index.html

Hardware Specifications:

Chipset	ESP32, dual-core MCU, PMU power management
FLASH	QSPI flash 16MB
SRAM	520 kB SRAM / PSRAM 8MB
Button	power key , IO36
Extended function
USB to TTL	CP2104
Modular interface	UART, SPI, SDIO, I2C, LED PWM , PWM, I2S, IRGPIO, capacitor touch sensor, ADC, DACLNA
On-board clock	40MHz crystal oscillator
Working voltage	2.7V-3.6V
Working current	about 70mA
Battery capacity	180mA
Sleep current	about 3mA
Working temperature	-40℃ ~ +85℃
Size & Weight	46.47 x 43 x 20.4mm , 43.19g

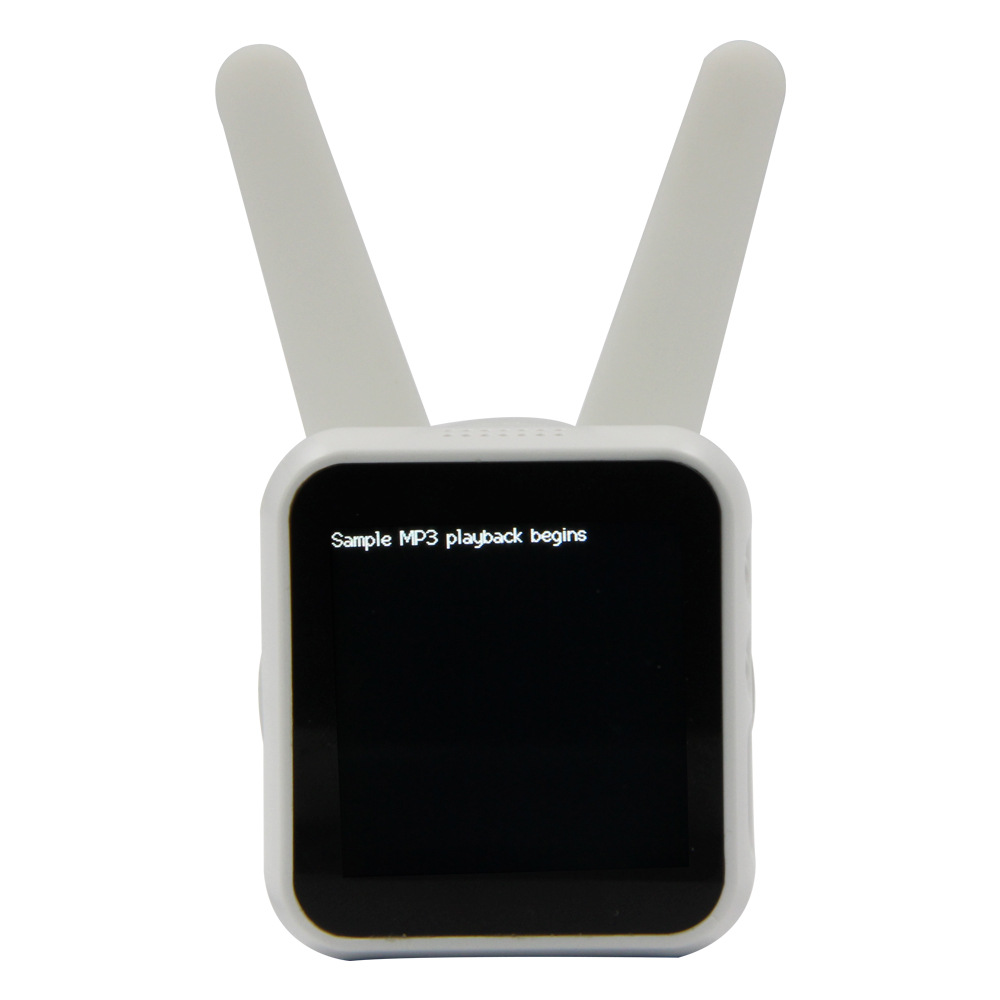

Display	1.54 inch LCD capacitive touch screen
Sensor	BMA423 three accelerometer, built-in step counting algorithm, activity recognition / tracking, advanced gesture recognition.
RTC clock	PCF8563

Power Supply Specifications:

Power Supply	USB 5V/1A
Charging current	Customizable programming
Battery	3.7V lithium battery

Wi-Fi:

Standard	FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC
Protocol	802.11 b/g/n(802.11n, speed up to150Mbps) A-MPDU and A-MSDU polymerization, support 0.4μS Protection interval
Frequency	2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power	22dBm
Communication distance	300m
Bluetooth
Protocol	Meet bluetooth V4.2 BR/EDR and BLE standard
Radio frequency	with -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
Audio frequency	CVSD&SBC audio frequency

Software Specifications:

Wi-Fi Mode	Station/SoftAP/SoftAP+Station/P2P
Security mechanism	WPA/WPA2/WPA2-Enterprise/WPS
Encryption Type	AES/RSA/ECC/SHA
Firmware upgrade	UART download/OTA (Through network/host to download and write firmware)
Software Development	Support cloud server development /SDK for user firmware development
Networking protocol	IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
User Configuration	AT + Instruction set, cloud server, android/iOSapp
OS	FreeRTOS
