Elecbee SIM808 GPRS Module U.FL IPEX IPX Ceramic Chip GPS Antenna For RC Drone
SKU: EB000532
Favorites
Key Features
Show More
Specifications
Attribute
Value
Search
Wireless Capability
Bluetooth + Cellular
Shipping Guide
Shipping | Delivery Period | For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Description

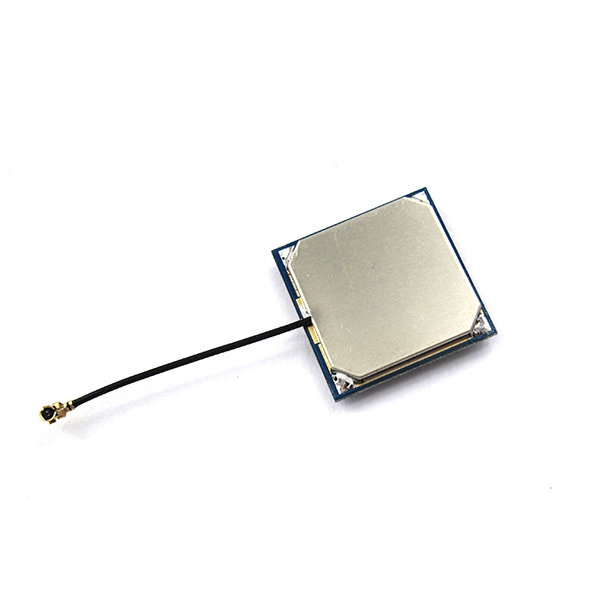

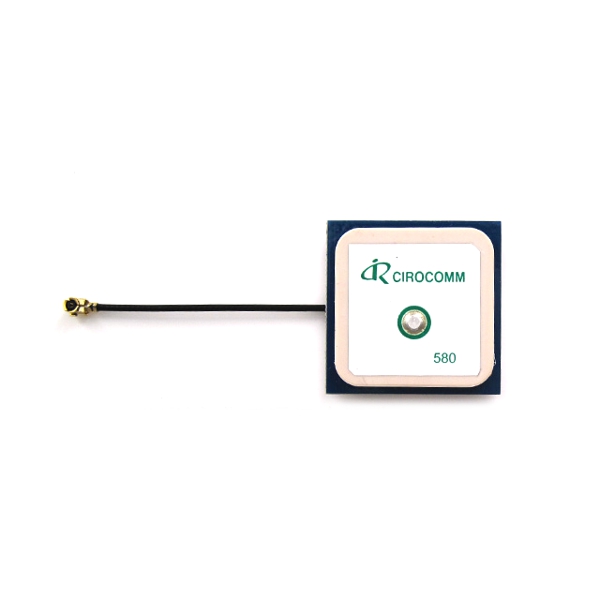

SIM808 GPRS Module U.FL IPEX IPX Ceramic Chip GPS Antenna
Description
Chip : 25*25*2mm
Whole Size : 28*28*5mm
Weight : 5.0g
Length : 5cm
Connector : IPEX
Specification
Connector : RG1.13
Gain : ±3dB
Center Frequency : 1575.42±3MHz
V.S.W.R : 1.5:1
Band Width : ±3MHz
Impendence : 50Ω
Peak Gain : >3dBi Based on 7 x 7cm ground plane
Gain Coverage : >-4dBi at -90° <0<+90°(over 75% Volume)
LNA Gain Without Cable : 28dB Typical
Noise Figure : 1.6dB
Filter Out Band Attenuation : (f0=1575.42MHz); 7dB Min f0+/-10MHz,20dB Min f0+/-30MHz,30dB Min f0+/-100MHz
Output V.S.W.R : <1.5
DC Voltage : 3.0V(2.8-5.0V)
DC Current : 7mA
Working Temp. : -40℃~+85℃
Vibration : Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity : 95%~100%RH
Package Included
1 x GPS Antenna
