Elecbee SIM7600G-H 4G/3G/2G/GSM/GPRS/GNSS HAT Communication Expansion Board GNSS Positioning For Jetson Nano/STM32 the Global Version



The SIM7600G-H 4G HAT is a 4G/3G/2G communication and GNSS positioning module, which supports LTE CAT4 up to 150Mbps for downlink data transfer. it is pretty low power consumption.

You can connect this 4G module with computer to surf the Internet, or attach it onto Raspberry Pi to enable functions like 4G high speed connection, wireless communication, making telephone call, sending SMS, global positioning, etc.

Standard 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano

Supports dial-up, telephone call, SMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc.

Supports GPS, BeiDou, Glonass, LBS base station positioning

Onboard USB interface, to test AT Commands, get GPS positioning data, and so on

Onboard CP2102 USB to UART converter, for serial debugging

UART control pins, to connect with host boards like Arduino/STM32

SIM card slot, supports 1.8V/3V SIM card

TF card slot for storing data like files, messages, etc.

Onboard audio jack and audio decoder for making telephone call

2x LED indicators, easy to monitor the working status

Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper

Baudrate: 300bps ~ 4Mbps (default: 115200bps)

Autobauding baudrate: 9600bps ~ 115200bps

Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)

Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT

Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)



Receiver type

16-channel

C/A code

Sensitivity

Tracking: -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BD)

Cold starts: -148 dBm

Time-To-First-Fix (open air)

Cold starts: <35s

Hot starts: <1s

Accuracy

Position: <2.5m CEP





SMS

Supported types: MT, MO, CB, Text, PDU

Storage: USIM card and ME (default)

Audio feature

Supports echo cancellation

Supports noise reduction





Power supply: 5V

Operating voltage: 5V/3.3V (configured via jumper)

Operating temperature: -30°C ~ 80°C

Storage temperature: -45°C ~ 90°C

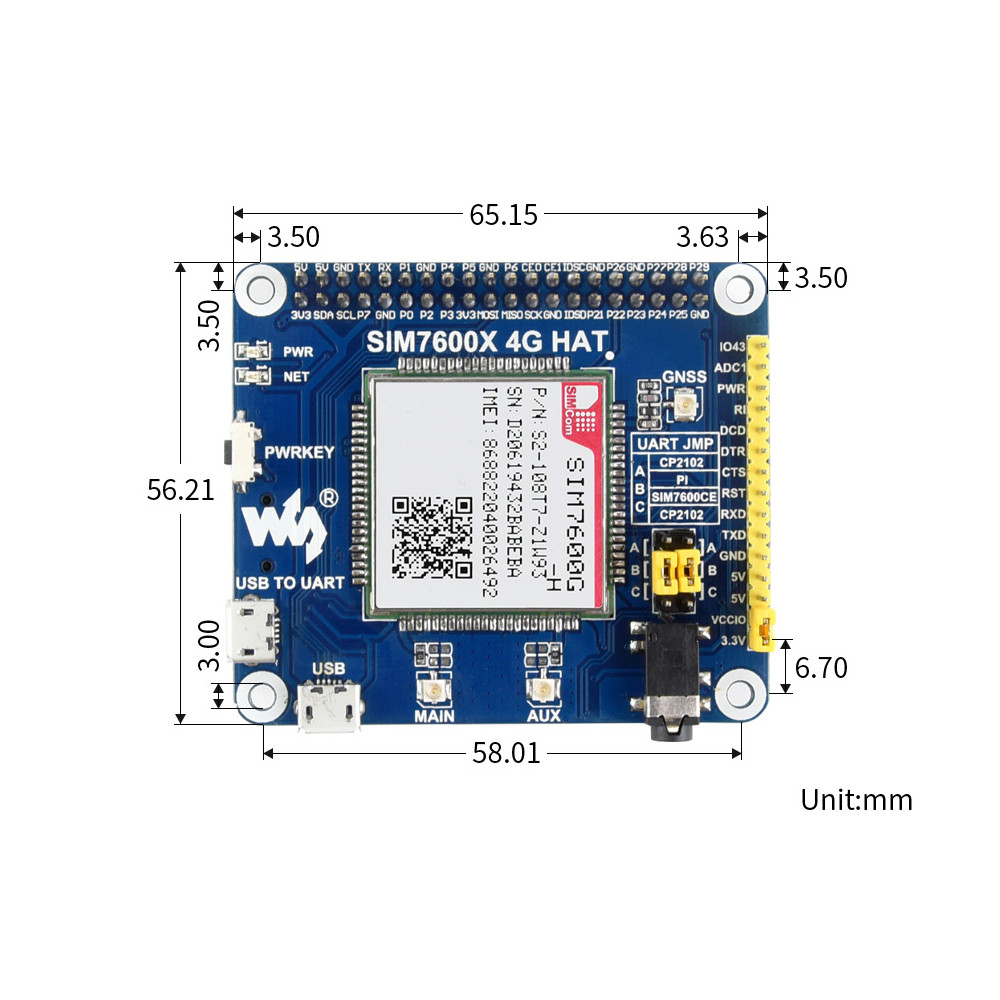

Dimension: 56.21mm x 65.15mm

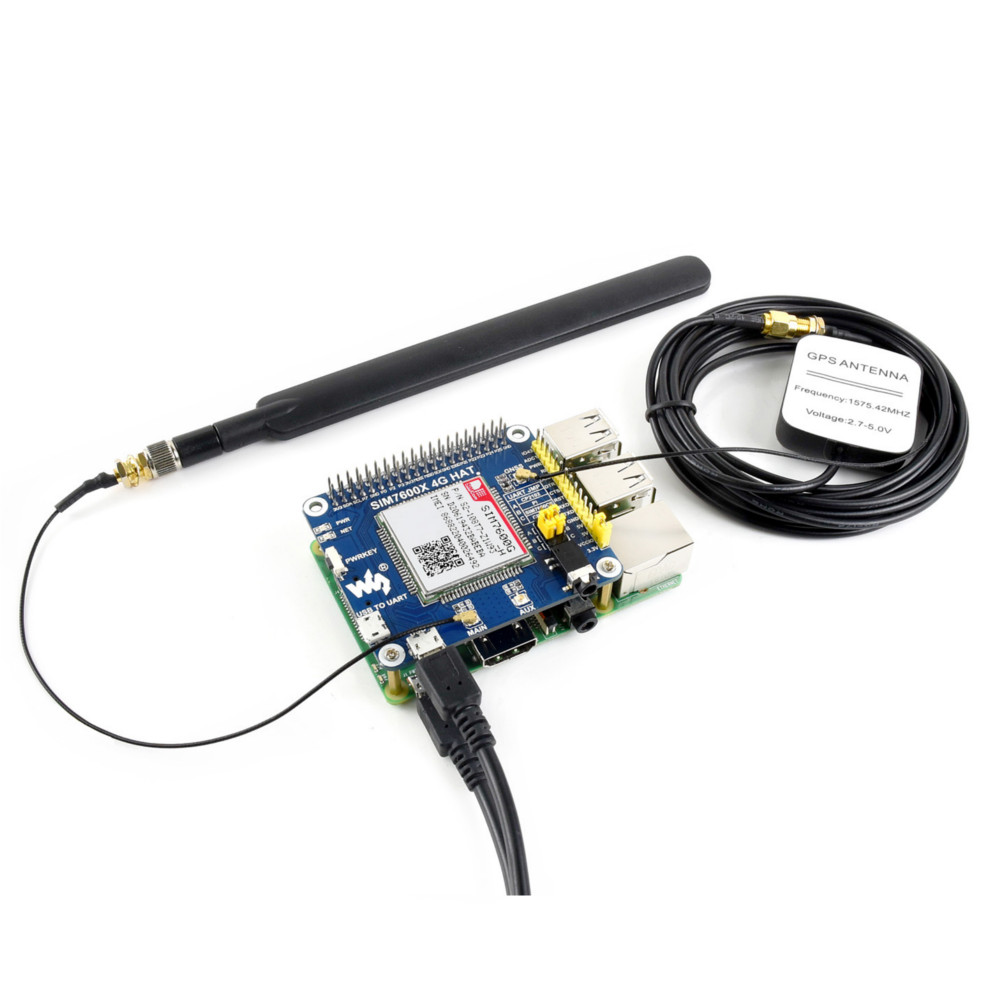

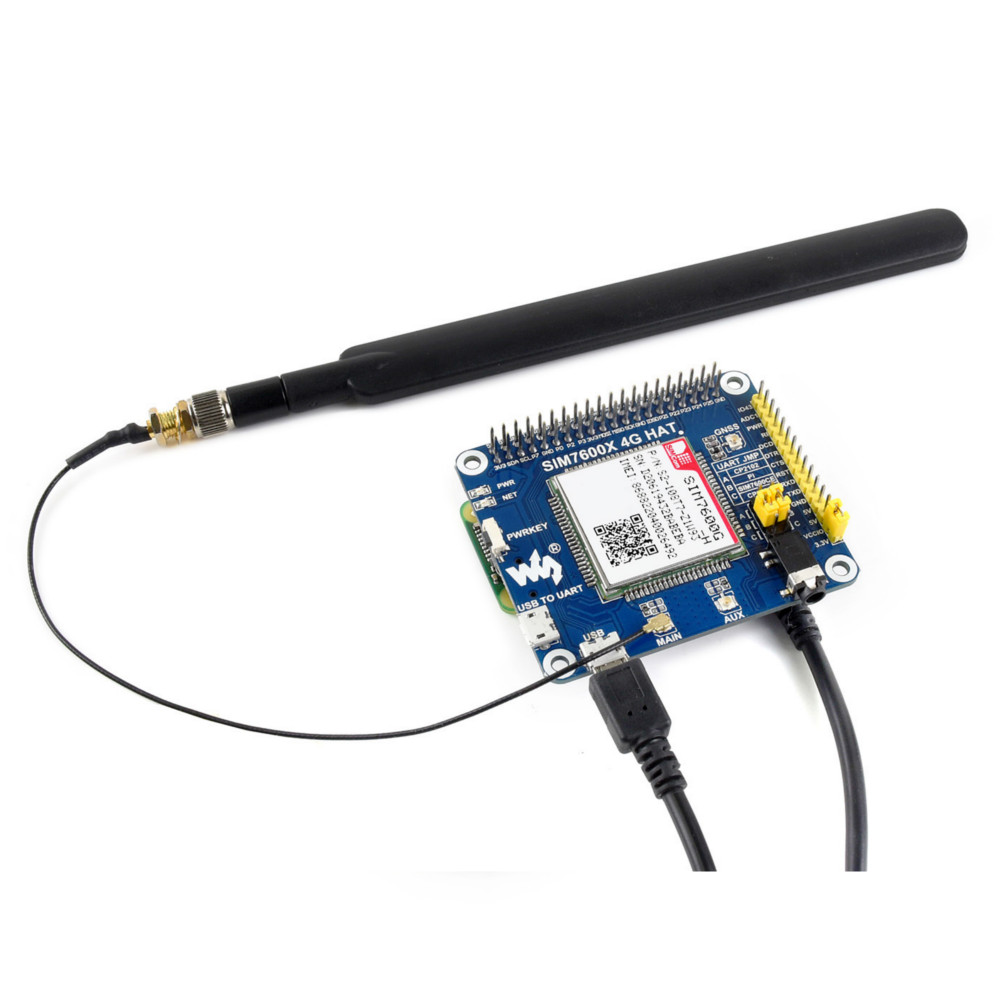

1 x SIM7600G-H 4G HAT

1 x LTE antenna

1 x GPS External Antenna (B)

2 x USB cable type A male port to micro male port

1 x RPi copper pillar package (2PCS set)

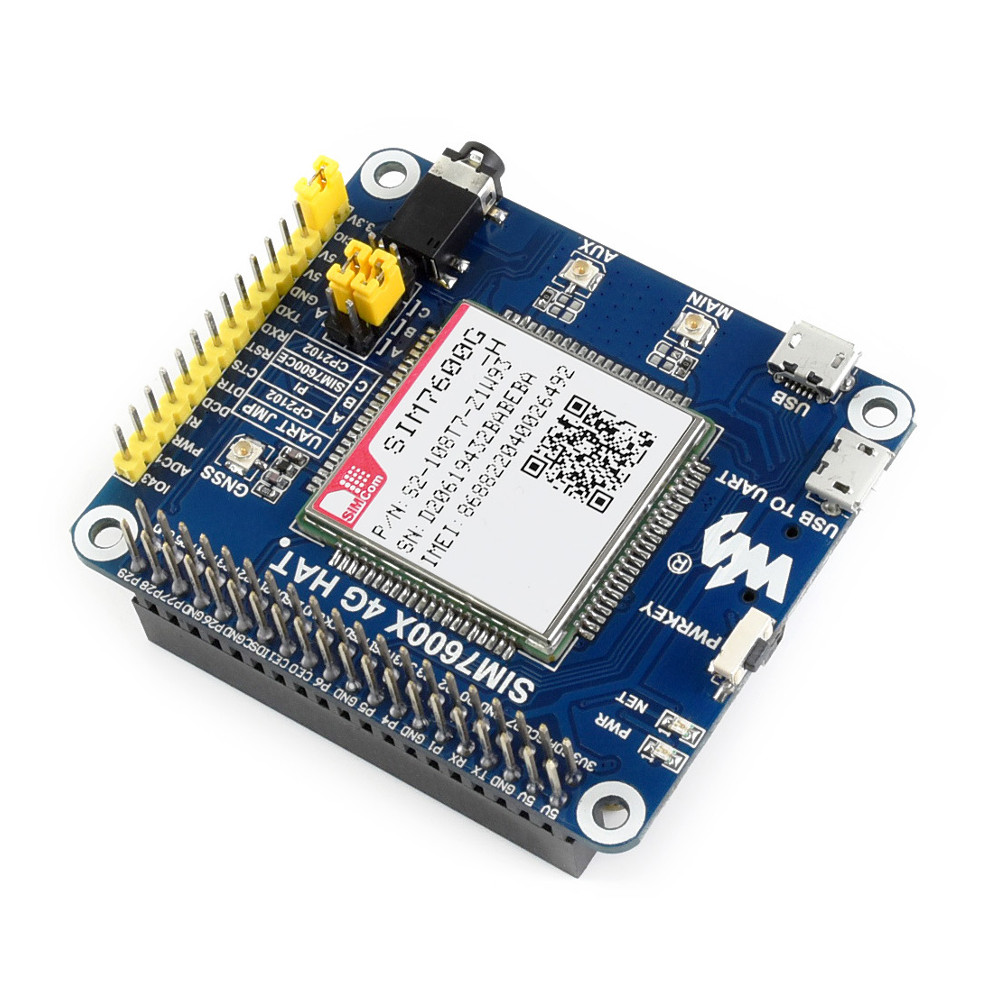

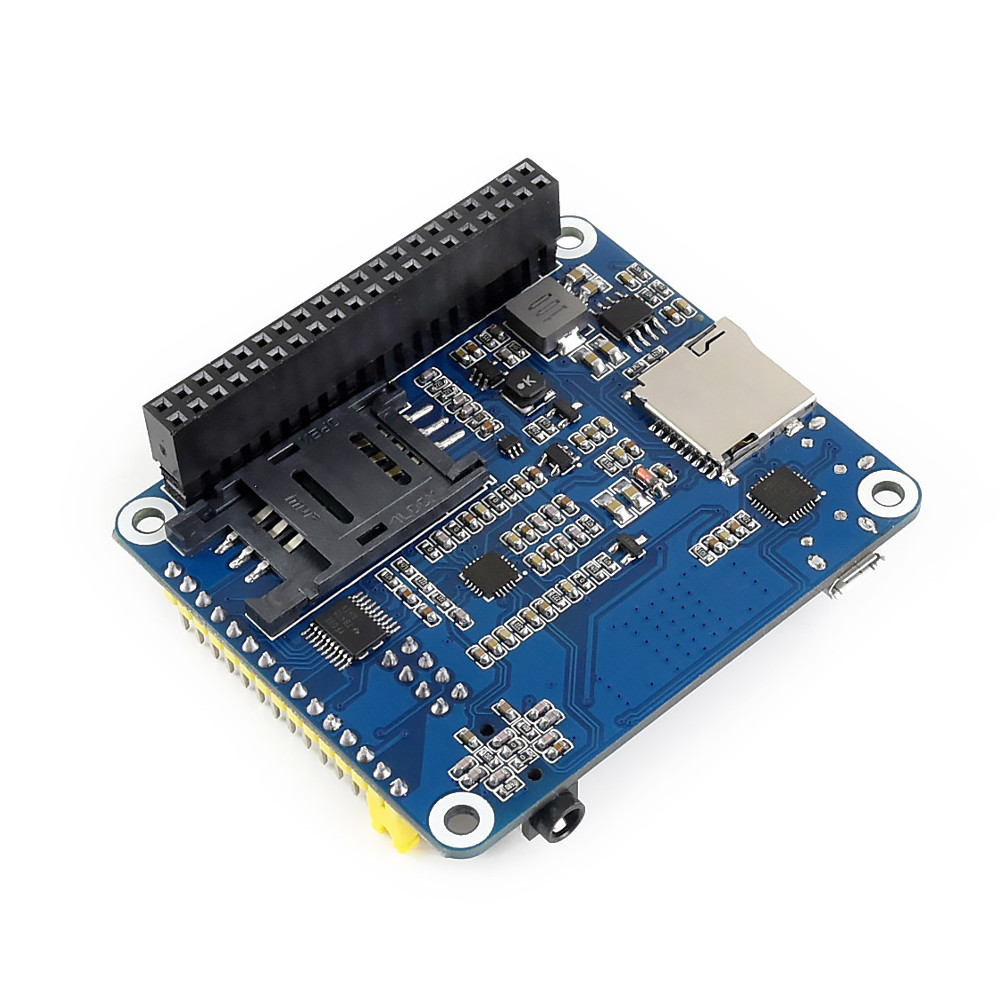

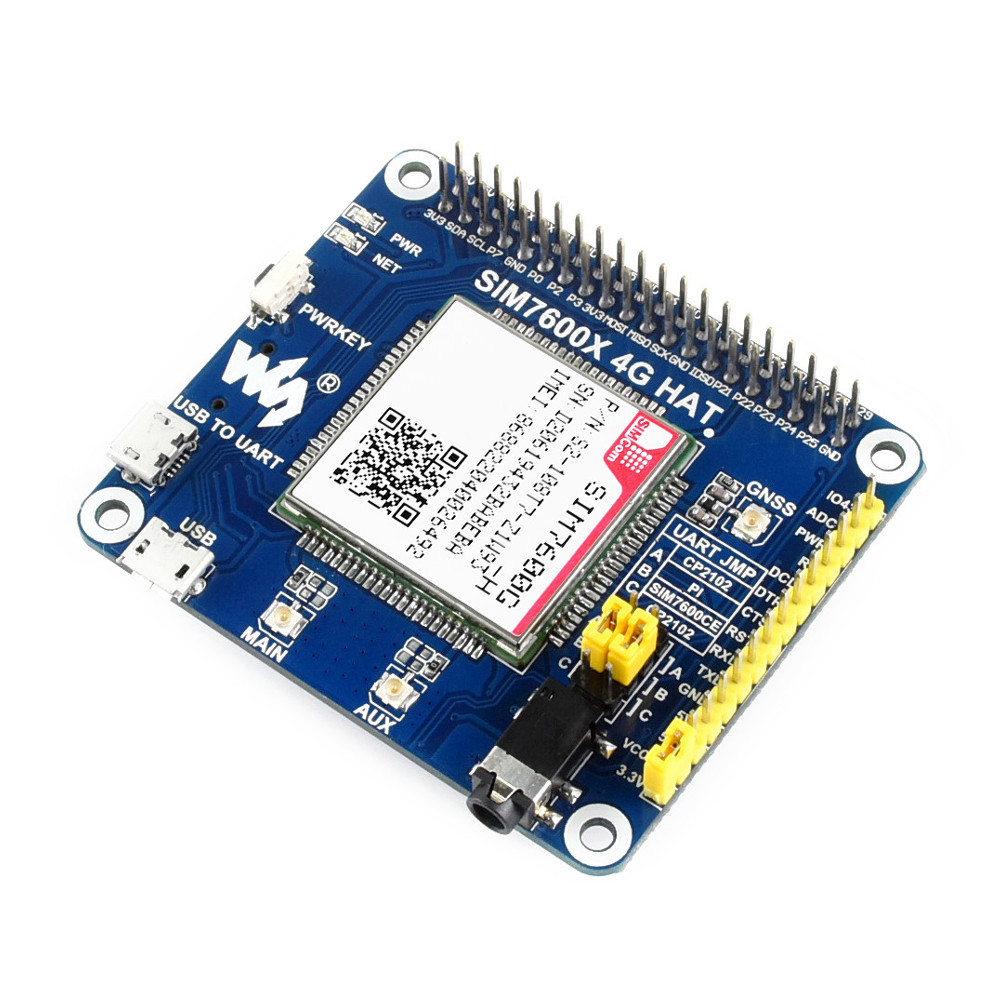

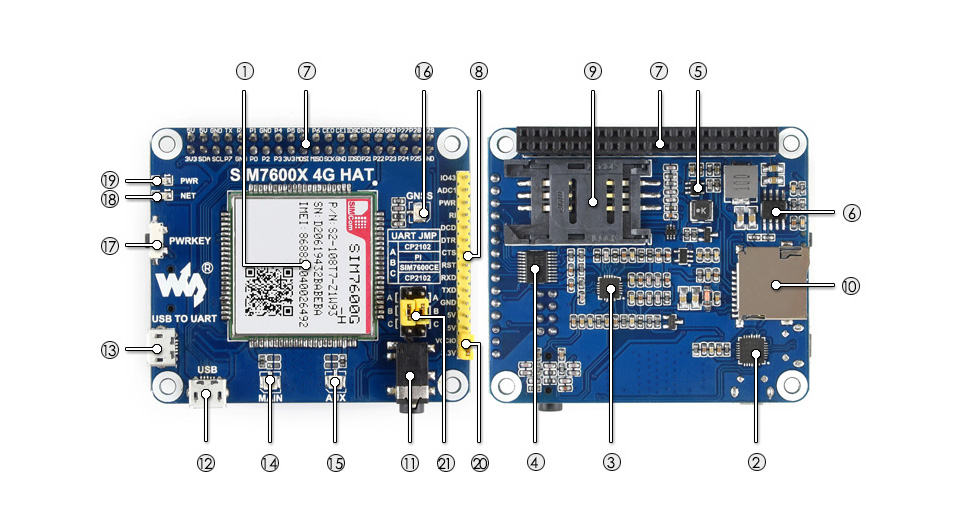

1. SIM7600G-H

2. CP2102 USB to UART converter

3. NAU8810 audio decoder

4. TXS0108EPWR voltage translator: translates 3.3V/5V into 1.8V

5. MP2128DT power chip

6. MP1482 power chip

7. Raspberry Pi GPIO header: for connecting with Raspberry Pi

8. SIM7600 control interface: for connecting with host boards like

Arduino/STM32

9. SIM card slot: supports 1.8V/3V SIM card

10. TF card slot: allows file/SMS/... storage

11. 3.5mm earphone/mic jack

12. USB interface: for testing AT Commands, getting GPS positioning data, etc.

13. USB to UART interface: for serial debugging, or login to Raspberry Pi

14. MAIN antenna connector

15. AUX antenna connector

16. GNSS antenna connector

17. Power switch

18. Network status indicator

19. Power indicator

20. Operating voltage selection jumper:

  VCCIO - 3.3V: set operating voltage as 3.3V

  VCCIO - 5V: set operating voltage as 5V

21. UART selection jumper:

  A: access Raspberry Pi via USB to UART

  B: control the SIM7600 by Raspberry Pi

  C: control the SIM7600 via USB to UART
