Elecbee SIM7000G NB-IoT HAT NB-IoT/eMTC/EDGE/GPRS/GNSS HAT Development Board for Europe Africa Australia Southeast Asia For STM32

SKU: EB0042673

Favorites

Key Features

Product Features:

Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+

Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc.

Supports GNSS positioning (GPS,GLONASS,BeiDou and Galileo)

Onboard USB interface, to test AT Commands, get GPS positioning data, and so on

UART control pins, to connect with host boards like ARDUIN0/STM32

Onboard voltage translator, 3.3V by default, allows to be switched to 5V via 0Ω resistor

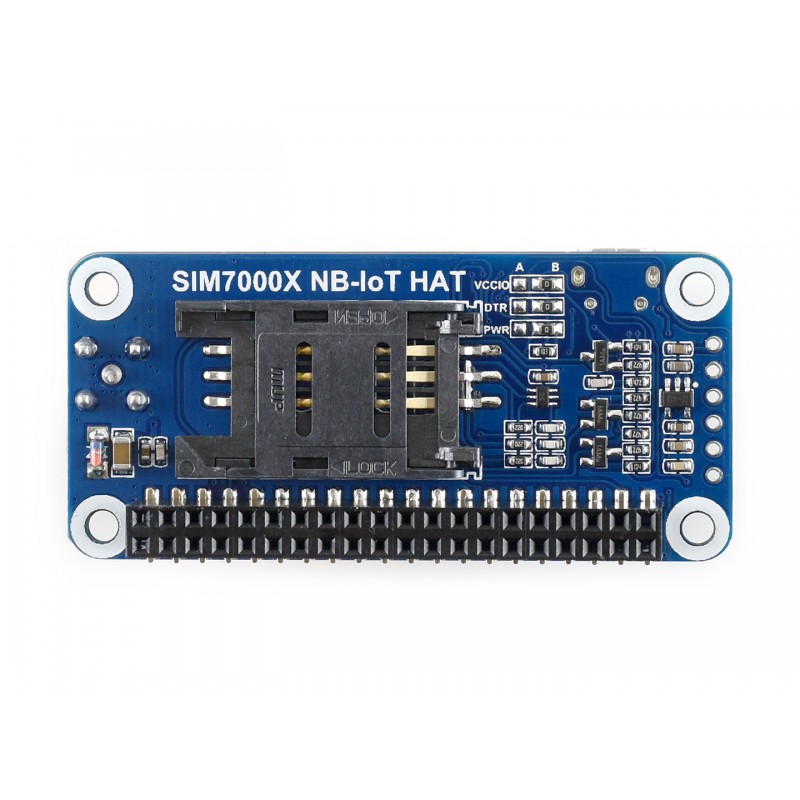

SIM card slot, compatible with both normal SIM card and NB-IoT specific card

2x LED indicators, easy to monitor the working status

Baudrate: 300bps~3686400bps

Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)

Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT

Communications Specifications:

	NB-IOT	EMTC	EDGE	GSM/GPRS
Band	SIM7000E: FDD-LTE B3/B8/B20/B28		GPRS/EDGE 900/1800 MHz
	SIM7000C: FDD-LTE B1/B3/B5/B8
Power saving	Current in sleep mode: 1.2mA (@DRX=2.56s). Current in PSM mode: 9uA.
Emitting power	Class 3 (0.25W@LTE)		Class E2 (0.5W@EGSM900)	Class 4 (2W@GSM900)
			Class E1 (0.4W@DCS1800)	Class 1 (1W@DCS1800)
Data Speed	Uplink≤66kbps	Uplink≤375kbps	Uplink≤236.8kbps	Uplink≤85.6kbps
	Downlink≤34kbps	Downlink≤300kbps	Downlink≤236.8kbps	Downlink≤85.6kbps
SIM Card	NB Specific (Not Included)	Normal SIM (Not Included)

Specifications

Show Similar Products (2768) >

Attribute

Value

Wireless Capability

Bluetooth + Cellular

USB Support

USB

Show Similar Products (2768) >

Shipping Guide

Shipping	Delivery Period	For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days
	Shipping Rates	Shipping rates for your order can be found in the shopping cart.
	Shipping Options	Shipping rates for your order can be found in the shopping cart.
	Shipping Tracking	We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/Warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
	Warranty	All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
		This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
Ordering	How to Buy	Elecbee accepts online orders.
		Add to cart > Check out > Submit order > Complete payment > Delivery
	Payment	PayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Description

Documents:

Manual: Click here to open

Schematic: Click here to open

Driver: Click here to open

Code: Click here to open

Datasheet: contact us

Applicable Region:

SIM7000G is mainly applicable in Europe, Africa, Australia, Southeast Asia, SIM7000C is mainly applicable in AsiaPacific region.

Please check the supported bands according to your local service provider, select the proper one when placing order.

Overview:

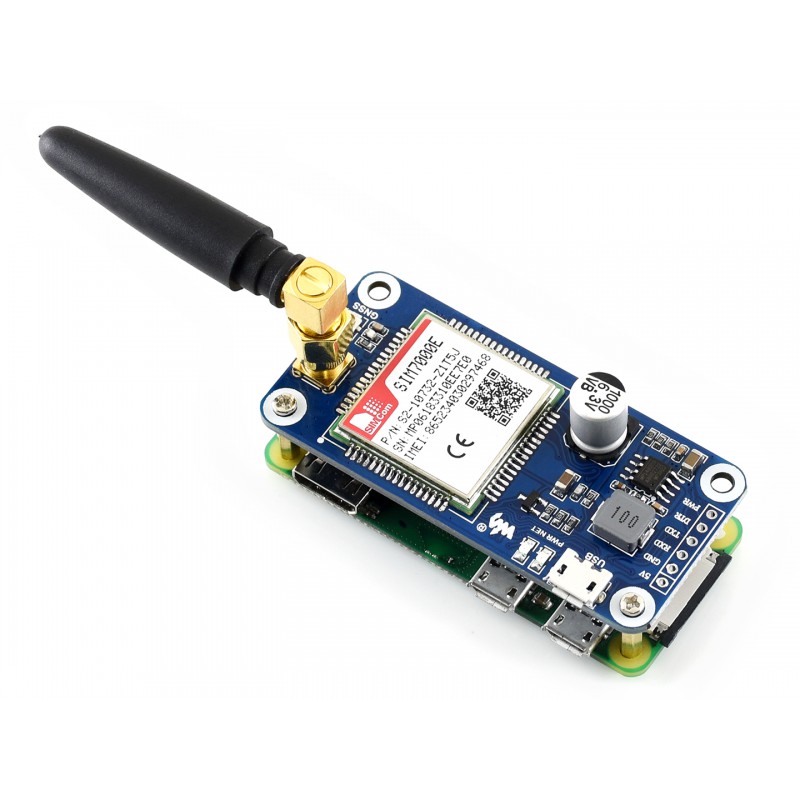

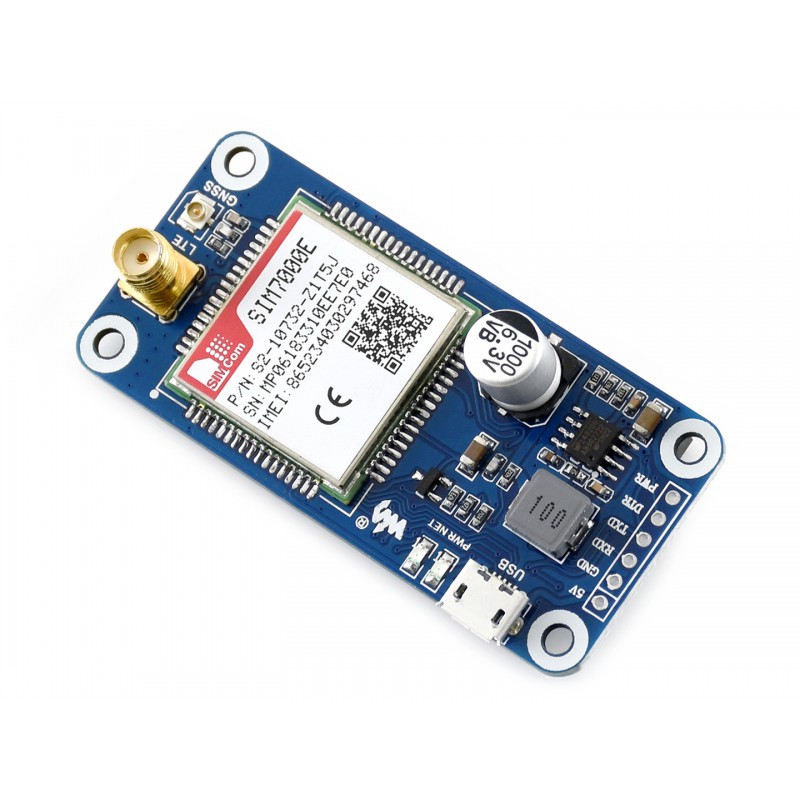

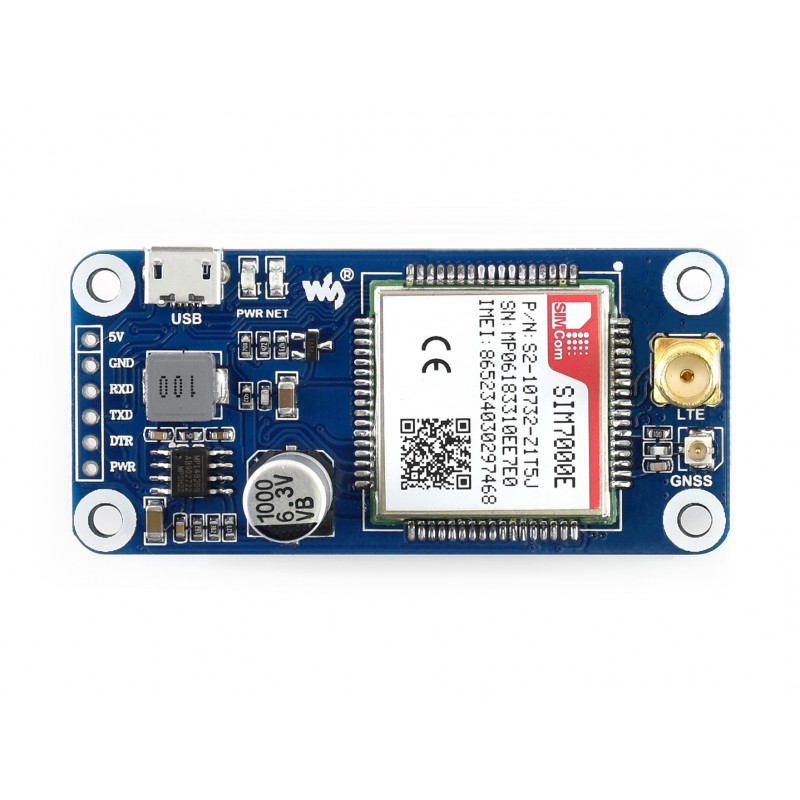

This Raspberry Pi HAT features multi communication functionalities: NB-IoT, eMTC, EDGE, GPRS, and GNSS.

The NB-IoT (NarrowBand-Internet of Things) and eMTC (enhanced Machine Type Communication) are rising IoT communication technologies evolved from LTE (4G), with advantages include low power, low cost, wide coverage, etc. They are suited for applications such as intelligent instruments, remote controlling, asset tracking, remote monitoring, E-health, mobile POS terminals, sharing bikes, and so on. While the GSM/GPRS, and EDGE are traditional 2G/2.5G technologies capable of sending SMS or making other wireless communications.

Therefore, the SIM7000E NB-IoT HAT would be an ideal choice for either evaluating new rising technologies, or simply communicating/positioning via multiple ways.

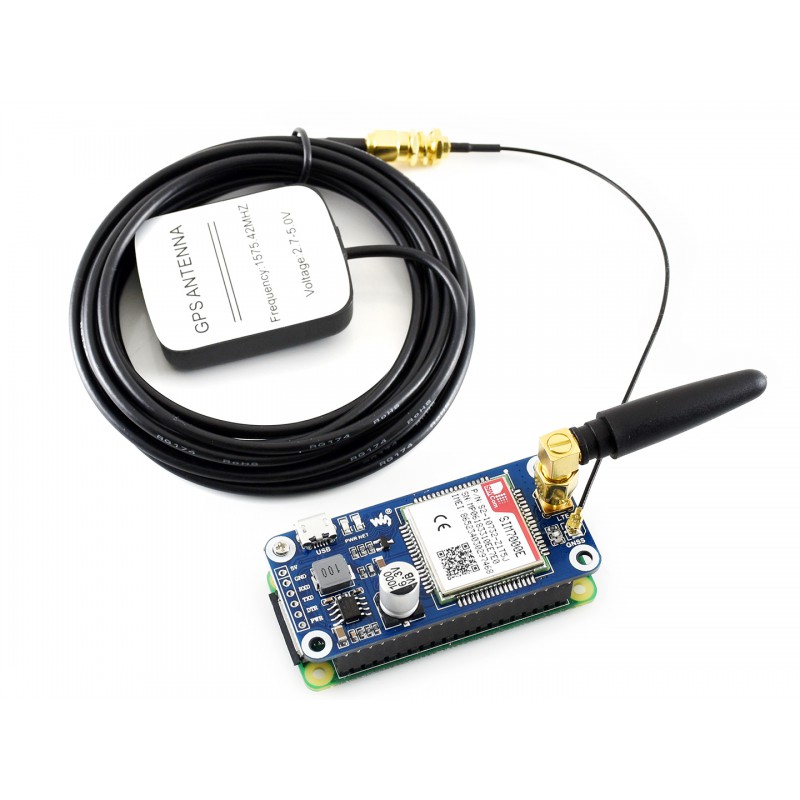

Package includes:(the expansioin board is not includes)

1 x SIM7000G NB-IoT HAT

1 x GSM Antenna

1 x GPS External Antenna (B)

1 x USB type A plug to micro plug cable

1 x RPi screws pack (2pcs)

GNSS Specifications:

Receiver type

-16-channel

-C/A code

Sensitivity

-Tracking: -162 dBm (GPS)/-157 dBm (GLONASS)/TBD (BD)
