Description

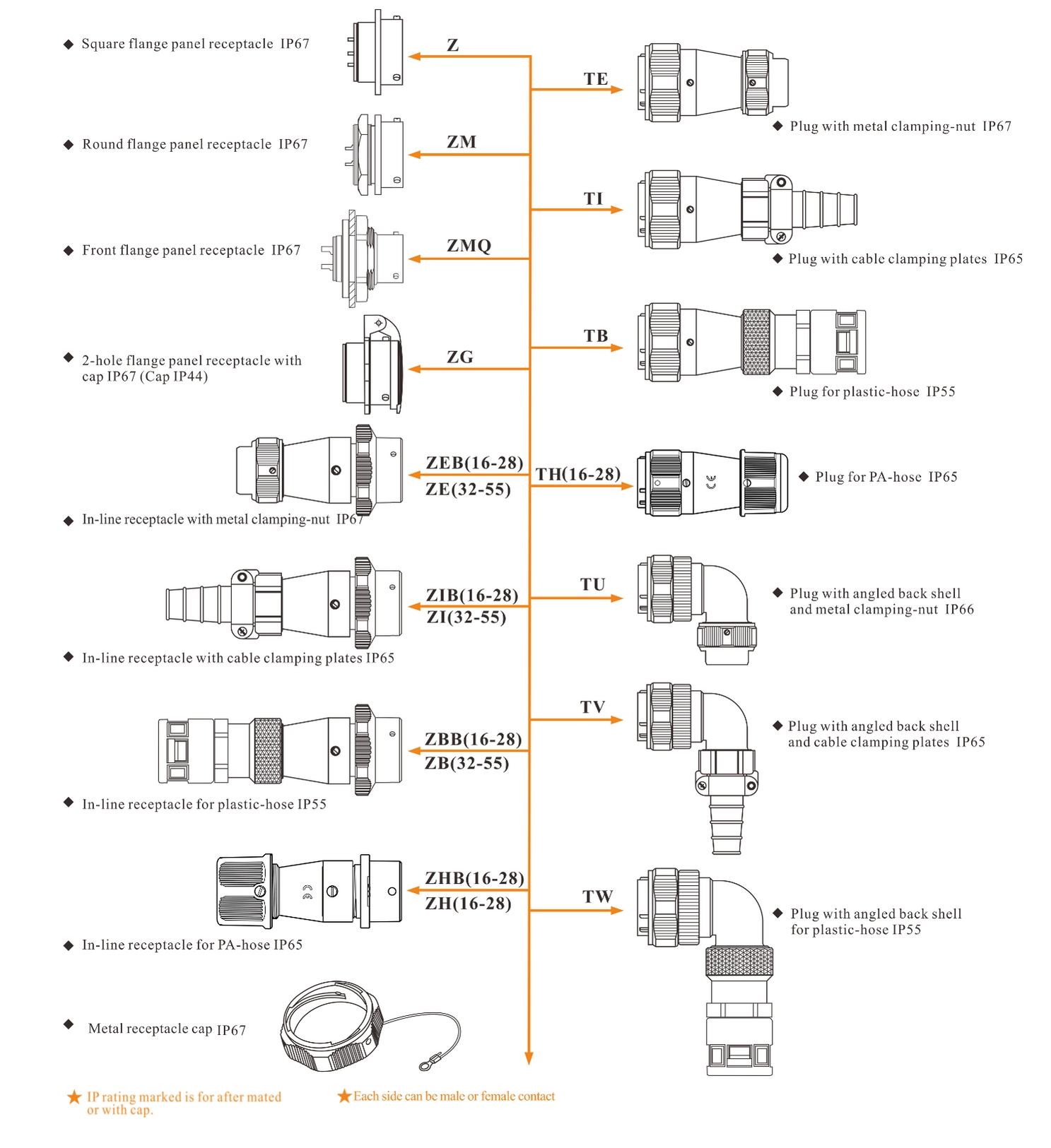

WY series is zinc-alloy-made shell enables the series to be used in robust conditions. Multi dimensions and configurations are available to choose from. This series ranges from IP55 to IP67, and can be used in many outdoor applications such as EV batteries, automation, robots, security, monitoring, sensors, etc.

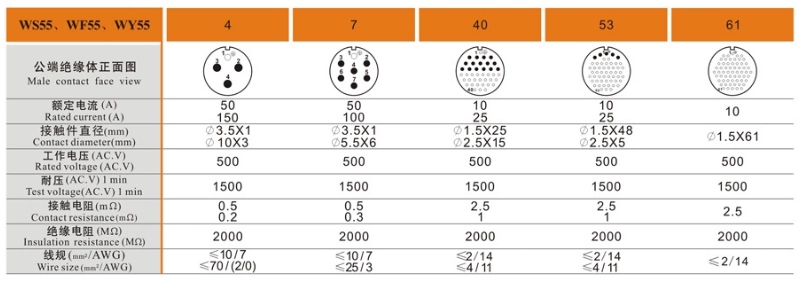

Spec & Faceview：

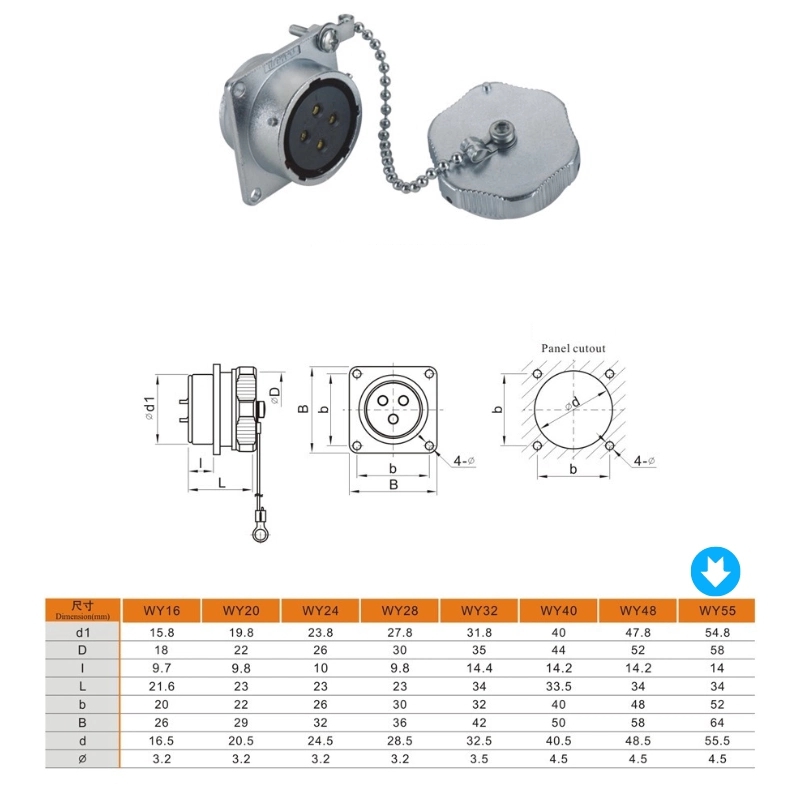

1) panel cutout dimension 16-55mm，Clip-on Coupling

2) 1-61 contacts/p>

3) rated current: 5-150 A

4) Shell material：Zinc alloy with chrome plating

5) Contact material：Brass with gold plating

6) Termination：Solder, Screw,Crimp Termination

7) Insert material：PPS, max temperature 260°C

8) Mating cycle：500

9) Temperature range：-40~+85°C

Metal Aviation Connector WY Series Receptacle With 4 Hole Flange Straight 53pin Male Socket
