Description

WS series zinc-alloy-made shell enables the series to be used in robust conditions. Multi dimensions and configurations are available to choose from. This series is mostly for indoor use only, without any waterproof level.

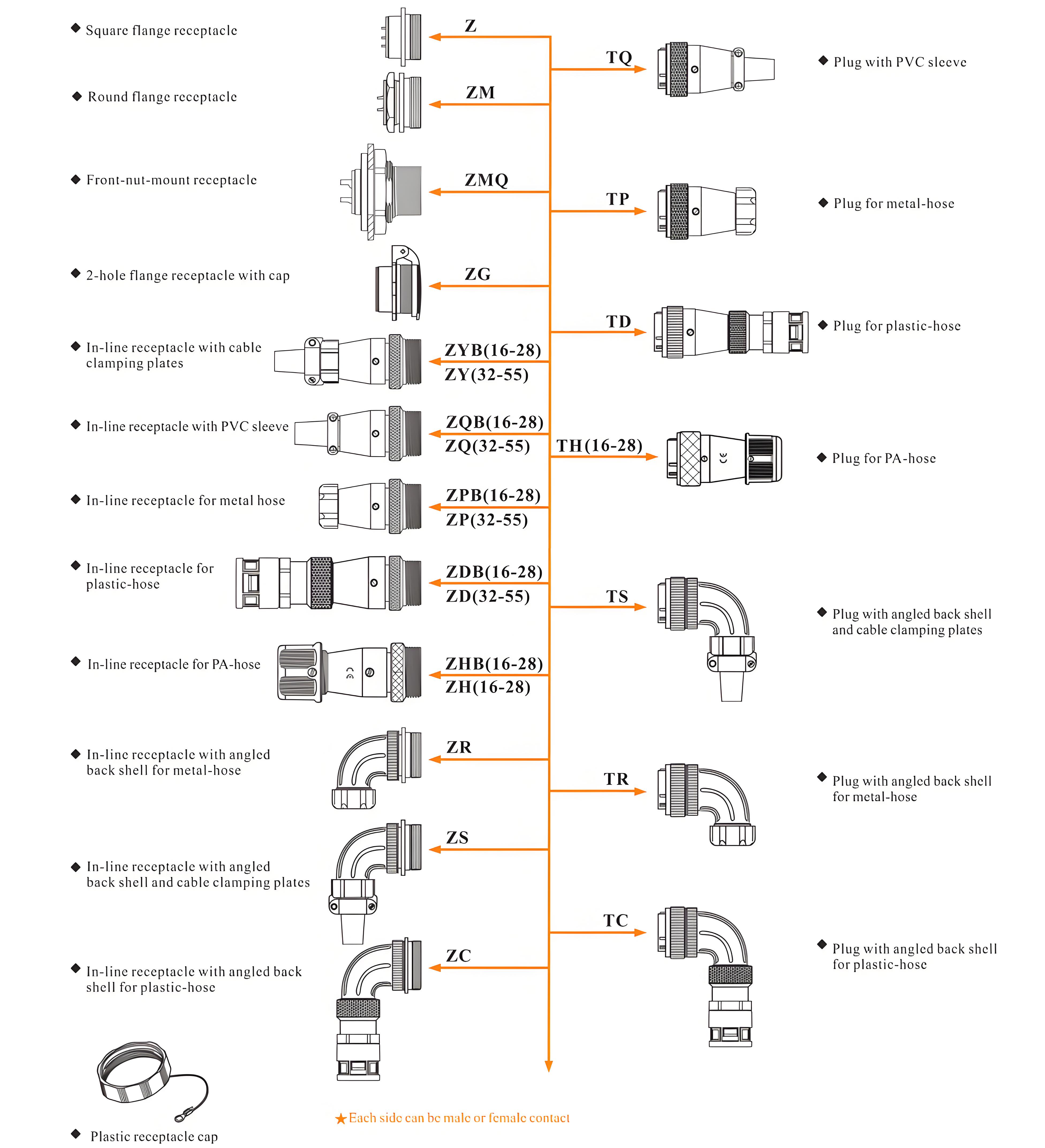

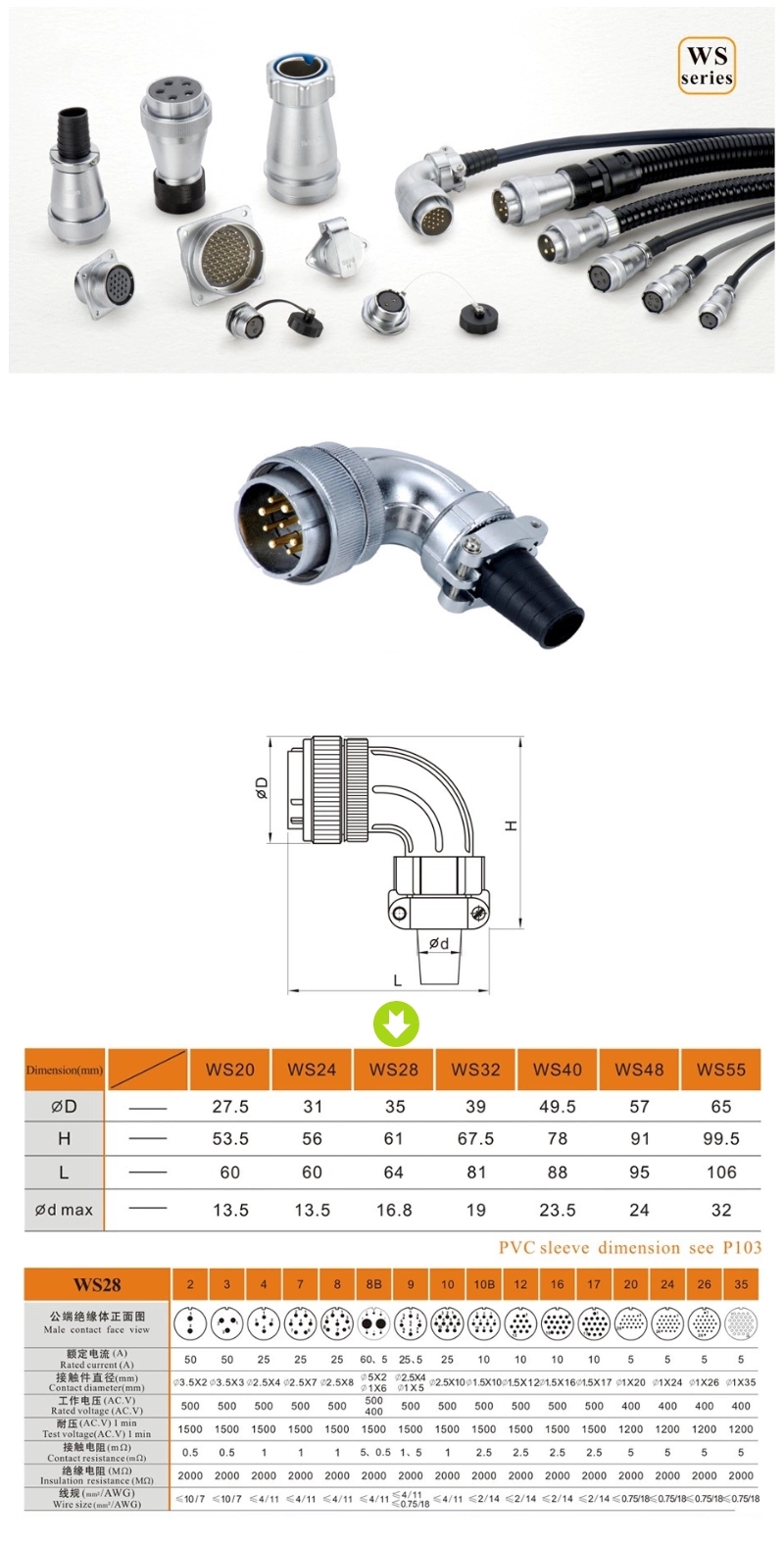

Spec & Faceview:

1) panel cutout dimension 16-55mm，Threaded Coupling

2) 1-61 contacts/p>

3) rated current: 5-150 A

4) Shell material：Zinc alloy with chrome plating

5) Contact material：Brass with gold plating

6) Termination：Solder, Screw,Crimp Termination

7) Insert material：PPS, max temperature 260°C

8) Mating cycle：500

9) Temperature range：-40~+85°C

Metal Aviation Connector WS Series Plug With clamping plates hose WS28K26TS Right Angled 26pin Female Plug
