Elecbee M100T 2DI+2AI+2DO+1RS485+1Rj45 Modbus TCP Server and Client Module Ethernet Remote IO Module IOT Gateway

SKU: EB0041443

Favorites

Key Features

1. Embedded 32-Bit High Performance Microprocessor MCU, inbuilt watchdog;

2. Wide range power supply 12 ~ 36VDC with over voltage and phase-reversal protection

3. Integrated 10/100M adaptive Ethernet module, supports Modbus TCP protocol;

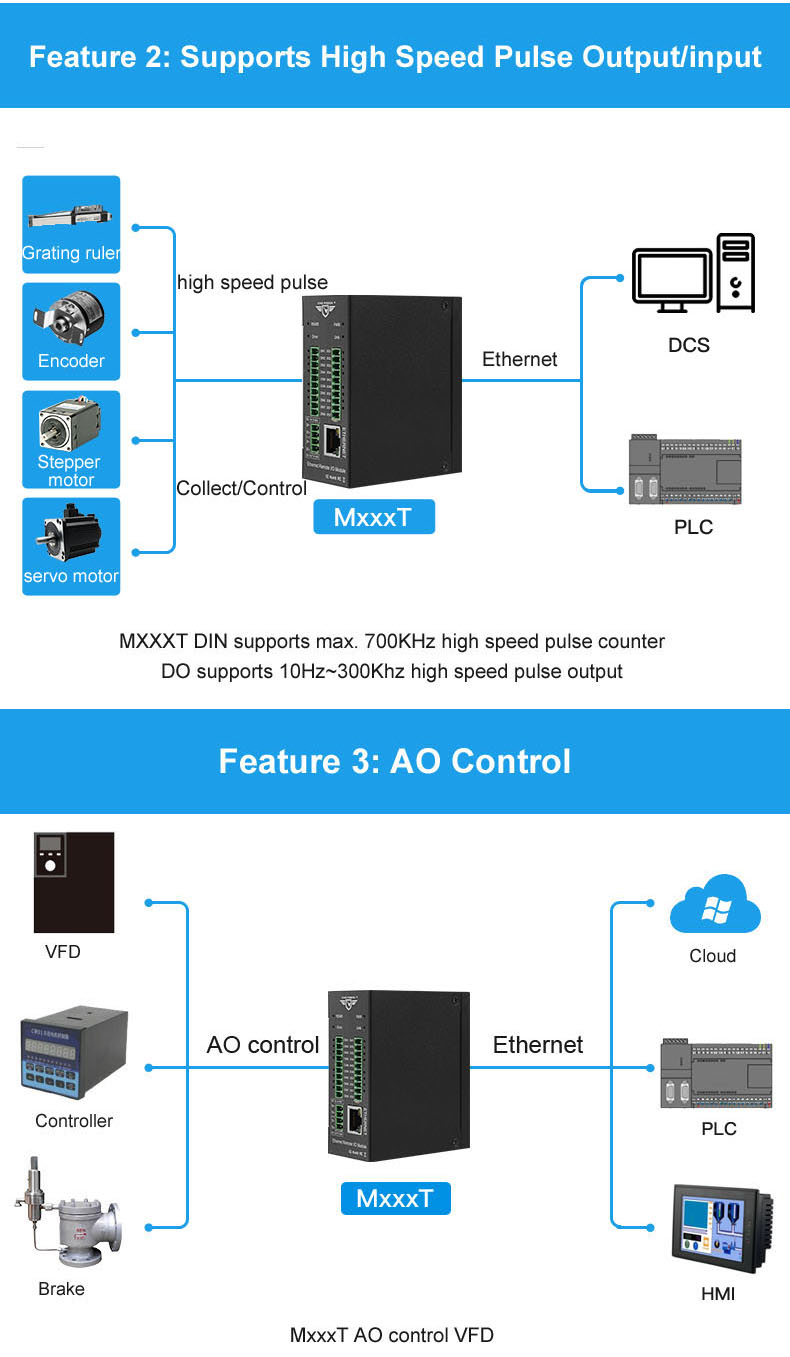

4. 2/8 optical isolated digital input, supports Max. 10MHz high speed pulse counter;

5. 2/4/8 digital output or relay output, supports 10Hz~300KHz high speed pulse output;

6. 2/4/8 isolated analog input, 12-bit resolution, supports 0~20mA,4~20mA,0-5VDC, 0-10VDC;

7. High sampling frequency and special filtering strategy to ensure reliability;

8. 1 RS485 Serial port, supports Modbus RTU/ASCII Master, can extend I/O modules;

9. Supports register mapping function and extend I/O inquiry strategy;

10. Provides 1 channel 12~36VDC power source output for external device, saving wiring cost;

11. LED instructions work status, with reset button to reset, easy on-site installation and commissioning;

12. Using metal shell, protection class IP30. Metal shell and system security isolation, especially suitable for industrial applications in the field;

Specifications

Show Similar Products (2768) >

Attribute

Value

MCU/SoC Model

M100T 2DI+2AI+2DO+1RS485+1Rj45 Modbus

CPU Architecture

TIONIMAGE12

Memory

Arduino IDE

Debug Interface

CAN, ETHERNET

Power Protection

30V, 3V

Show Similar Products (2768) >

Shipping Guide

Shipping	Delivery Period	For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days
	Shipping Rates	Shipping rates for your order can be found in the shopping cart.
	Shipping Options	Shipping rates for your order can be found in the shopping cart.
	Shipping Tracking	We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/Warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
	Warranty	All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
		This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
Ordering	How to Buy	Elecbee accepts online orders.
		Add to cart > Check out > Submit order > Complete payment > Delivery
	Payment	PayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Description

Note: Please refer to the title for the actual supported functions.

This M100T version: Support 2DI+2AI+2DO+1RS485+1Rj45 Modbus wet contact

Documents:

Manual: Click here to open

Tool: Click here to open

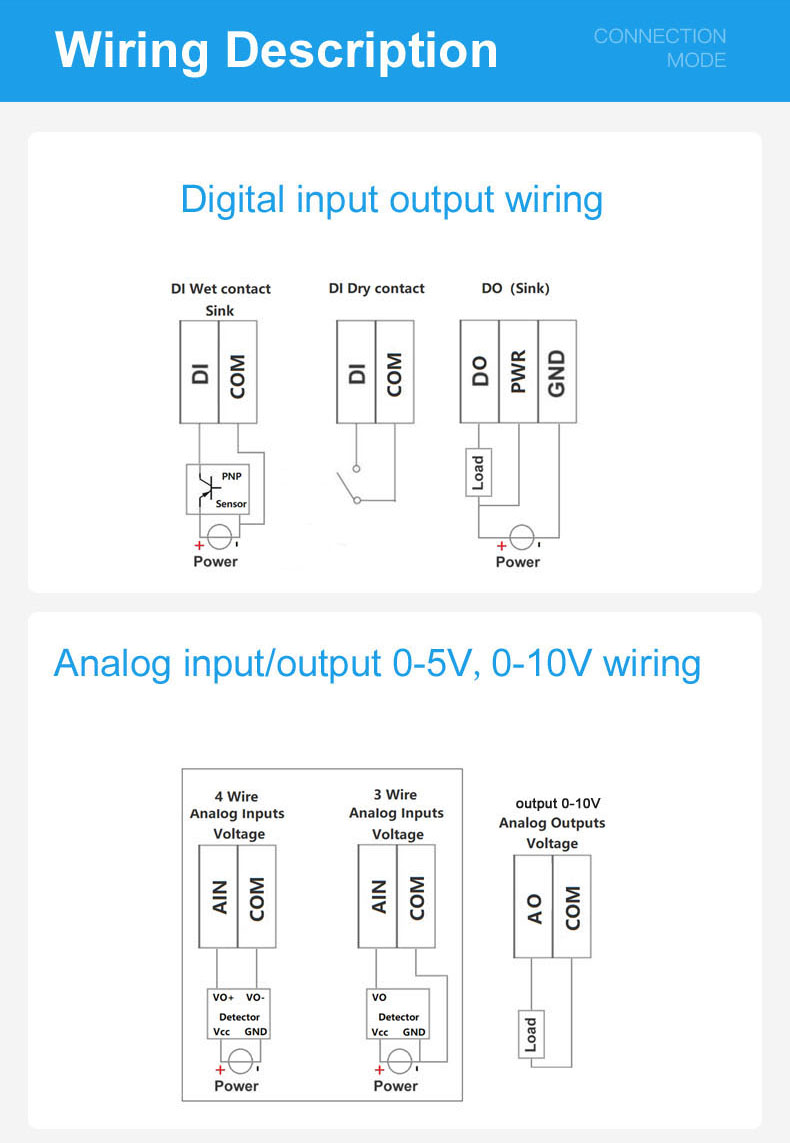

The difference between switch input dry contact and wet contact:

Dry contact:

External disconnection: the corresponding internal data is 0

External closure: the corresponding internal data is 1

Wet contact:

Logic 0: 0-3VDC

Logic 1: 10-30VDC

KING-PIGEONreg-M100T-2DI2AI2DO1RS4851Rj45-Modbus-TCP-Server-and-Client-Module-Ethernet-Remote-IO-Mod-1756644

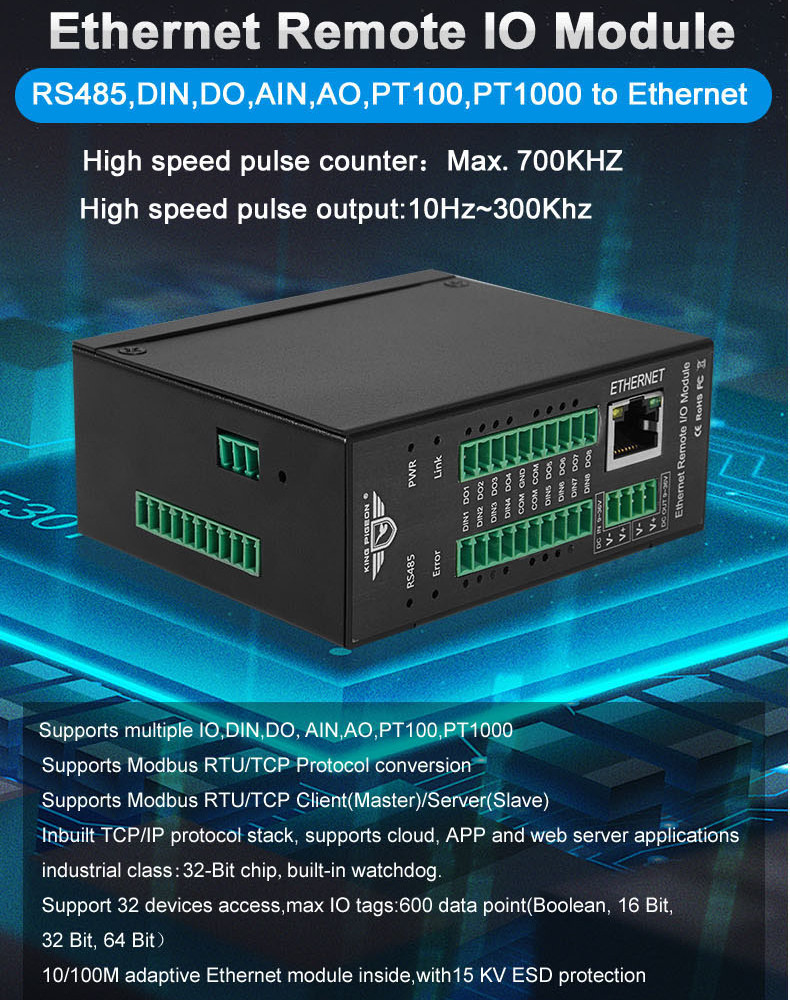

Description:

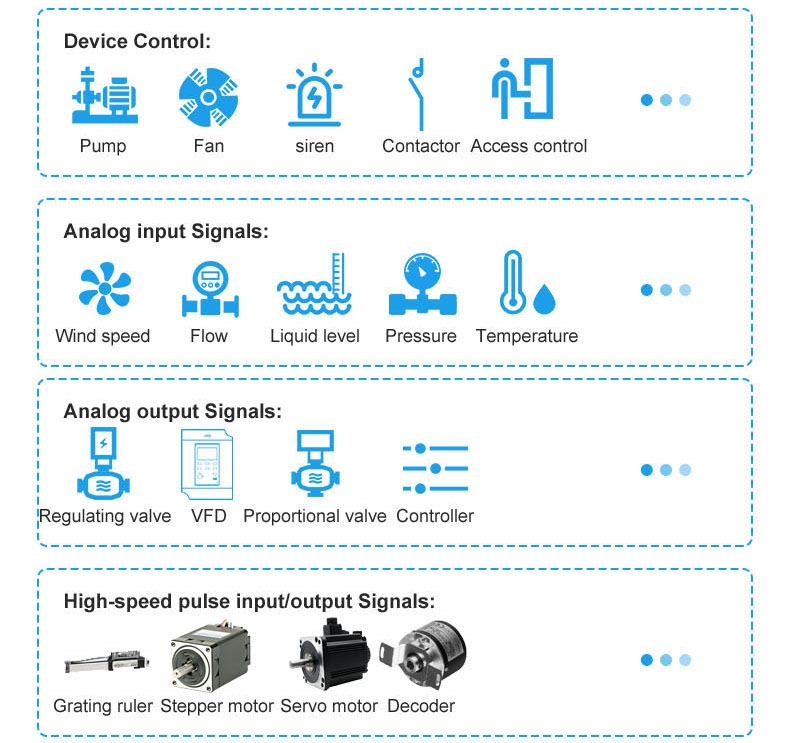

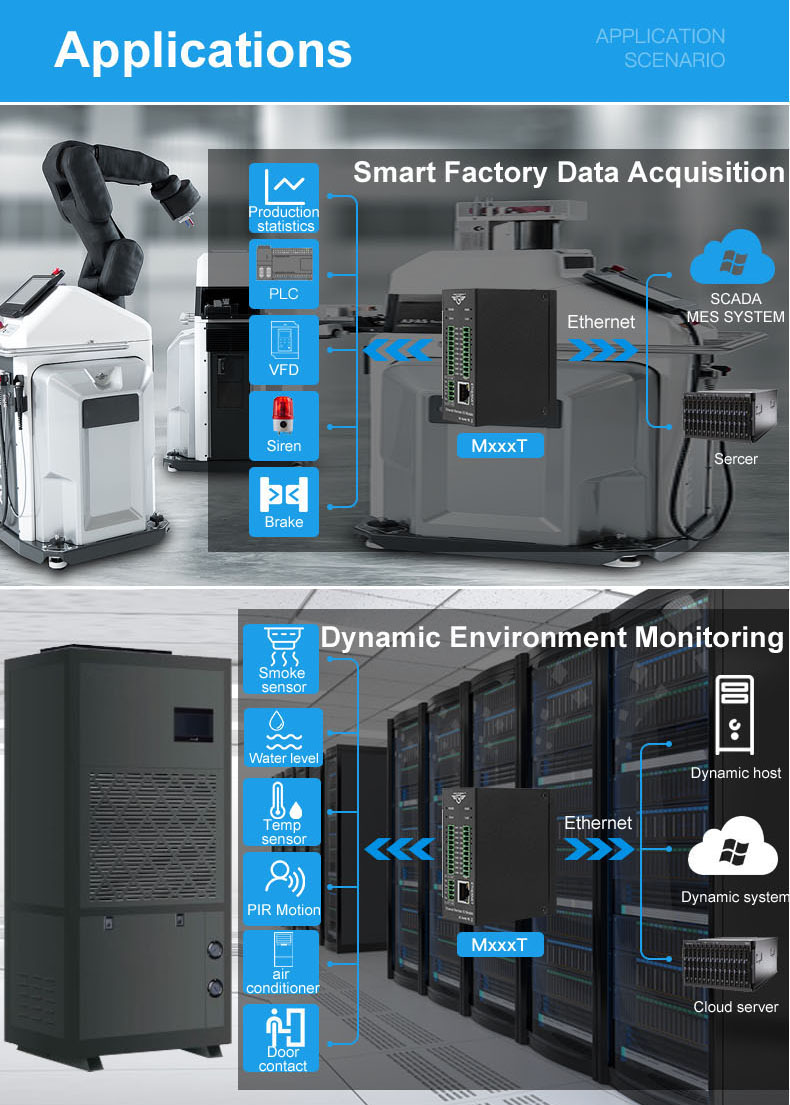

The M100T Ethernet Remote I/O Module is an industrial class, isolated designed, high reliability, high stability and high precision data acquisition module, embedded 32-Bit High Performance Microprocessor MCU, Integrated 1 Industrial 10/100M adaptive Ethernet module inside. It provides multi I/O, supports standard Modbus TCP, can be intergraded into SCADA, OPC server, and other automation systems. It is design for working in the harsh industrial application environment, widely used in a variety of industrial automation, security monitoring system, automatically measurement and control system.

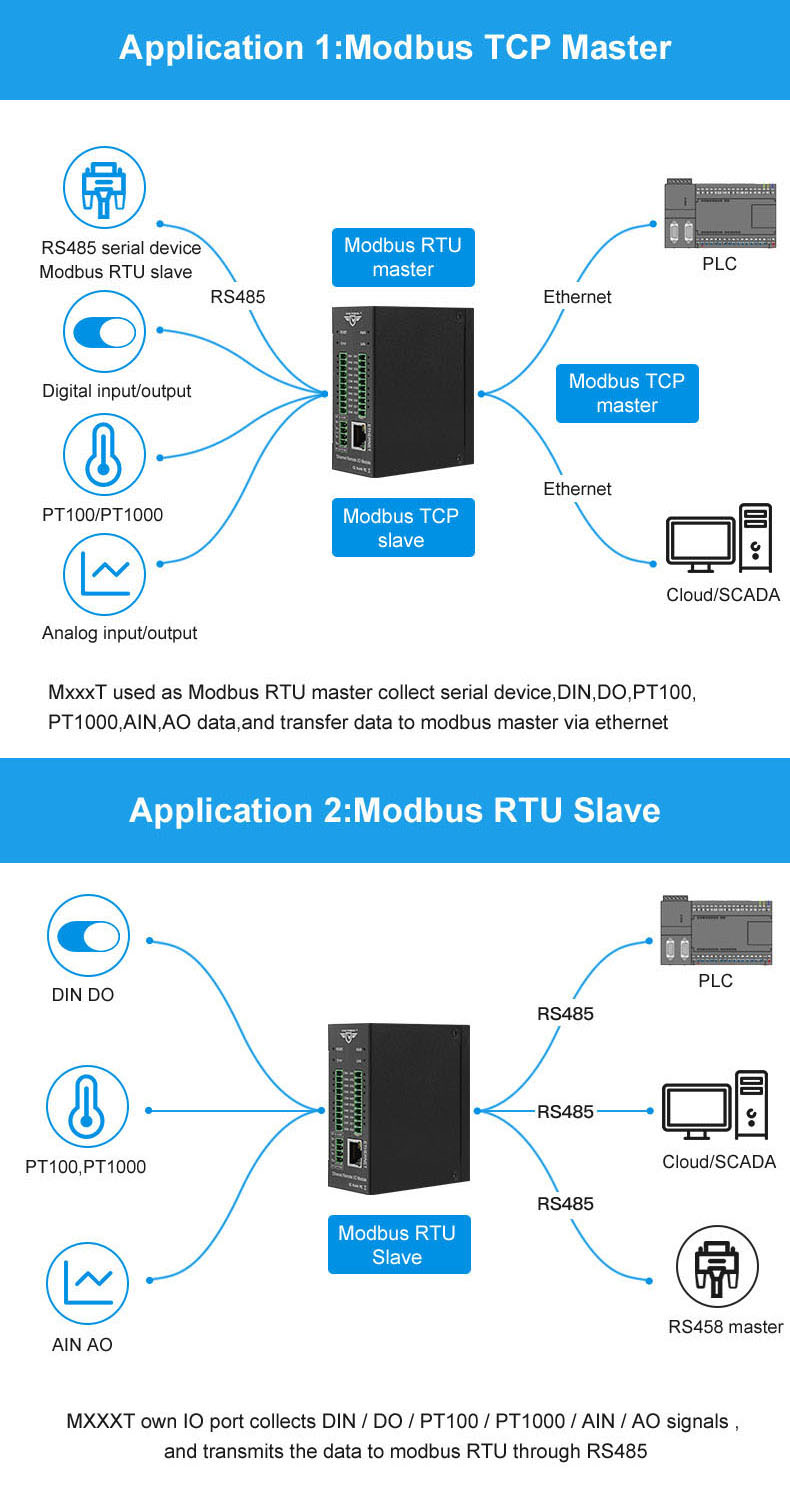

The Ethernet Remote I/O module provides a RS485 interface, through the RS485 bus, it can cascade Modbus RTU I/O devices or Modbus RTU meters, e.g.: a variety of digital input or digital outputs, analog inputs or outputs, thermal resistance IO module combination, save costs. At the same time, the Ethernet Remote I/O module has register mapping function, the cascade Modbus RTU I/O data are automatically collected to the mapping memory area, the Modbus TCP Client query without waiting then can get a quick response to meet the industrial timely requirements.

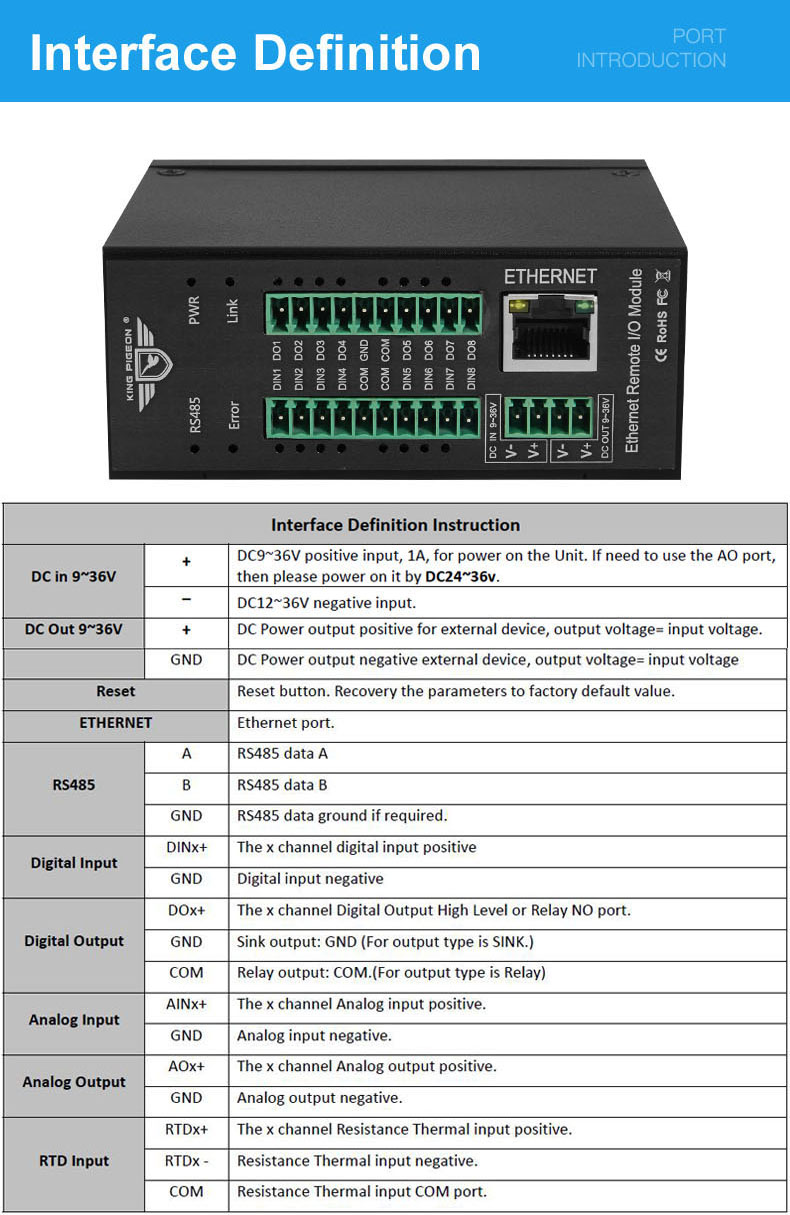

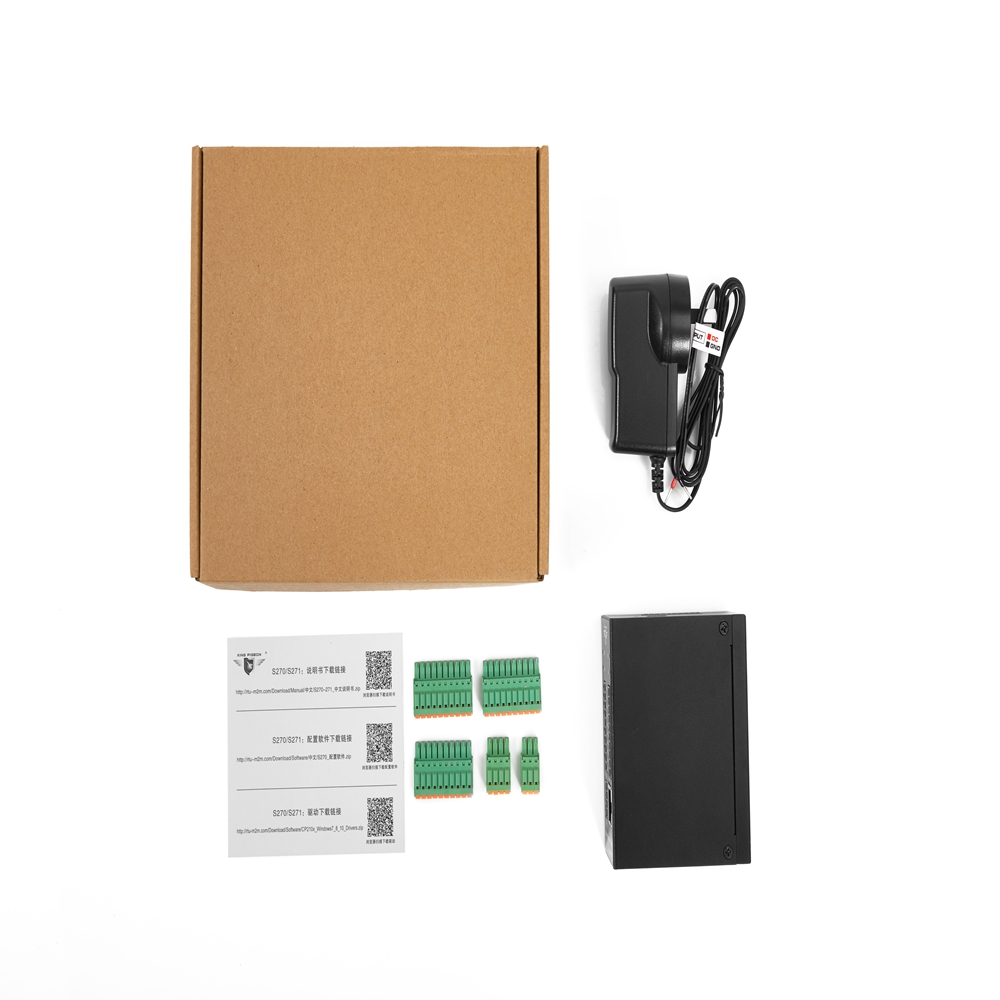

Package includes:

1 x M100T Ethernet Remote I/O Module

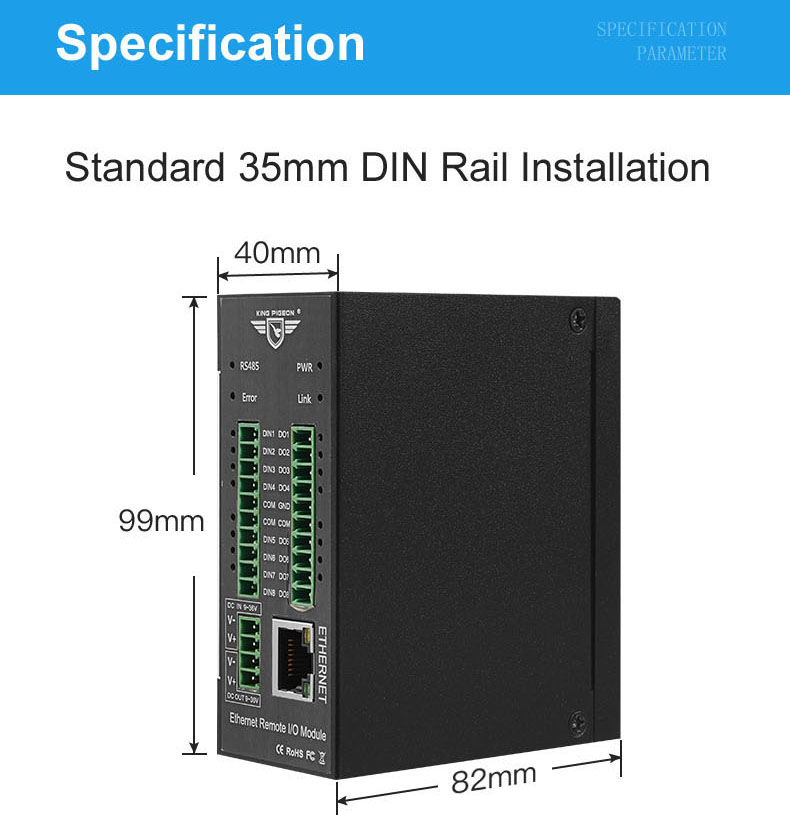

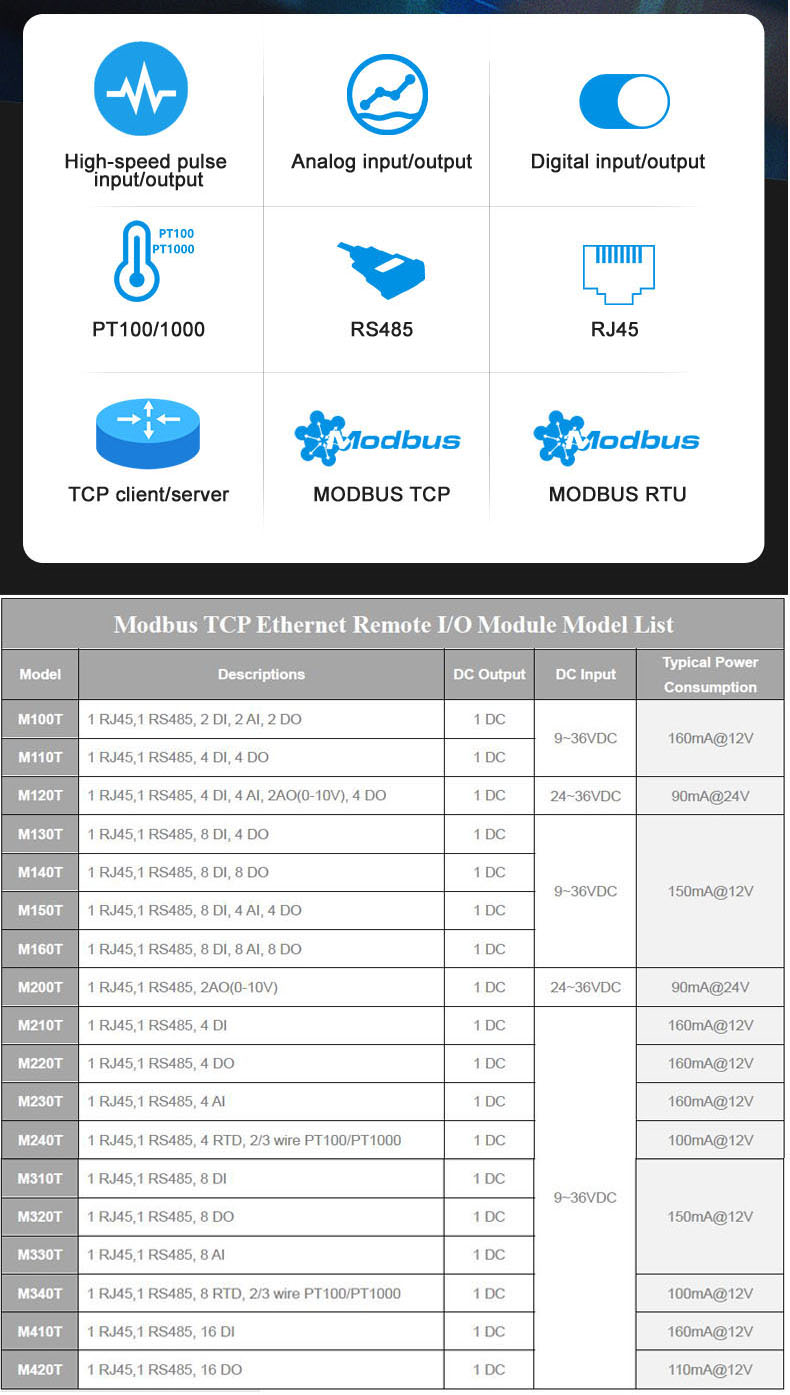

Model	Product ID	Descriptions	DC Output	DC Input	Typical Power Consumption
