Elecbee Laser Ranging Sensor Obstacle Avoidance Radar Module Distance Meter UART Serial Port 5V
SKU: EB0043921
Favorites
Key Features
xa0
-Each sensor can be configured with an ID. When multiple sensors are connected in series through a communication interface, the ranging information of all sensors can be read.
-Using NAssiatant host computer assistant, it can run with Windows and Linux platforms, so as to realize the functions of sensor configuration, waveform monitoring, data analysis, data recording export and playback, firmware upgrade and other functions.
-Application scenarios: Drone setting, robot obstacle avoidance, detection and measurement, etc.
xa0
Show More
Specifications
Attribute
Value
Search
Wireless Capability
Bluetooth
Shipping Guide
Shipping | Delivery Period | For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Description
Specifications:
Power supply voltage: 3.7-5.2V
G power consumption: 0.29W
Band: 940nm
Field of View (FOV): 15-27 ° / multi-position adjustable
Refresh frequency: 10Hz
High precision: ± 1.5cm
High resolution: 1mm
Low blind zone: 1cm
Measuring range: 1cm-5m
Ranging accuracy:
Short distance: 0.012-2.16m / ± 1.0cm, standard deviation <0.3cm
Middle distance: 0.012-3.6m / ± 1.0cm, standard deviation <1.5cm
Long distance: 0.010-5.05m / ± 1.5cm, standard deviation <0.5cm @ {0.01,3} m; standard deviation <8cm @ {3,5} m

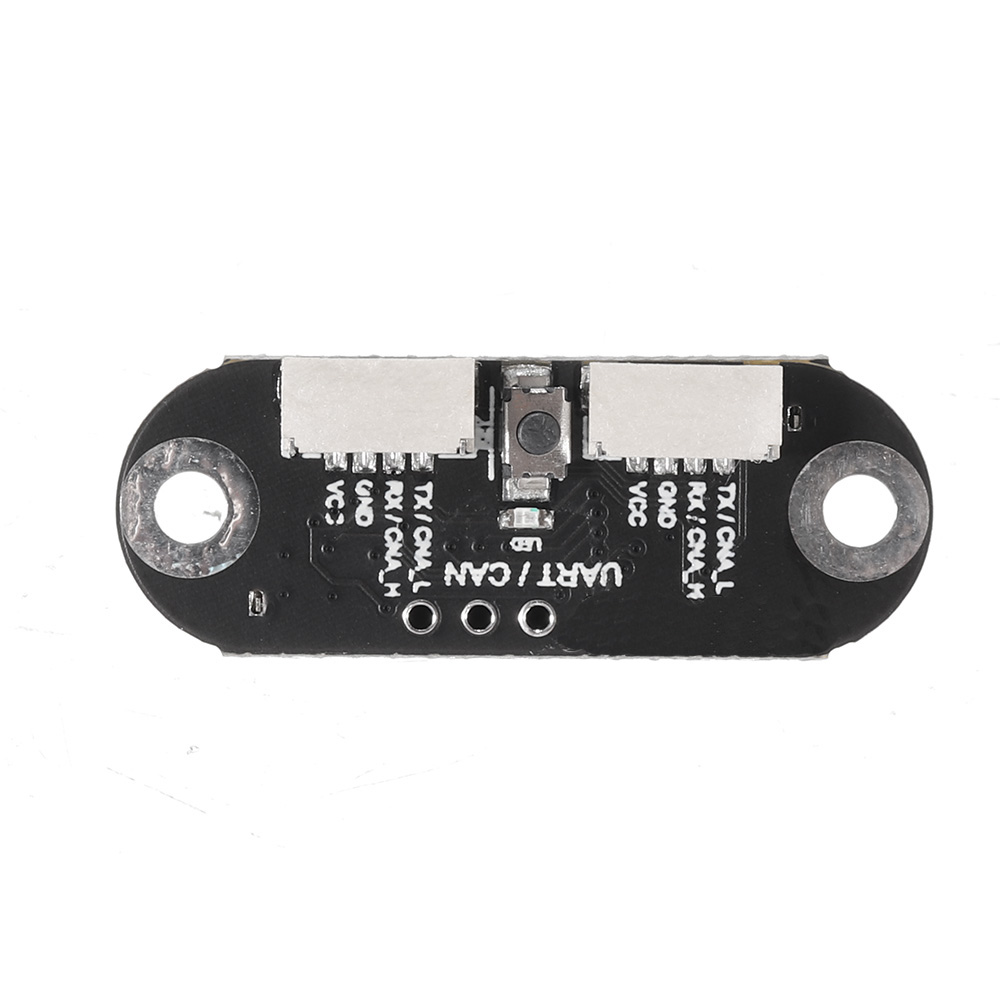

Communication interface: UART, baud rate 921600 / CAN baud rate 1Mbps
Size: 35.8 * 12 * 8.05mm
Package includes:

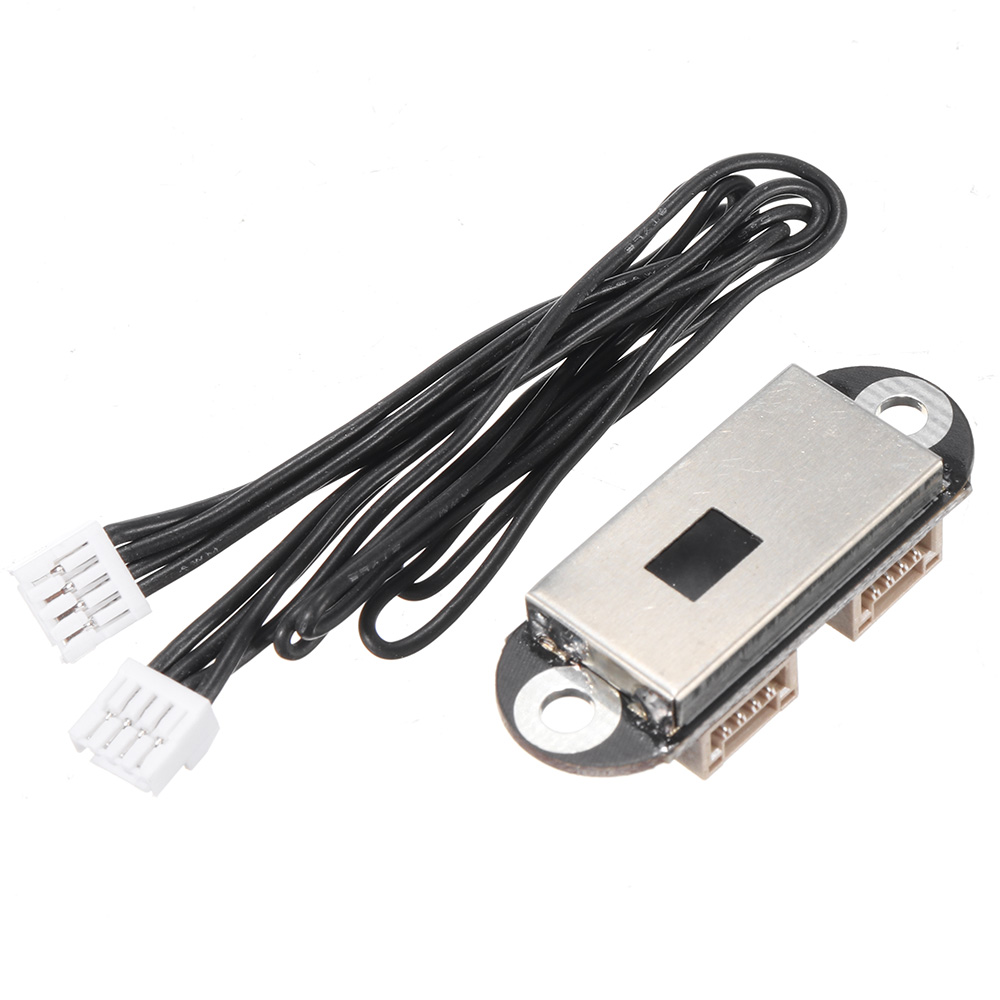

1 x TOFSense Laser Ranging Sensor Obstacle Avoidance Radar Module
