Elecbee L6470 Stepper Driver 3A Bipolar Motor Driver Board | 8-45V Input | 128 Microsteps | SPI Controlled
SKU: EB0048585
Favorites
Key Features
Features:
- High-Precision Control with 128 Microsteps: Equipped with STMicro’s dSPIN technology, this 3A bipolar stepper driver supports up to 128 microsteps per full step, ensuring ultra-smooth motor operation for precise positioning in robotics, CNC machines, and automation projects.
- SPI-Controlled Autonomy: Unlike traditional drivers, the L6470 uses SPI communication and features an on-board 16MHz oscillator, allowing it to execute movement commands autonomously—no need to manually count steps in your code!
- Robust Protection Features: Built-in over-temperature, over-current, under-voltage, and stall detection safeguards your motor and driver from damage, extending the lifespan of your system in industrial or high-load applications.
- Wide Voltage & I/O Compatibility: Operates with 8-45V input voltage and supports both 3.3V and 5V I/O levels, making it versatile for integration with various microcontrollers (Arduino, Raspberry Pi, etc.).
- Simplified Integration: Designed for easy setup—simply connect your bipolar stepper motor and SPI-capable microcontroller to start using advanced features like customizable acceleration/deceleration profiles (no jerky starts/stops) and real-time speed/location tracking via on-board registers.
Show More
Specifications
Attribute
Value
Search
Wireless Capability
Bluetooth
Shipping Guide
Shipping | Delivery Period | For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Description
Description:

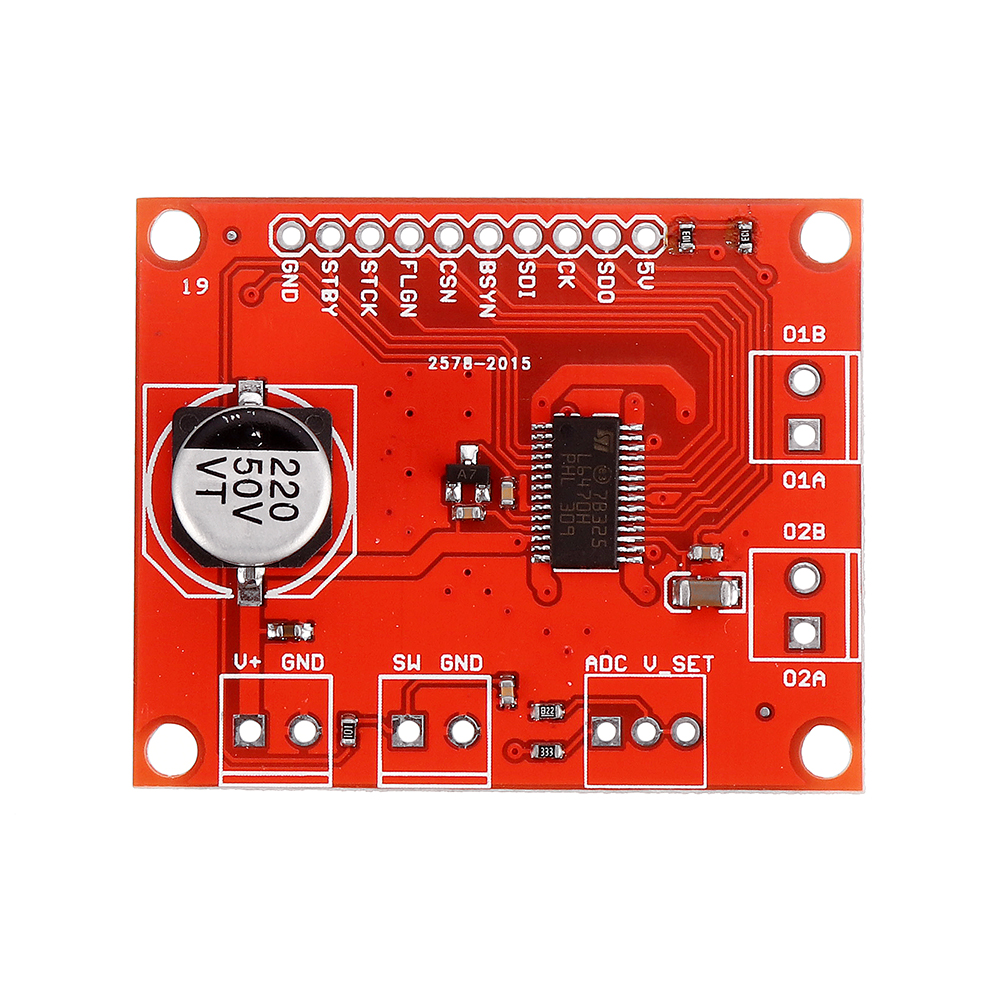

1. STMicro's L6470 (a.k.a "dSPIN") is a 3A, 8-45V bipolar stepper motor driver. It has built-in overcurrent detection, undervoltage detection, overtemperature detection, stall detection, a 5-bit ADC, and a switch input that can be used for either user jog control or as a hard stop function. As if that weren't enough, it also features microstepping support (up to 128 microsteps per full step) and PWM drive voltage limiting.
2. Unlike most stepper motor drivers, the dSPIN is controlled over an SPI link. It has an on-board 16MHz oscillator which allows it to autonomously execute movement commands. That means no more counting steps in your code! It also supports customized acceleration and deceleration profiles to prevent jerky starts and stops. On-board registers track current speed and location.
3. L6470 Stepper Driver makes it easy to put the dSpin to work in your project. Simply connect your motors and your SPI-capable microcontroller and get steppin'!
- Supports up to 128 Microsteps per Full Step
- Supports both 3.3V and 5V I/O levels
- Over-Temperature Detect
- Over-Current Detect
- Under-Voltage Detect
- PWM Drive-Voltage Limiting
- SPI Controlled
- On-Board Oscillator and Speed/Location Registers
- Stall Detection
- 5-bit ADC
Package Inlcuded:
1 x L6470 Stepper Driver 3A Bipolar Stepper Motor Driver Board
