Elecbee KQ-130F Power Cable Carrier Module 220VAC Line Long Distance Data Communication Data Transceiver Module

SKU: EB0044134

Favorites

Key Features

Specifications

Show Similar Products (2768) >

Attribute

Value

Wireless Capability

Bluetooth

Show Similar Products (2768) >

Shipping Guide

Shipping	Delivery Period	For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days
	Shipping Rates	Shipping rates for your order can be found in the shopping cart.
	Shipping Options	Shipping rates for your order can be found in the shopping cart.
	Shipping Tracking	We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/Warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
	Warranty	All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
		This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
Ordering	How to Buy	Elecbee accepts online orders.
		Add to cart > Check out > Submit order > Complete payment > Delivery
	Payment	PayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Description

Introduction:

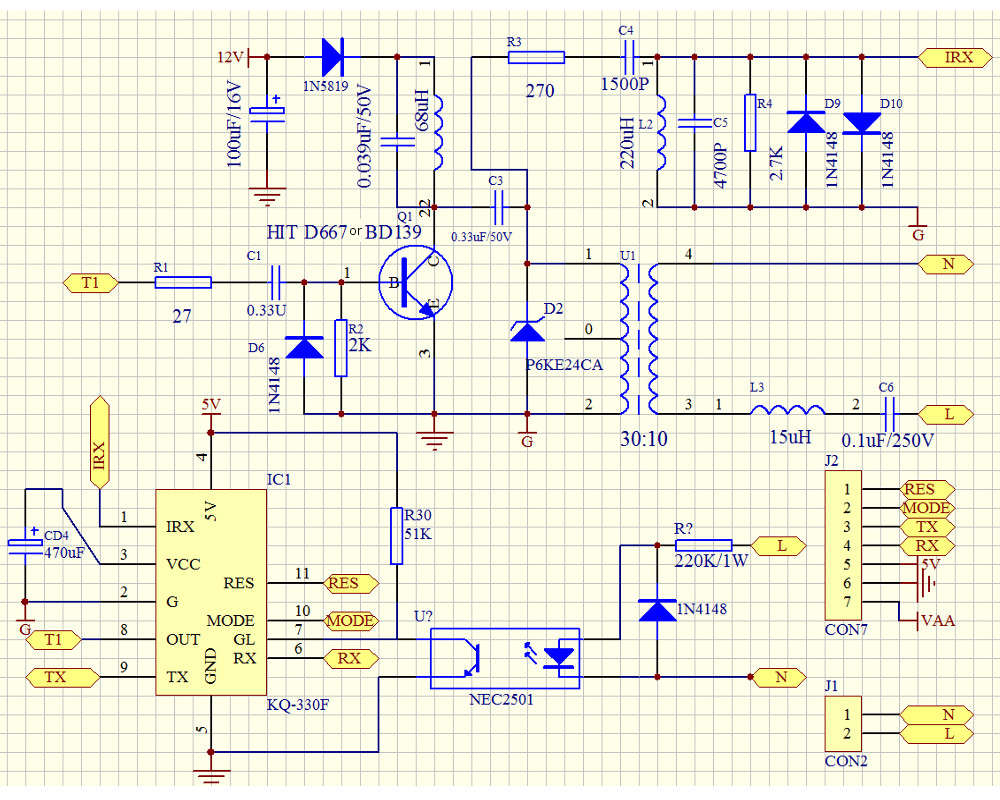

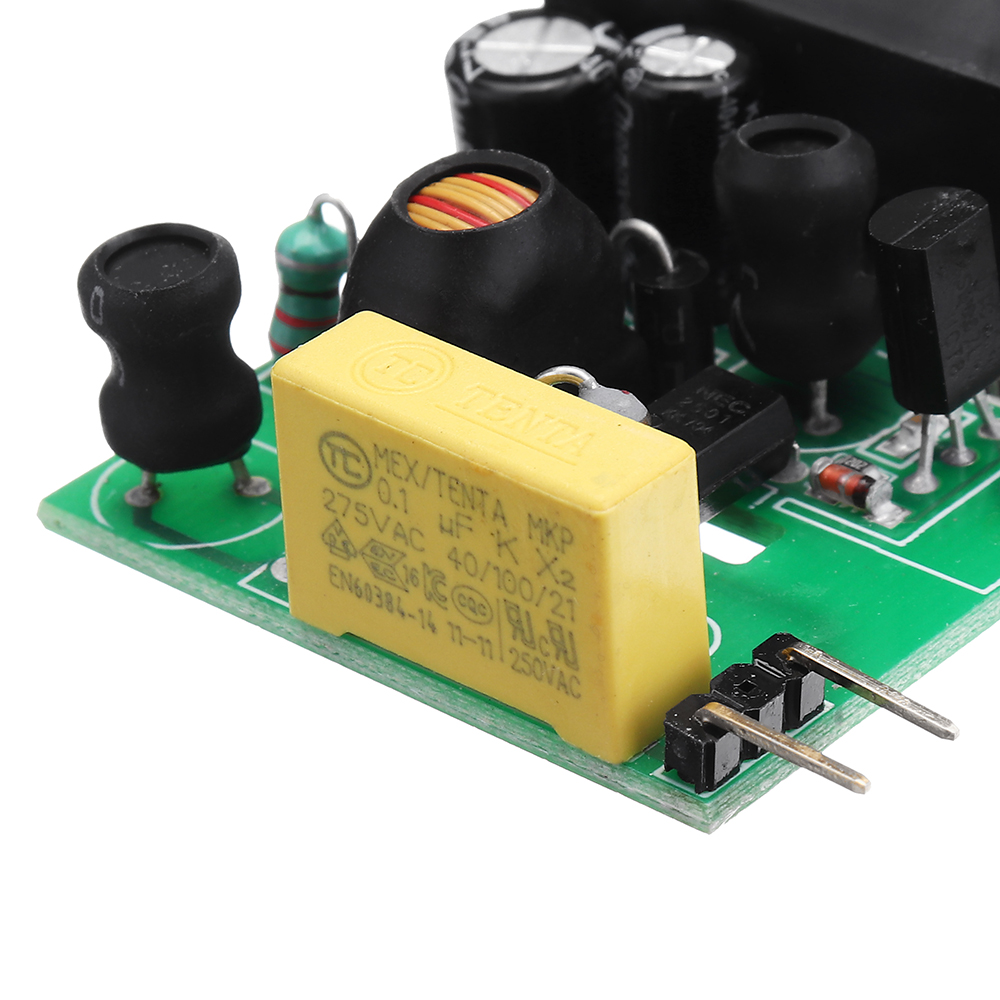

KQ-130F is a single-row 9-pin small-volume high-performance zero-crossing carrier data transceiver module. It is a cost-effective carrier module specially designed and developed for reliable transmission of data under 220V AC, strong interference, strong attenuation, and long-distance requirements. Suitable for meter reading, street lighting, smart home, fire protection, building control and other applications where power lines are required to transmit data.

KQ-130F series performance:

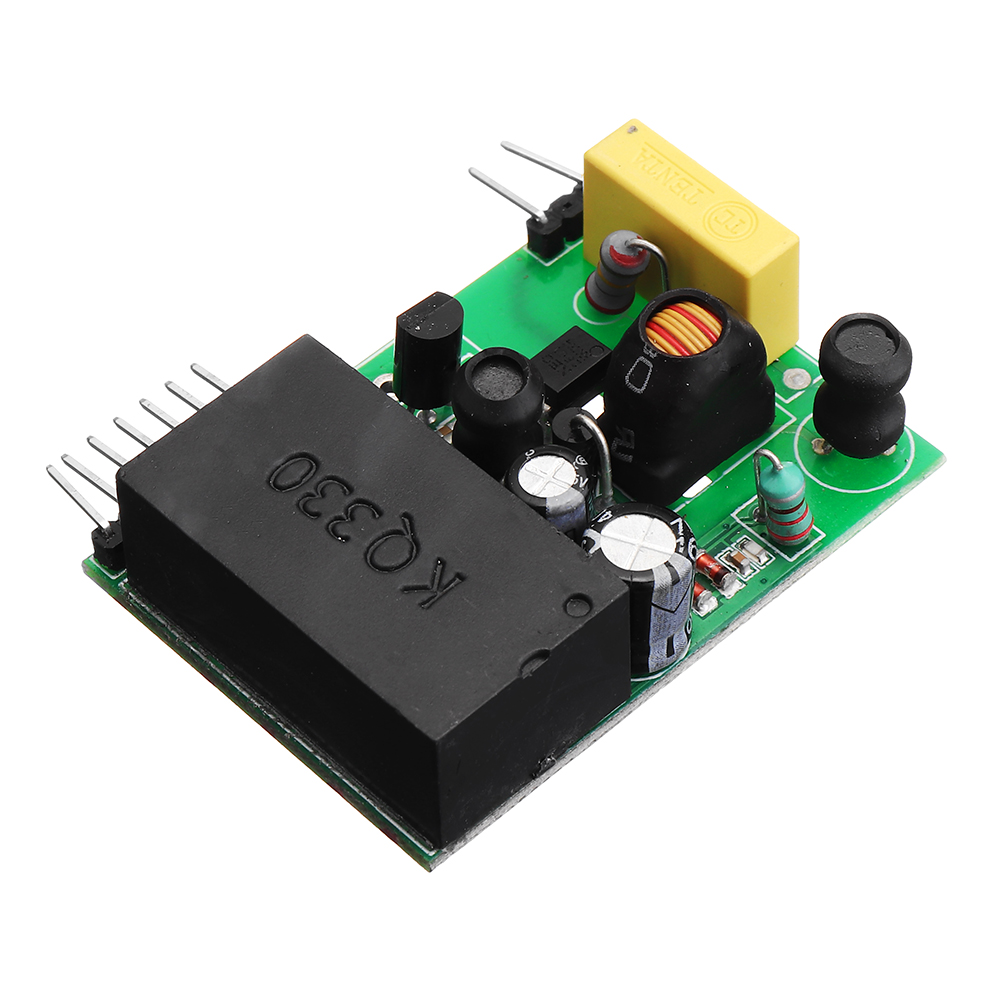

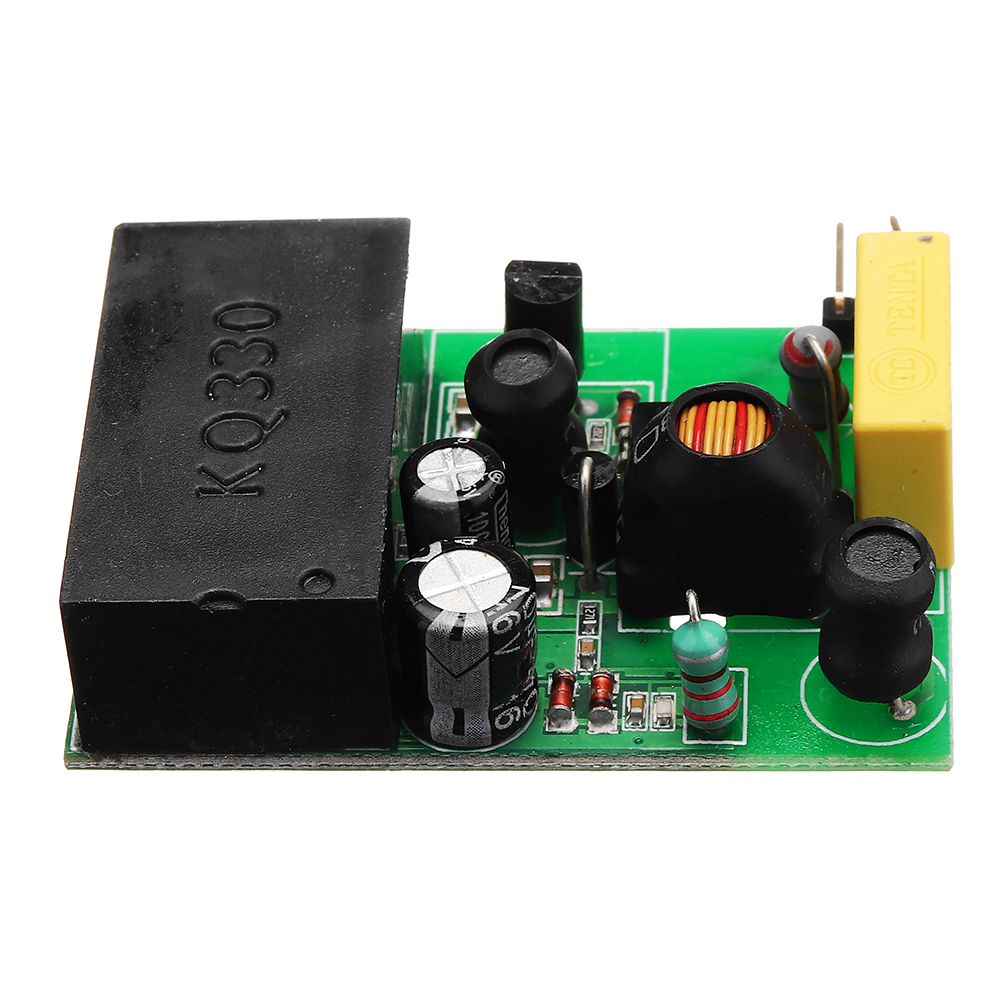

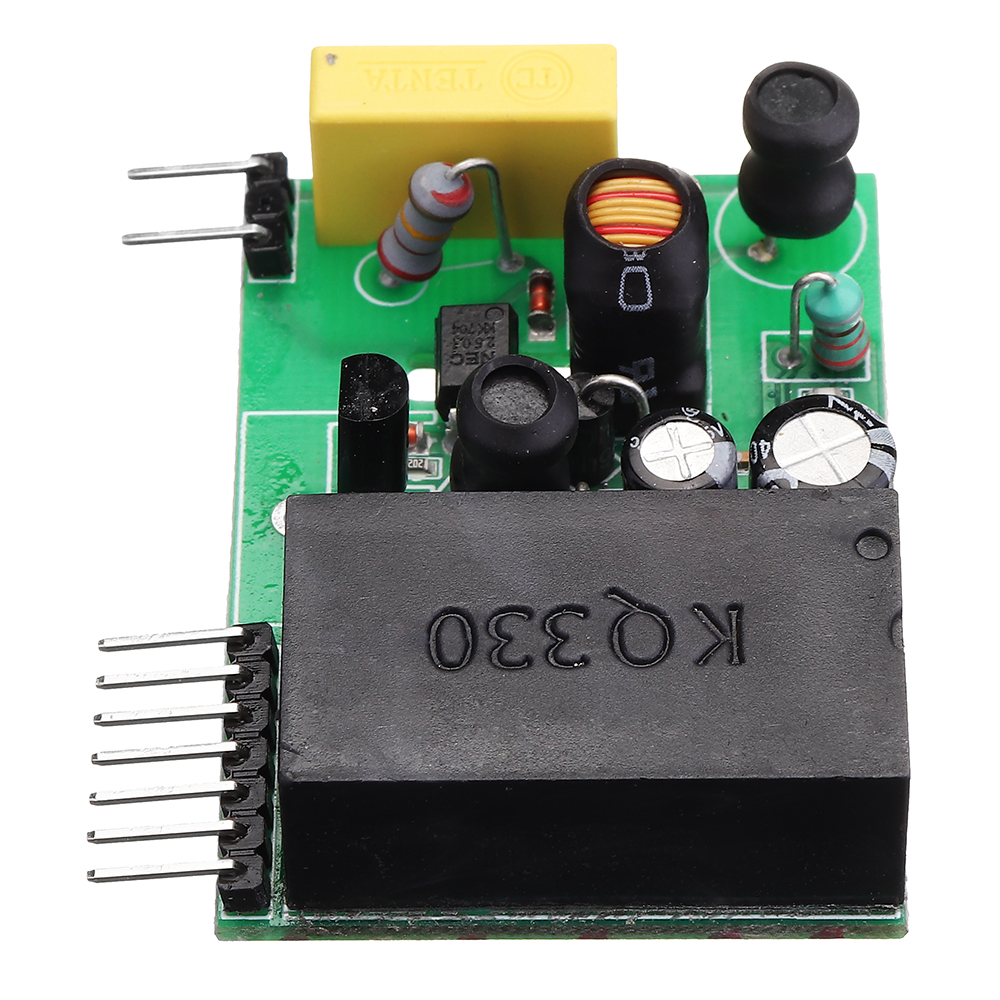

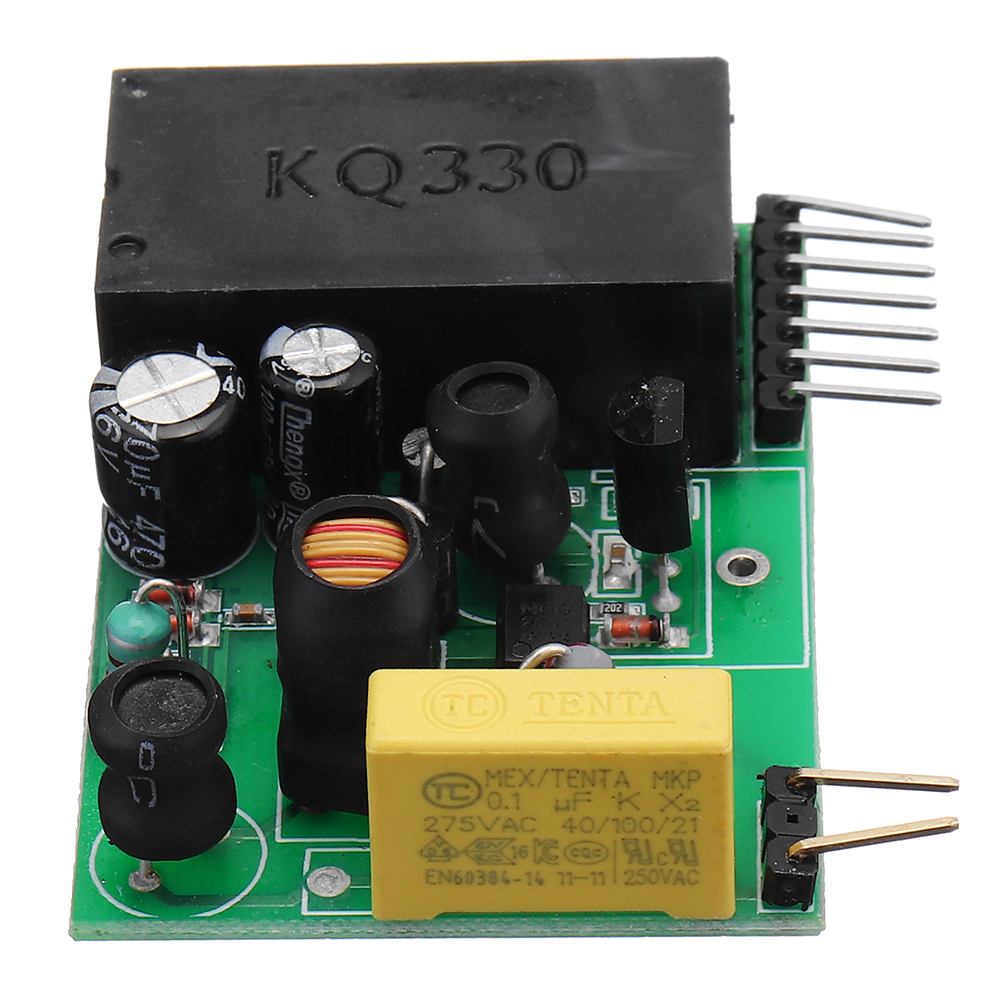

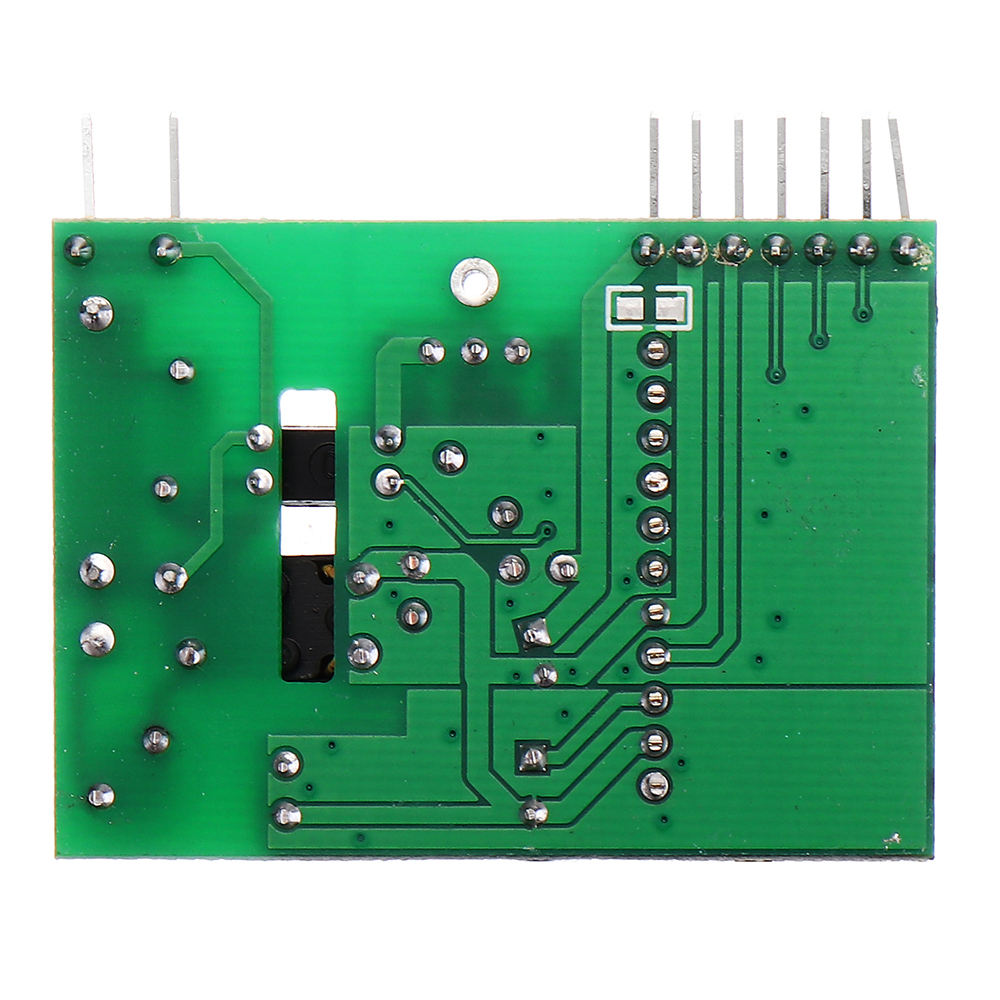

1. Integrated KQ-330F module and peripheral circuit carrier board, no need for other coupling components, directly connected to 220V AC. The outer dimensions are 53×38×17 mm (L×D×H), and the single row of pins is led out (see the figure below). The pins are connected to the 220V AC power supply without direction (1 pin, 2 pin spacing 2X0.1 inches). 2 feet, 3 feet are 1.1 inches apart, and the remaining feet are 0.1 inches apart.

2. The working frequency is 120~135KHZ, and the interface baud rate is 9600bps. The actual baud rate is 100bps, 250 bytes of buffer.

3. Temperature range: -25 ° C ~ +70 ° C Humidity ≤ 90%

4. Power supply: DC +5V Receive: ≤11mA When transmitting: ≤300mA

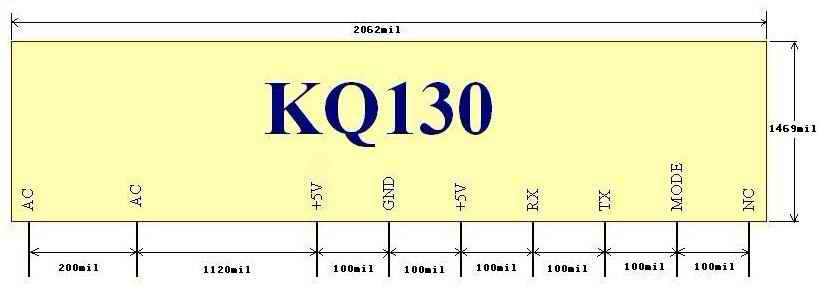

Pin Description:

1P--AC: Firewire (or neutral) of 220V AC voltage

2P--AC: Zero line (or fire line) of 220V AC voltage

3P--+5V: +5V transmit power (260mA), if the data can be suspended, the power consumption can be suspended.

4P--GND: Digital circuit ground

5P--+5V: +5V working power 11mA

6P--RX: TTL level, carrier data input, connected to the TXD of the single chip, high resistance input can not be left floating

7P--TX: TTL level, carrier data out, connected to the RXD of the microcontroller

8P--MODE: mode selection, floating or connected to 5V is high level, grounding is low level

9P--NC/RST: The reset pin (active low) is only used when switching modes frequently during operation. Need this function, the pin should be left floating
