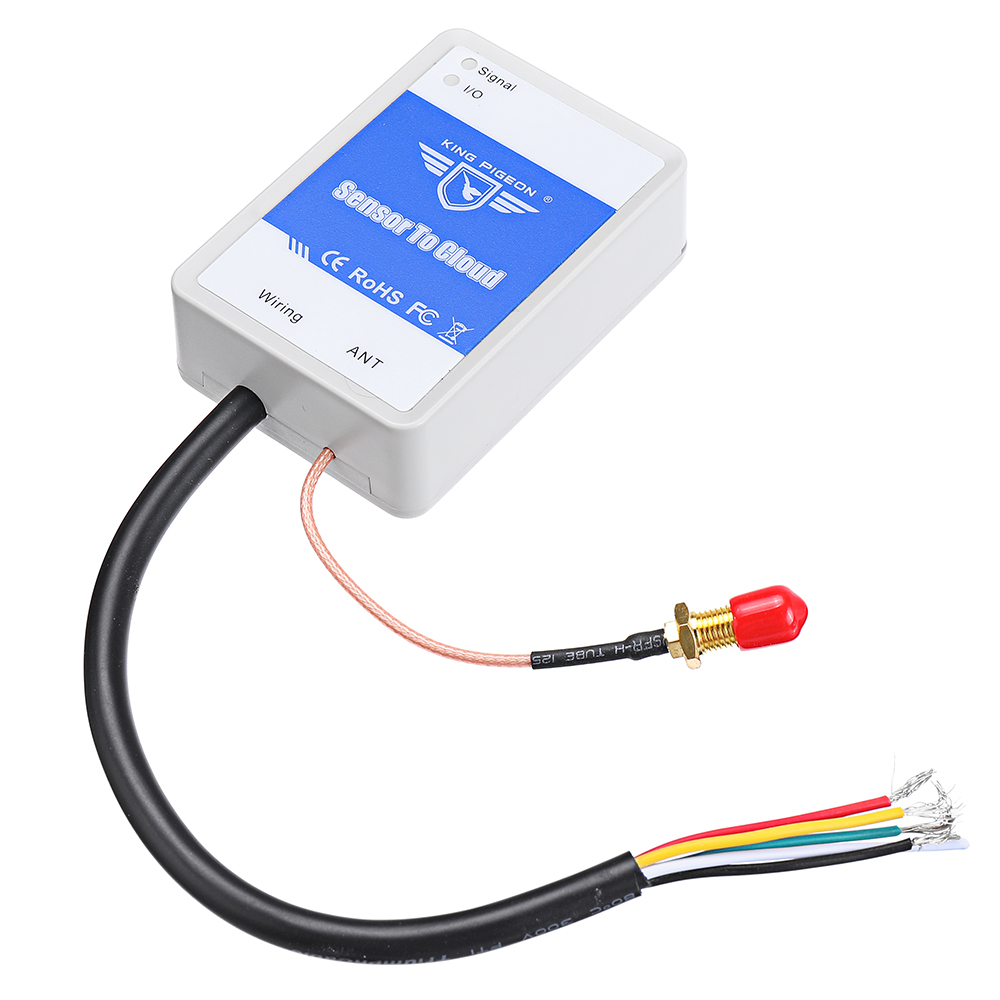

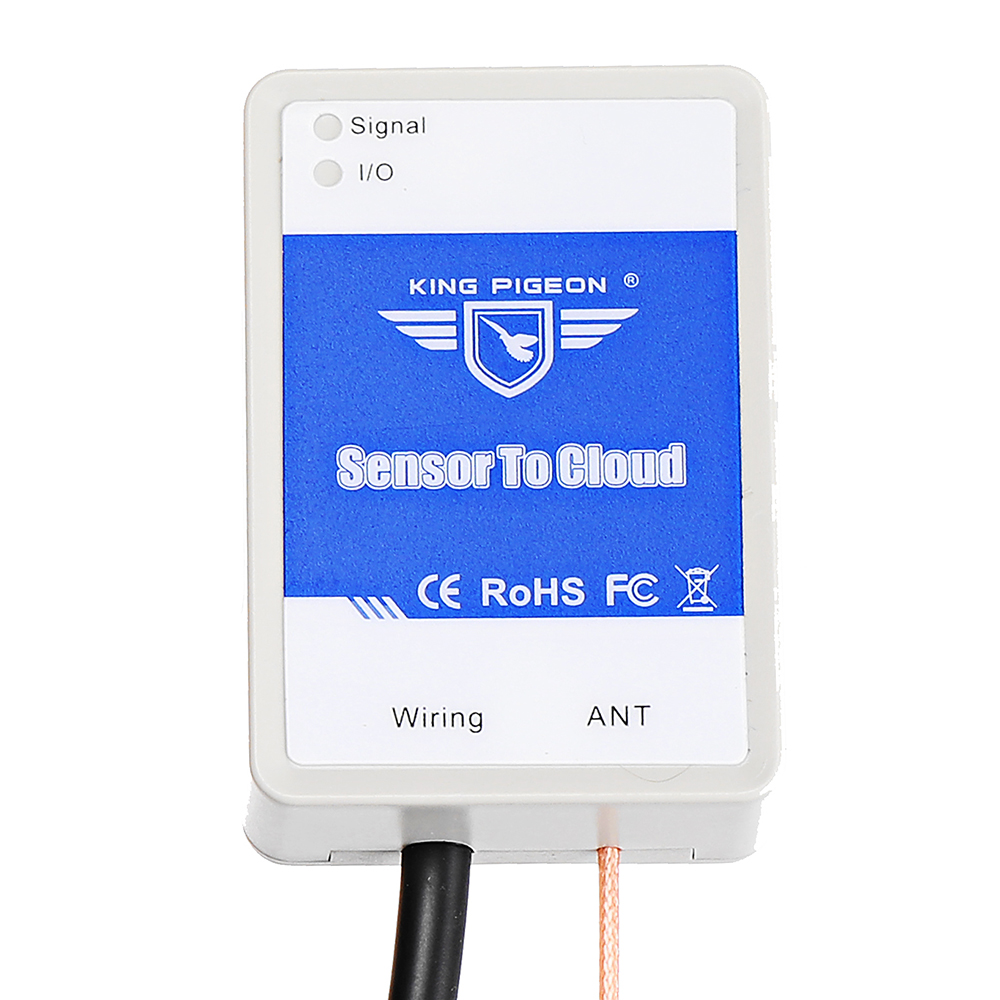

Elecbee IOT103-V GSM/GPRS Modbus RTU Over TCP 1-way 0-5V Analog Input IOT Sensor To Cloud Device

SKU: EB0042582

Favorites

Key Features

Product Features:

Communication method: GSM/GPRS (2G ONLY) (If you need other communication method, please feel free to contact us)

Communication Protocol: Modbus RTU Over TCP

Material: Plastic shell

Two working modes are available:

(1) Normal mode: Data is transmitted in real time, allowing users to know the situation on the spot;

(2) Low-power mode: ultra-low power design (less than 230uA), suitable for places where data is collected periodically

Supports setting parameters and viewing real-time data via SMS, computer configuration software, cloud platform;

Support 10 user numbers, each of which can be individually set to receive specific alarm SMS and alarm calls;

Support 10 timers, can set timing restart, timing report, timing online, timing offline, etc.

Support 2 different server centers, can set IP address or domain name;

Support Modbus RTU Over TCP protocol or data transparent transmission;

A complete data reissuing mechanism to ensure that each piece of data is effectively uploaded to the server;

32M-bit cache capacity, which can cache up to tens of thousands of historical data;

Wide operating voltage design, support 7~24VDC power supply, and with anti-reverse protection;

Built-in clock chip and super capacitor to ensure long-term timing after power failure;

Use the Nano-SIM mobile phone card to support PIN verification to ensure card security;

Specifications

Show Similar Products (2768) >

Attribute

Value

Wireless Capability

Cellular

Show Similar Products (2768) >

Shipping Guide

Shipping	Delivery Period	For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days
	Shipping Rates	Shipping rates for your order can be found in the shopping cart.
	Shipping Options	Shipping rates for your order can be found in the shopping cart.
	Shipping Tracking	We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/Warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
	Warranty	All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
		This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
Ordering	How to Buy	Elecbee accepts online orders.
		Add to cart > Check out > Submit order > Complete payment > Delivery
	Payment	PayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Description

Manual: Click here to open

Brief Introduction:

This product is compact and exquisite, powerful, and can choose the regular online working mode or ultra low power working mode according to the need.
This waterproof plastic shell can be used outdoor, acting as a complete finished product connection sensor monitors data collection, remote control and abnormal warning notifications through SMS, phone, network, wechat, web end and cloud platform.
It can also be used as a PCBA module embedded in a third-party motherboard for secondary development, to facilitate the traditional sensors, instruments and other access to objects such as networking.

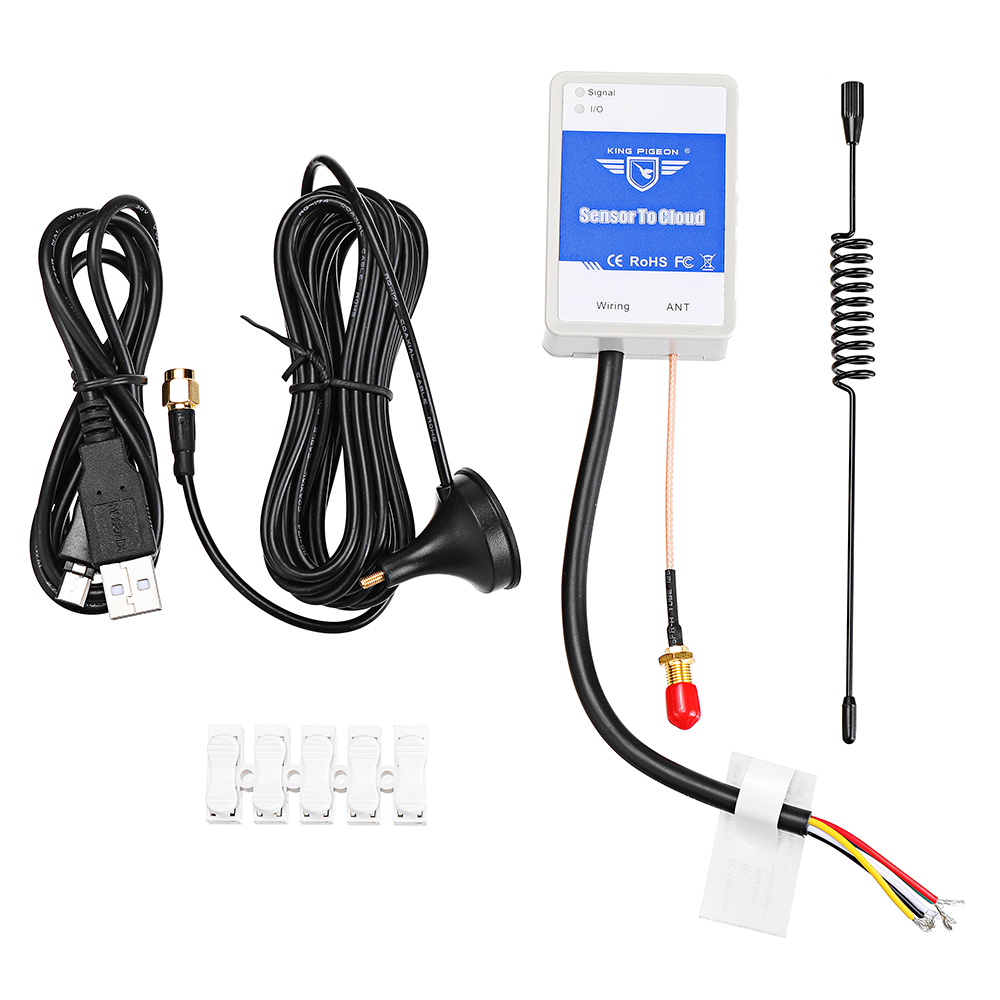

Package includes:

1 x Device host

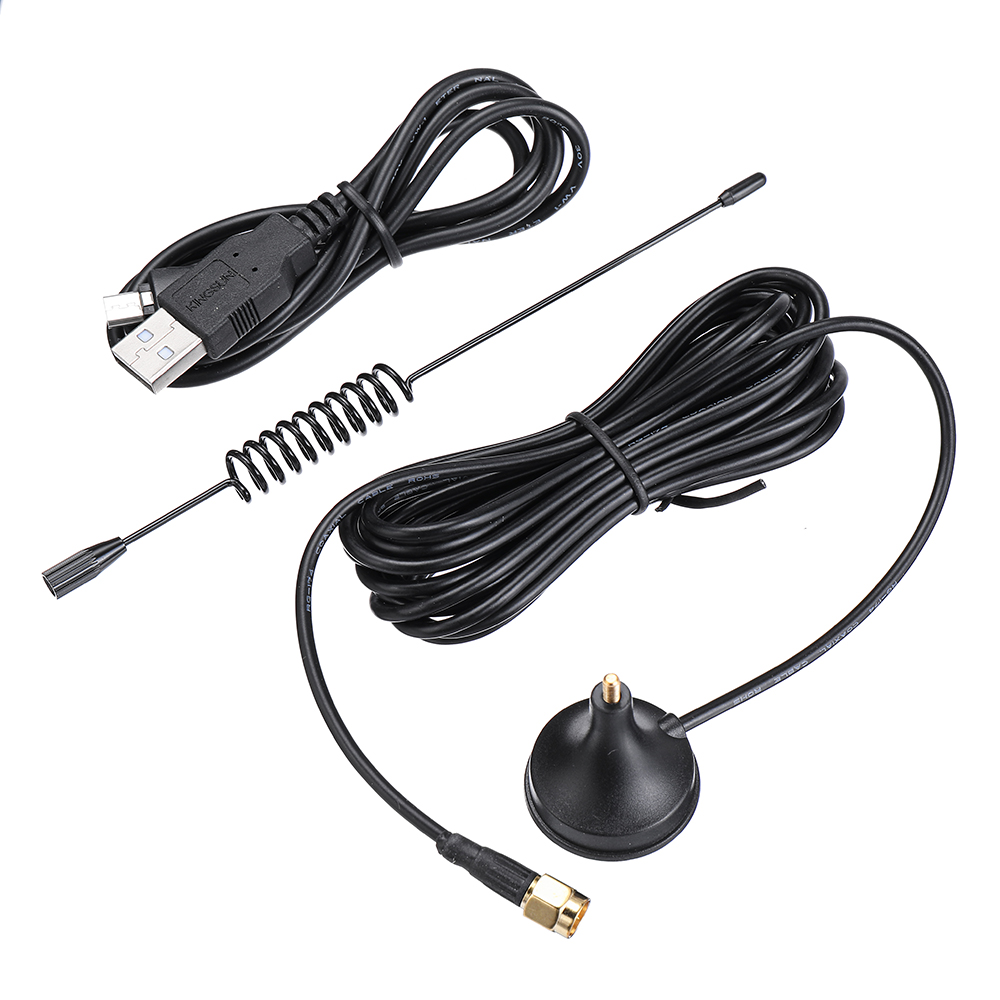

1 x GSM antenna

1 x Manual

1 x Power adapter (DC12V1.5A)

Note: The SIM card is not included in the list.
