Elecbee GY-26 DC 3V-5V Digital Electronic Compass Sensor Module High-precision High-sensitivity GPS Navigation

SKU: EB000519

Favorites

Key Features

xa0

- This is a low cost plane of digital compassxa0

- The working principle is utilizing magneto resistive sensor sensing the Earth's magnetic field component, so as to get an azimuth anglexa0

- Light weight and high cost-effectivexa0

- With stabile operation and high accuracyxa0

- Very low operating voltage (3 - 5V DC)xa0

- DC single supply operationxa0

- Advanced hard iron calibrationxa0

xa0

Specifications:

xa0

- Measuring Range: Between 0 degrees to 360 degreesxa0

- Working Temperature: Between -20 degC and 85 degCxa0

- Store Temperature: Between -40 degC and 125 degCxa0

- Current Consumption: 5V 15mA, 3V 8mAxa0

- Response Frequency: 25Hzxa0

- Resolution: 0.1 degreexa0

- Measuring Precision: 1 degreexa0

- Repeatabilityxa0 Precision:1 degreexa0

- Size (L x W): Approx. 1 x 1 inch / 2.5 x 2.5 cmxa0

xa0

Applications:

xa0

- Handheld electronic instrumentxa0

- Robot orientation and positionxa0

- Navigation systemxa0

- Telescope positionxa0

- Auto helm rudderxa0

- Antenna positionxa0

- Automobile GPS navigationxa0

- Aero model positionxa0

xa0

xa0

Shipping Guide

Shipping	Delivery Period	For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days
	Shipping Rates	Shipping rates for your order can be found in the shopping cart.
	Shipping Options	Shipping rates for your order can be found in the shopping cart.
	Shipping Tracking	We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/Warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
	Warranty	All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
		This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
Ordering	How to Buy	Elecbee accepts online orders.
		Add to cart > Check out > Submit order > Complete payment > Delivery
	Payment	PayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Description

Description:

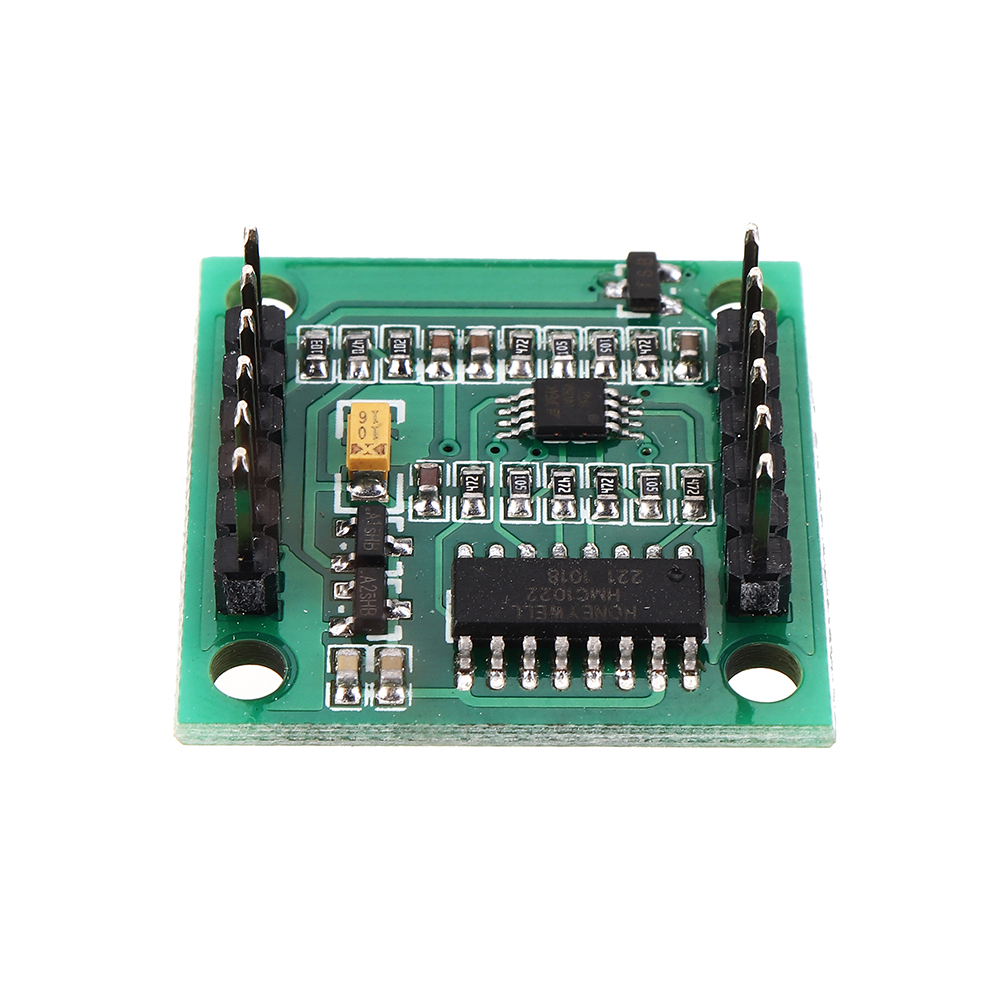

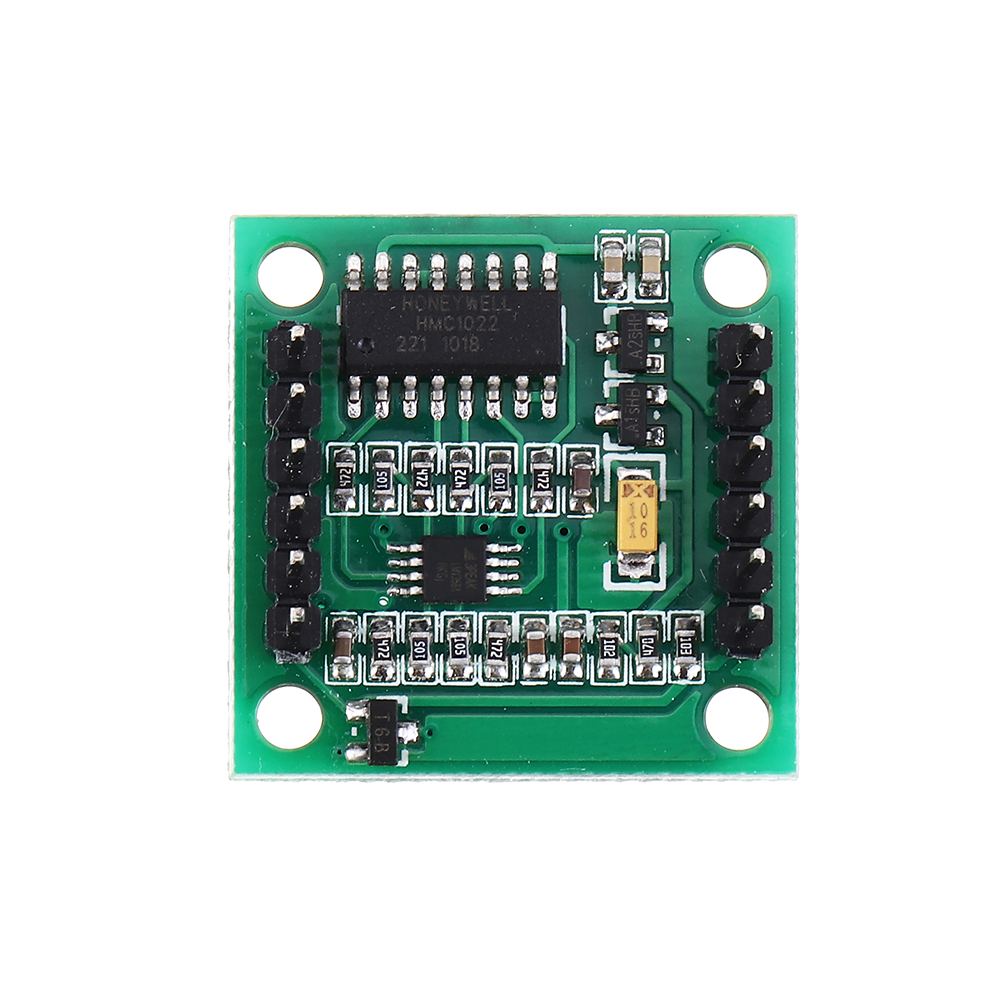

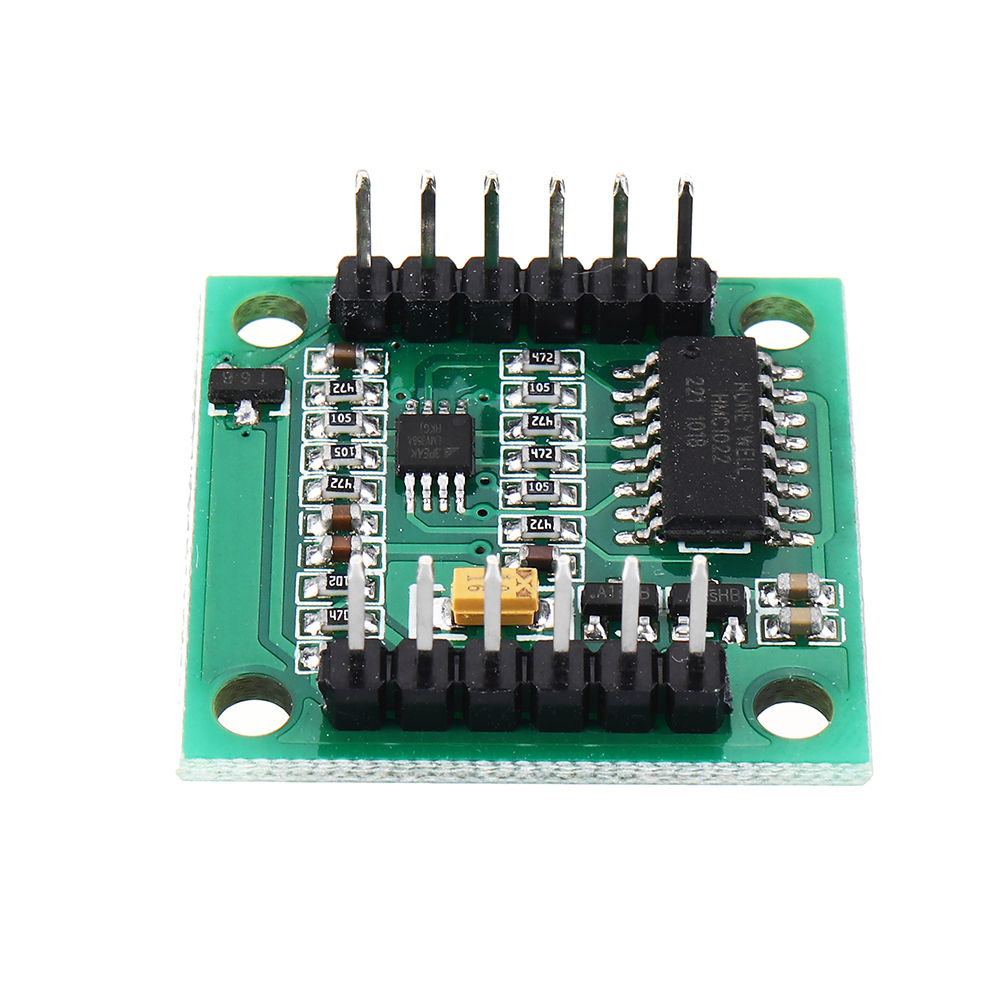

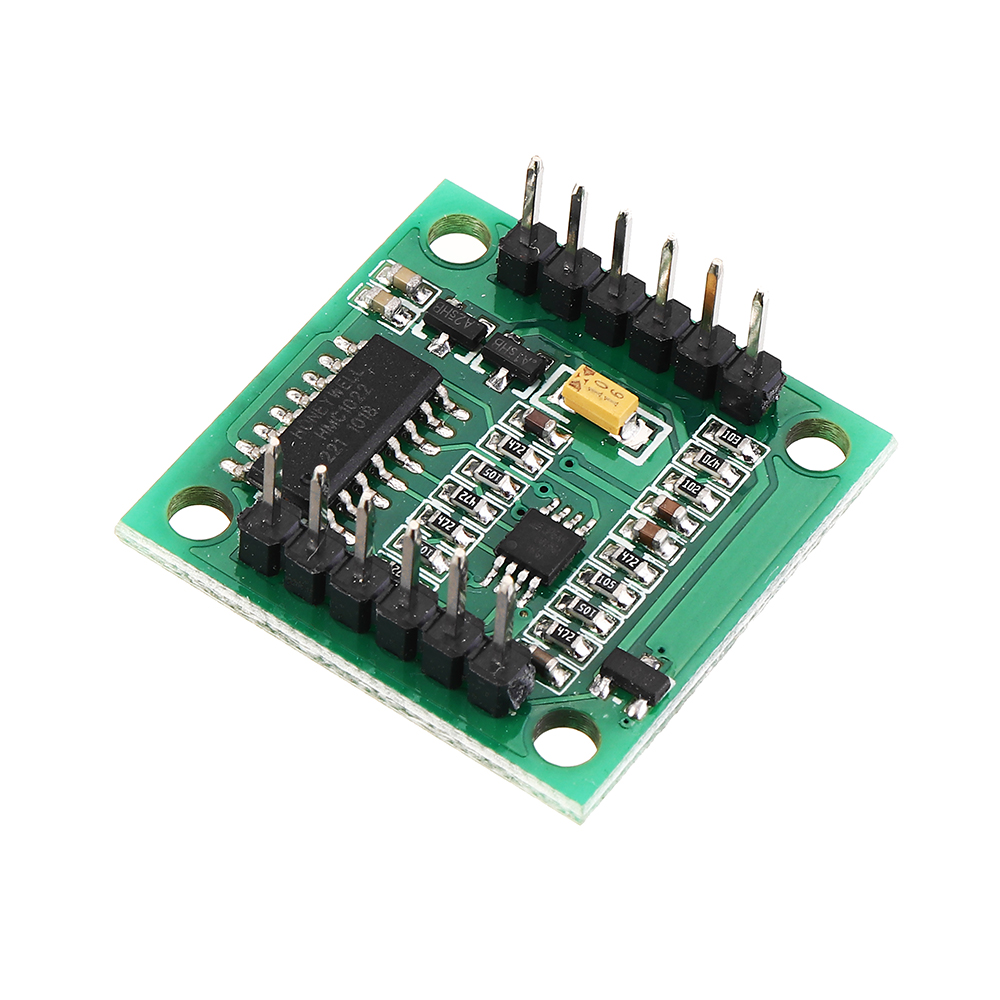

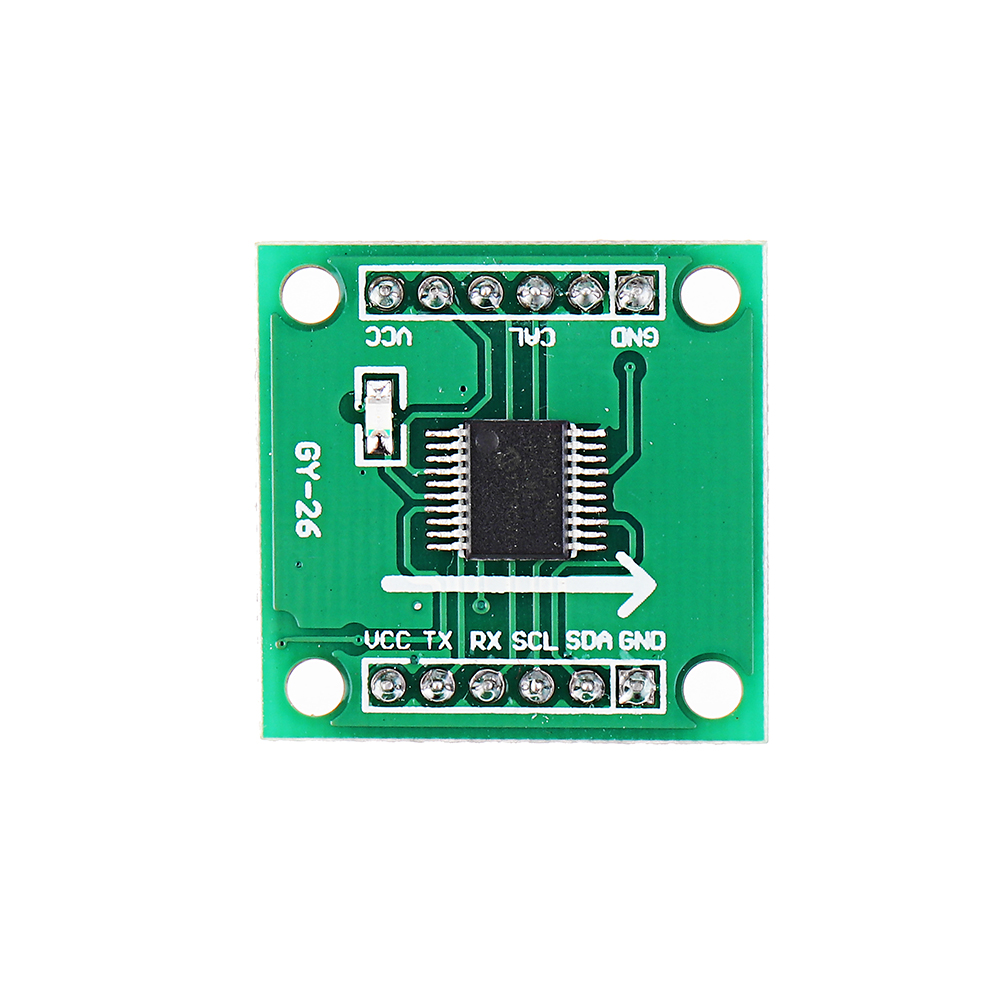

GY-26 is a low-cost flat digital compass module. Input voltage and power consumption is low, small size. Its working principle is by two mutually perpendicular magnetic sensors response the magnetic component of earth's magnetic field induction,To arrive at the azimuth angle.This compass to RS232 protocol, and the IIC protocol with other devices. High precision,high stability. And with a re-calibration function, can be in any position accurate azimuth, the output of the baudrate is 9600bps, a continuous output and exercise output in two ways, with the magnetic declination compensation, can adapt to different working environment.

1 x GY-26 DC 3V-5V Digital Electronic Compass Sensor Module
