Elecbee GPS Module APM2.5 With Navigation Satellite Positioning for Arduino - products that work with official Arduino boards

SKU: EB0042160

Favorites

Key Features

Specifications

Shipping Guide

Shipping	Delivery Period	For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days
	Shipping Rates	Shipping rates for your order can be found in the shopping cart.
	Shipping Options	Shipping rates for your order can be found in the shopping cart.
	Shipping Tracking	We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/Warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
	Warranty	All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
		This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
Ordering	How to Buy	Elecbee accepts online orders.
		Add to cart > Check out > Submit order > Complete payment > Delivery
	Payment	PayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Description

Description:

Input voltage: 3.3-5.5V
Power consumption: Normal mode: 50 mA,Power saving mode: 30 mA
Operating temperature -40℃ to + 85℃
Storage temperature -55℃ to + 100℃
The default baud rate for the module is 9600

Characteristic parameters:

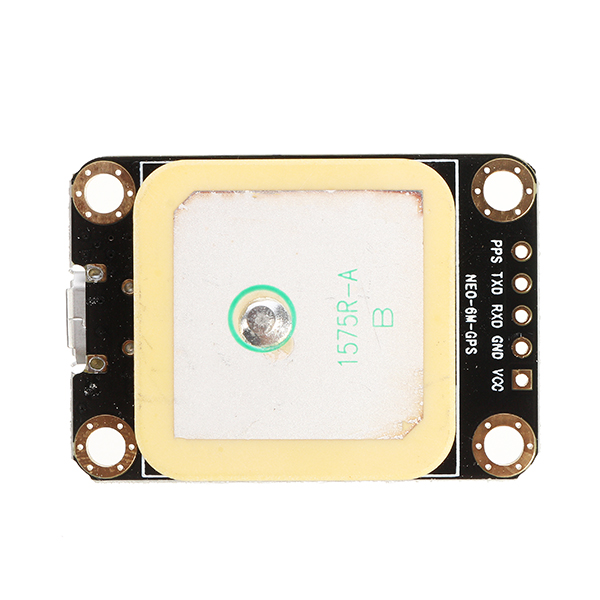

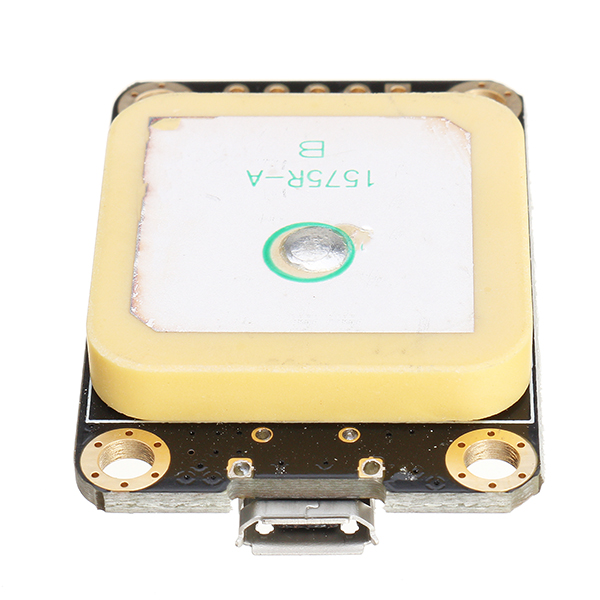

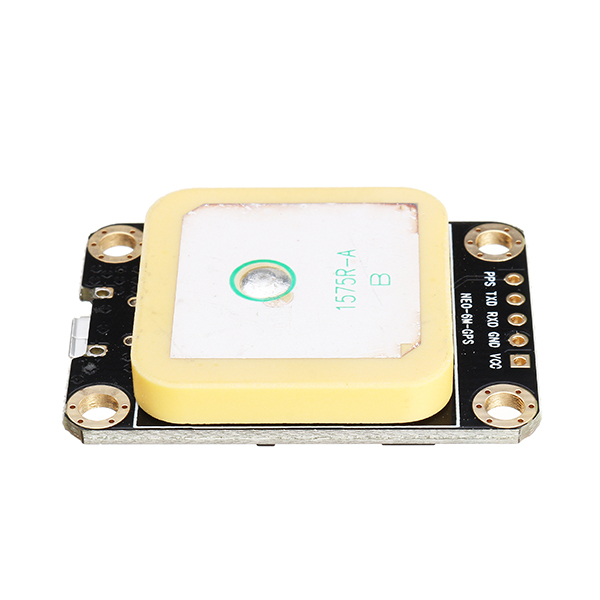

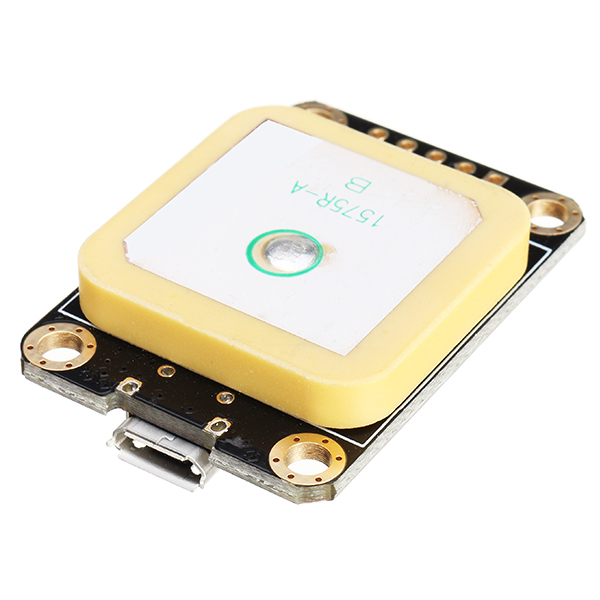

Module comes with ceramic antenna, the other IPEX interface can be connected to other active antenna

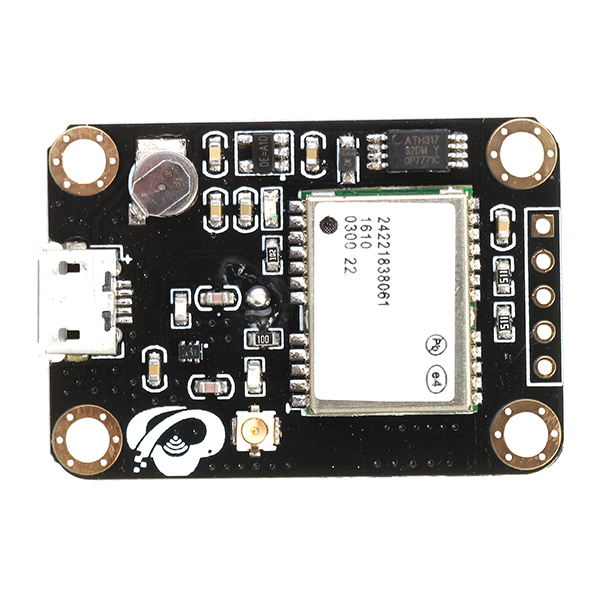

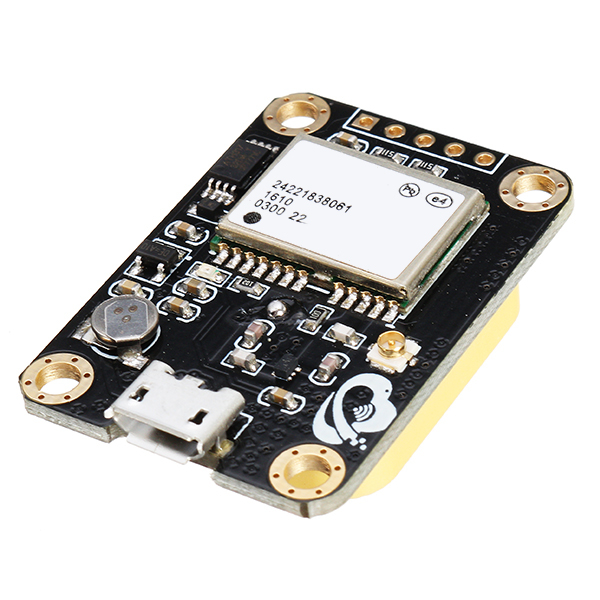

Module to increase the RF amplifier circuit, is conducive to speed up the search star
The module comes with a rechargeable backup battery that can be powered down to keep ephemeris data
Module compatible with 3.3V / 5V level, easy to connect a variety of single-chip system

Module pin:

1	VCC	Power pin, input 3.3-5.5V
2	GND	Ground
3	RXD	Module serial port receiving pin - connected to the serial port TXD transmitter
4	TXD	Module serial port sending pin - connected to the microcontroller serial port RXD received
5	PPS	Clock pulse output pin

Module PPS feet connected to the red LED lights
Always light: working normally, but not positioned flashing: positioning is successful
Data download:

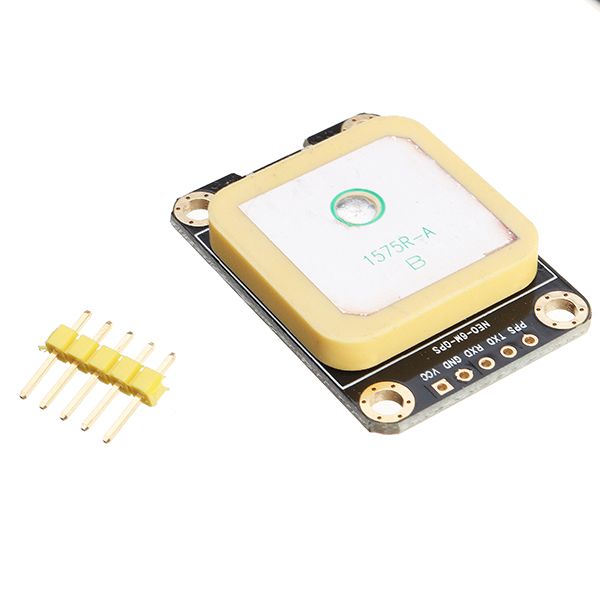

1 x GPS Module

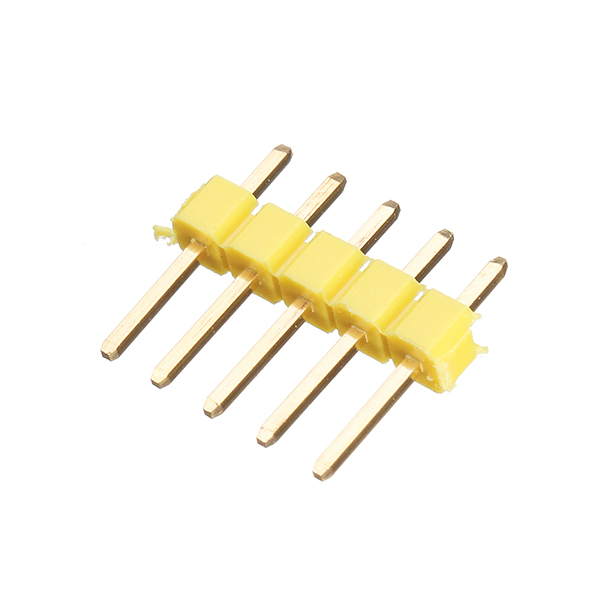

1 x Normal pin
