Elecbee GPS/BDS Mini Module Board AT6558+MAX2659 with GROVE Port UART Interface Compatible M5GO/ FIRE for Arduino - products that work with official Arduino boards

SKU: EB000586

Favorites

Key Features

Functional specification
- Positioning accuracy: 2.5 meters (CEP50, open space)
- Channel: 56
- Support single system positioning of BDS/GPS/GLONASS satellite navigation systems, or multi-system joint positioning in any combination
- Support D-GNSS differential positioning
- Positioning update frequency: 1-10Hz
- Maximum height: 1800 m
- Maximum speed: 515 m/s
- Maximum acceleration: <= 4 G
Low power consumption
- BDS/GPS dual mode continuous operation: <23mA (@3.3V)
- Standby: <10uA (@3.3V)
Sensitivity
- Tracking: -162dBm
- Capture: -148dBm
- Cold start: -146dBm
Start Time
- Cold start: 35 seconds
- Warm start: 32 seconds
- Hot start: 1 second
Operating temperature: -40~85°C
Two Le go-compatible holes
Product Size: 48.2mm x 24.2mm x 8.2mm
Product weight: 13.1g

Specifications

Shipping Guide

Shipping	Delivery Period	For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days
	Shipping Rates	Shipping rates for your order can be found in the shopping cart.
	Shipping Options	Shipping rates for your order can be found in the shopping cart.
	Shipping Tracking	We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/Warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
	Warranty	All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
		This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
Ordering	How to Buy	Elecbee accepts online orders.
		Add to cart > Check out > Submit order > Complete payment > Delivery
	Payment	PayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Description

Description:

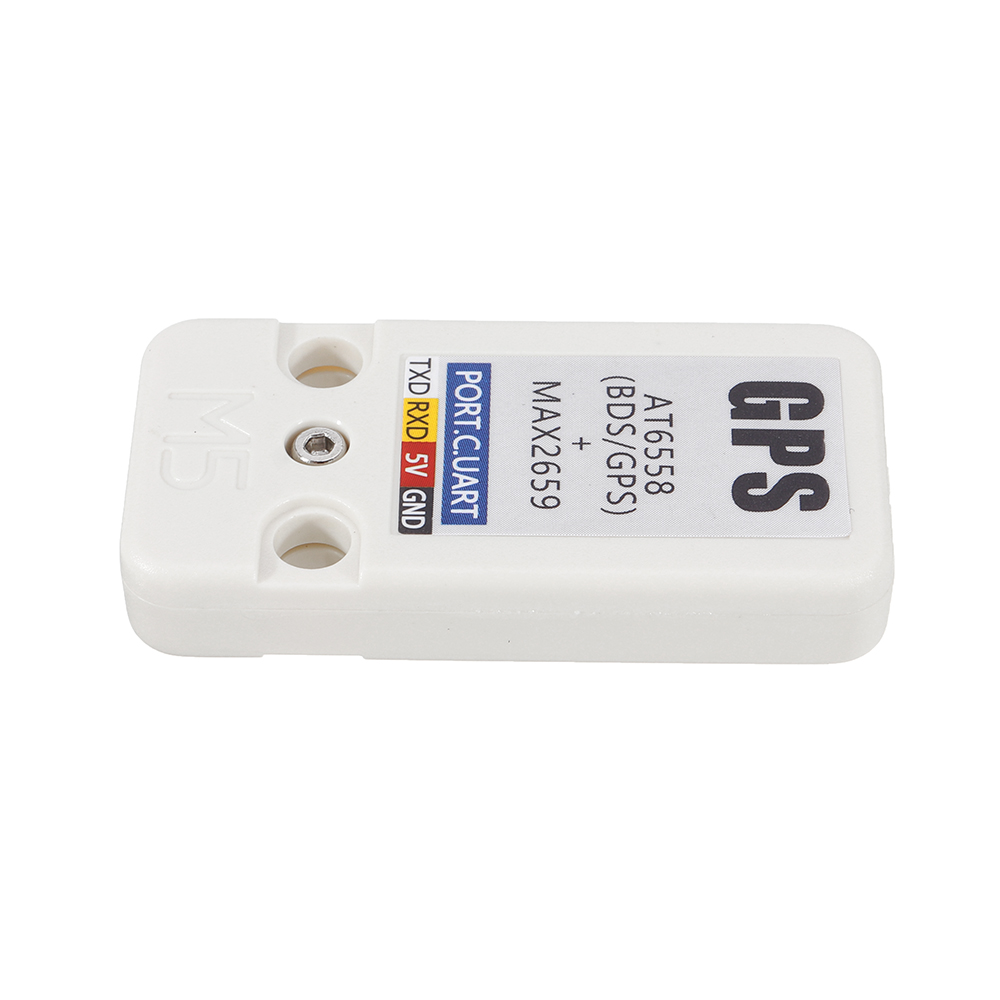

This is the M5Unit version of GPS, integrates a Zhongke Weibeidou navigation chip AT6558 and a amplification chip MAX2659 used for amplifying antenna signal.

AT6558 is highly performance, supports many types of satellite navigation system,able to receive satellite signals on 56 channels GNSS signal from 6 satellite navigation system, joint location, navigation, timing and more. The module is able to obtain accurate global location information. quick and accurate positioning for anywhere in the city, in the canyon, under the overhead, and inside the car.

The module can be widely used in vehicle monitoring, bus reporting, car navigation, onboard navigation, notebook navigation and other products.

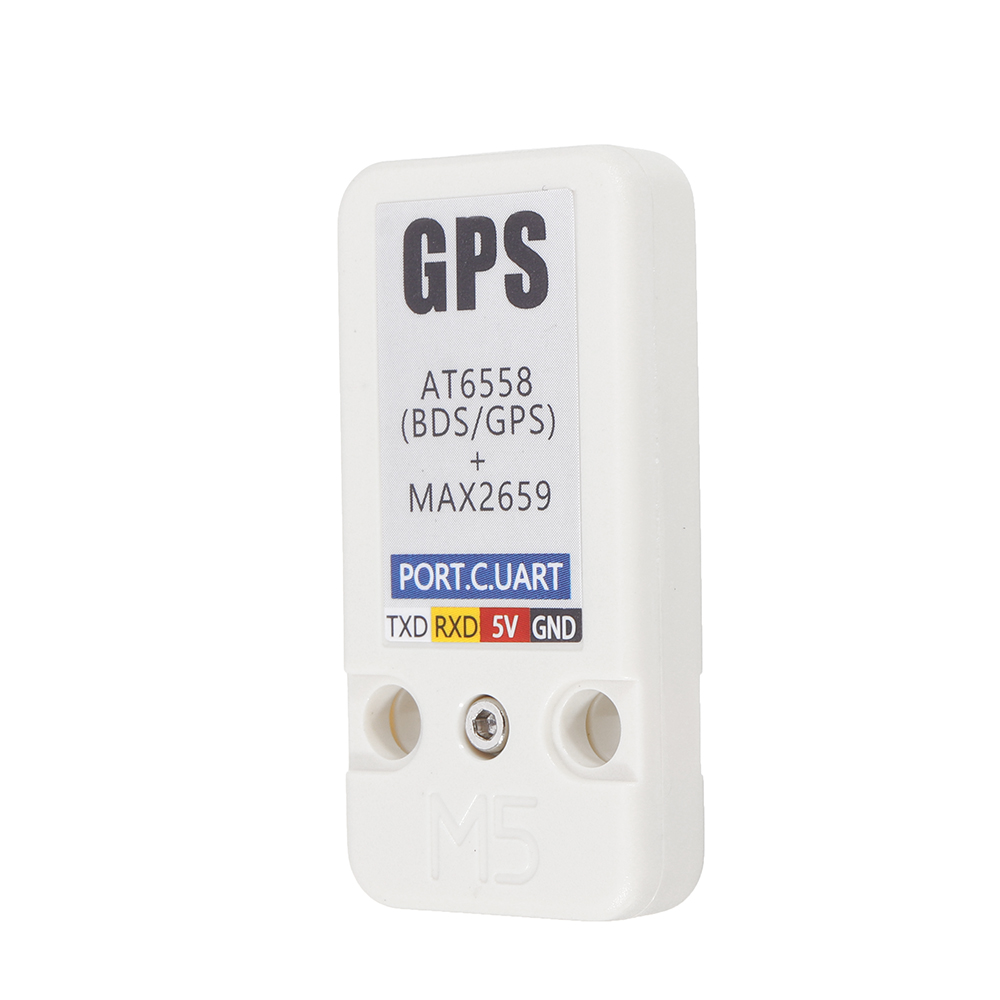

You can plug it into port C on M5core via GROVE cable, which is a standard UART interface.

UART settings :

Baudrate(default: 9600bps)
Start bits(1 bit)
Stop bits(1 bit)
Parity(no)

Package includes:

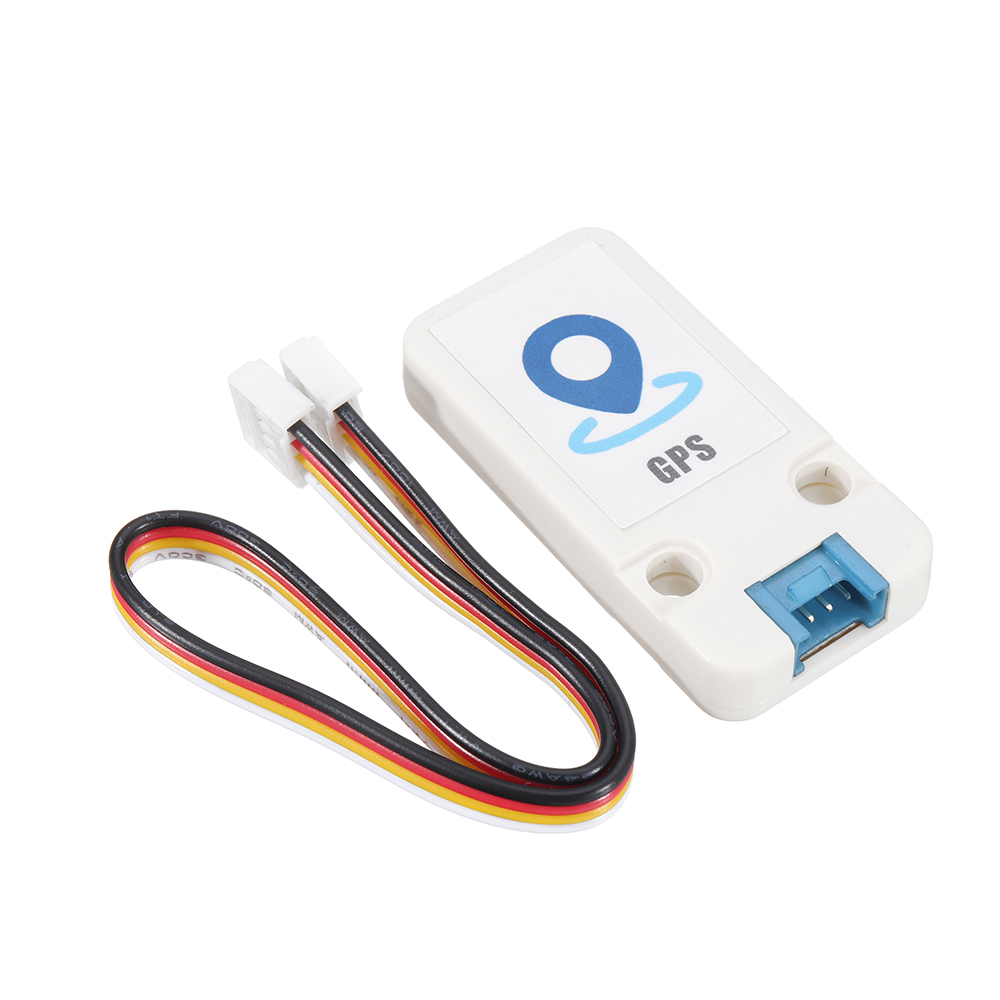

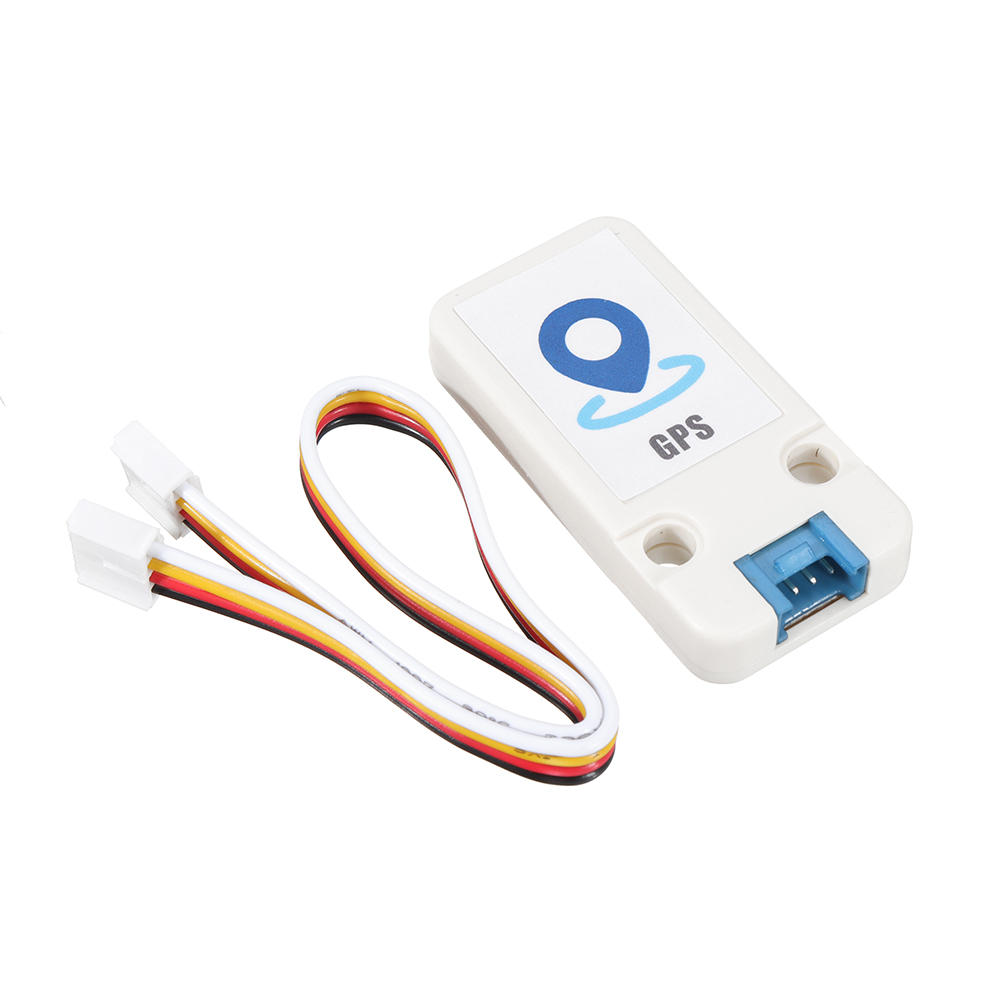

1x GPS Unit

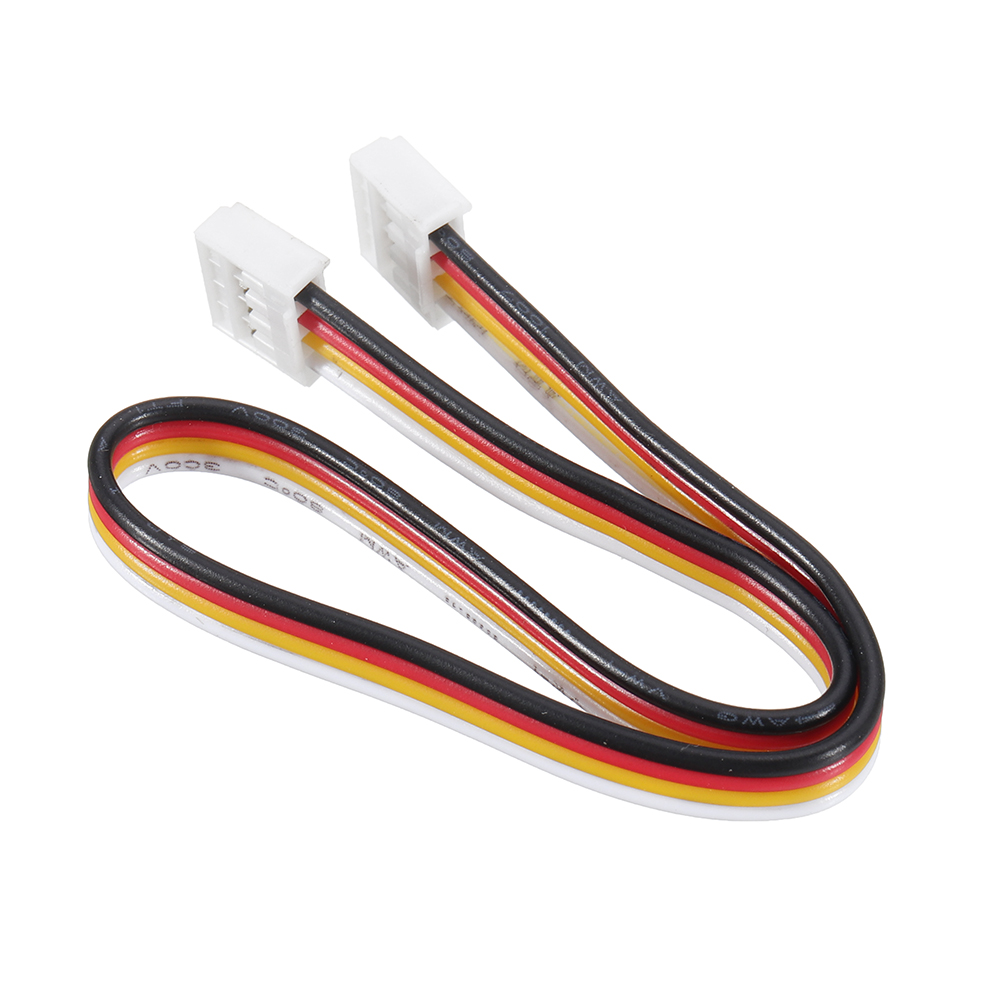

1x Grove Cable

Application:

Car, ship positioning and navigation
Smart law enforcement positioning

Offical Video
Forum
[Datasheet] - AT6558 - MAX2659
TinyGPS++ library
CASIC multimode satellite navigation receiver protocol specification
GnssToolKit3(Windows Version)

EasyLoader:

GPSBDS-Mini-Module-Board-AT6558MAX2659-with-GROVE-Port-UART-Interface-Compatible-M5GOM5Stack-FIRE-M5-1541204

1.EasyLoader is a simple and fast program burner. Every product page in EasyLoader provides a product-related case program. It can be burned to the master through simple steps, and a series of function verification can be performed. .
After downloading the software, double-click to run the application, connect the M5 device to the computer through the data cable, select the port parameters, click "Burn" to start burning. (For M5StickC burning, please Set the baud rate to 750000 or 115200)

Currently EasyLoader is only suitable for Windows operating system, compatible with M5 system adopts ESP32 as the control core host. Before installing for M5Core, you need to install CP210X driver (you do not need to install with M5StickC as controller)Click here to view the driver installation tutorial
