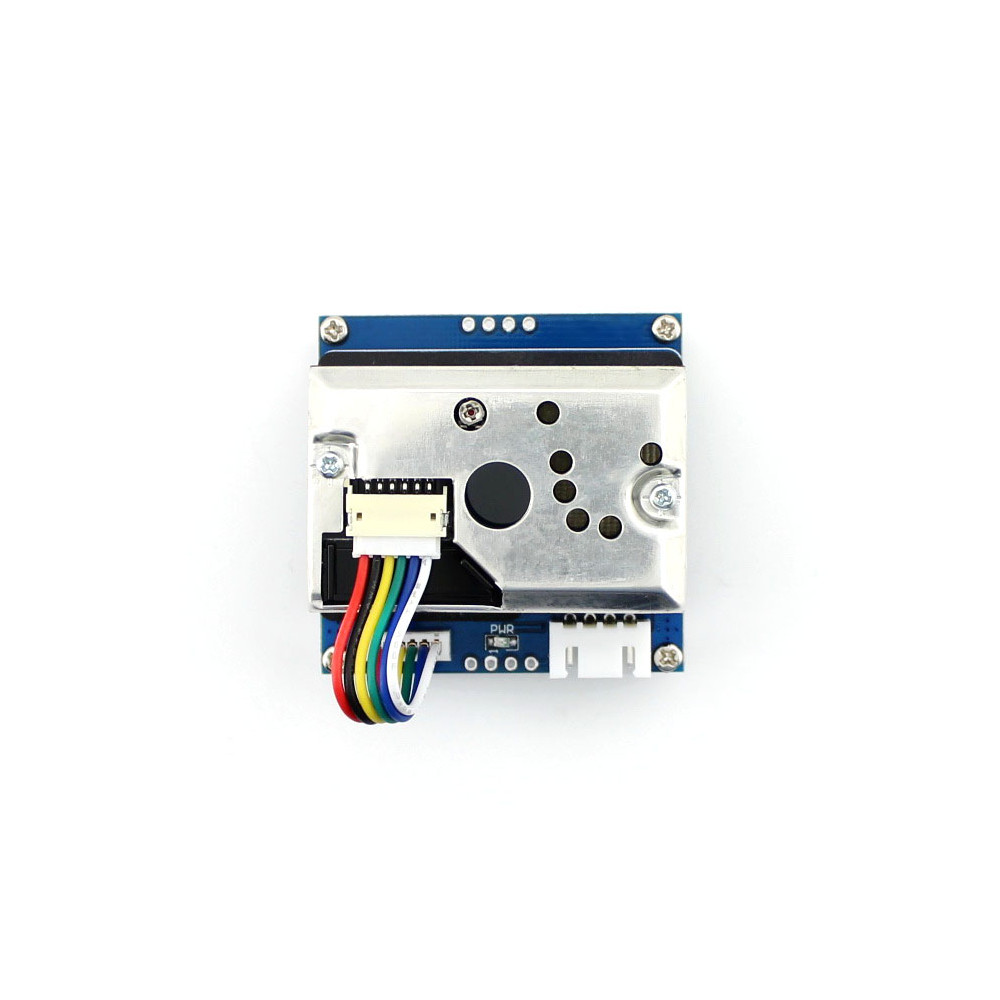

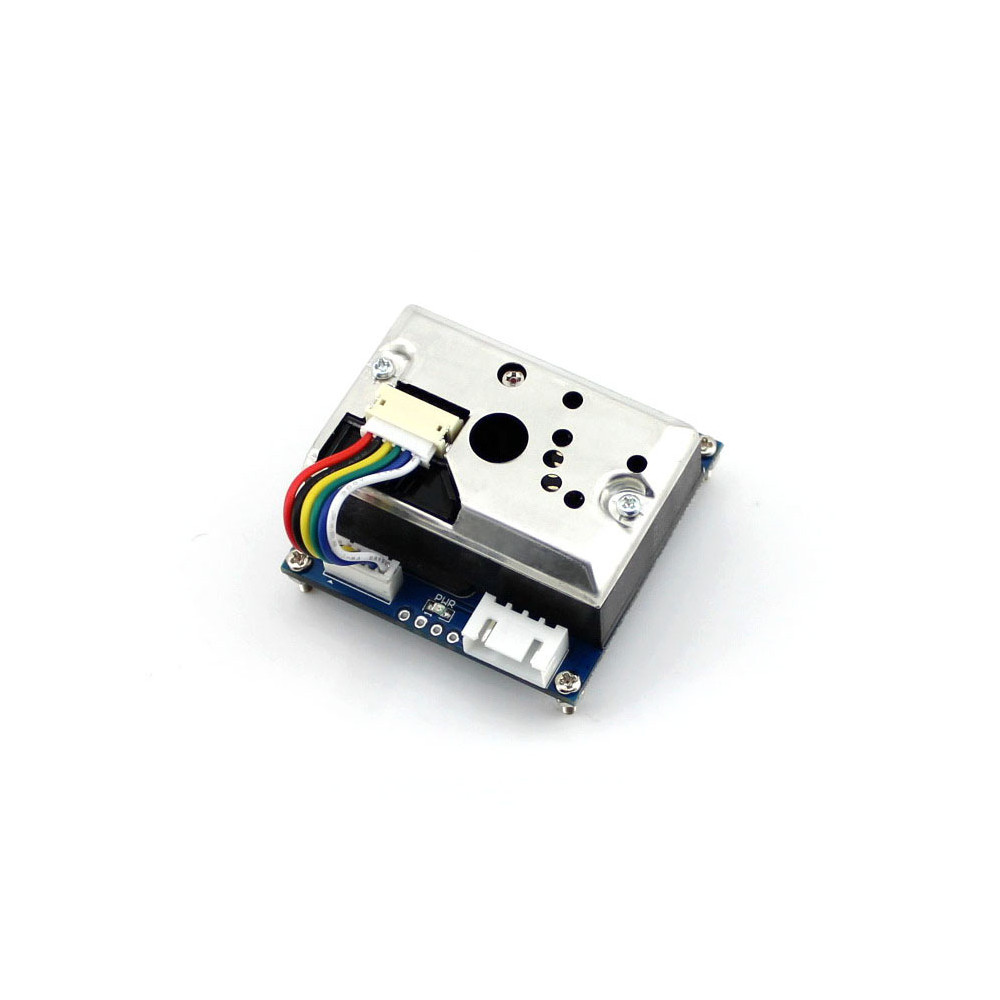

Elecbee GP2Y1010AU0F Dust Sensor Module Dust Particle Concentration PM2.5 Haze Detection

SKU: EB0047041

Favorites

Key Features

Easy to use: only one AD acquisition pin and one control pin are needed

Analog output: The output voltage is linearly related to the dust concentration in the effective range, with a built-in attenuation circuit, the output voltage does not exceed 1.5V

Sensitivity: 0.5V/(100μg/m3)

Effective range: 500μg/m3

Wide power supply range: built-in booster circuit, working voltage range 2.5V to 5.5V

Low power consumption: within a sampling period, the current does not exceed 20mA

Mechanical parameters:

Product size: 63.2mm x 41.3mm x 21.1mm

Fixing hole size: 2.0mm (4 pieces)

Vent size: 9.0mm

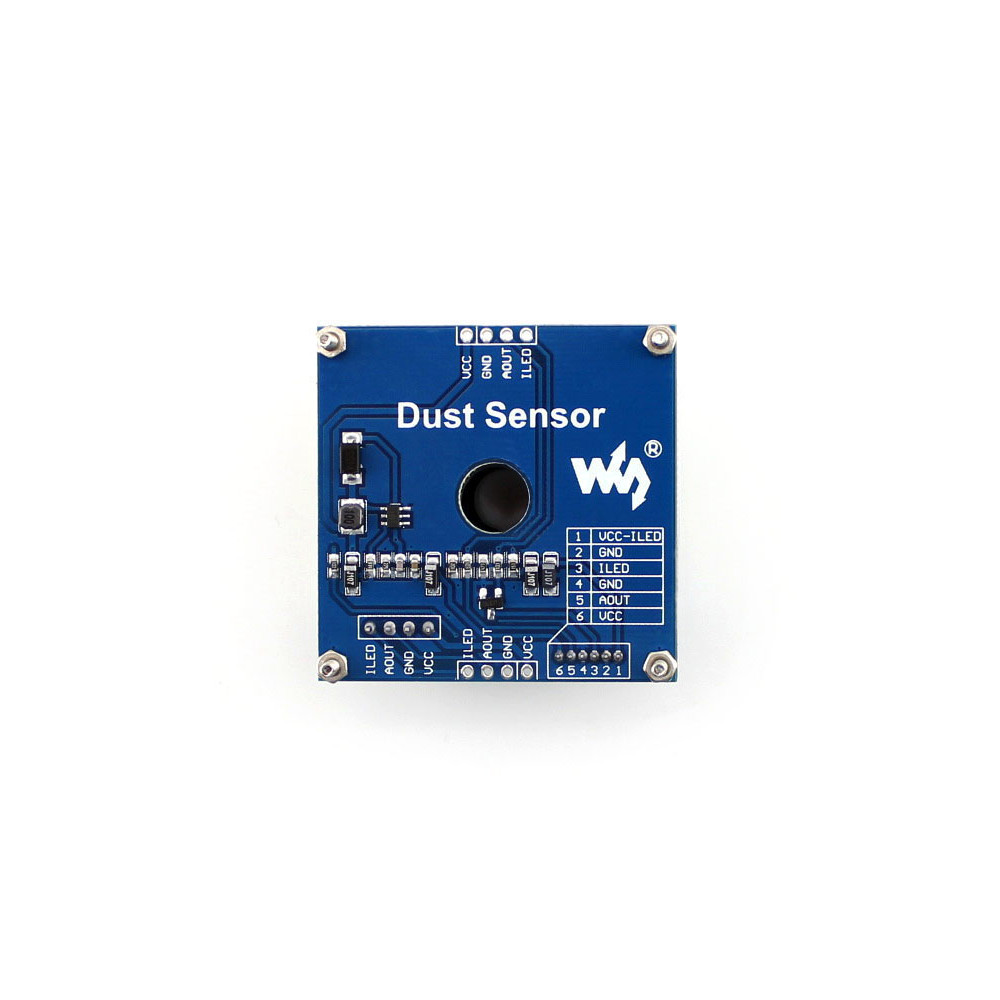

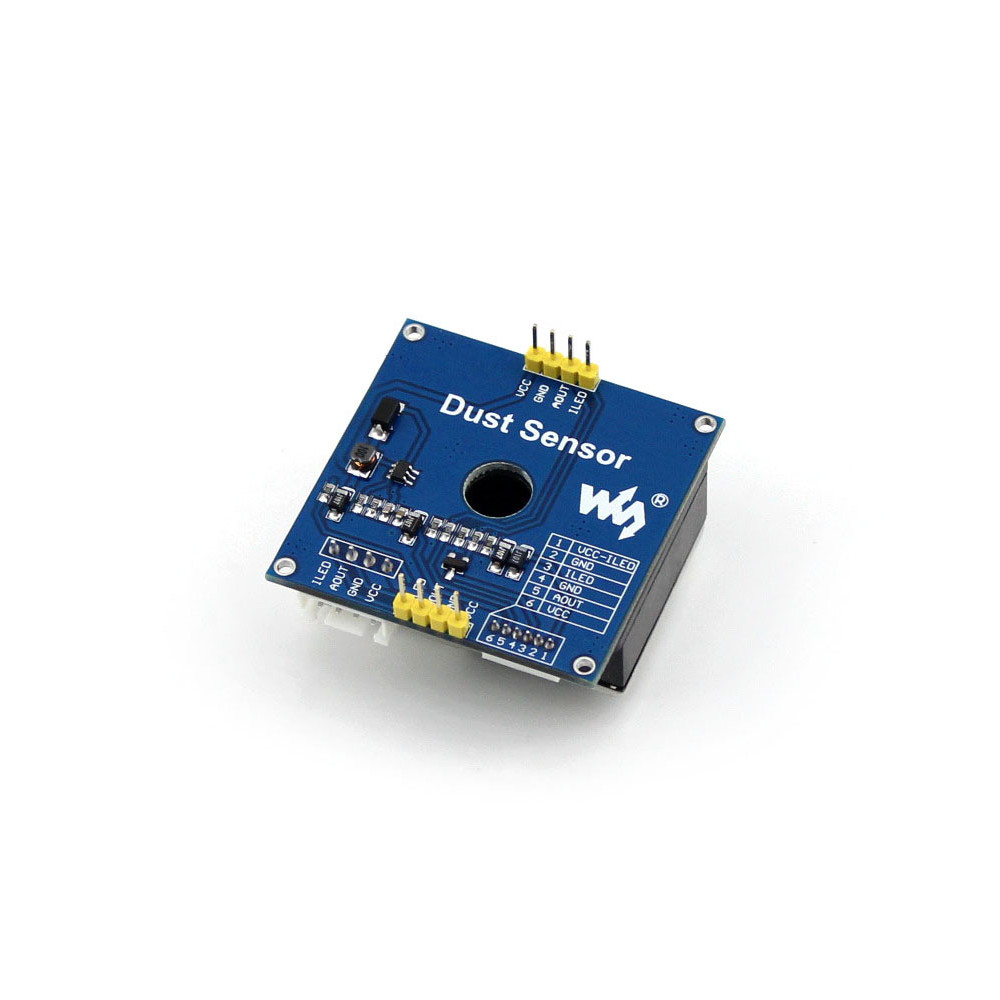

Interface Description:

Take the access MCU as an example:

VCC: Connect 2.5V~5.5V

GND: Connect to GND

AOUT: connect to MCU.IO (analog output)

ILED: connect to MCU.IO (module drive pin)

Documents:

Schematic: Click here to open

Sample tutorial: Click here to open

GP2Y1014AU0F: Click here to open
