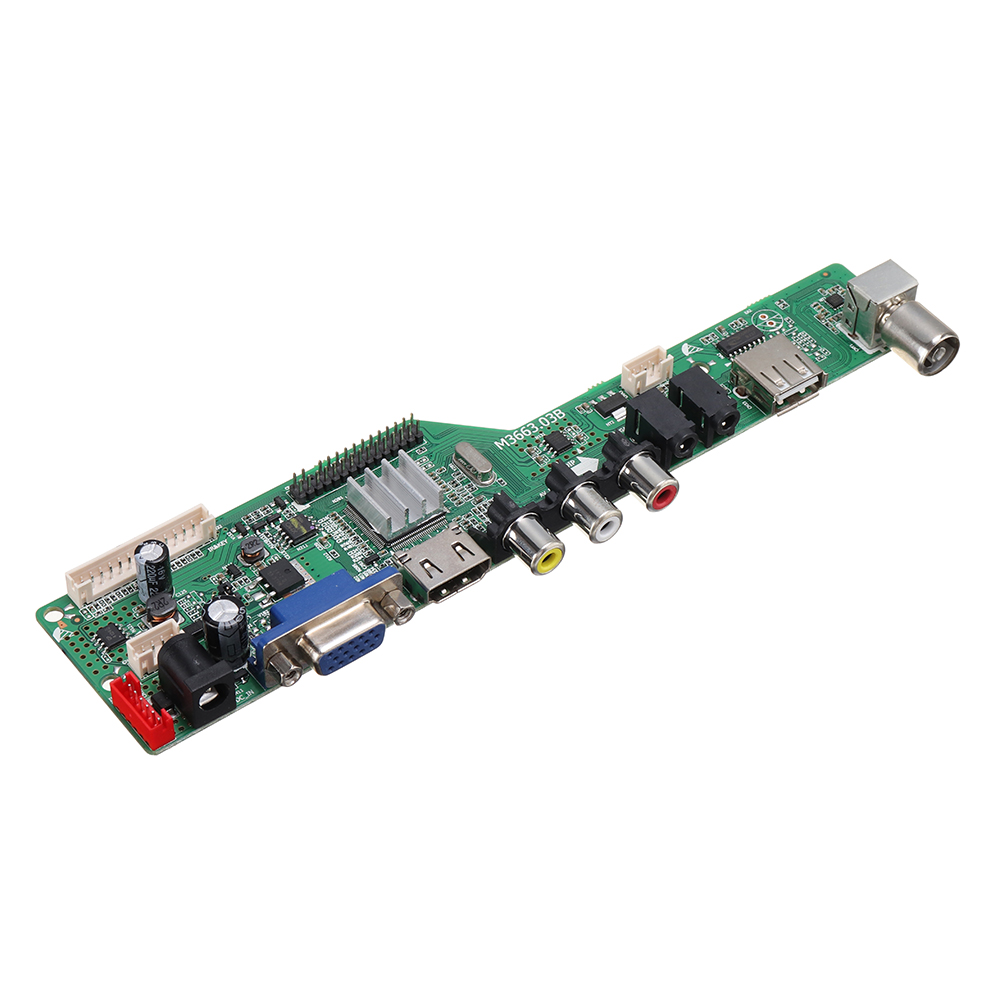

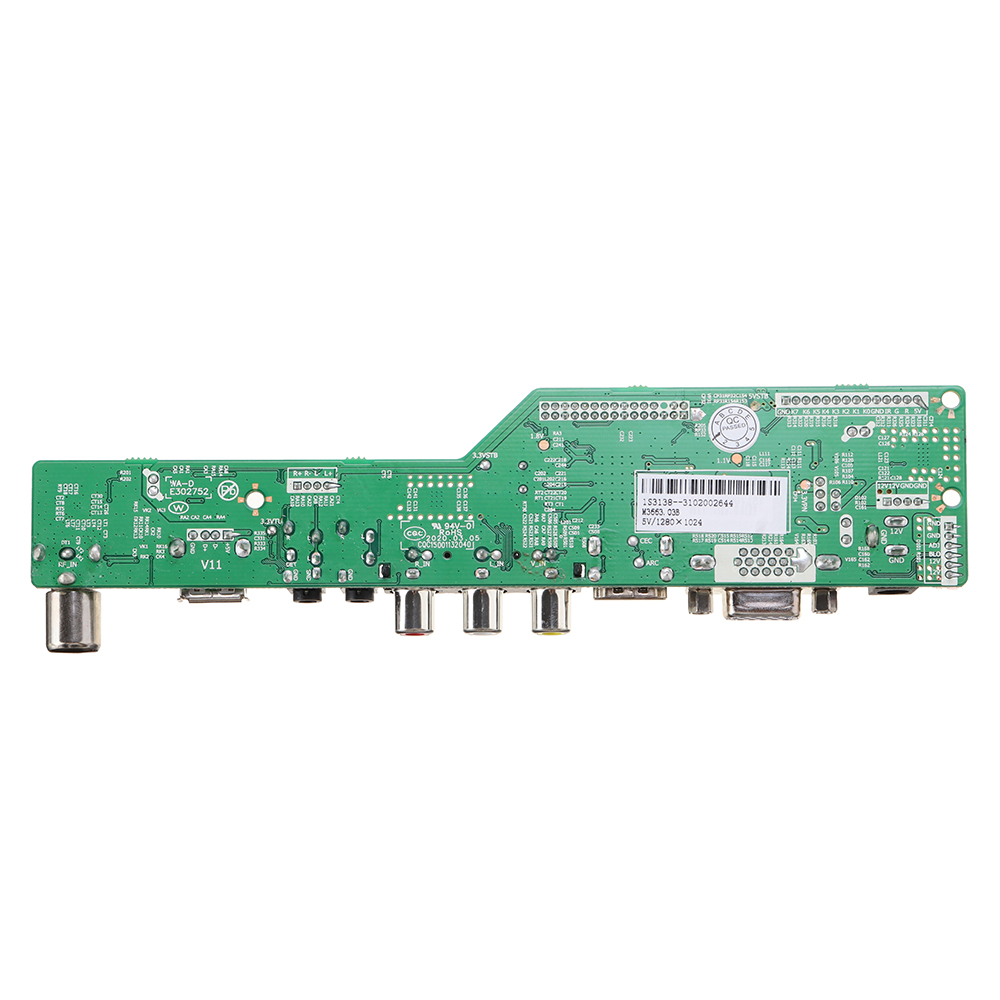

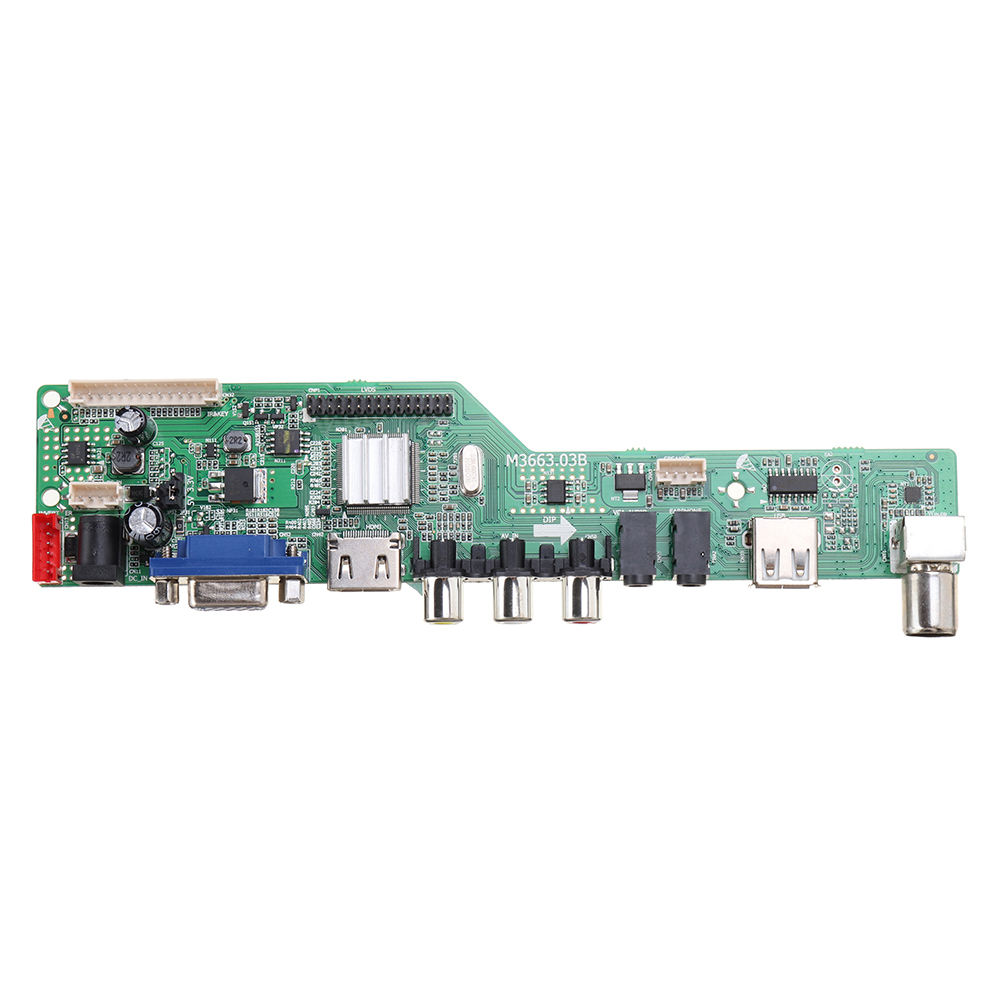

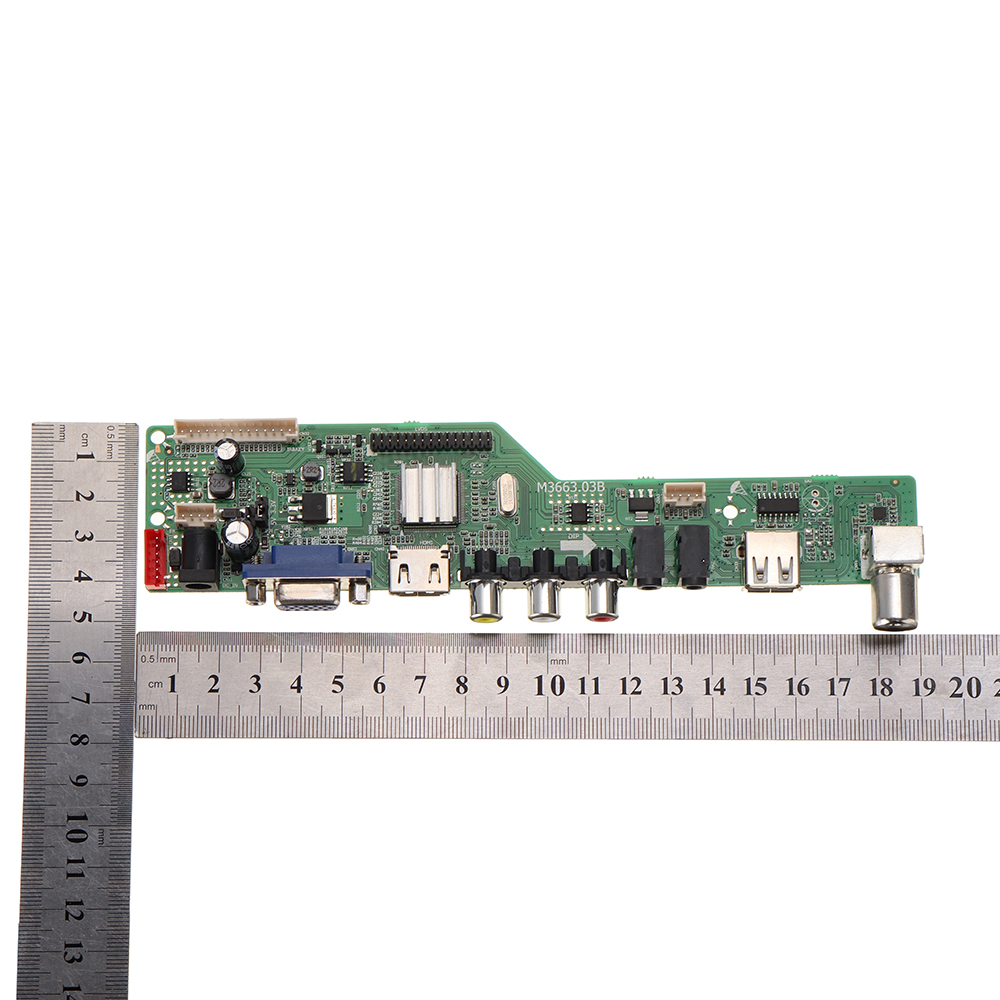

Elecbee Digital Signal M3663.03B DVB-T2 Universal LCD TV Controller Driver Board

SKU: 1760134

Favorites

Key Features

1. M3663.03B is a multi-purpose and energy-efficient LCD TV control board with single/dual 8bit LVDS interface, the resolution of LCDTV panel is up to 1920*1080.

2. M3663.03B supports DVB-T2/DVB-T/DVB-C and analog TV front-end (PAL/SECAM/NTSC) demodulator. HDMI, USB , PC-RGB, Earphone output, AV1 video and audio input an audio class D amplifier which supports 2x3W (4ohm) outputs is built in.

3. M3663.03B Software upgrade and multimedia playback function are applicable with the USB slot.

4. M3663.03B power supports DC12V input. It fits for 28〞panel.

Specification:

LCD Panel: TFT-LCD, LED backlight LCD

Resolution: up to 1920*1080

Interface: single/dual 8bit LVDS

Power Adapter: DC 12V 3-5A, 5.5*2.1mm

Screen interface: LVDS single 6

Screen voltage: 3.3V / 5V / 12V (Jump cap)

OSD Language: English/French/Spanish/Russian/German/Italian/Turkish/Portuguese

Relative Humidity: ≤80%

Storage Temperature: -10～+60℃

Operation Temperature: 0～+40℃

Specifications

Show Similar Products (2768) >

Attribute

Value

Wireless Capability

Bluetooth

USB Support

USB

Show Similar Products (2768) >

Shipping Guide

Shipping	Delivery Period	For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days
	Shipping Rates	Shipping rates for your order can be found in the shopping cart.
	Shipping Options	Shipping rates for your order can be found in the shopping cart.
	Shipping Tracking	We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/Warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
	Warranty	All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
		This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
Ordering	How to Buy	Elecbee accepts online orders.
		Add to cart > Check out > Submit order > Complete payment > Delivery
	Payment	PayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Description

1 x Driver board

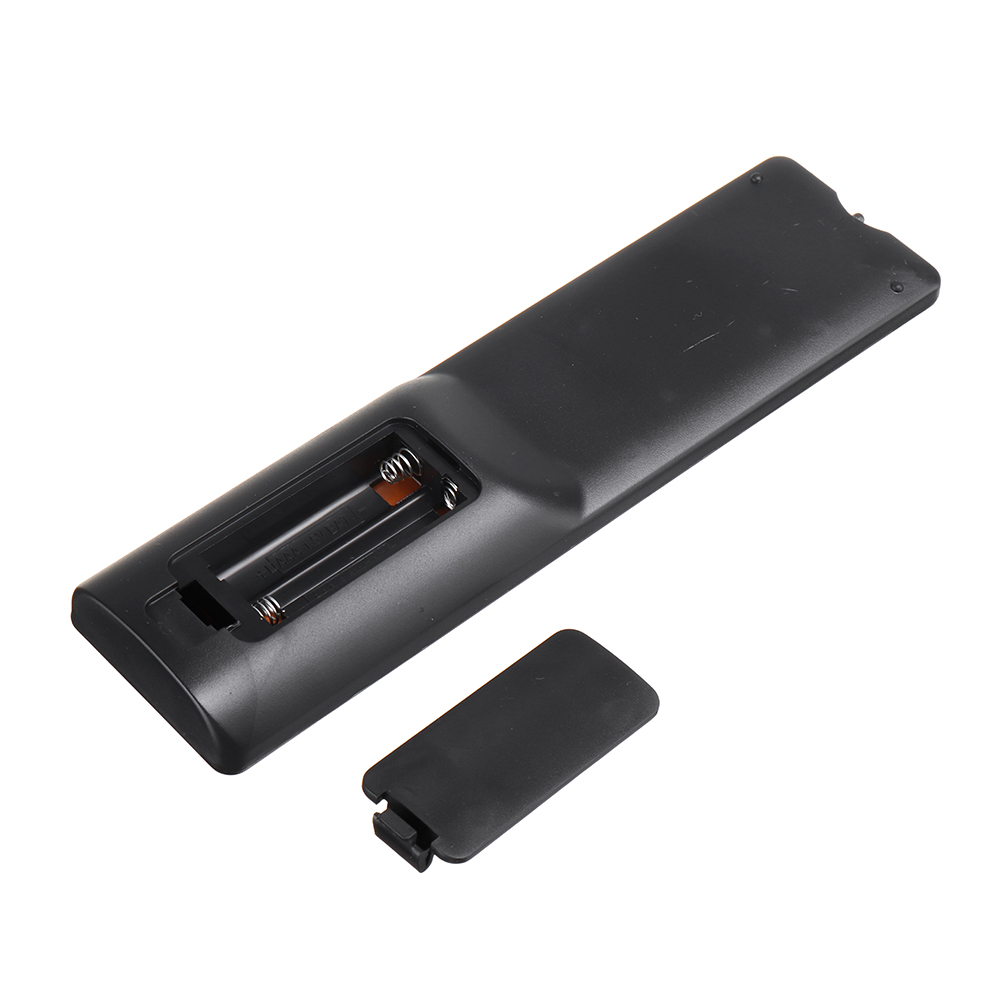

1 x English Remote control (battery not includes)

1 x 7 key button

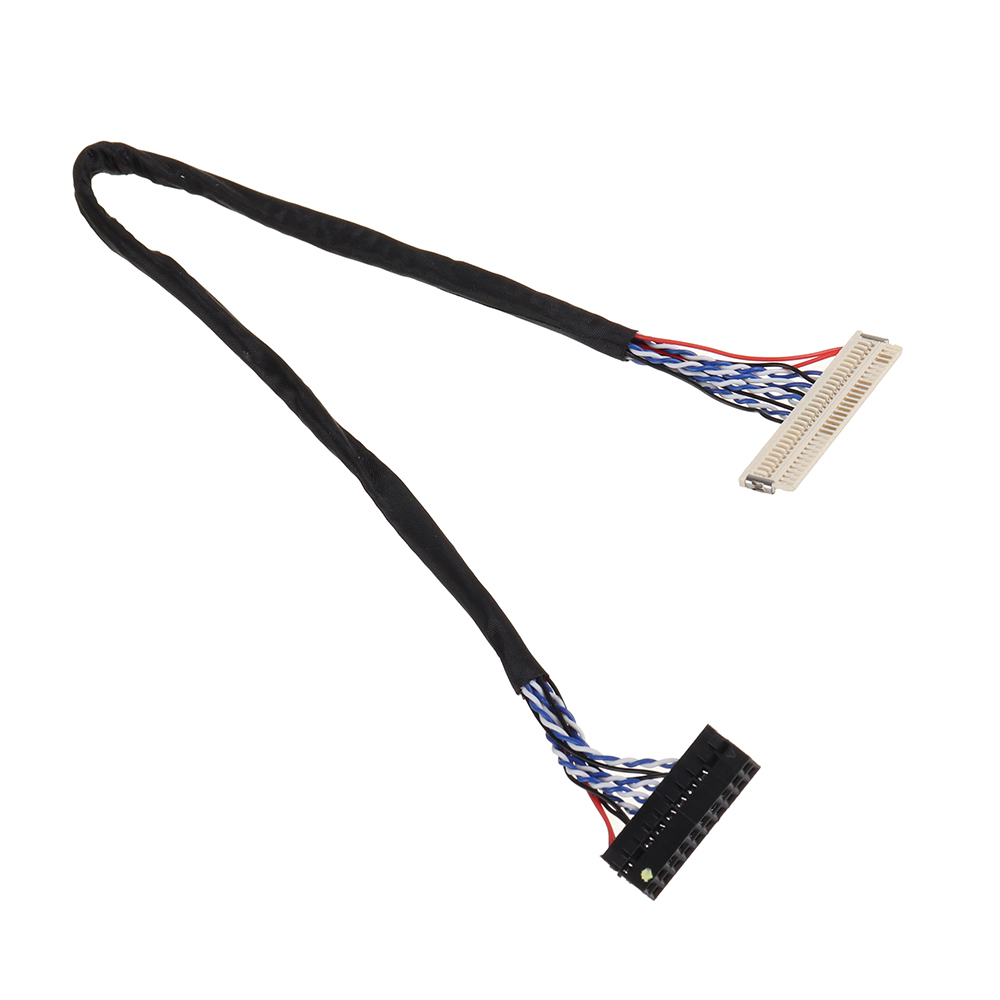

1 x 1ch 6bit 30pins lvds cable 250mm length (You can search for the screen cable you need on banggood, for example: 2ch 6-bit, categories select "Module Board".)

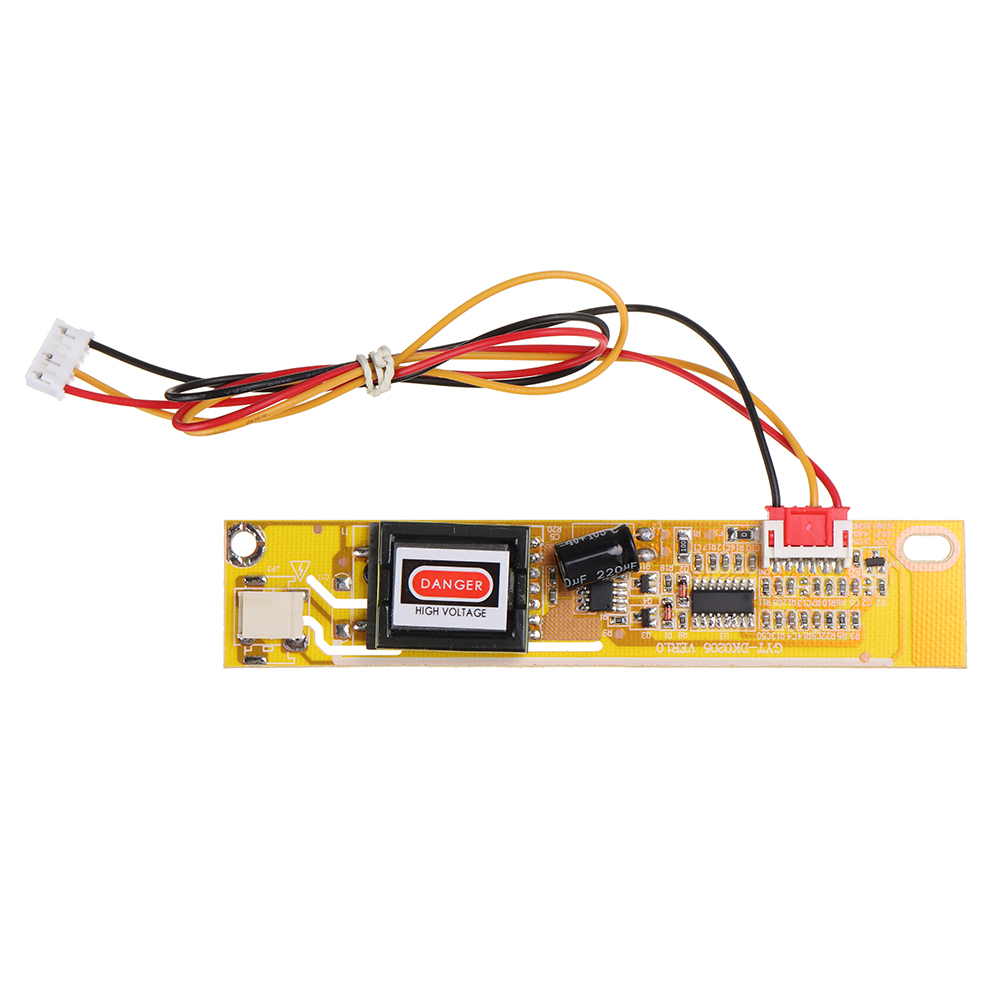

1 x 1pcs CCFL inverter with 3.5mm pin pitch

Manual: Click here to open

Firmware: Click here to open

Note: M3663.03B is not support Dolby Audio AC3 function.

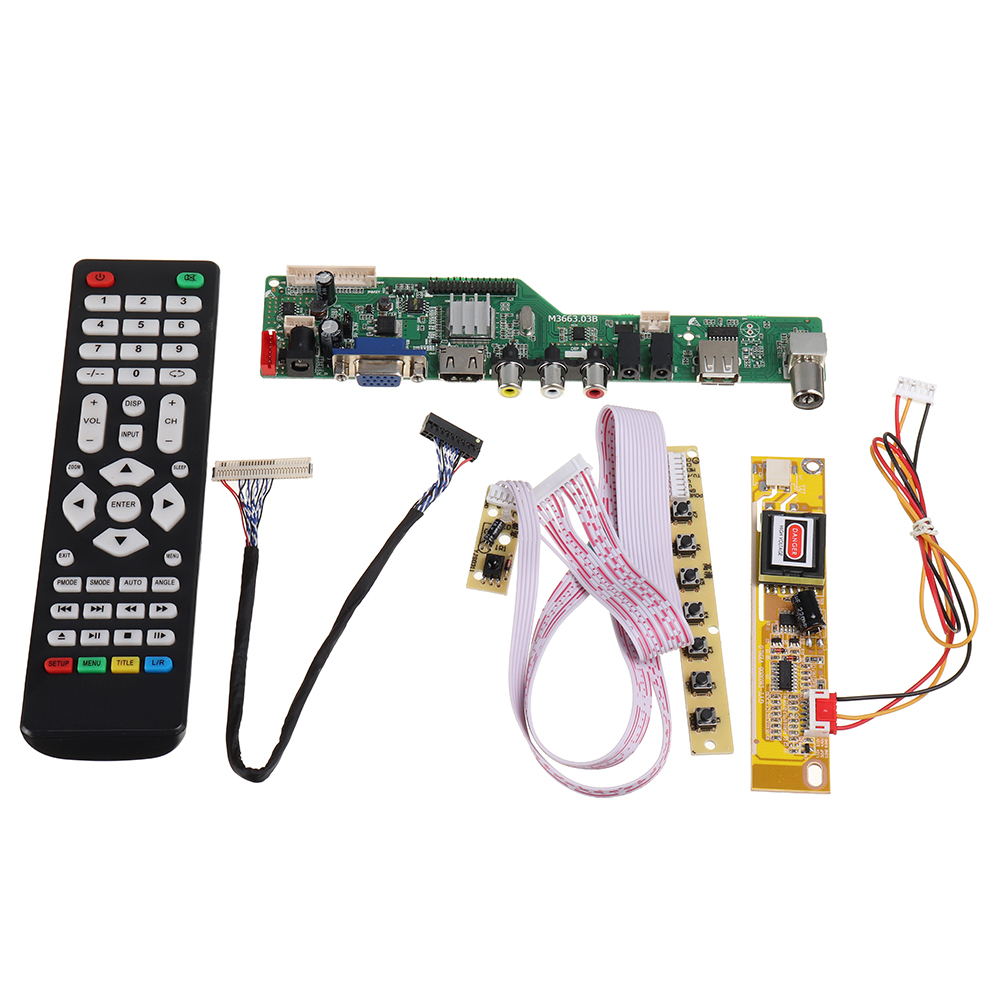

Package includes:

1 x Driver board

1 x English Remote control (battery not includes)

1 x 7 key button

1 x 1ch 6bit 30pins lvds cable 250mm length (You can search for the screen cable you need on banggood, for example: 2ch 6-bit, categories select "Module Board".)

1 x 1pcs CCFL inverter with 3.5mm pin pitch
