Elecbee DC 7V To 30V 150mA To 750mA A3967 Easy Driver Stepper Motor Driver Board

SKU: EB0048272

Favorites

Key Features

Product Features:

1. MS1 and MS2 pins broken out to change microstepping resolution to full, half, quarter and eighth steps (defaults to eighth)

2. Compatible with 4, 6, and 8 wire stepper motors of any voltage

3. Adjustable current control from 150mA / phase to 750mA / phase

4. Power supply range from 7V to 30V. The higher the voltage, the higher the torque at high speeds

5. Distribution pin, not welded, this module is open source

Note:

Do not connect or disconnect a motor while the driver is energized.This will cause permanent damage to the A3967 IC.
Chip data: https://img.elecbee.com/eb/download/pdf/A3967SLB.PDF

Specifications

Show Similar Products (2768) >

Attribute

Value

Wireless Capability

Bluetooth

Show Similar Products (2768) >

Shipping Guide

Shipping	Delivery Period	For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days
	Shipping Rates	Shipping rates for your order can be found in the shopping cart.
	Shipping Options	Shipping rates for your order can be found in the shopping cart.
	Shipping Tracking	We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/Warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
	Warranty	All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
		This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
Ordering	How to Buy	Elecbee accepts online orders.
		Add to cart > Check out > Submit order > Complete payment > Delivery
	Payment	PayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Description

Description:

1. The EasyDriver is a simple to use stepper motor driver, compatible with anything that can output a digital 0V to 5V pulse. (or 0V to 3.3V pulse if you solder SJ2 closed on the EasyDriver)
2. EasyDriver requires a 7V to 30V supply to power the motor and can power any voltage of stepper motor.
3. The EasyDriver has an on board voltage regulator for the digital interface that can be set to 5V or 3.3V. Connect a 4-wire stepper motor and a microcontroller and you've got precision motor control! EasyDriver drives bi-polar motors, and motors wired as bi-polar. I.e. 4, 6, or 8 wire stepper motors.

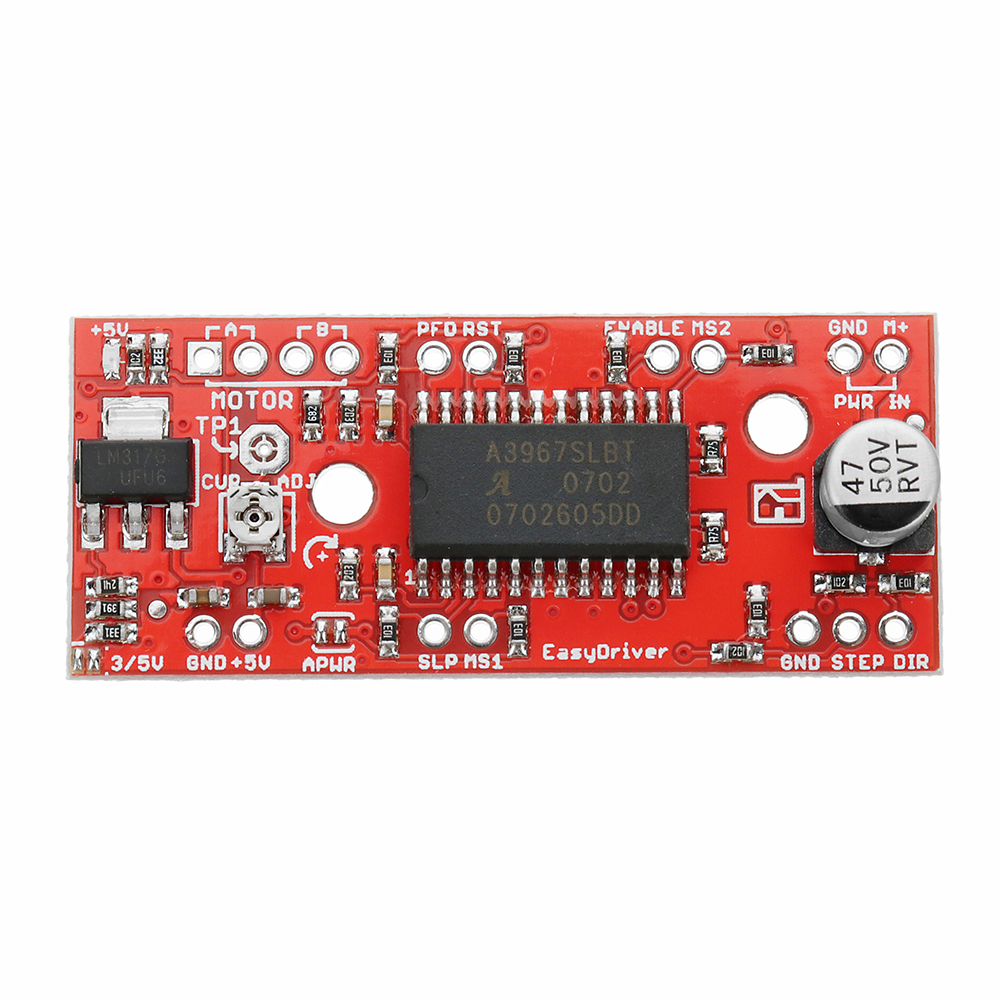

4. It provides much more flexibility and control over your stepper motor, when compared to older versions. The microstep select (MS1 and MS2) pins of the A3967 are broken out allowing adjustments to the microstepping resolution. The sleep and enable pins are also broken out for further control.cjmcu made.

Package includes:

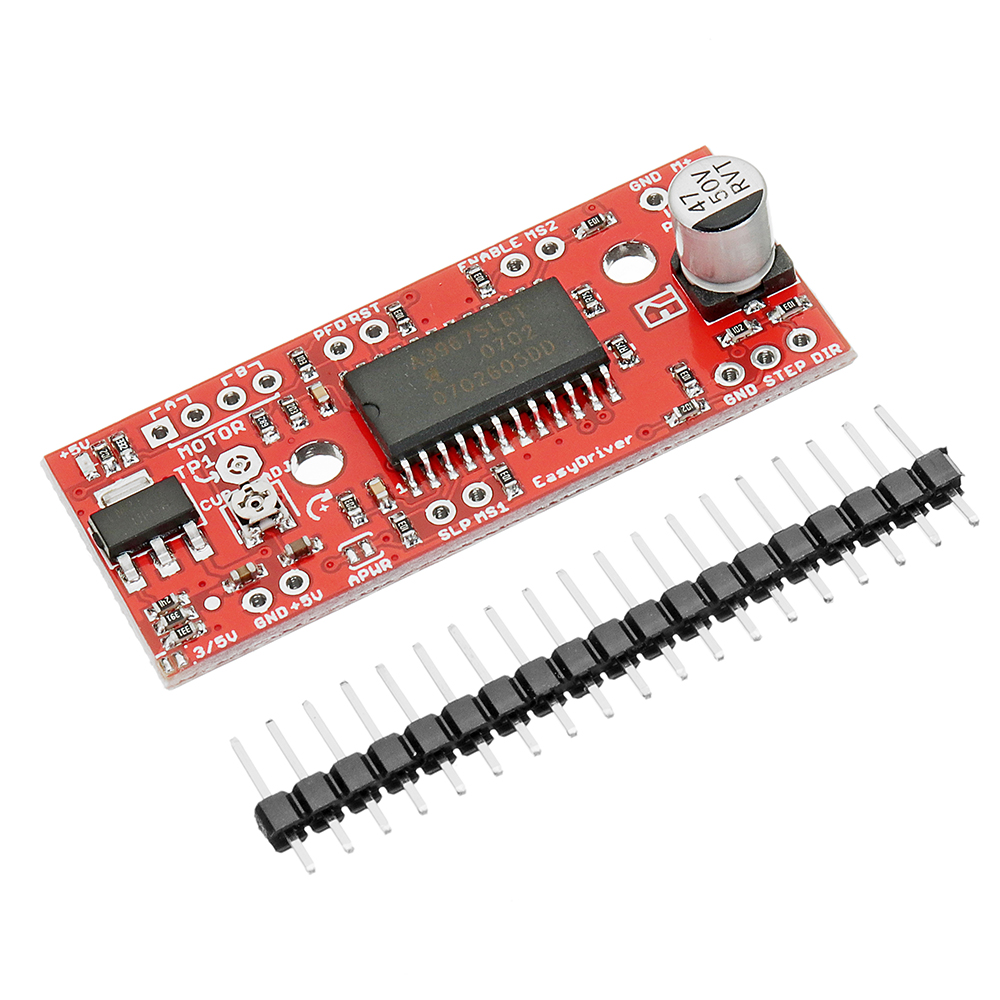

1 X A3967 easy driver stepper motor driver board

DC-7V-To-30V-150mA-To-750mA-A3967-Easy-Driver-Stepper-Motor-Driver-Board-1308376
