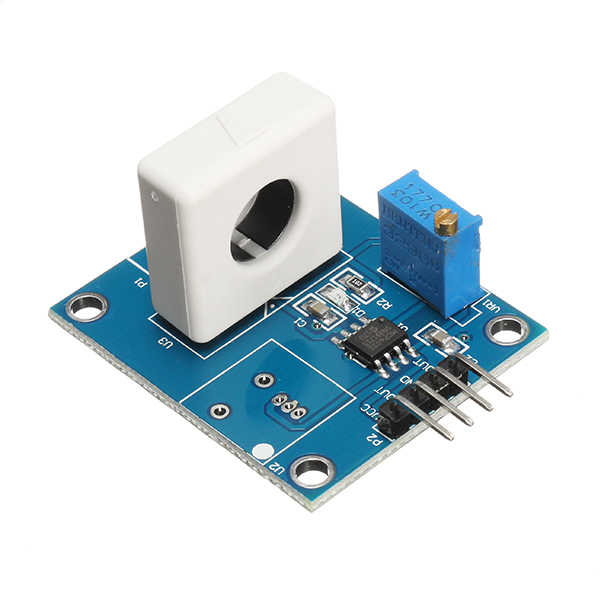

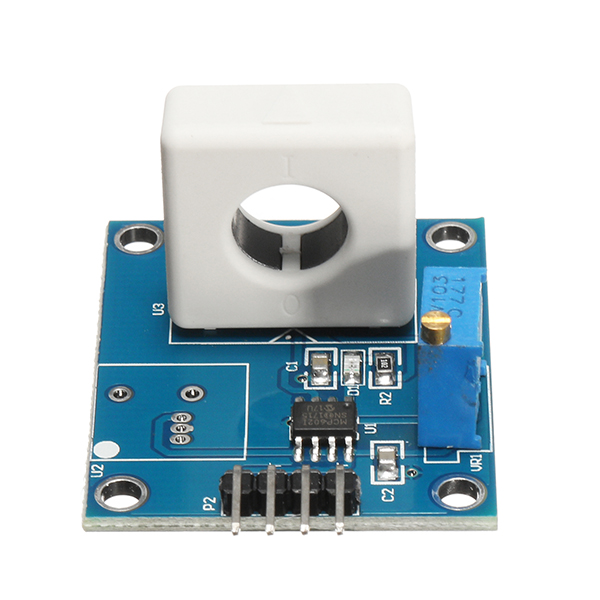

Elecbee DC 5V WCS1800 Hall Current Detection Sensor Module 35A Precise With Overcurrent Protection

SKU: EB0043862

Favorites

Key Features

1, The working voltage: DC5V
2, The current detection range: DC: ± 35A; AC: 25A (for analog output);
3, Linearity: K = 60mV / A;
4, Limit current range: 0.5A - 35A (for the switch output);
5, With over-current signal indicator;
6, With mounting holes, easy to install on you device;
7, The sampling current convert to analog voltage signal output, can be connected to ADC; TTL level signal output, can be connected to the microcontroller’s I/O .
8, The output signal is: analog voltage signal and switch signal.

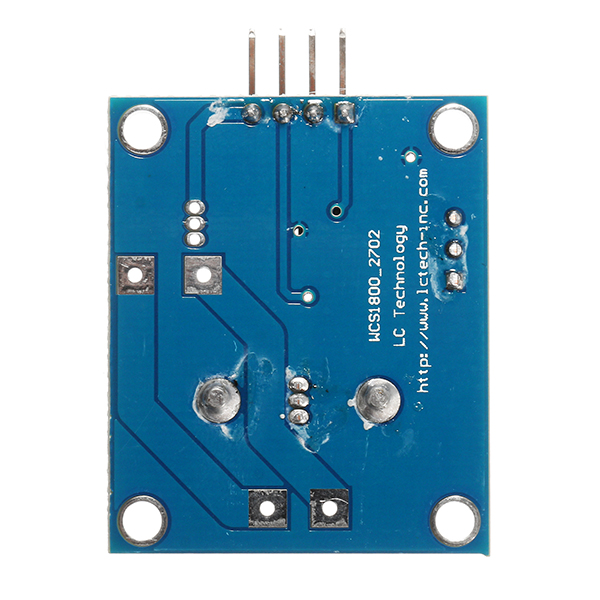

9, Board size: 37*31mm

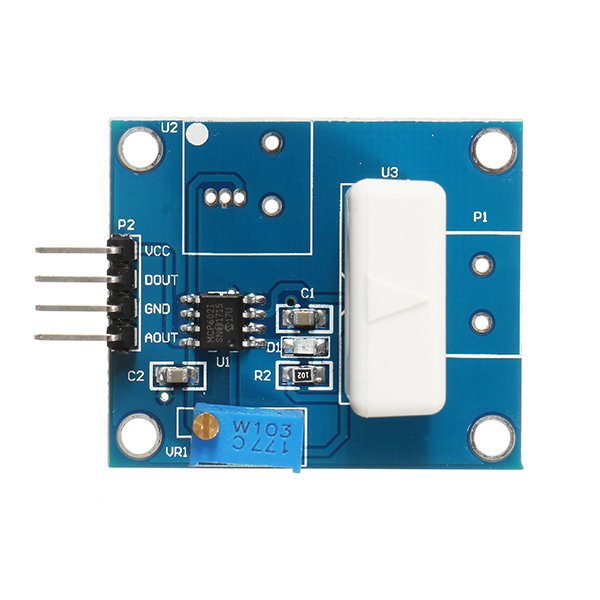

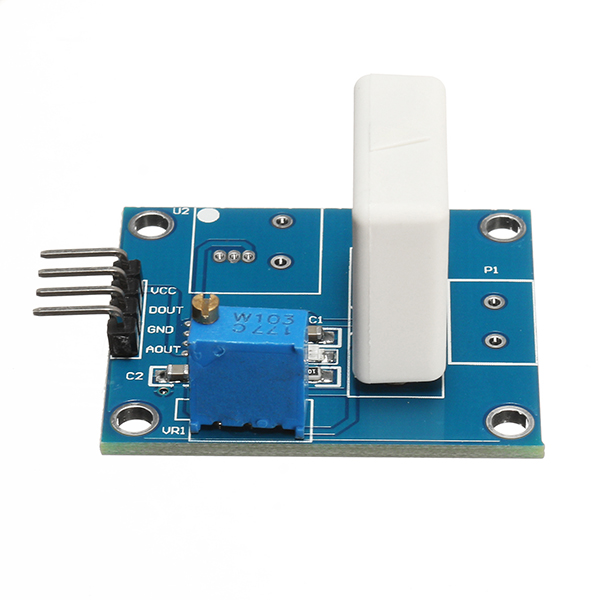

Interface description:

VCC: positive power supply;
DOUT: TTL high / low level switch signal output;
GND: power supply negative;
AOUT: analog voltage signal.

Click to download document
