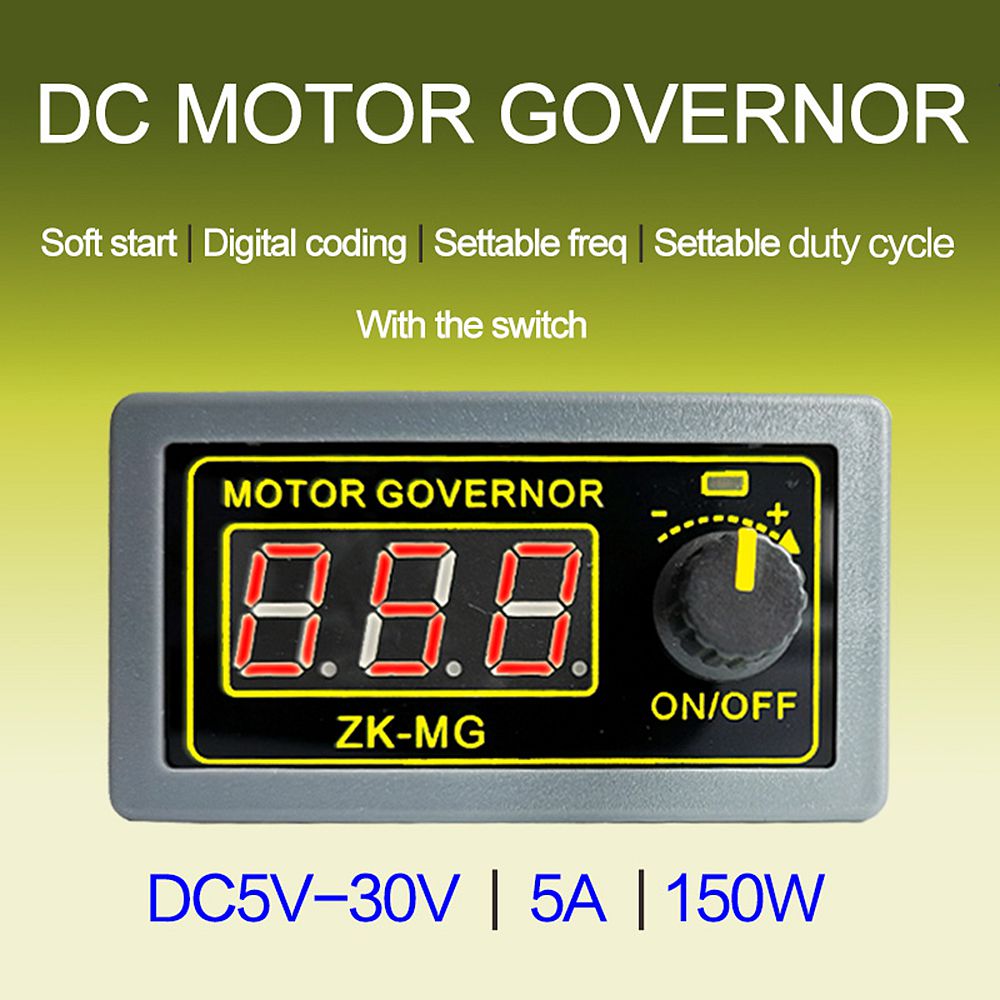

Elecbee DC 5-30V 12V 24V 5A DC Motor Speed Controller PWM Adjustable Digital display encoder

SKU: 1633352

Favorites

Key Features

1.1 equipped with start-stop button, and can be external switch control, to meet various customer control requirements

1.2 motor soft start function. When starting the motor, the current increases slowly and there is no shock current, which can effectively protect the motor and prolong its service life

1.3 duty cycle, duty cycle upper and lower limits and working frequency can be set to facilitate customers to operate and use their motors according to their working characteristics.

1.4 digital encoder knob adjusts motor speed, which is more accurate and consistent than ordinary potentiometer.

1.5 with standard 5135 instrument shell, convenient for customer installation.

Specifications:

working voltage: DC5V~30V, input anti-reverse connection protection

rated current: 5A maximum current 15A

maximum power: 150W

working frequency: 1KHz~99KHz adjustable, 1KHz step, default frequency of 20KHz, accuracy of about 1%

duty cycle: 0-100%, 1% step

product size: 79mm*43mm*26mm

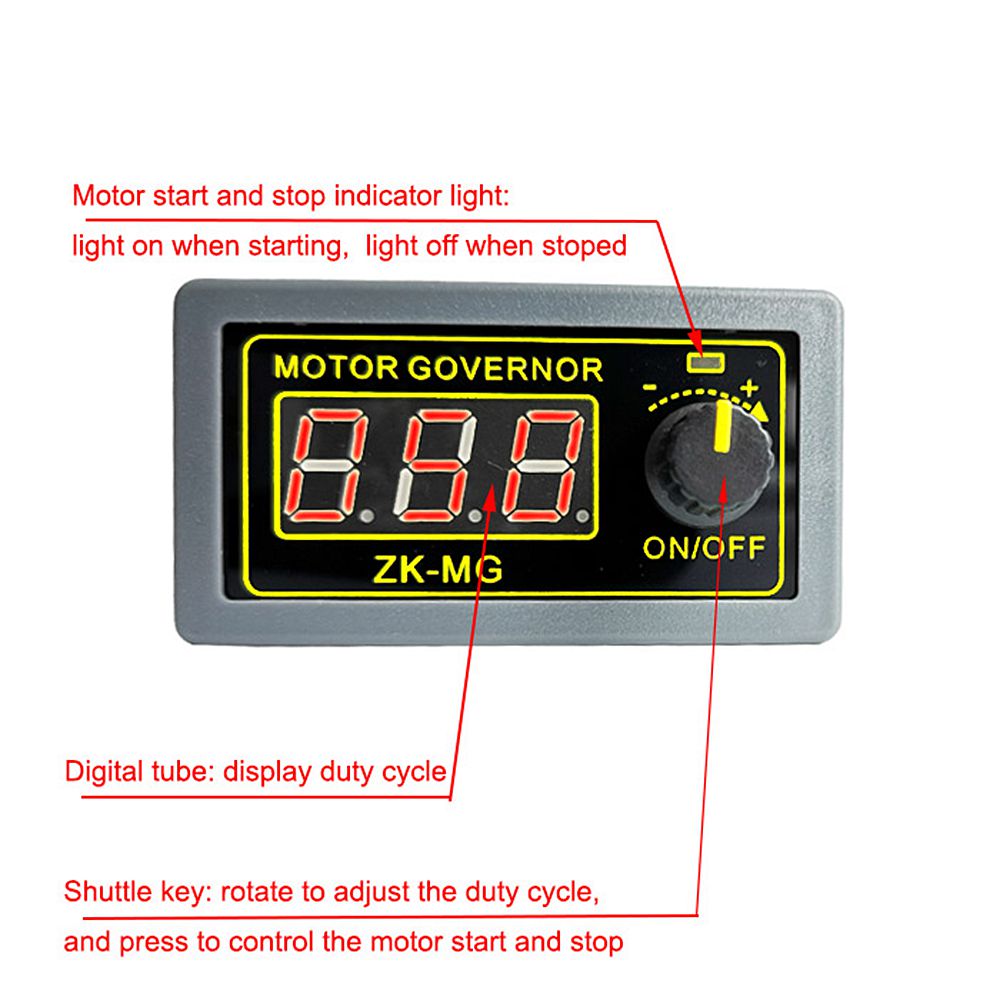

Operation Instructions:

- In the default interface :(the duty cycle is displayed by default)

- Short press - switch motor start and stop

- Long press -- to enter the setting interface

- Counterclockwise rotation -- the duty ratio decreases

- Clockwise rotation -- increased duty cycle

Under the setting screen:

- Short press -- select setting parameters and switch between duty cycle lower limit, duty cycle upper limit and workingfrequency.The display form of duty cycle lower limit is "L" + two digits, the display form of duty cycle upper limit is "H" + two digits or "100", and the display form of working frequency is "F" + two digits.

- Long press -- exit the setting interface

- Counterclockwise rotation - the corresponding Settings are reduced

- Clockwise rotation - the setting parameters increase accordingly

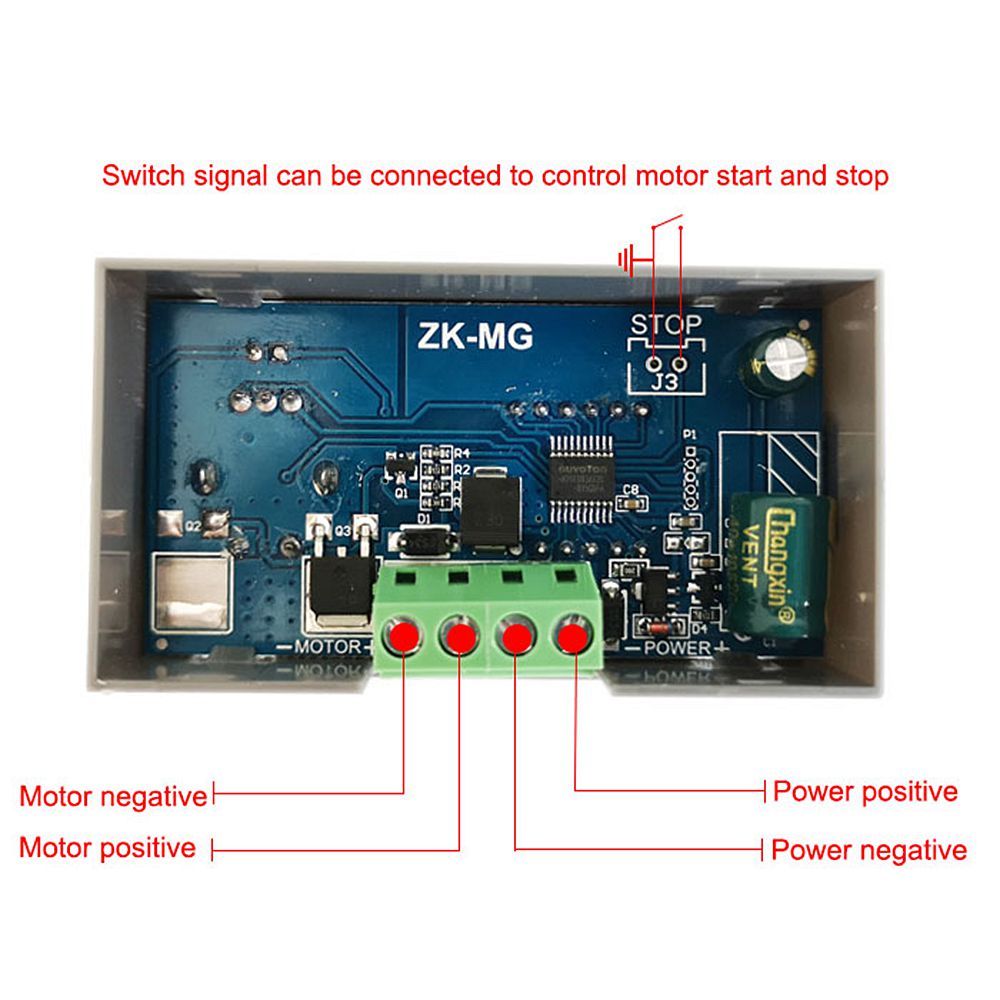

Back STOP port:

Switch key or 3.3v level can be externally connected. Switch the start/stop state of the motor when the key is closed or 3.3v level is lowered.
