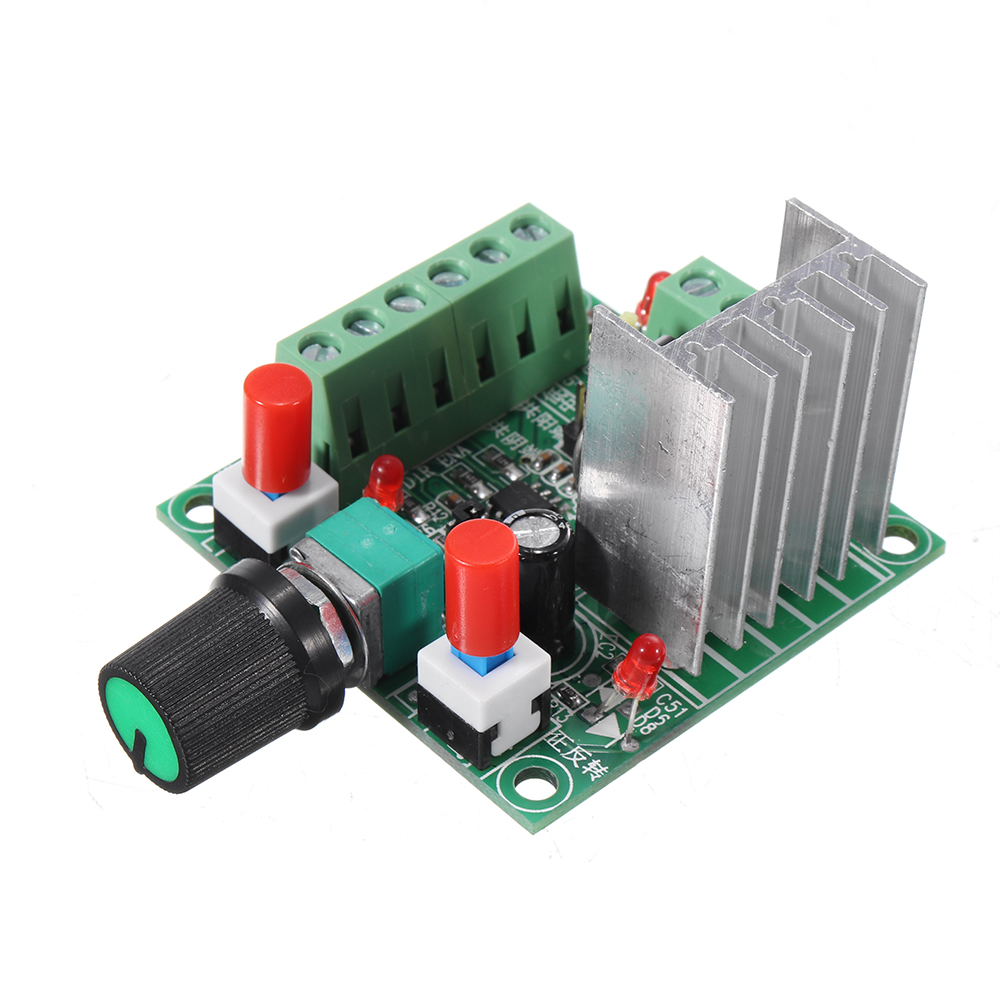

Product name: simple controller

Model: CW-S01

It can generate PWM signal. There is a jumper on the board, which can be set and selected. By default, it is set to generate pulse frequency signal.
u200a

Product Manual:

1. When the controller generates a pulse frequency signal, it can supply a stepper driver as a signal. To control the stepper motor, it must be equipped with a driver.

(This simple controller + stepper driver + stepper motor + DC power supply can form a simple control platform.)

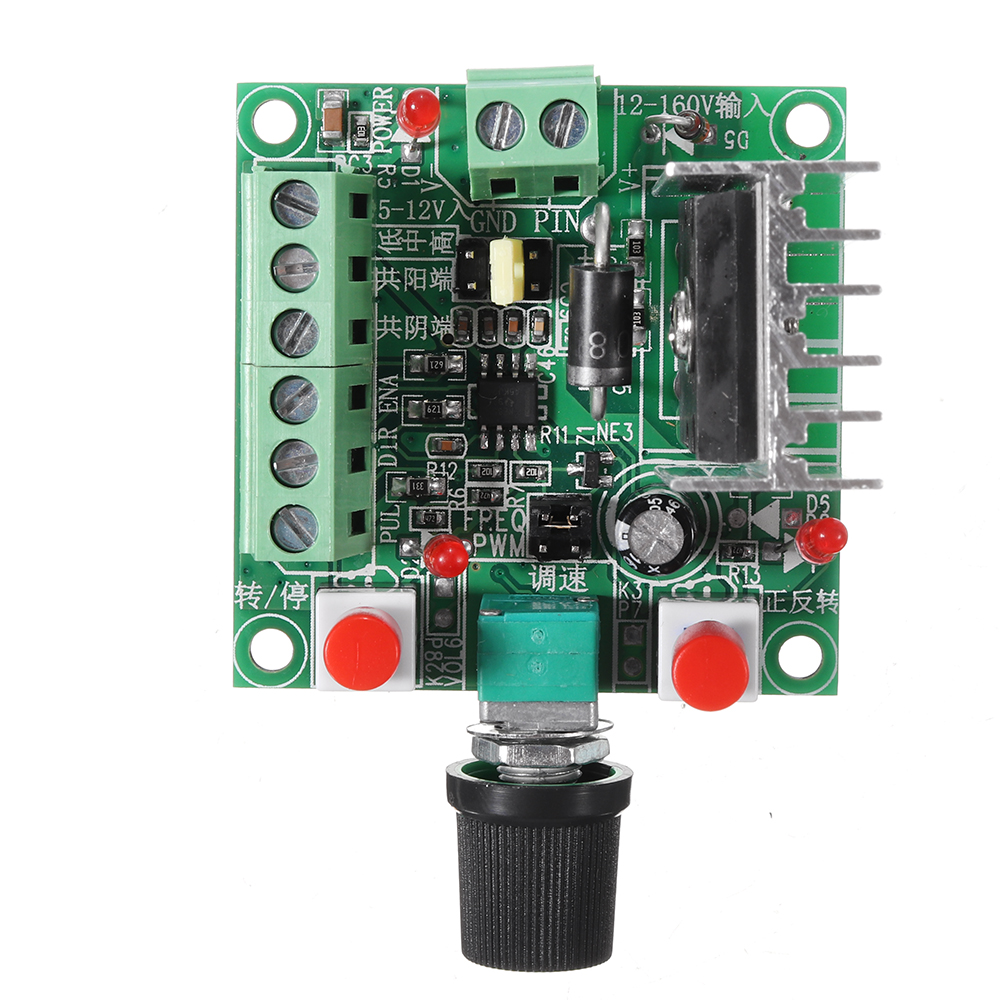

2. The controller can generate a pulse frequency signal or a PWM pulse width signal. There is a jumper on the board, which can be set and selected. By default, they are set to generate pulse frequency signals.

REQ is to generate pulse frequency signal

PWM is to generate PWM signal

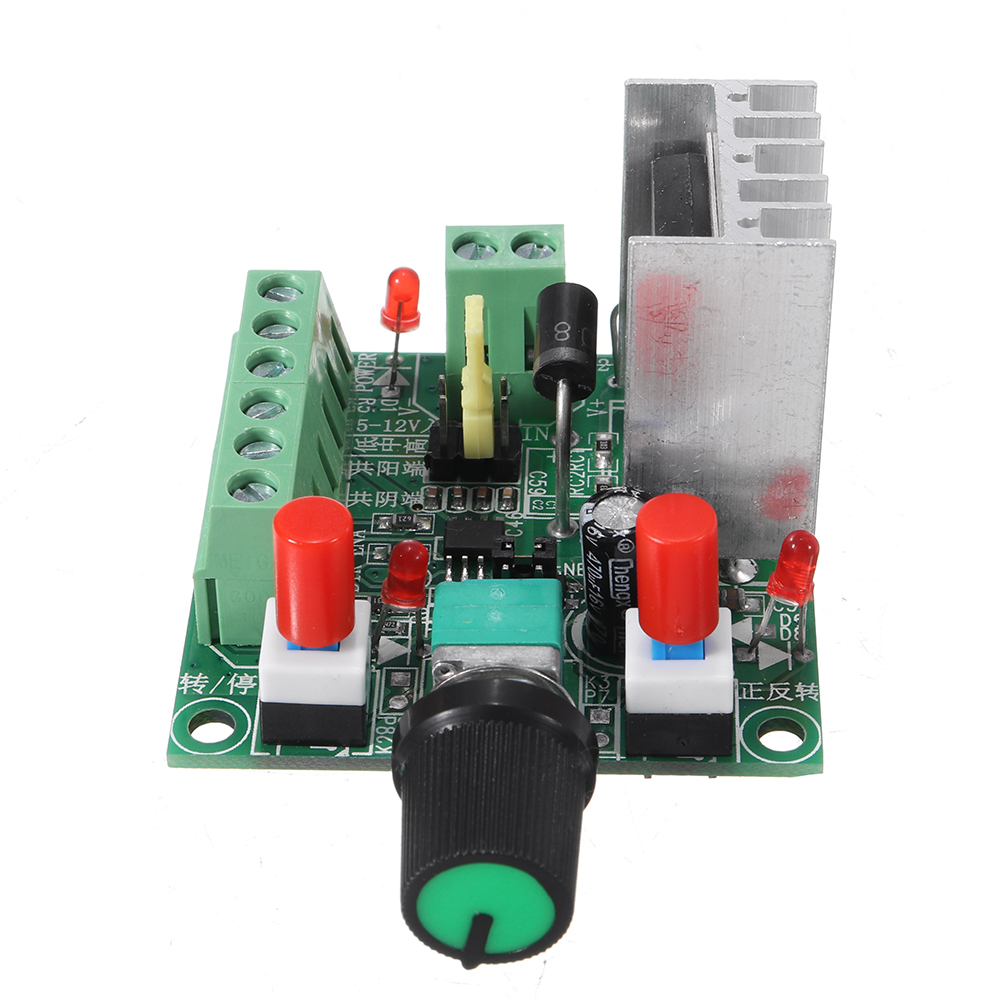

3. When the controller generates a pulse frequency signal, there are three types of high, medium and low frequency signals that can be selected with a jumper. The frequency parameters are approximately:

High: 5.8KHZ-127KHZ

Middle: 590HZ-15.8KHZ

Low: 82HZ-2.3KHZ,

Frequency measurement: You can measure PUL and common cathode (GND) two ports.

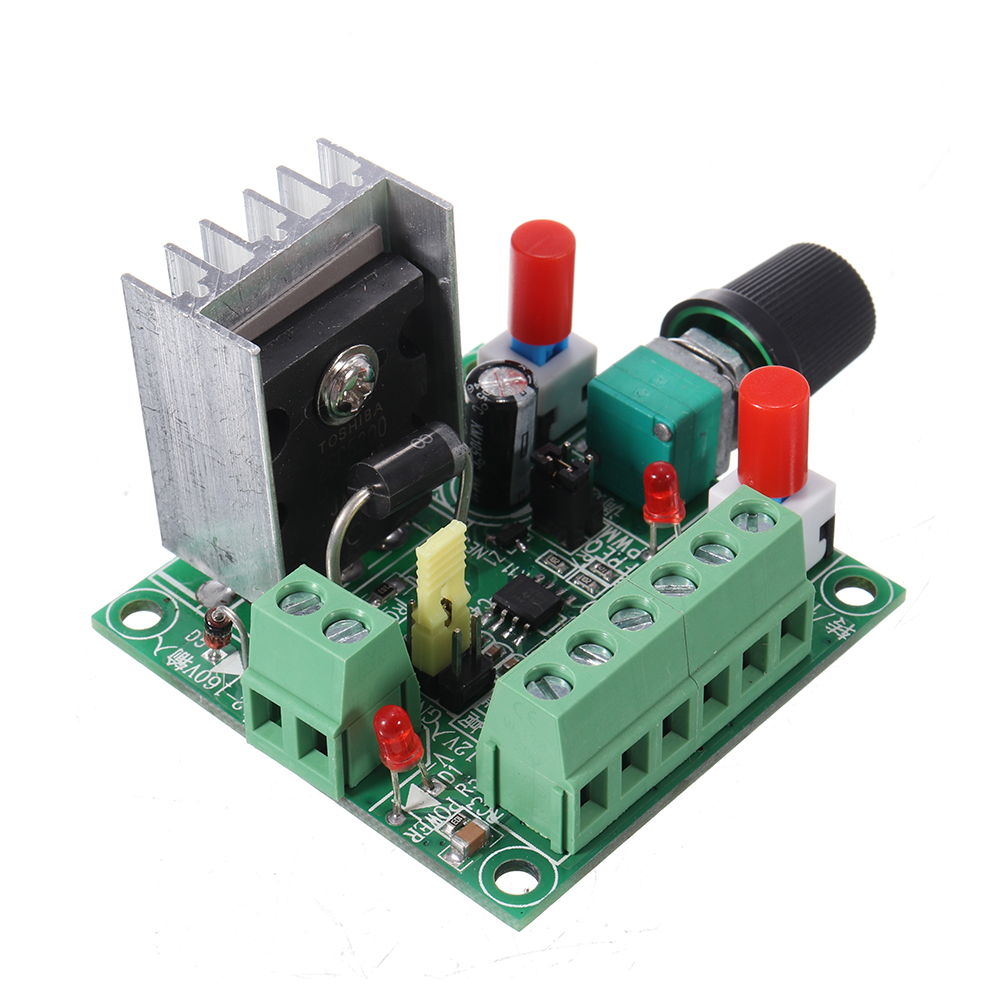

4. The power supply has 2 sets of power input, and 2 sets only need to connect one set of power supply. It is recommended to use a power supply of more than 15V. Connect to the power supply of the 2-bit terminal, do not connect the positive and negative.

One group is the power supply connected to DC 15-160VDC, and the recommended operating voltage is 15-80VDC.

The other group is 5-12VDC. When used with the driver, it is recommended to use a minimum of 12V, not a 5V power supply, not at 5V, the power supply is connected to "5-12V input", and the power supply is connected to the "common cathode".

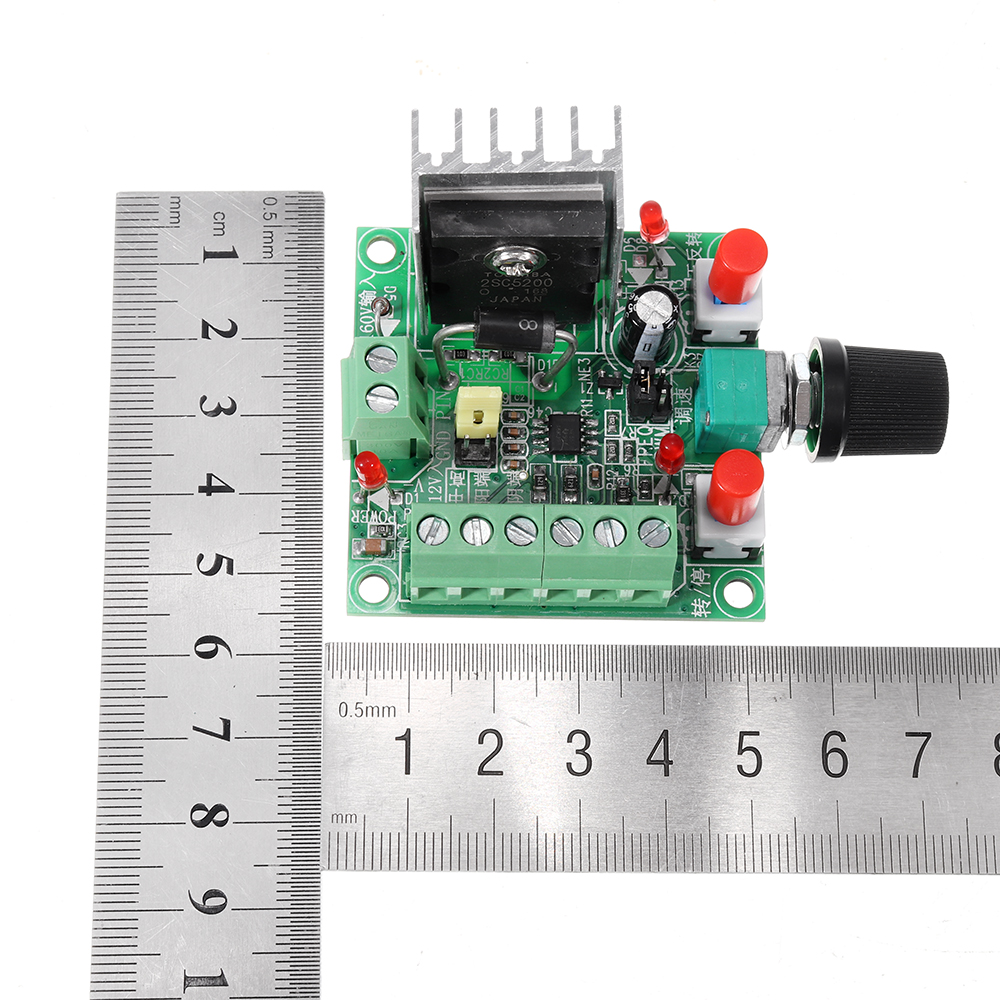

5. Length * width * height: about 73 * 51 * 37MM
u200a
u200a

Controller	Driver
PUL	Pulse negative terminal (PUL-)
DIR	Negative direction (DIR-)
ENA	Enable negative terminal (EN-)
Common anode	Common port (COM or + 5V or PUL + DIR + EN + are connected at the same time)
Common cathode	Common ground (GND)
5-12Vxa0input+	The positive end of the 12V power supply is generally empty.It is recommended to use a power supply of more than 15V.

u200a

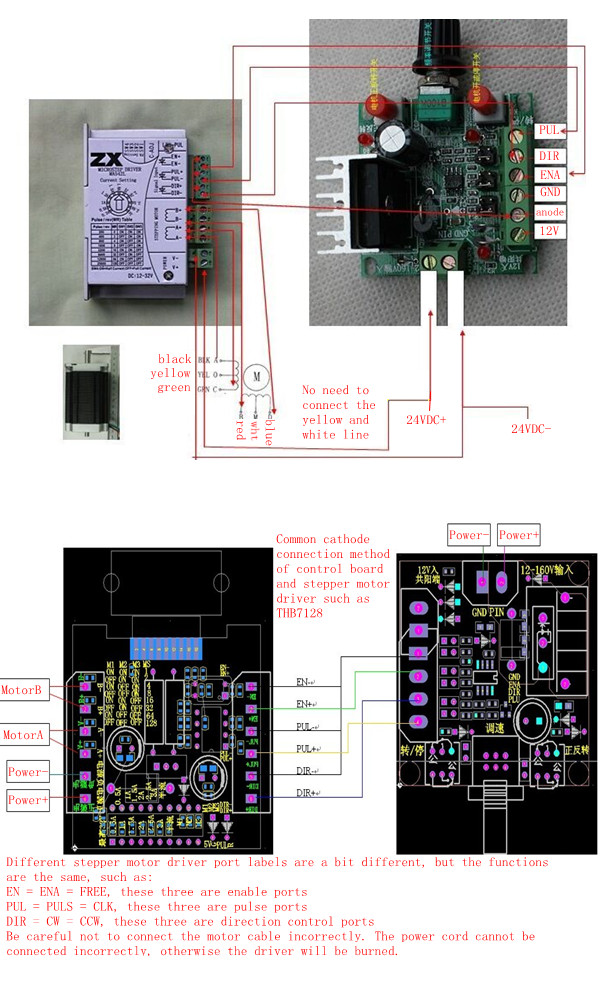

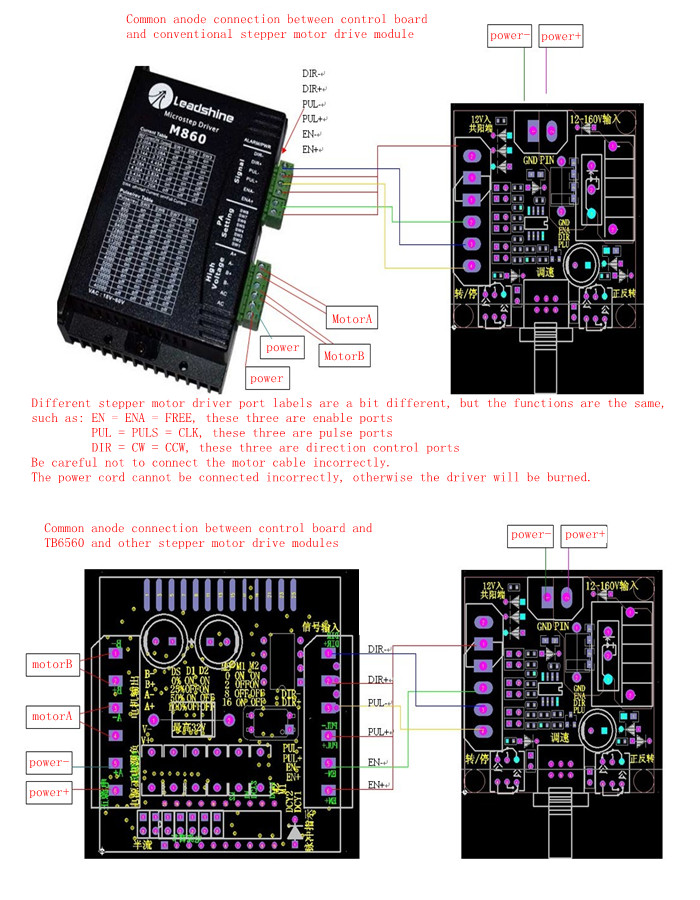

u200aExample: Wiring with the common anode of the driver. If it is driven by 6 signal lines, the + 5V common terminals of the three signals must be connected in parallel to form a line and all connected to the common anode terminal.
u200a
u200a

u200a

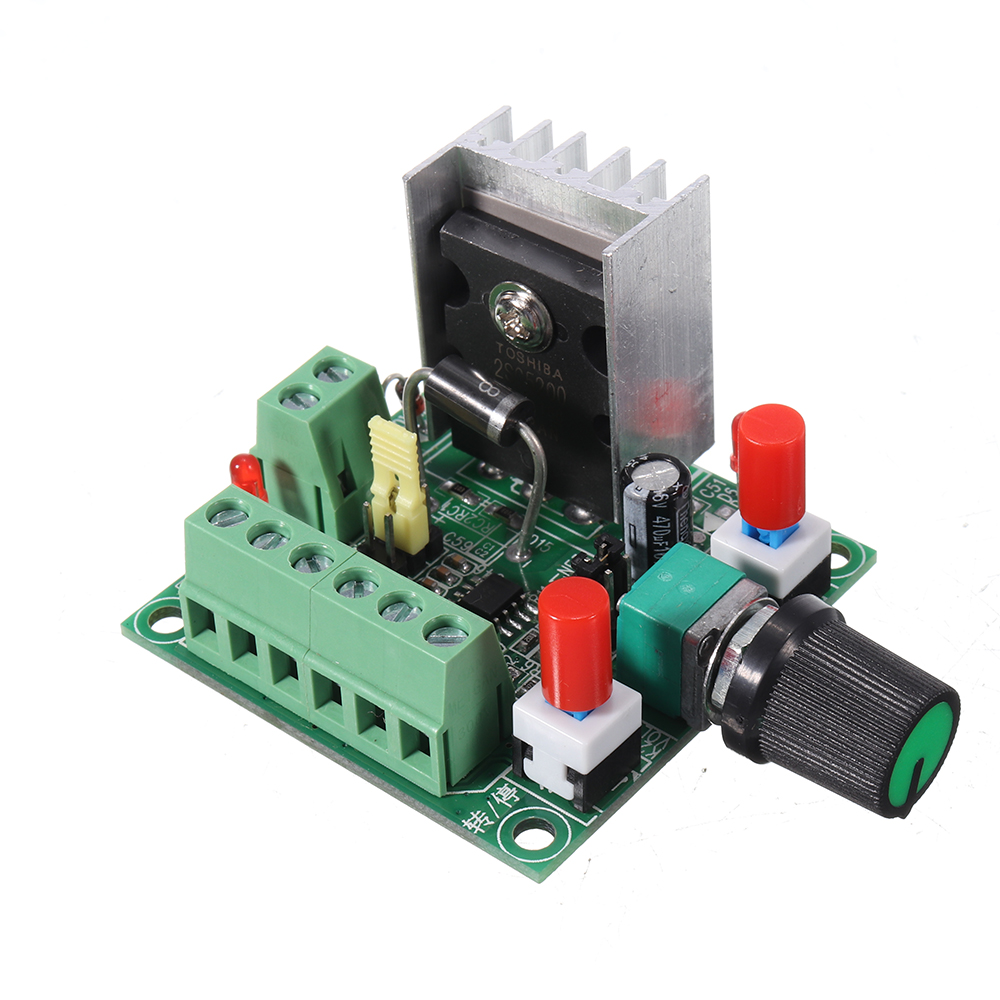

Product name: simple controller

Model: CW-S01

It can generate PWM signal. There is a jumper on the board, which can be set and selected. By default, it is set to generate pulse frequency signal.
u200a

Product Manual:

1. When the controller generates a pulse frequency signal, it can supply a stepper driver as a signal. To control the stepper motor, it must be equipped with a driver.

(This simple controller + stepper driver + stepper motor + DC power supply can form a simple control platform.)

REQ is to generate pulse frequency signal

PWM is to generate PWM signal

High: 5.8KHZ-127KHZ

Middle: 590HZ-15.8KHZ

Low: 82HZ-2.3KHZ,

Frequency measurement: You can measure PUL and common cathode (GND) two ports.

One group is the power supply connected to DC 15-160VDC, and the recommended operating voltage is 15-80VDC.

5. Length * width * height: about 73 * 51 * 37MM
u200a
u200a

Controller	Driver
PUL	Pulse negative terminal (PUL-)
DIR	Negative direction (DIR-)
ENA	Enable negative terminal (EN-)
Common anode	Common port (COM or + 5V or PUL + DIR + EN + are connected at the same time)
Common cathode	Common ground (GND)
5-12Vxa0input+	The positive end of the 12V power supply is generally empty.It is recommended to use a power supply of more than 15V.

Show Less

Specifications

Show Similar Products (2768) >

Attribute

Value

Wireless Capability

Bluetooth

Show Similar Products (2768) >

Shipping Guide

Shipping	Delivery Period	For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days
	Shipping Rates	Shipping rates for your order can be found in the shopping cart.
	Shipping Options	Shipping rates for your order can be found in the shopping cart.
	Shipping Tracking	We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/Warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
	Warranty	All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
		This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
Ordering	How to Buy	Elecbee accepts online orders.
		Add to cart > Check out > Submit order > Complete payment > Delivery
	Payment	PayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

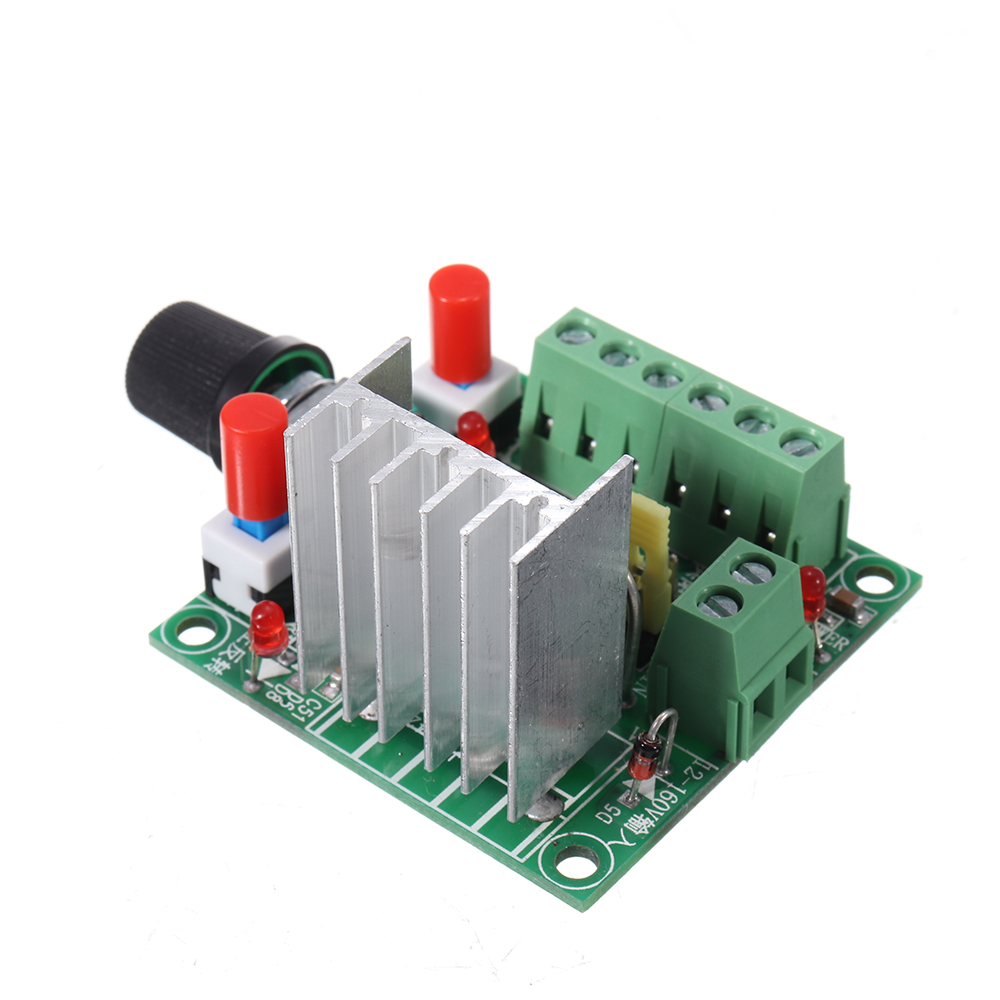

Description

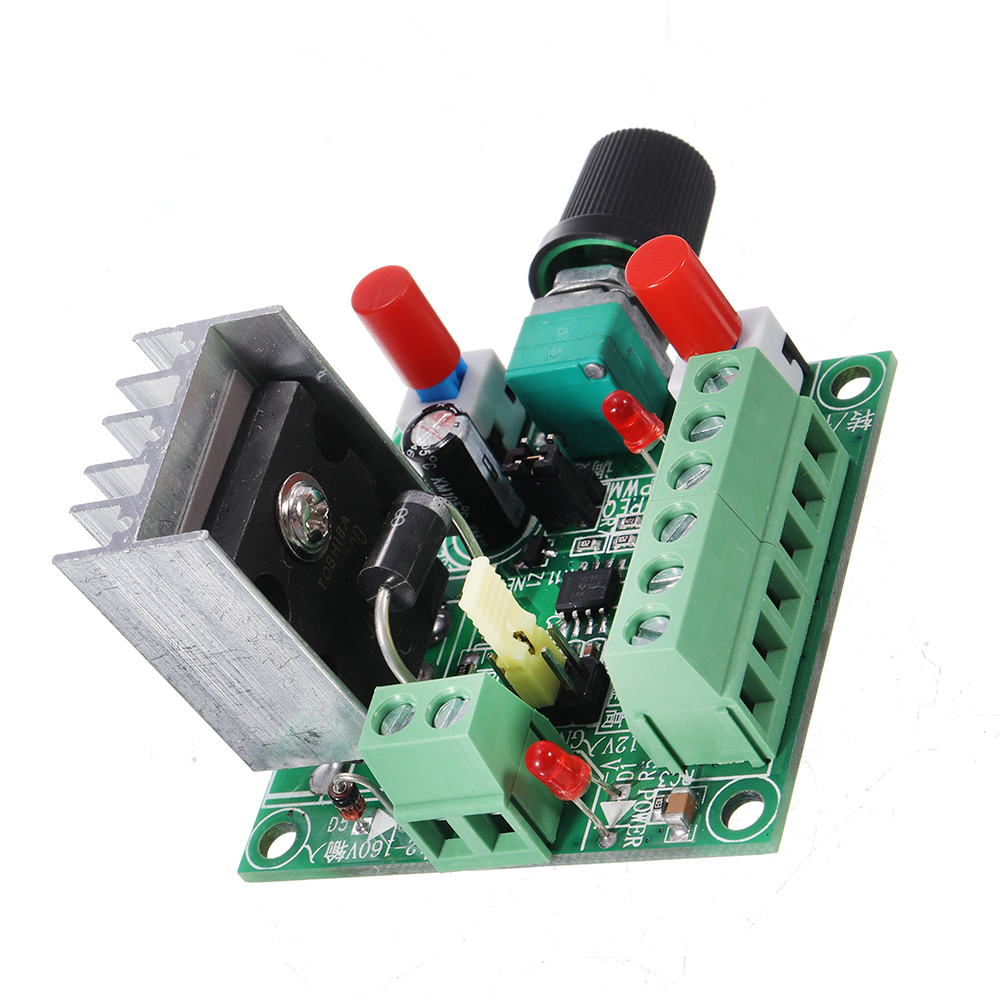

Model: CW-S01

It can generate PWM signal. There is a jumper on the board, which can be set and selected. By default, it is set to generate pulse frequency signal.

Product Manual:

1. When the controller generates a pulse frequency signal, it can supply a stepper driver as a signal. To control the stepper motor, it must be equipped with a driver.

(This simple controller + stepper driver + stepper motor + DC power supply can form a simple control platform.)

REQ is to generate pulse frequency signal

PWM is to generate PWM signal

High: 5.8KHZ-127KHZ

Middle: 590HZ-15.8KHZ

Low: 82HZ-2.3KHZ,

Frequency measurement: You can measure PUL and common cathode (GND) two ports.

One group is the power supply connected to DC 15-160VDC, and the recommended operating voltage is 15-80VDC.

5. Length * width * height: about 73 * 51 * 37MM

Controller	Driver
PUL	Pulse negative terminal (PUL-)
DIR	Negative direction (DIR-)
ENA	Enable negative terminal (EN-)
Common anode	Common port (COM or + 5V or PUL + DIR + EN + are connected at the same time)
Common cathode	Common ground (GND)
5-12V input+	The positive end of the 12V power supply is generally empty.It is recommended to use a power supply of more than 15V.

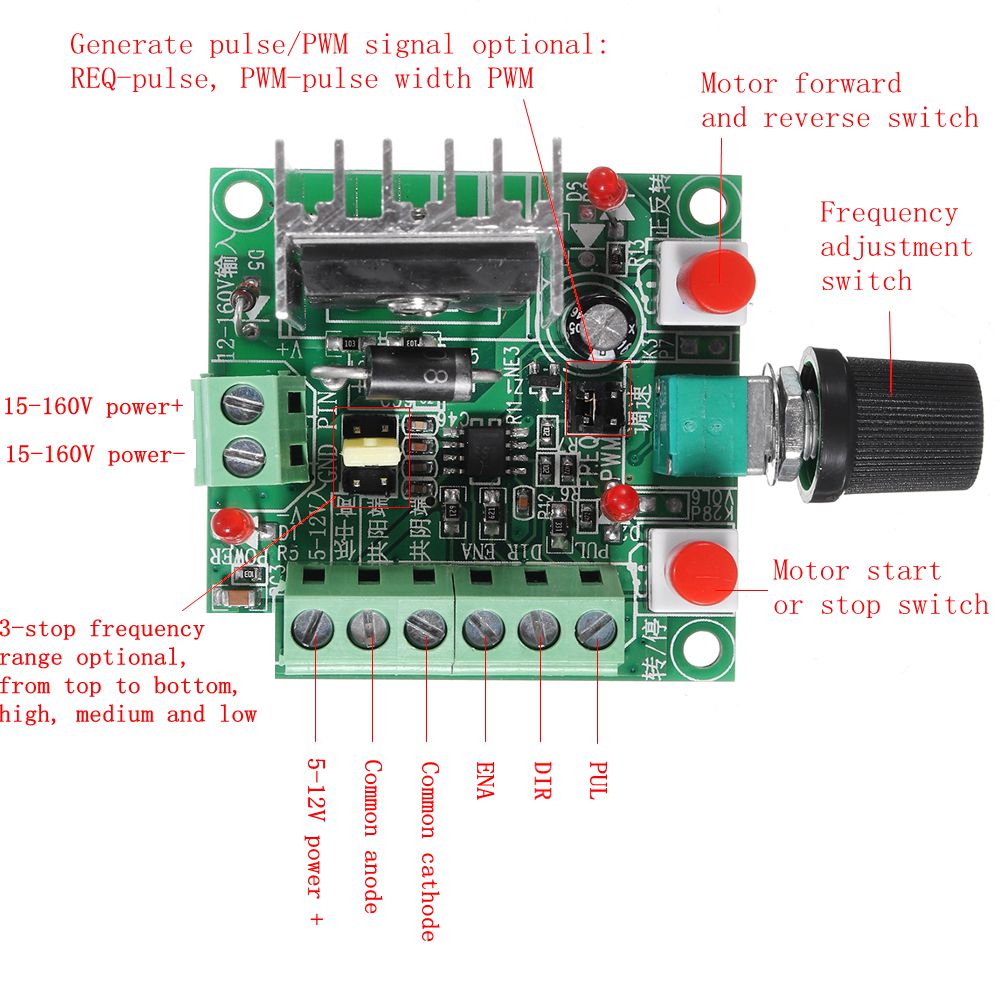

Example: Wiring with the common anode of the driver. If it is driven by 6 signal lines, the + 5V common terminals of the three signals must be connected in parallel to form a line and all connected to the common anode terminal. PWM-Stepper-Motor-Driver-Simple-Controller-Speed-Controller-Forward-and-Reverse-Control-Pulse-Genera-1666759

PWM-Stepper-Motor-Driver-Simple-Controller-Speed-Controller-Forward-and-Reverse-Control-Pulse-Genera-1666759

Note:

1. If you want to use the start or stop function, the ENA enable terminal on the controller must be connected to the driver with a common cathode or a common anode.

2. The forward and reverse rotation and the start and stop of the motor can be controlled by pressing the button.

3. The speed of the motor can be controlled by adjusting the potentiometer to change the frequency.

4. The switch of the motor's forward / reverse rotation and start / stop is an ordinary switch with self-locking.

5. If you want to connect the switches that control forward and reverse, and open or stop, to the chassis panel, you can refer to the following instructions.

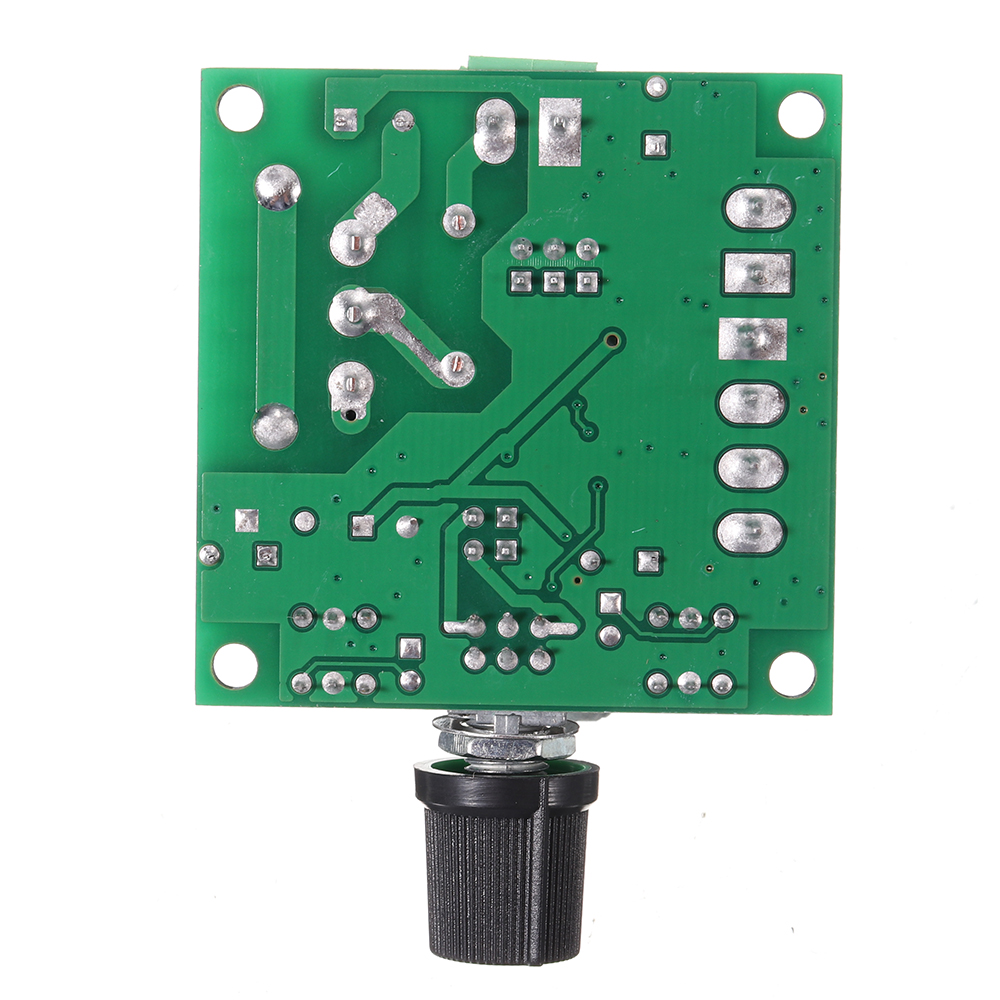

Change the forward and reverse, the start-stop button into a lead-wire switch, see the pin position on the back:
