Elecbee CM3 / CM3Lite IO Expansion Board For Raspberry Pi Computer Module

SKU: EB0049589

Favorites

Key Features

xa0

Can use CM3 or CM3L to implement the Raspberry Pi 3B/3B+ function;

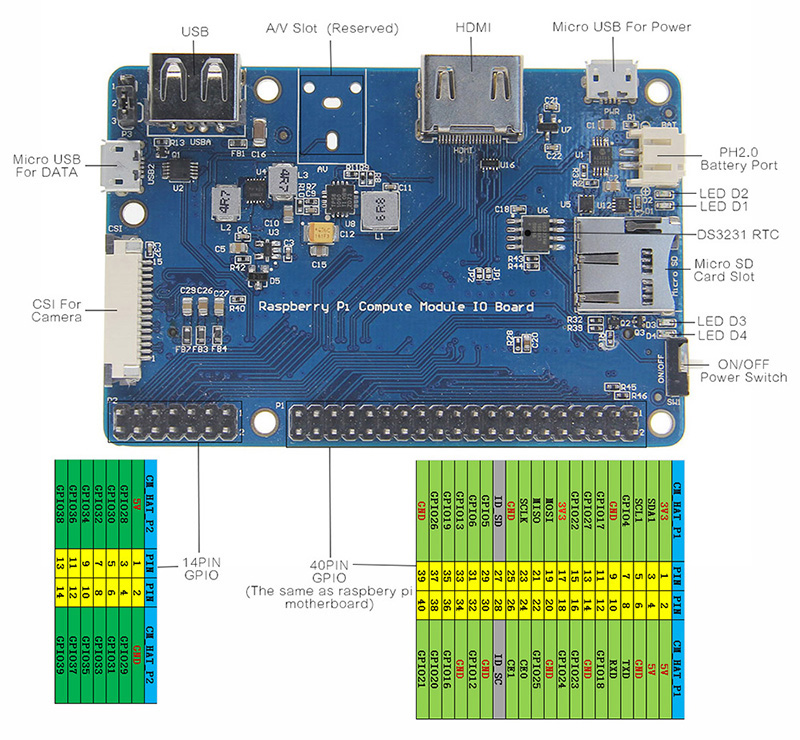

More GPIO extensions than Raspberry Pi 3B: include standard HAT 40PIN GPIO output (fully compatible with Raspberry Pi 3B/3B+) and extra extension 14 PIN GPIO;

Compatible with various expansion boards of Raspberry Pi

Support power the board via battery, can read battery capacity by programing

Support RTC (need to power the board via PH2.0 battery port)

Support CSI/DSI

Support OTG interface (via Micro USB Port for data)

Support CM3 (build in 4GB NAND Flash), support CM3L (TF card slot has a place to use)

More info., can refer to WIKI

Specifications

Show Similar Products (2768) >

Attribute

Value

MCU/SoC Model

CM3 CM3Lite Expansion

CPU Architecture

TIONIMAGE0

Memory

Raspberry Pi OS / Linux

Debug Interface

CAN

Show Similar Products (2768) >

Shipping Guide

Shipping	Delivery Period	For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days
	Shipping Rates	Shipping rates for your order can be found in the shopping cart.
	Shipping Options	Shipping rates for your order can be found in the shopping cart.
	Shipping Tracking	We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/Warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
	Warranty	All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
		This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
Ordering	How to Buy	Elecbee accepts online orders.
		Add to cart > Check out > Submit order > Complete payment > Delivery
	Payment	PayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Description

[Overview]

CM IO board is an expansion board designed for Raspberry pi compute model CM3 and CM3 lite,(also support CM1). You can get the more wide range and more flexible application environment, you can get more simpler interface.

1 x IO Expansion Board
