Elecbee 8 Channel Solid State Relay Module | 3-5VDC Input | 5A Load | Arduino Compatible High Power Module

SKU: EB0046380

Favorites

Key Features

Feature:

8-Channel Versatility for Arduino Projects: This solid-state relay module features 8 independent channels, ideal for controlling multiple high-power devices (e.g., motors, lights) in Arduino setups. Perfect for prototyping, automation, or DIY electronics requiring simultaneous load management.
Low-Voltage Input, High-Power Output: Designed with 3-5VDC input (compatible with Arduino’s voltage range) and 5-220VDC output, it bridges low-voltage control circuits with high-power loads. Supports up to 5A continuous current and 20x surge capacity (10ms) for transient protection.
Enhanced Safety & Stability: Equipped with 4000V photoelectric isolation and a built-in RC absorption circuit to suppress voltage spikes, minimizing damage to Arduino boards and connected devices. High dv/dt resistance ensures reliable performance in noisy environments.
User-Friendly Design: LED indicators clearly show each channel’s working state, simplifying troubleshooting. PCB-mountable structure and SCR output deliver easy integration into Arduino shields or custom circuits.
Eco-Certified Reliability: Compliant with ROHS standards for environmental safety. Input parameters (3VDC turn-on/1VDC turn-off voltage) ensure precise control, while reverse polarity protection (-5VDC) adds durability for long-term use.

Specifications

Show Similar Products (2768) >

Attribute

Value

Wireless Capability

Bluetooth

Show Similar Products (2768) >

Shipping Guide

Shipping	Delivery Period	For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days
	Shipping Rates	Shipping rates for your order can be found in the shopping cart.
	Shipping Options	Shipping rates for your order can be found in the shopping cart.
	Shipping Tracking	We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/Warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
	Warranty	All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
		This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
Ordering	How to Buy	Elecbee accepts online orders.
		Add to cart > Check out > Submit order > Complete payment > Delivery
	Payment	PayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Description

Description:
SSR-GJ series for small high-power solid-state relays, input control voltage is 3~5VDC, output adopts a unidirectional thyristor reverse parallel, dv/dt resistant ability is high, the output load voltage range of 5~220VDC. Great to meet customers various requirements in different places.

Specification:
The photoelectric isolation
The 4000V dielectric withstanding voltage
The 0 or random conducting switch

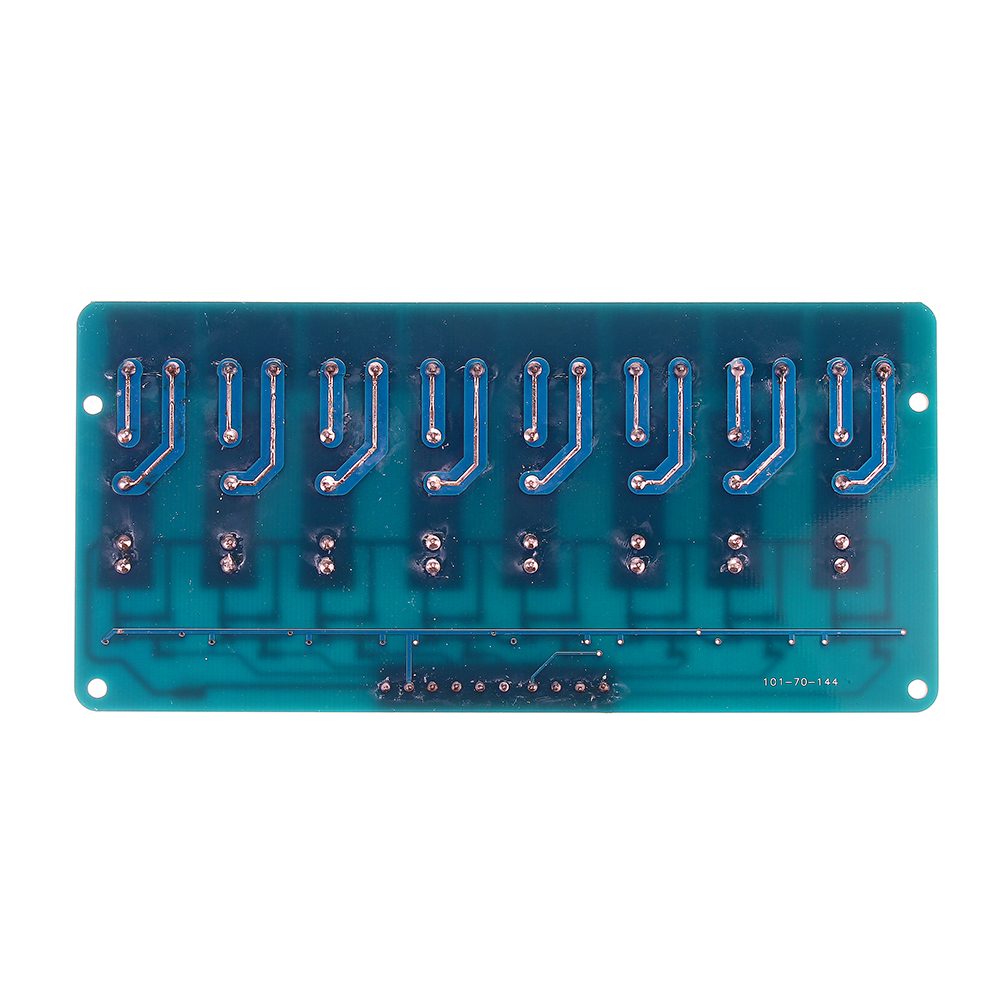

The PCB type installationThe SCR output
Have extremely high surge current capability
Built in RC absorption circuit

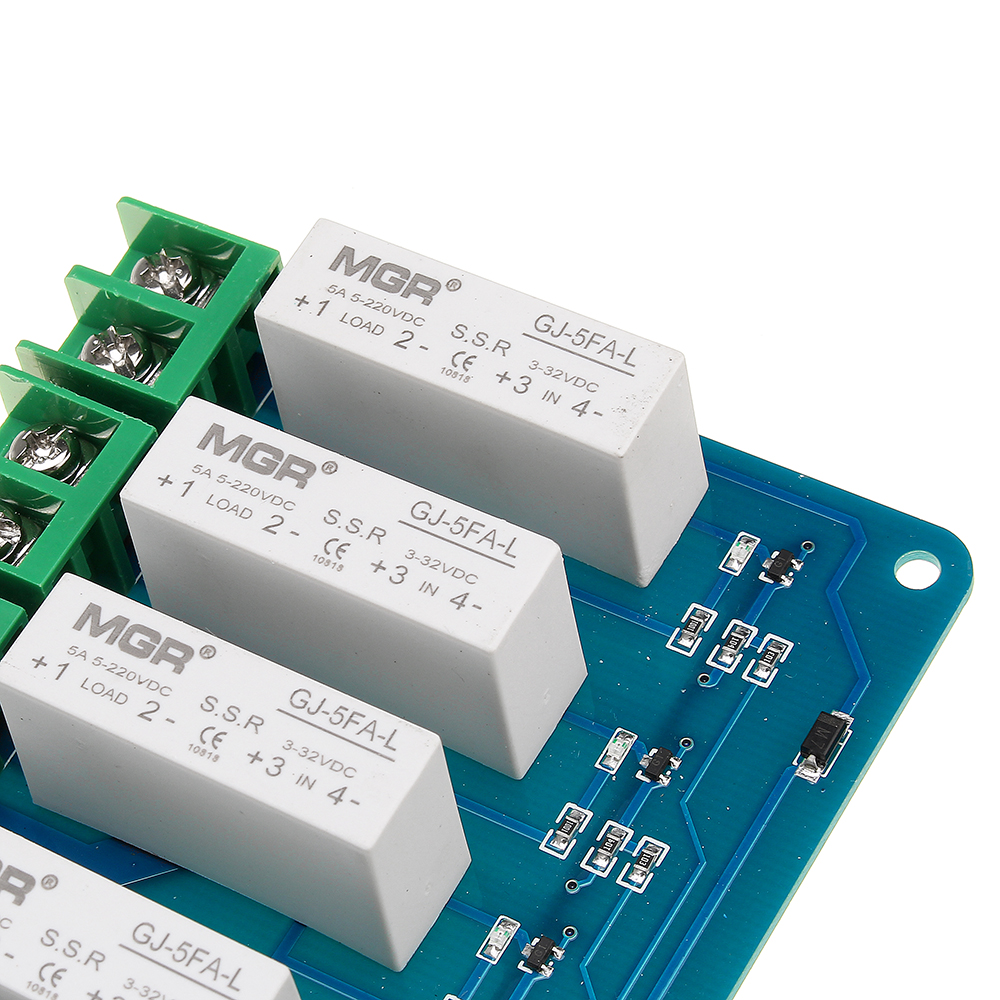

It can provide LED indicate the working state of products
Environmental friendly ( in line with the ROHS requirements )
Input ( control ) parameters ( TA=25℃)
Input voltage range: 3~5VDC
Ensure that the turn-on voltage: 3VDC
Ensure that the turn-off voltage: 1VDC
Input current ( typical): 18Ma
Input current ( max): 25mA
Reverse polarity voltage ( DC ):-5VDC
Output ( load ) parameters ( TA=2℃)
Output voltage range: 5~220VDC
Maximum transient voltage: 800Vpk
Maximum output current : 1Ma’
Maximum output voltage: 1.5Vrms;
Maximum load current: 5A
Maximum surge current (10ms ): Rated current of 20 times
The minimum power factor: 0.5
Minimum working current: 50MA
High level action
Low level cut-off
Control panel input: 3~5VDC
Power supply input: 3~5VDC

1 x Relay module
