Elecbee 5Pcs MQ-7 MQ7 Carbon Monoxide CO Gas Sensor Detection Module

SKU: EB0045595

Favorites

Key Features

xa0

- Using high-quality dual-panel design,with power indicator and TTL signal output instructions.

- The switching signal having a DO (TTL) output and analog output AO.

- TTL output valid signal is low. ( Low-level signal when the output light can be directly connected to the microcontroller or relay module )

- Analog output voltage with the higher concentration of higher voltage

- There are four screw holes for easy positioning.

- Has a long life and reliable stability

- Rapid response and recovery characteristic

xa0

Specifications:

xa0

Input voltage : DC5V Power consumption ( current ): 150mA

DO output : TTL digital 0 and 1 ( 0.1 and 5V)

AO output :0.1-0 .3 V ( relative to pollution ),the maximum Concentration of a voltage of about 4V

Special note: After the sensor is powered,needs to warm up around 20S,measured data was stable,heat sensor is a normal phenomenon,because the internal heating wire,if hot is not normal .

Wiring:

VCC: positive power supply (5V)

GND: power supply is negative

DO: TTL switching signal output

AO: analog signal output

xa0

NOTE:

xa0

After the sensor is powered, need to warm about 20S, measured data becomes stable, heat sensor is normal

xa0

Specifications

Show Similar Products (2768) >

Attribute

Value

Wireless Capability

Bluetooth

Show Similar Products (2768) >

Shipping Guide

Shipping	Delivery Period	For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days
	Shipping Rates	Shipping rates for your order can be found in the shopping cart.
	Shipping Options	Shipping rates for your order can be found in the shopping cart.
	Shipping Tracking	We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/Warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
	Warranty	All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
		This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
Ordering	How to Buy	Elecbee accepts online orders.
		Add to cart > Check out > Submit order > Complete payment > Delivery
	Payment	PayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Description

>>>Manual: Click here to open<<<

Overview:

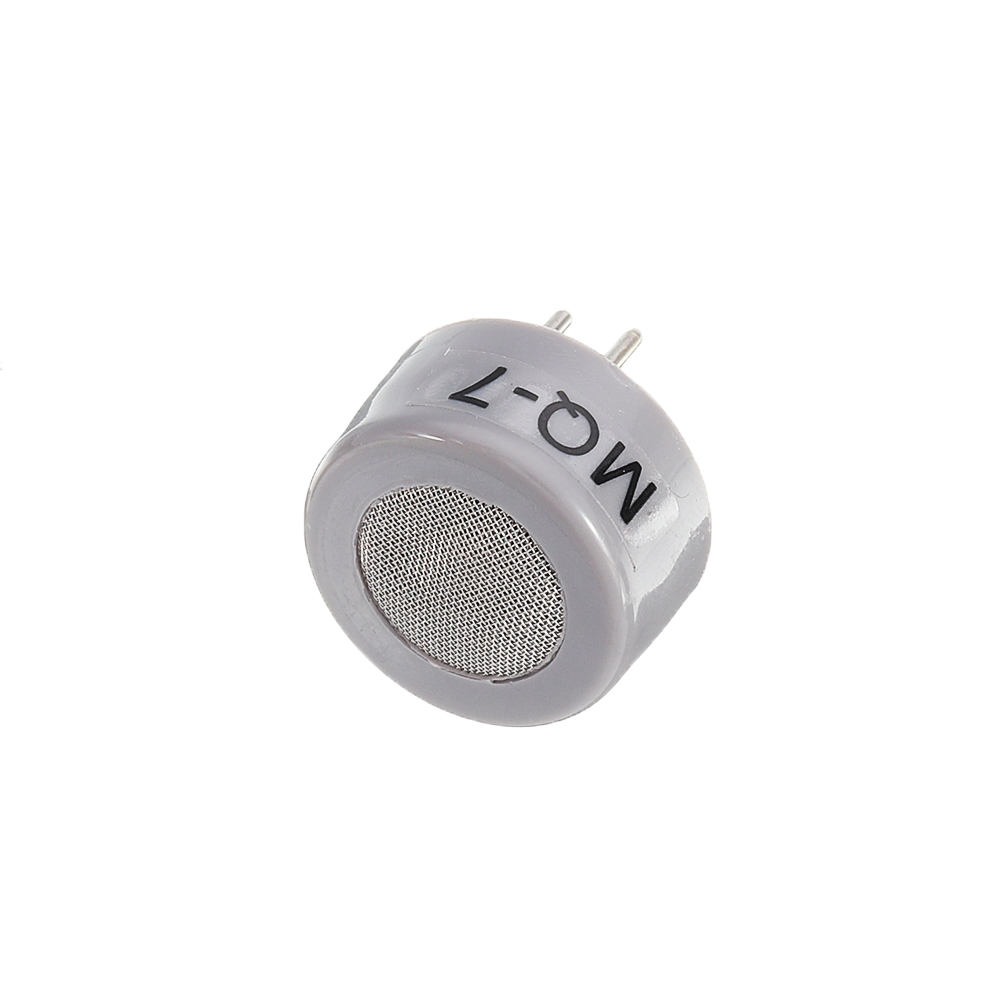

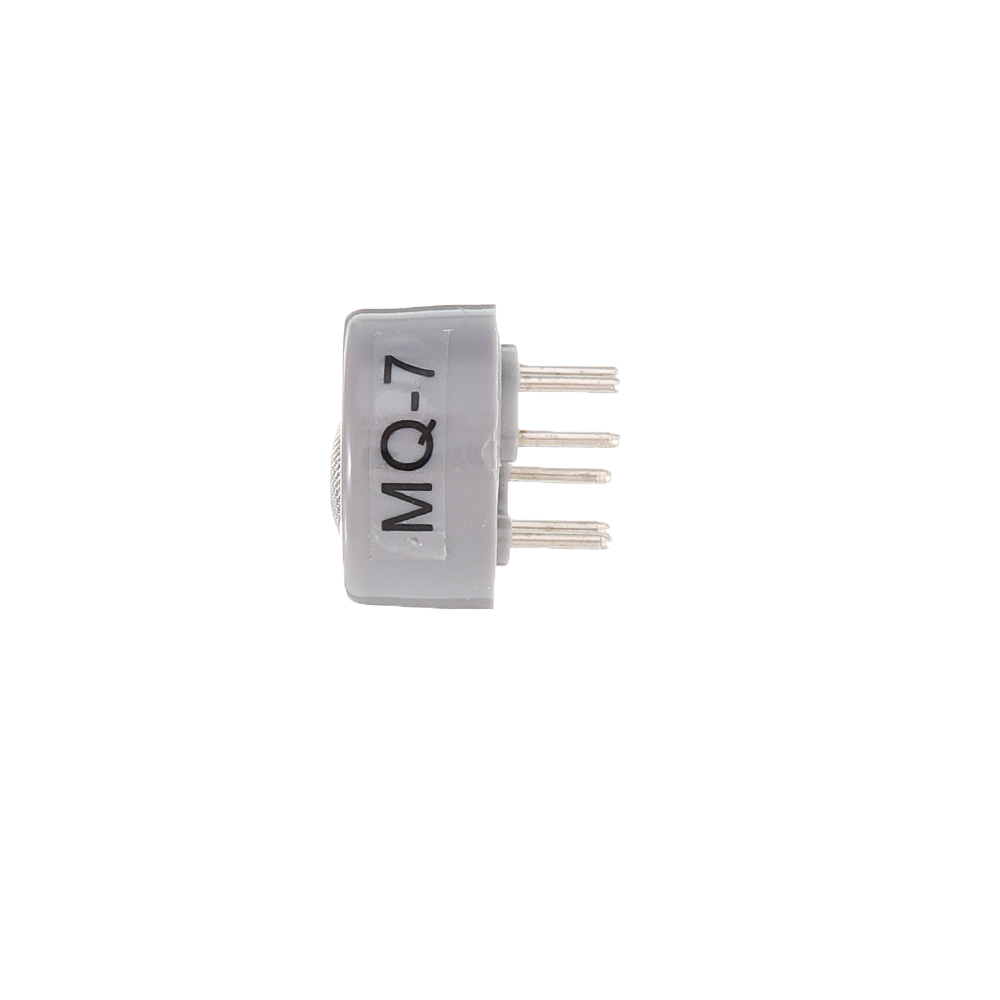

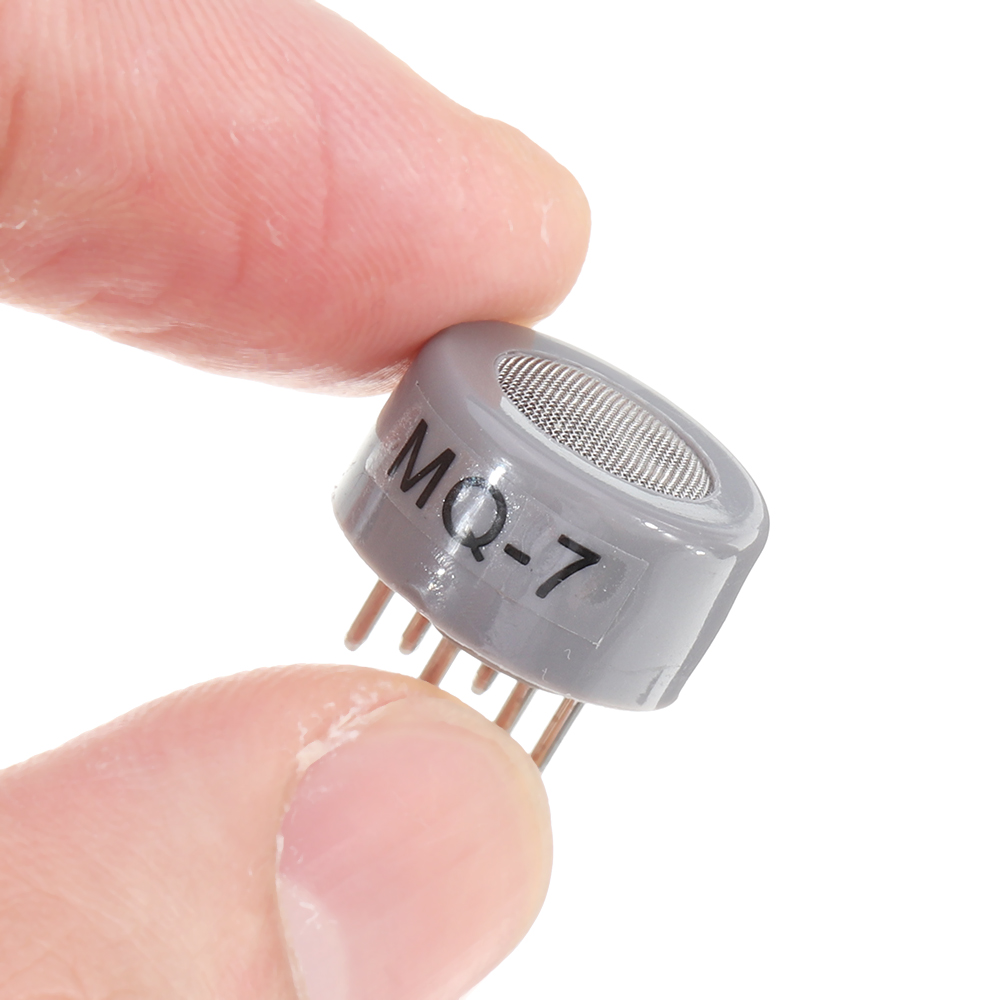

Sensitive material MQ-7 gas sensors used in clean air, low conductivity tin oxide (SnO2). High-low temperature cycling detection mode (1.5V heating) carbon monoxide detector, conductivity sensor with the increasing concentration of carbon monoxide gas in the air increases,high-temperature (5.0V heating) cleaning cryoadsorption stray gases. Using a simple circuit to change the conductivity, concentration of the gas is converted to the corresponding output signal. MQ-7 gas sensor of high sensitivity for carbon monoxide, this sensor can detect a variety of gases containing carbon monoxide, is a low-cost sensors for a variety of applications.

Application:

Can be used for home and factory gas leakage monitoring devices, suitable for liquefied petroleum gas, butane, propane, methane, smoke, etc.

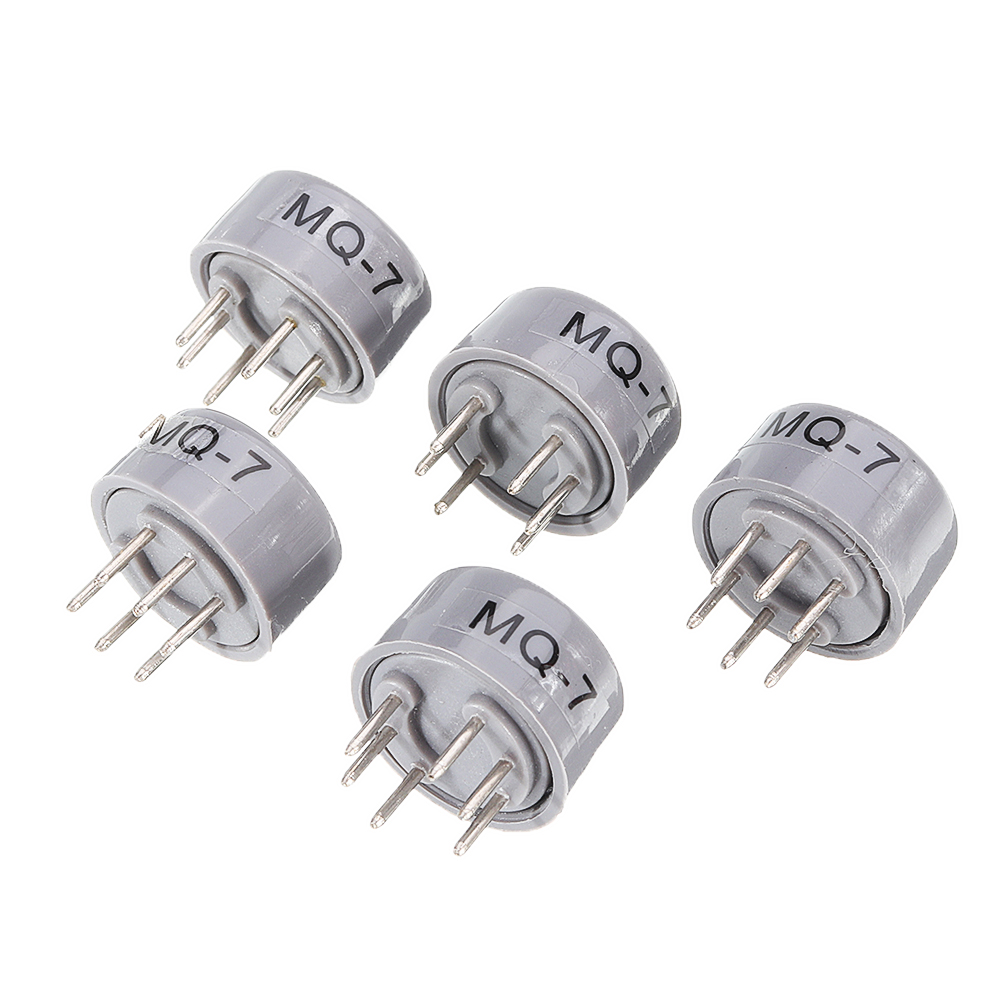

5 x MQ-7 MQ7 Carbon Monoxide CO Gas Sensor Detection Module
