Elecbee 5pcs GY-LSM6DS3 1.71-5V 3 Axis Accelerometer 3 Axis Gyroscope Sensor 6 Axis Inertial Breakout Board Tilt Angle Module

SKU: EB0043274

Favorites

Key Features

Power consumption: 0.9 mA in combo normal mode and 1.25 mA in combo high-performance mode up to 1.6 kHz. “Always on” experience with low power consumption for both accelerometer and gyroscope.

Smart FIFO up to 8 kbyte based on features set

±2/±4/±8/±16 g full scale

±125/±245/±500/±1000/±2000 dps full scale

Analog supply voltage: 1.71-5V

SPI/I2C serial interface with main processor data synchronization feature

Embedded temperature sensor

Applications:

Pedometer, step detector and step counter

Significant motion and tilt functions

Indoor navigation

Tap and double-tap detection

IoT and connected devices

Intelligent power saving for handheld devices

Vibration monitoring and compensation

Free-fall detection

6D orientation detection

Module size: 1.30 x 1.80cm / 0.51" x 0.71" (L x W)

Specifications

Show Similar Products (2768) >

Attribute

Value

Wireless Capability

Bluetooth

Show Similar Products (2768) >

Shipping Guide

Shipping	Delivery Period	For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days
	Shipping Rates	Shipping rates for your order can be found in the shopping cart.
	Shipping Options	Shipping rates for your order can be found in the shopping cart.
	Shipping Tracking	We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/Warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
	Warranty	All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
		This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
Ordering	How to Buy	Elecbee accepts online orders.
		Add to cart > Check out > Submit order > Complete payment > Delivery
	Payment	PayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Description

Description:

5pcs GY-LSM6DS3 1.71-5V 3 Axis Accelerometer 3 Axis Gyroscope Sensor 6 Axis Inertial Breakout Board Tilt Angle Module Embedded Temperature Sensor SPI/I2C Serial Interface Low Power Consumption

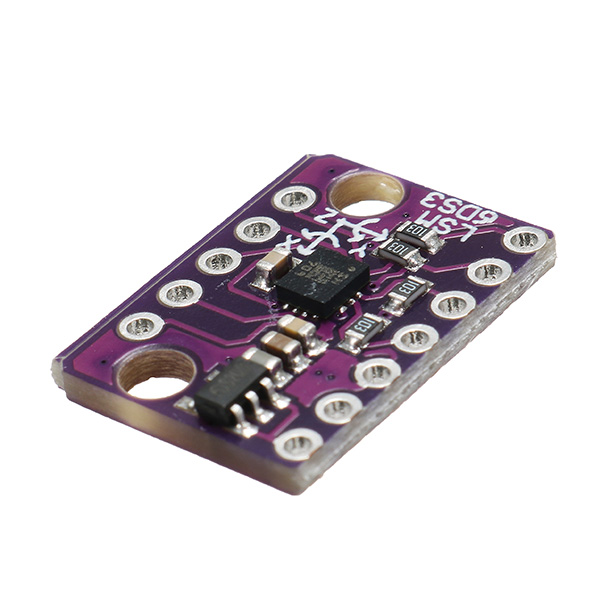

The LSM6DS3 is a accelerometer and gyroscope sensor with a giant 8kb FIFO buffer and embedded processing interrupt functions, specifically targeted at the cellphone market. Due to the capabilities and low cost of the LSM6DS3 we’ve created this small breakout board just for you! Each LSM6DS3 Breakout has been designed to be super-flexible and can be configured specifically for many applications. With the LSM6DS3 Breakout you will be able to detect shocks, tilt, motion, taps, count steps, and even read the temperature!

The LSM6DS3 is capable of reading accelerometer data up to 6.7kS/s and gyroscope data up to 1.7kS/s for more accurate movement sensing. As stated before this breakout also has the ability to buffer up to 8kB of data between reads, host other sensors, and drive interrupt pins all thanks to the LSM6DS3’s built-in FIFO.

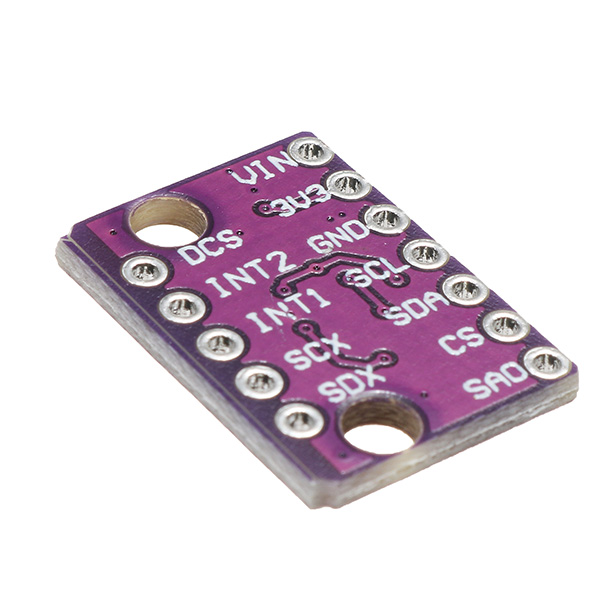

Each pin has been broken out on the LSM6DS3, with one side of the board featuring power and I2C functionality while the other side sporting pins that control SPI functionality and interrupt outputs. Please keep in mind that the LSM6DS3 is a 3.3V device so supplying voltages greater than ~3.6V can permanently damage the IC. A logic level shifter is required for any development platform operating at 5V.

5 x GY-LSM6DS3 gyroscope sensor module
