Elecbee 3pcs SIM800C USB to GSM Module Quad-Band GSM/GPRS Wireless Module Integrated USB to Serial Chip GSM/GPRS 850/900/1800/1900MHz Support 2G/3G/4G Micro SIM Card/Bluetooth/SMS Data Transmission

SKU: EB0049396

Favorites

Key Features

Specifications

Show Similar Products (2768) >

Attribute

Value

Wireless Capability

Bluetooth + Cellular

USB Support

USB

Show Similar Products (2768) >

Shipping Guide

Shipping	Delivery Period	For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days
	Shipping Rates	Shipping rates for your order can be found in the shopping cart.
	Shipping Options	Shipping rates for your order can be found in the shopping cart.
	Shipping Tracking	We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/Warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
	Warranty	All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
		This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
Ordering	How to Buy	Elecbee accepts online orders.
		Add to cart > Check out > Submit order > Complete payment > Delivery
	Payment	PayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Description

Description:

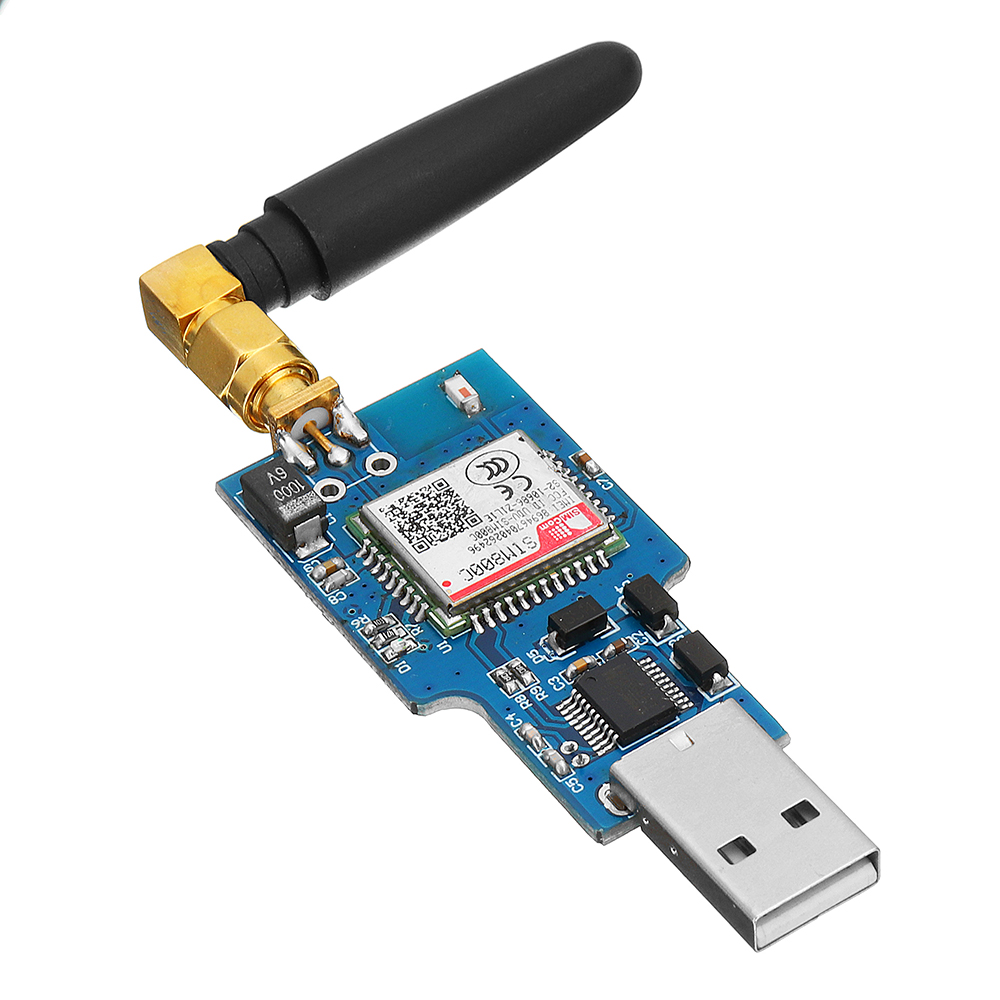

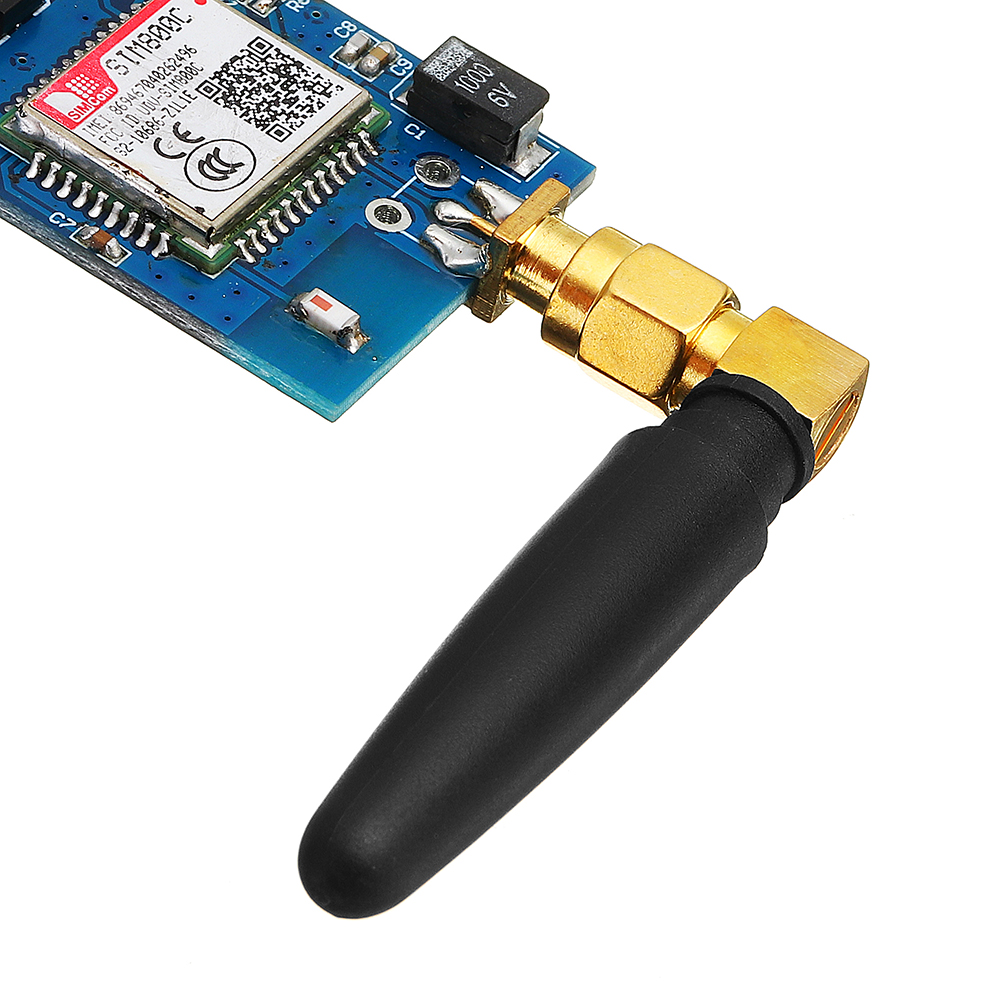

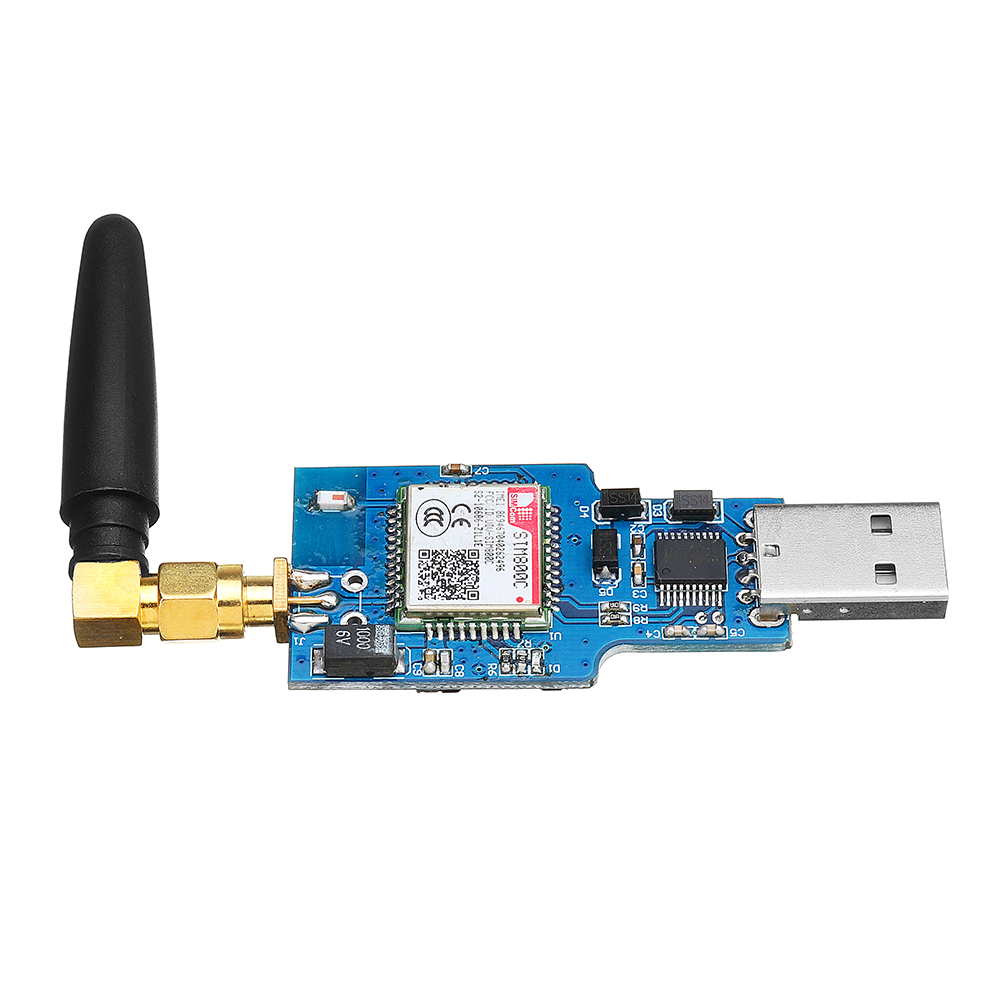

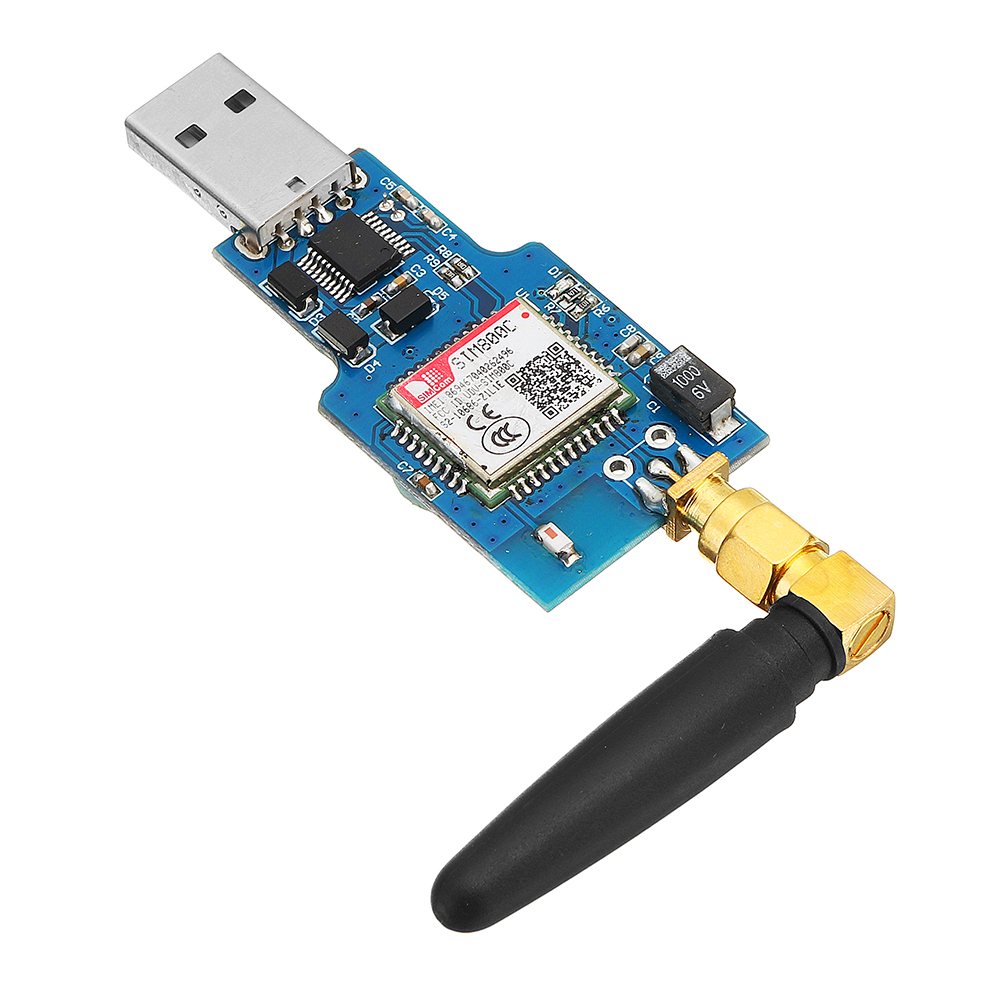

On board original SIM800C GSM/GPRS module.

The on-board CH340T USB serial port chip has simple driver installation and high compatibility.

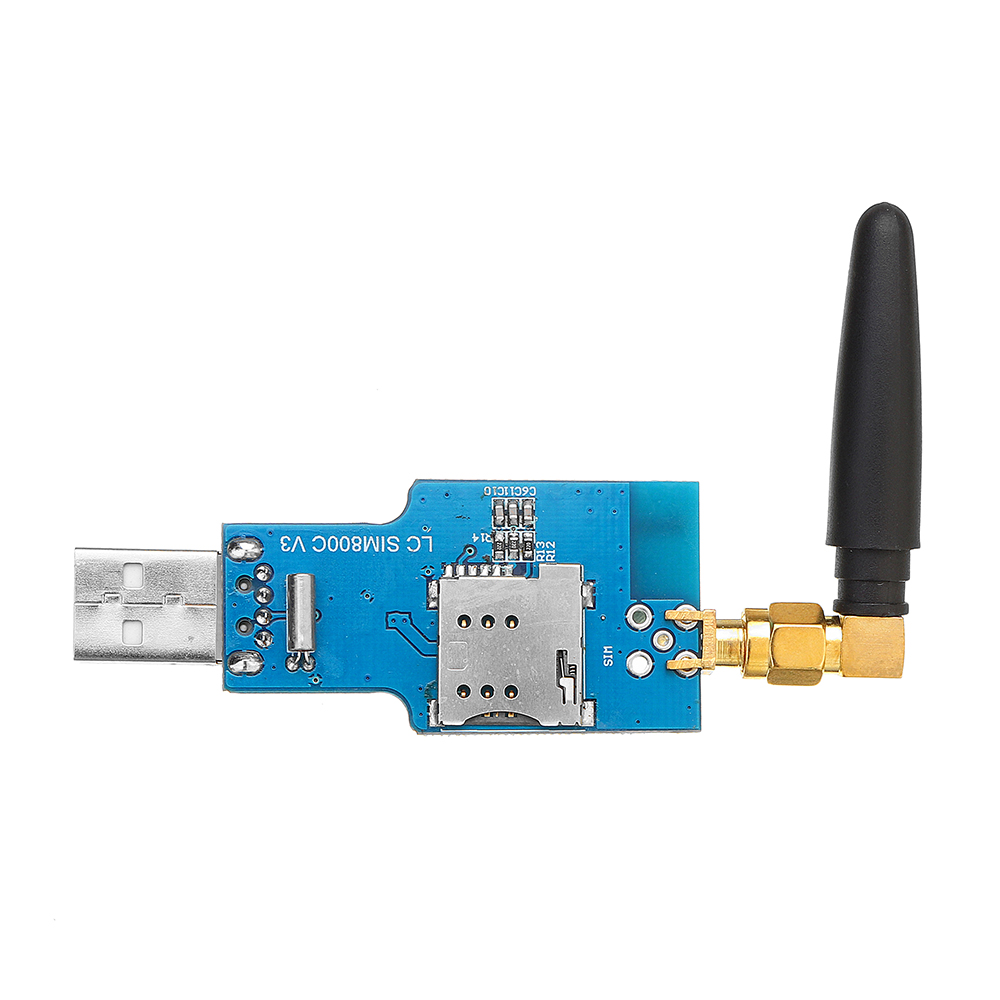

Self-resilient SIM card slot design can use mobile or Unicom 2G/3G/4G Micro Sim and Nano cards.

Module power-on automatic boot-up connection network, do not need keys to control the boot-up, eliminating the trouble of boot-up process.

Support SMS sending and receiving, provide management software.

Provide references to PC source code (c#, vb) supporting information and instructions for use.

It supports GPRS data transmission in 2G network and can be used in mobile meter reading and other occasions.

Support bluetooth data transmission, IEEE802.15 bluetooth standard, 2.4 GHz working frequency band.

Support adaptive baud rate.

With working indicator, no network, no SIM card or SIM card insertion reverse time LED lamp flickers at one second interval, normal access to the network three seconds a flash.

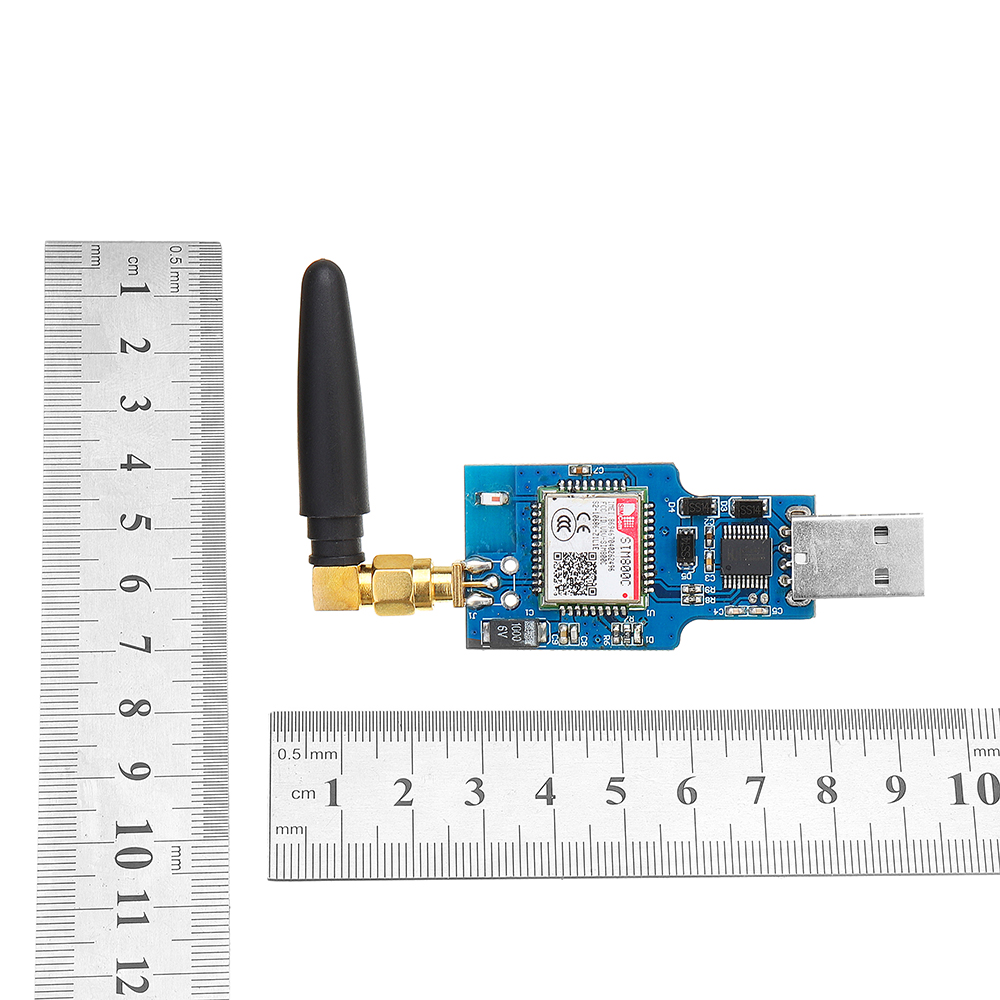

Dimension: 27 x 50.7 mm

Manual: https://img.elecbee.com/ic/download/pdf/20190328044341USBtoGSMmodule.pdf
Schematic: https://img.elecbee.com/ic/download/pdf/20190328044347SIM800CV3Schematic.pdf

3 x LC-GSM-SIM800C-2 USB to GSM Serial Port GPRS SIM800C Module
