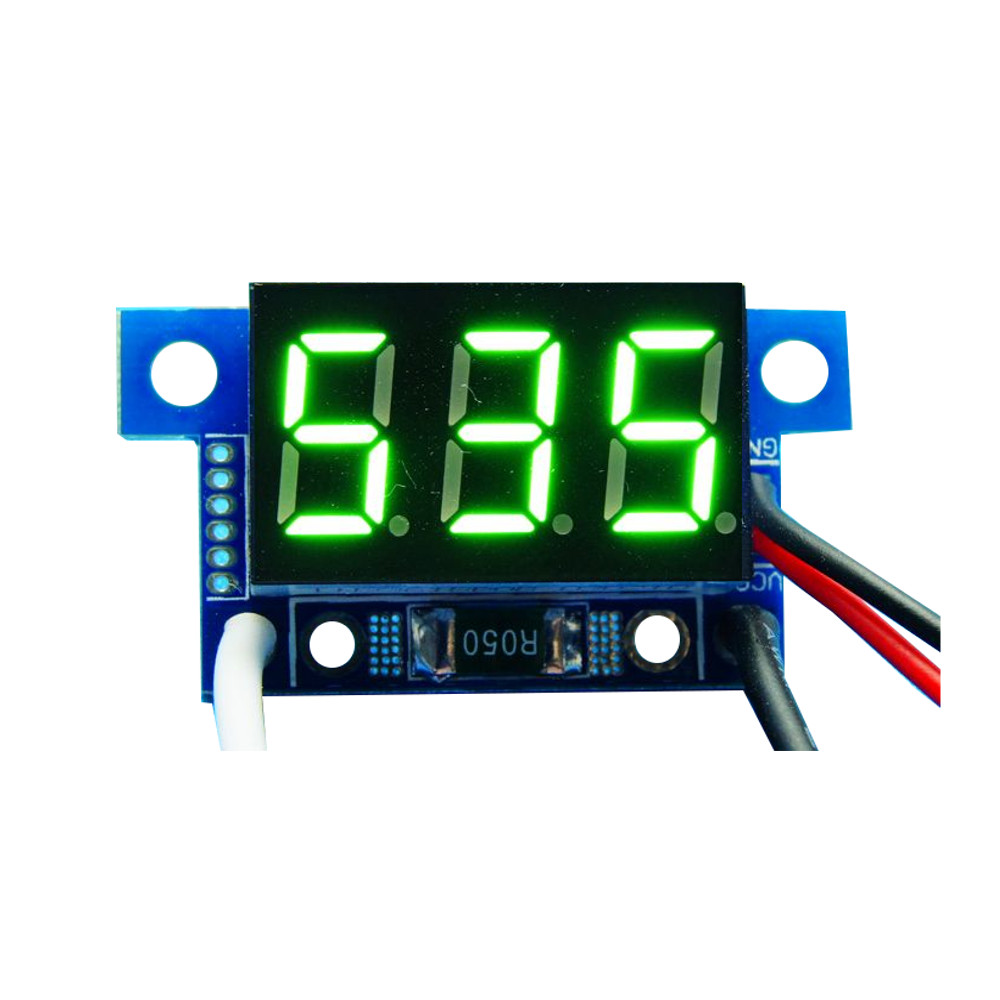

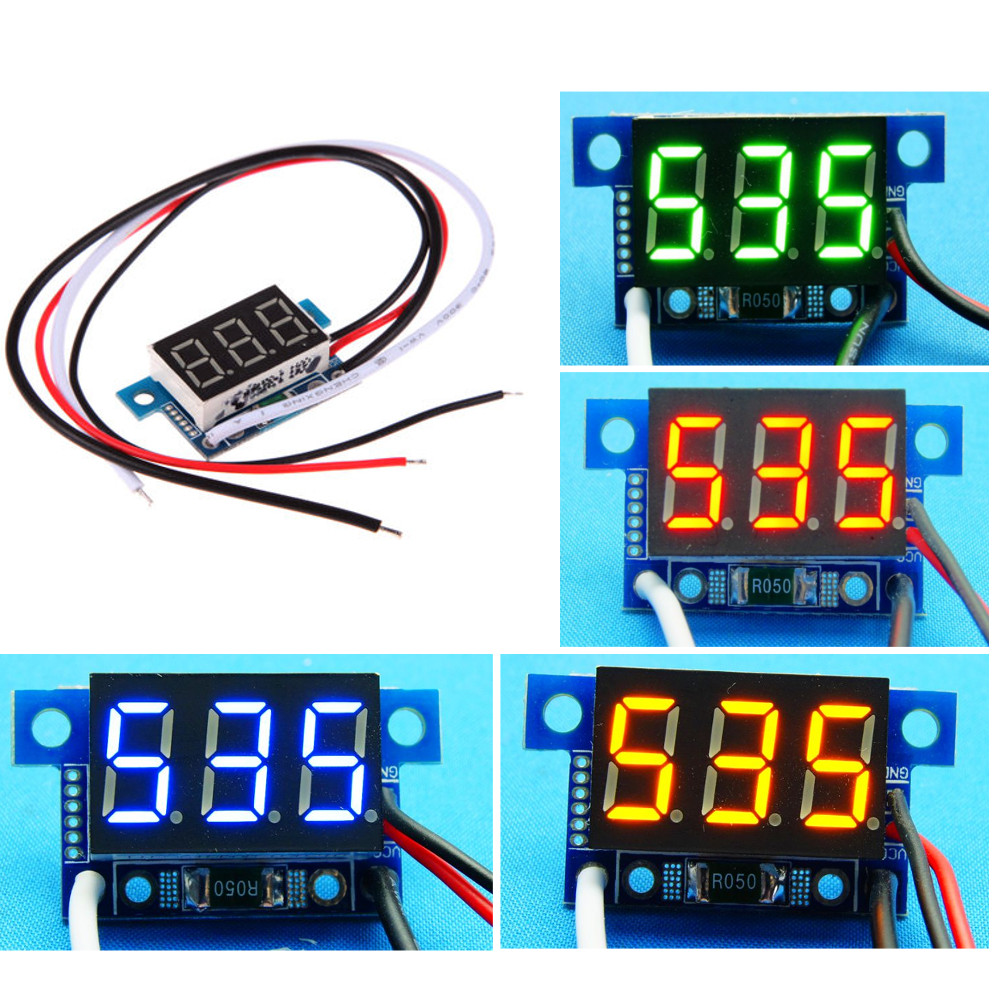

Elecbee 3pcs Green Light Mini 0.36 Inch DC Current Meter DC0-999mA 4-30V Digital Display
SKU: EB0047788
Favorites
Key Features
| Module name | Current display module | Measurement accuracy | 0.10% |
| Refresh rate | About 200ms - times | Display method | Three digits 0. 36" digital tube |
| Measuring range | 0A-999mA | Power supply range | 4V-30V |
| Working current | Less than 8mA | Display color | Green |
| Storage temperature | -10°C to +65°C | Input resistance | 50 milliohms |
| Weight | 10g | Peripheral size | 35*14*10mm |
Wiring diagram:
- The ground wire of power supply end and measuring end of this ammeter adopts common ground design, that is, the ground wire of the power supply and test end is interlinked, so the test end of the ammeter can only be stringed after the household appliance (ie, Between the negative pole of the measuring device and the negative pole of the power supply of the device under test)
- It is recommended that the power supply terminal of the meter head be powered by a single DU isolation.
- The shunt must be connected to the circuit before use and then connected to the digital ammeter to prevent high voltage damage to the meter.
Shared power supply under test
Show More
Shipping Guide
Shipping | Delivery Period | For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Description
Package includes:
3 x Meter
