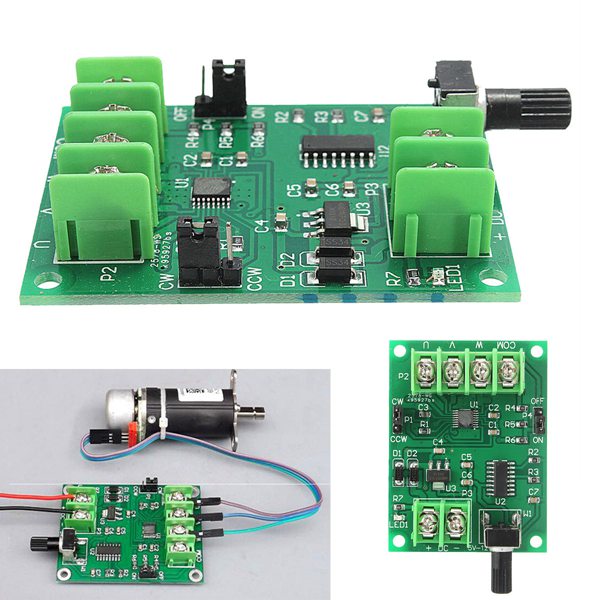

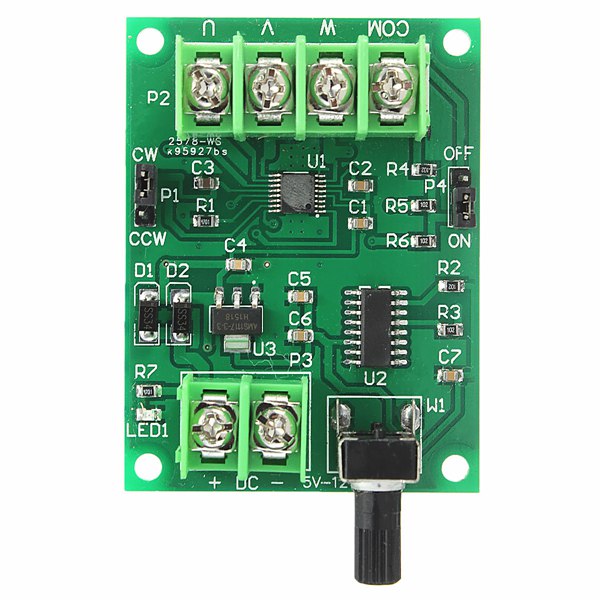

Elecbee 3pcs 5V-12V DC Brushless Motor Driver Board Controller For Hard Drive Motor 3/4 Wire

SKU: EB0048637

Favorites

Key Features

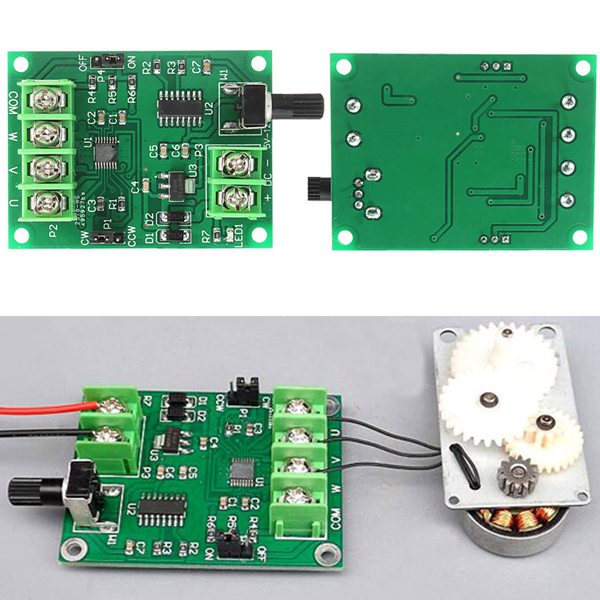

-For driving micro line 3 or 4 lines no Hall brush-less motor such as Hard disk brush-less motor, Drive brush-less motor

-With Reverse Voltage Protection,OCP(over-current protection)

xa0

Specifications:
xa0

Material: PCB

Color: Green

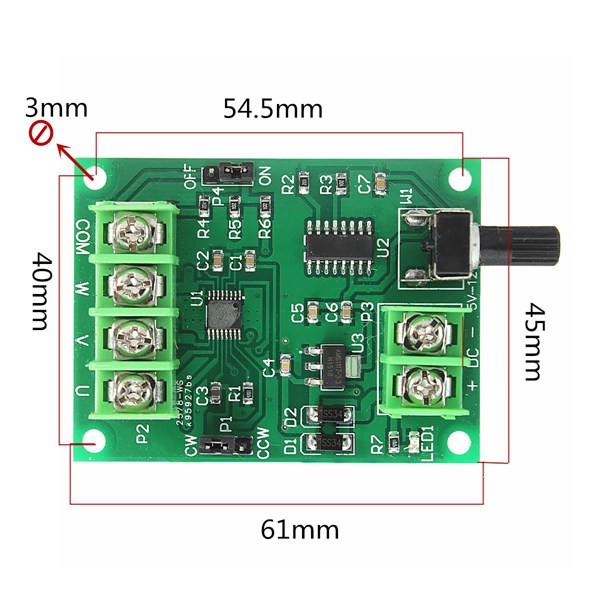

Size: 31*45mm

Diameter of location hole: 3mm

Driving voltage: 5-12V

Working current: ≤1.2A

Speed adjustable range: 0%-100%
xa0

Note:xa0
xa0

The brush-less motor line must be pressure sturdiness when receiving terminal drive plate , poor contact will burn out the chip phase operation deficiency. If there is a interval between the board terminals and fixed screw, please use coarser line connected to the board.

xa0
