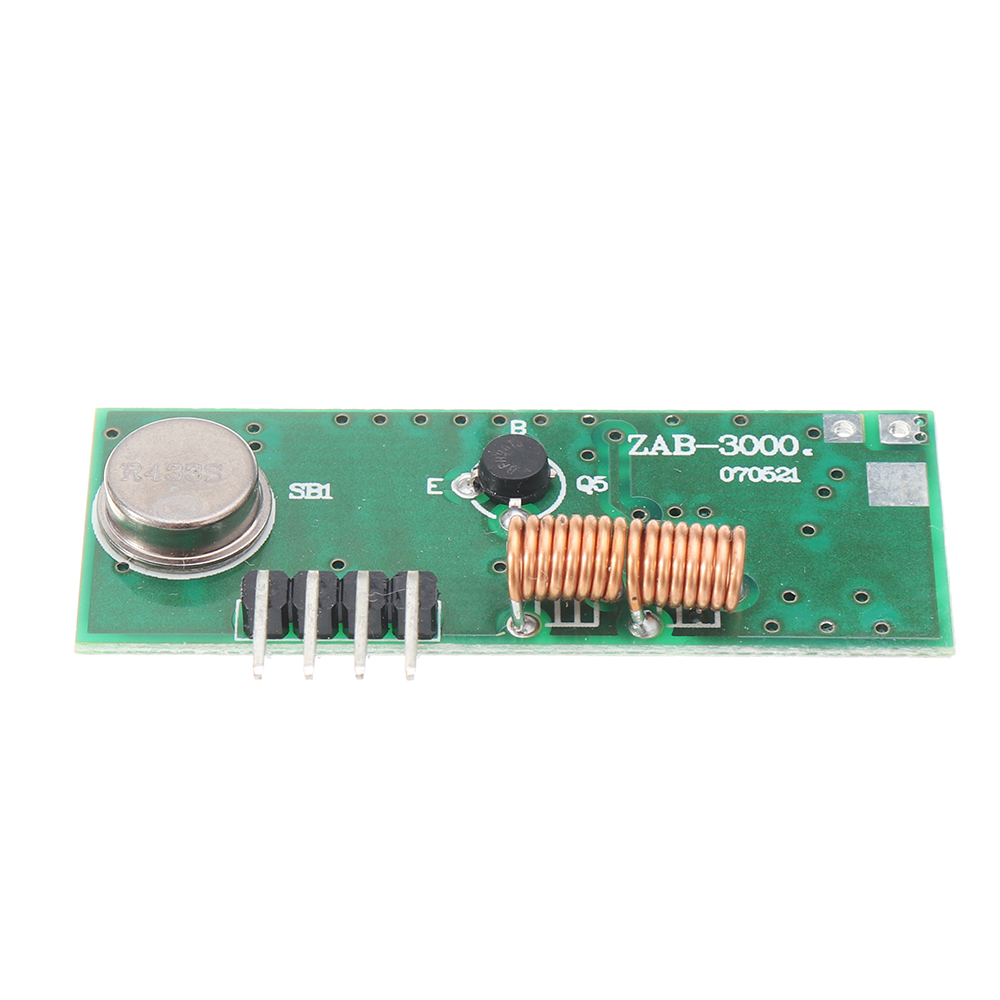

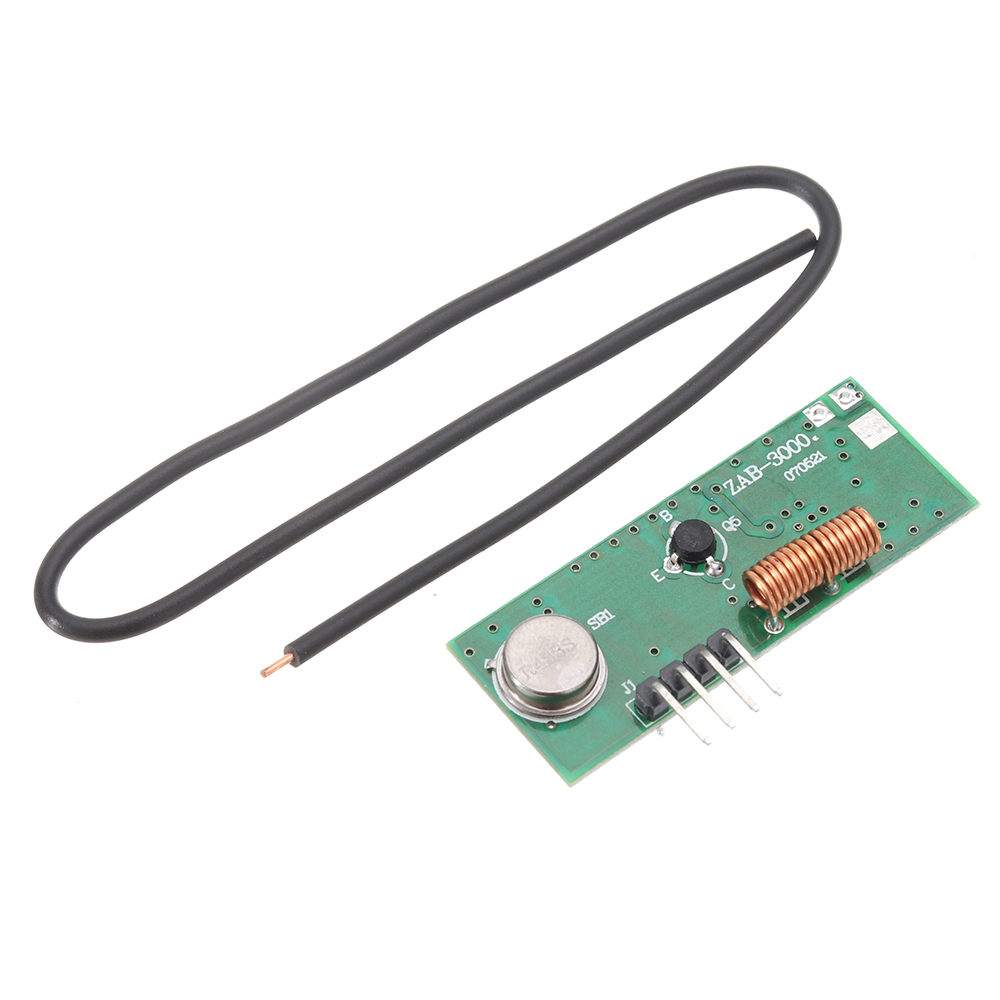

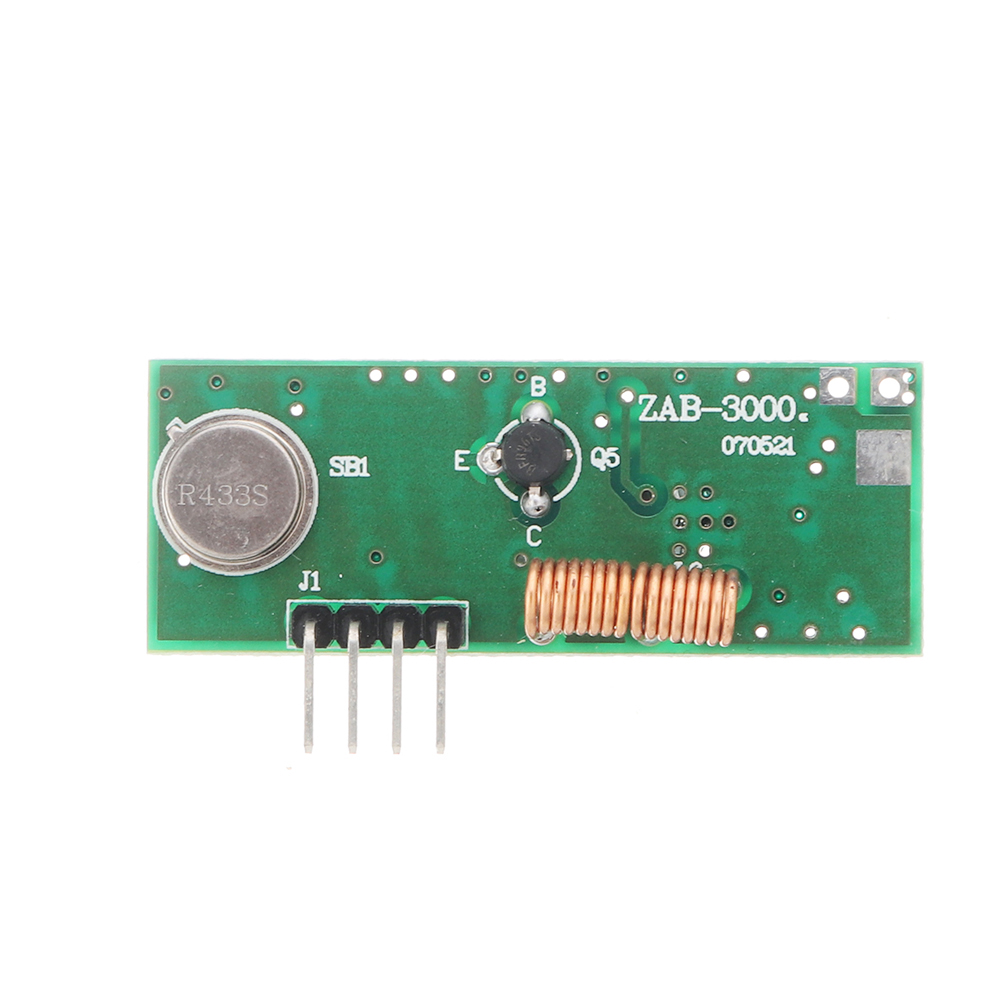

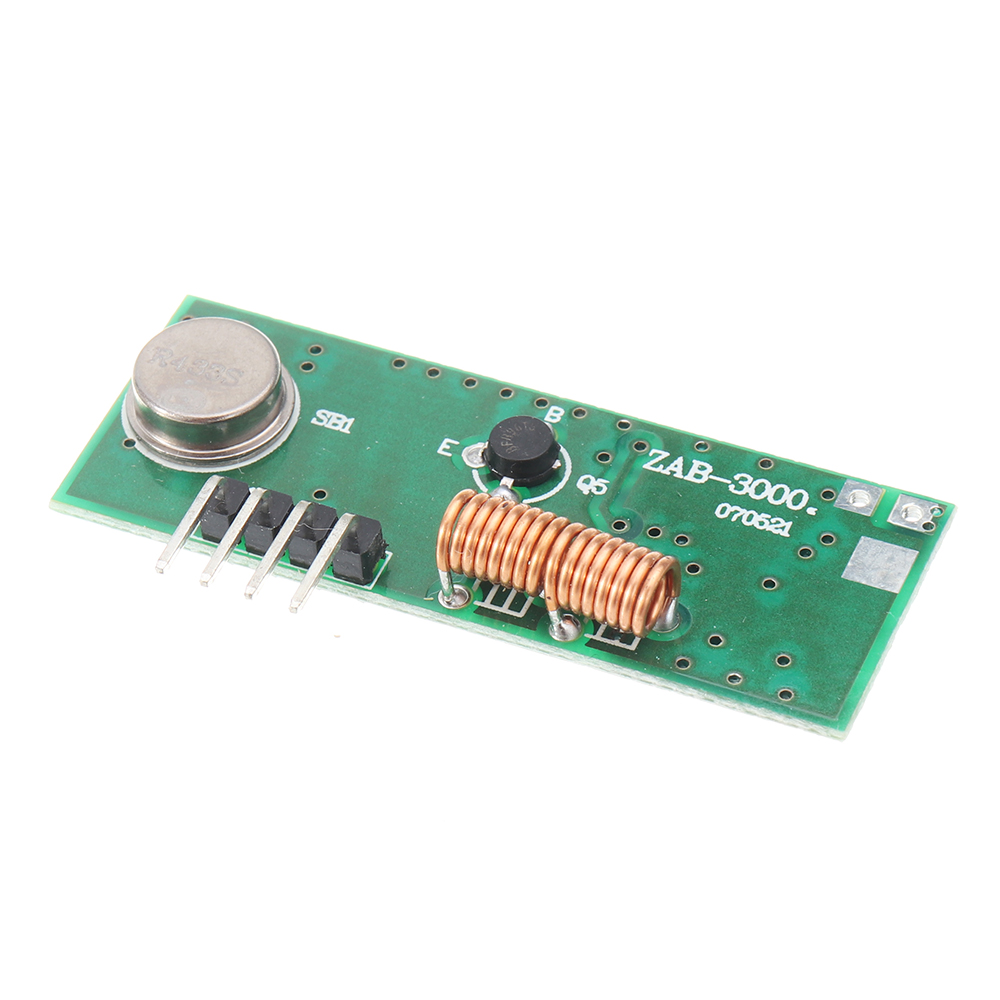

Elecbee 3pcs 433MHZ High Power Wireless Transmitter Module 3000M Long Range ASK Transceiver Board

SKU: EB0042892

Favorites

Key Features

Product Name: Wireless 3000m Transmitter Module

Product type ZAB-3000 (without coding)

Dimensions : 45mm*17mm*6.2mm

Working voltage: DC 9V ~12V

Working current: 200~220mA

Operating frequency: 433MHz

Transmit power: >10mw

Launch distance: 2000-3000 meters

Radiated power: 1.5 W

Modulation method: ASK

Quiescent current: 0uA

Rated parameter	Symbol	Value
DC supply voltage	VDD-VSS	5V
Storage temperature range (TS)	TSTG	-12°C to 75°C
Welding temperature	+260°C

	PIN	Description
1	ANT	RF signal input pin, this pin should be connected to the antenna
2	VSS	Positive power supply
3/4	GND	Negative power supply
5	DATA	Data signal output, compatible with CMOS levels
