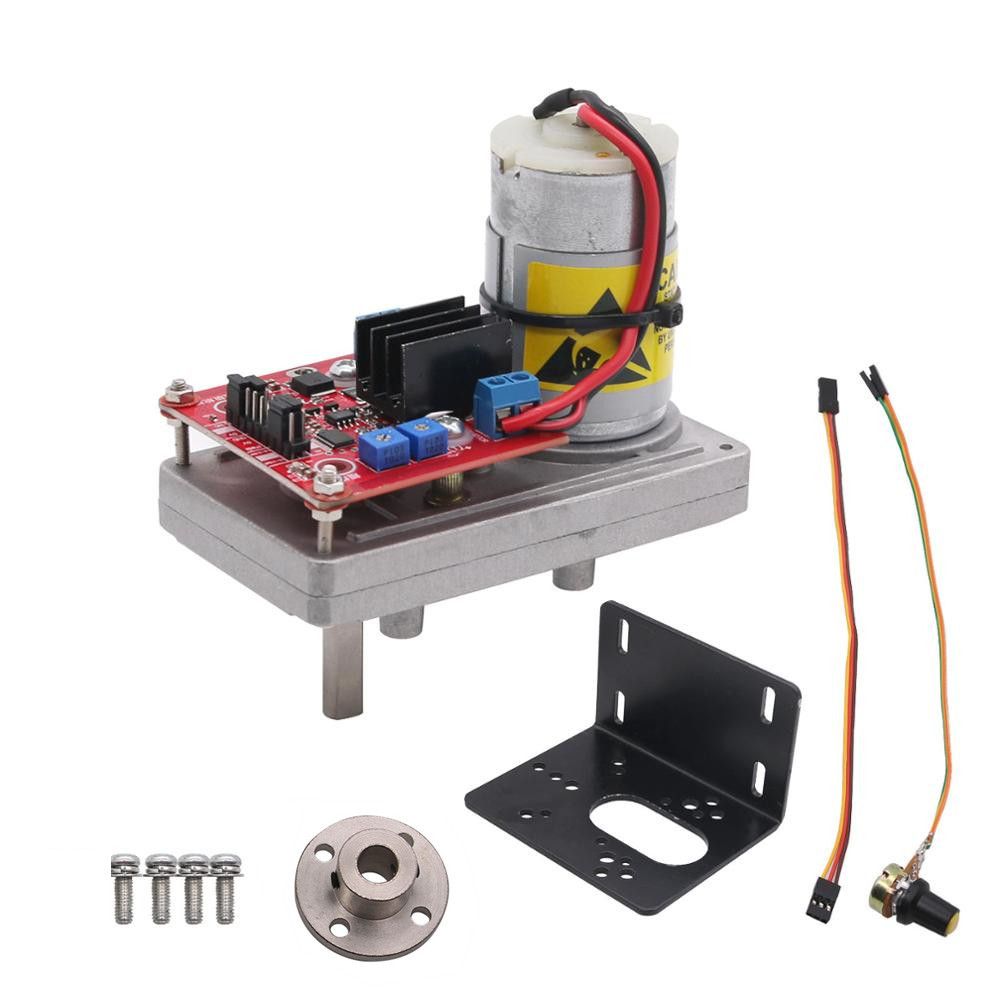

Elecbee 380kg/cm High Torque Steel Gear Servo Kit with Potentiometer DC12V-24V for Mechanical Arm Robot
SKU: EB0032589
Favorites
Key Features
Show More
Specifications
Attribute
Value
Search
Wireless Capability
Bluetooth
Shipping Guide
Shipping | Delivery Period | For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Description
Specifications:
Working Voltage: DC12-24V
No-Load Current: <500mA
Maximum Torque(Actual Measurement): 380kg.cm(24V):1764N.cm(24V); 90kg.cm(12V);882N.cm(12V)
Angular Speed: 0.12s/60° @24V; 0.24s/60° @12V
Rotation Angle: 300° MAX. (Adjustable)
Input Modes: PWMIN is PWM pulse signal (For remote controllers, multi-way servo controllers & MCU);ADIN is analog voltage signal(potentiometer).
Pulse Signal Input Range: 0.5ms-2.5ms for multi-channel controller, for 1ms-2ms RC controller, MCU programming and the like
Voltage Signal Input Range: 0 to +5V
Control Accuracy: 0.5°
Weight: 530g
Gear Material: Steel
Size: 95.5 x 60.5 x 102.6 mm
Application:
- For medium to large robots, mechanical arms and other fields requiring high power and high torque control.
- Power Supply Input: DC12-24V.
- Motor Output: OUT1 to motor -; OUT2 to motor +.
- Mode Selection: Select pulse signal input or analog voltage signal input by jumper cap. PWMIN is for pulse signal input. ADIN is for analog voltage signal input.
- Analog Control Mode: Angle input signal is analog. A potentiometer is used to control the angular position of motor's axle.
- Digital Control Mode: Angle input signal is digital square wave signal with pulse width 0.5ms-2.5ms or 1ms-2ms.
1 x 380kg/cm High Torque Servo
