Elecbee 20pcs MFRC-522 RC522 RFID RF IC Card Reader Sensor Module Solder 8P Socket

SKU: EB0043177

Favorites

Key Features

Product Features:

Working current: 13-26mA/DC 3.3V

Idle current: 10-13mA / DC 3.3V

Sleep current: <80uA

Max. current: <30mA

Working frequency: 13.56MHz

Supported card types: mifare1 S50, mifare1 S70, mifare UltraLight, mifare Pro, mifare Desfire

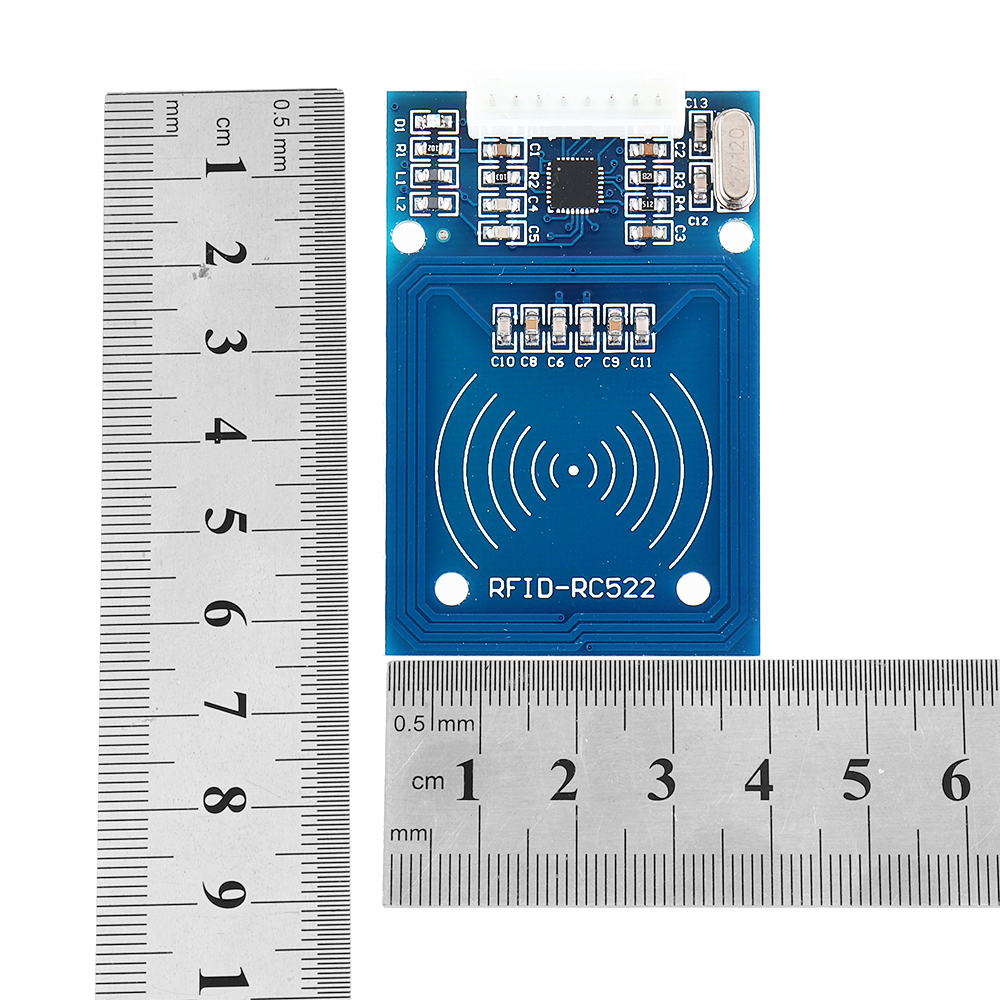

Product physical characteristics: size: 40mm × 60mm

Environmental working temperature: -20-80 degrees Celsius

Environmental storage temperature: -40-85 degrees Celsius

Relative humidity: 5%-95% relative humidity
Data transmission rate: up to 10Mbit/s

Specifications

Show Similar Products (2768) >

Attribute

Value

Wireless Capability

Bluetooth

Show Similar Products (2768) >

Shipping Guide

Shipping	Delivery Period	For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days
	Shipping Rates	Shipping rates for your order can be found in the shopping cart.
	Shipping Options	Shipping rates for your order can be found in the shopping cart.
	Shipping Tracking	We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/Warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
	Warranty	All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
		This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
Ordering	How to Buy	Elecbee accepts online orders.
		Add to cart > Check out > Submit order > Complete payment > Delivery
	Payment	PayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Description

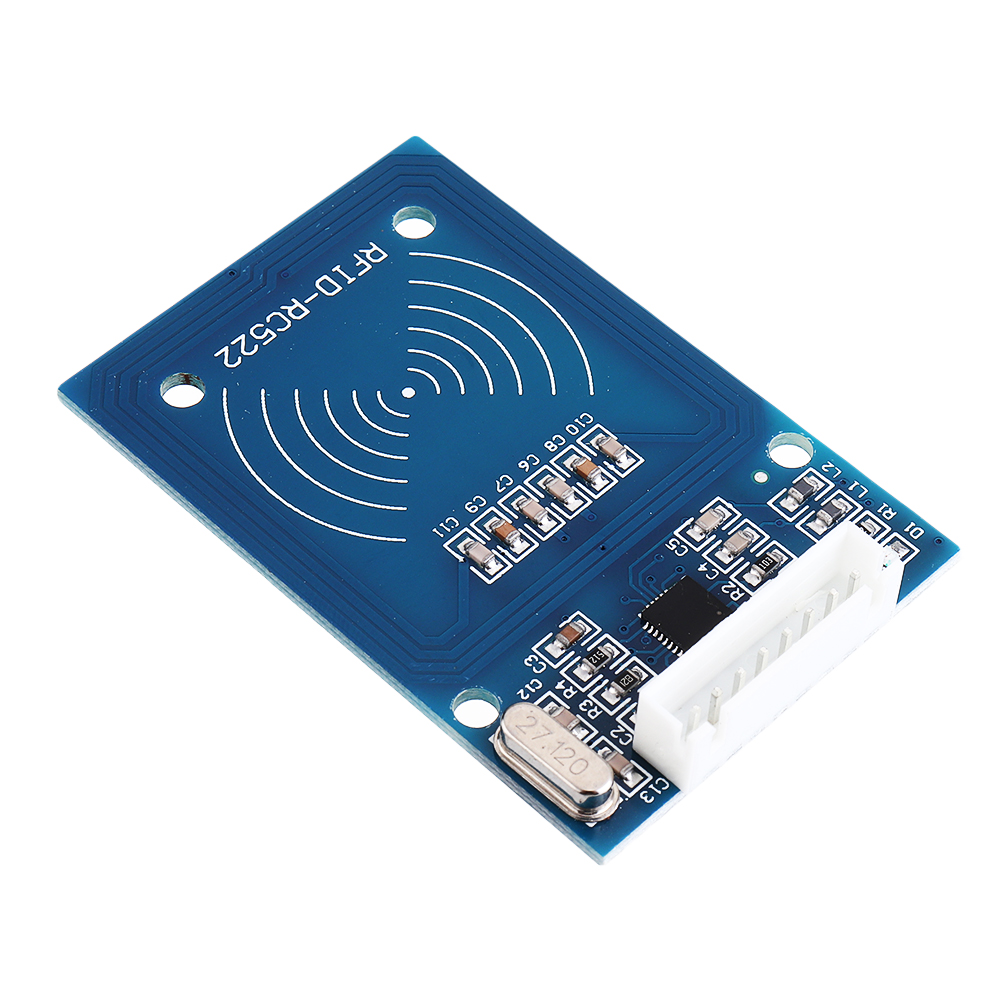

Introduction to the RFID module:

The MF522-AN module adopts MFRC522 original chip design card reader circuit, which is easy to use and low in cost. It is suitable for users of advanced applications such as device development and card reader development, and users who need to design/produce RF card terminals. This module can be directly loaded into various reader molds. The module adopts a voltage of 3.3V, and can be directly connected with any CPU motherboard of the user through a few lines of the SPI interface, which can ensure stable and reliable operation of the module and long reading distance;

Package includes:

20 x RFID module
