Elecbee 2 Pcs SA858 4W Full Function Mini VHF 134-174MHz 10km Long Range Walkie Talkie Module

SKU: EB0042492

Favorites

Key Features

Features:

Full band 400~480 MHz

Tx and Rx frequency can be set alone

Band width 12.5/25KHz

Output power up to 4W

Distance up to 7 to 10 km in Open area

8 adjustable digital volume

Analog volume adjustable limitless

High/low output power selection(1W-4W)

High sensitivity: -124dBm

High integrated and small size

38 CTCSS

166 CDCSS

(can be set by PC software and serial port)

Wide range of working voltage 3.3-9V

Embedded EEPROM, data saved even power off

1ppm TCXO,stable performance

Specification:

Specifications

Show Similar Products (2768) >

Attribute

Value

Wireless Capability

Bluetooth

Show Similar Products (2768) >

Shipping Guide

Shipping	Delivery Period	For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days
	Shipping Rates	Shipping rates for your order can be found in the shopping cart.
	Shipping Options	Shipping rates for your order can be found in the shopping cart.
	Shipping Tracking	We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/Warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
	Warranty	All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
		This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
Ordering	How to Buy	Elecbee accepts online orders.
		Add to cart > Check out > Submit order > Complete payment > Delivery
	Payment	PayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Description

Description:

SA858 is a professional 4W / UHF band walkie talkie module.Strong RF circuit, DSP, digital interface.and audio amplifier is built in.Besides Uart command, user can use our provided PC software to configure all the parameters, the parameters includes: Tx frequency, Rx frequency, TX CTCSS / CDCSS, RX CTCSS /CDCSS, digital volume and SQ. To avoid the heating for this high power walkie talkie. We have done special handling on the software with a strong radiator added, which makes it has no problem for long time continuous working. When SA858 is connected with SA858-PJ, it is easy to organize a professional all in one walkie talkie system,the system include 16 predefined frequency channels, adjustable volume, configurable CTCSS/CDCSS. User need only to connect with power supply and speaker. Simplified interface and ultra small size make SA858 widely used in various applications and conveniently embedded into various handheld devices.

Application:

Small professional walkie talkie

Intercom system

Building community security system

Sport products

Handheld / Pocketable device

Audio surveillance system

Package included:

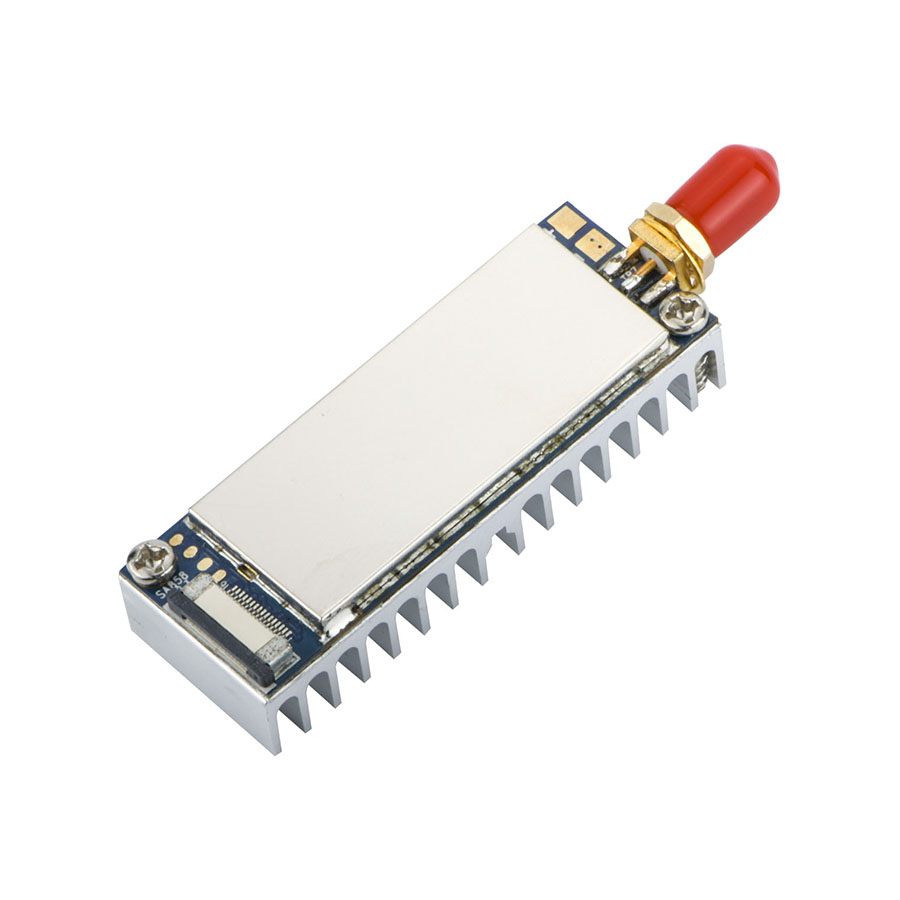

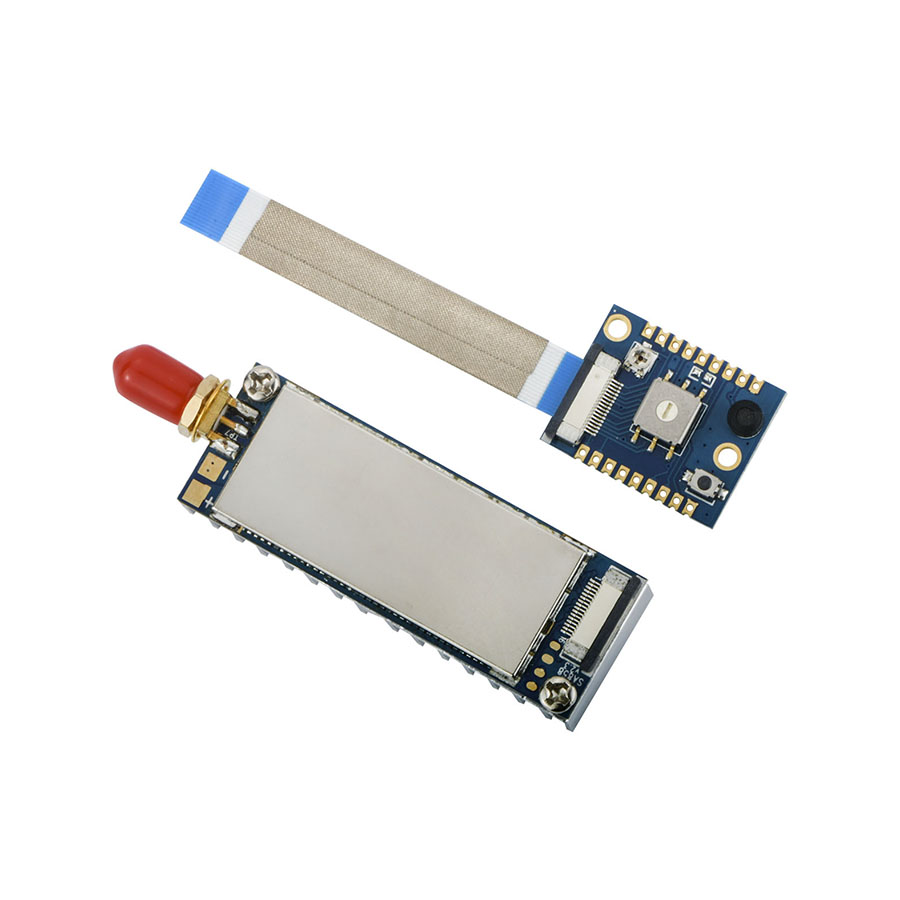

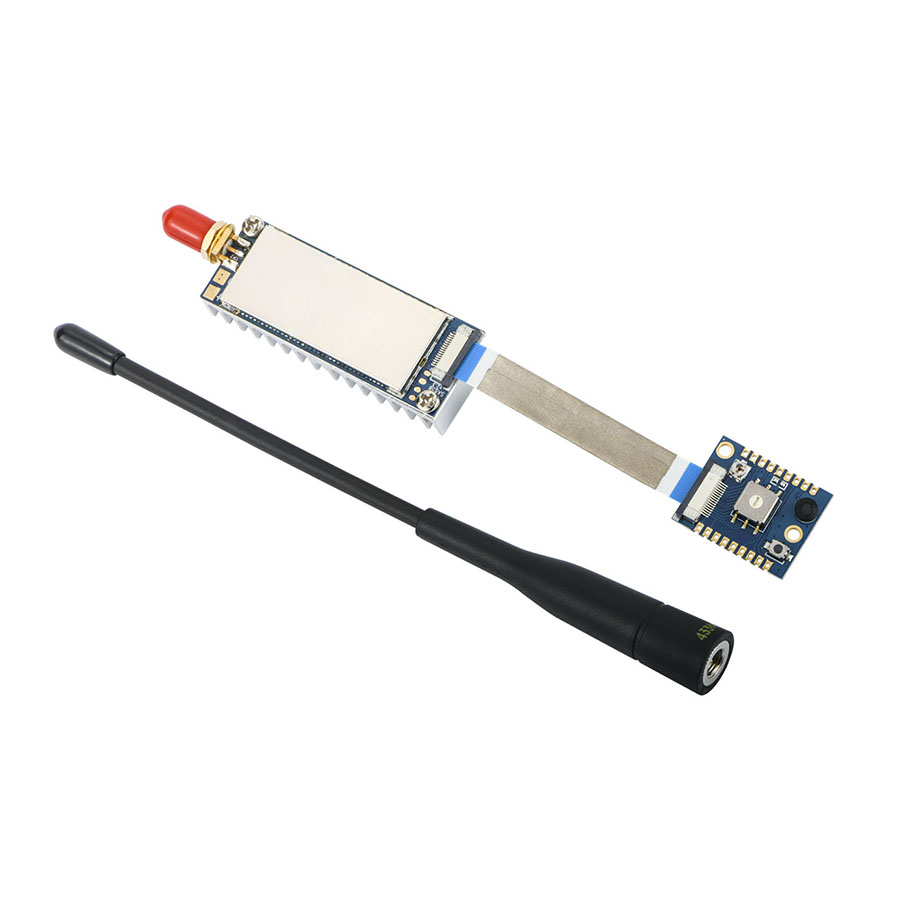

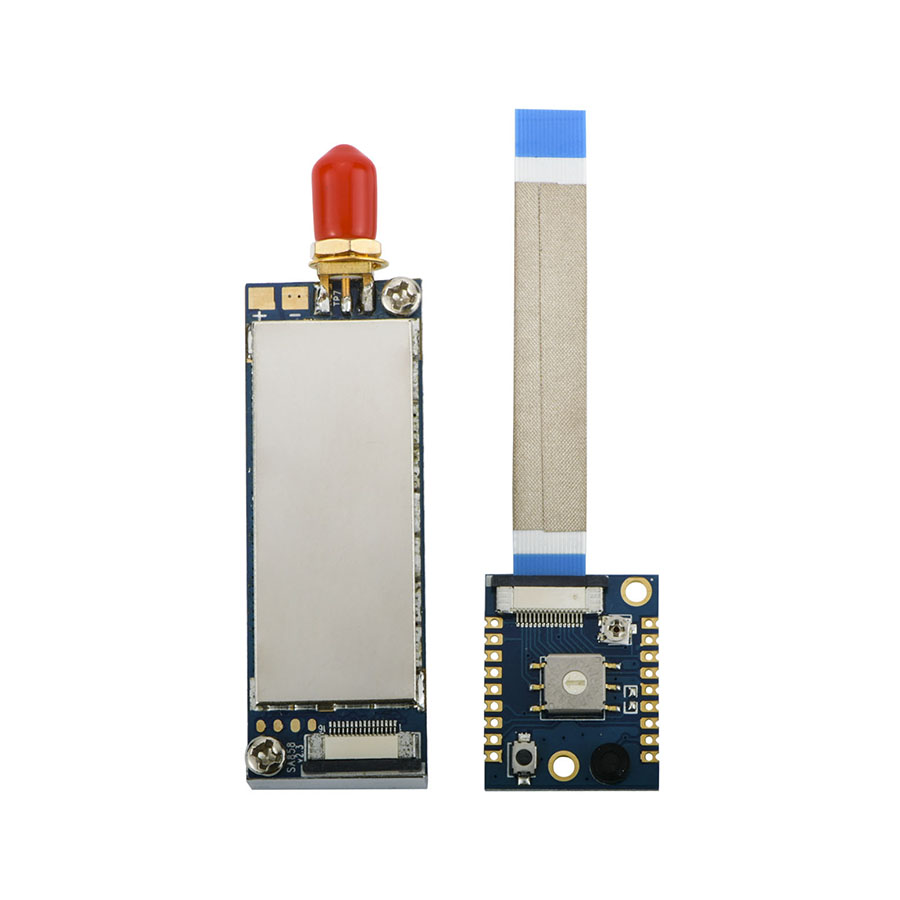

2 x SA858A (VHF walkie talkie module with heat sink)

2 x Accessory boards

2 x 150MHz Rubber antennas

2 x Small Speakers
